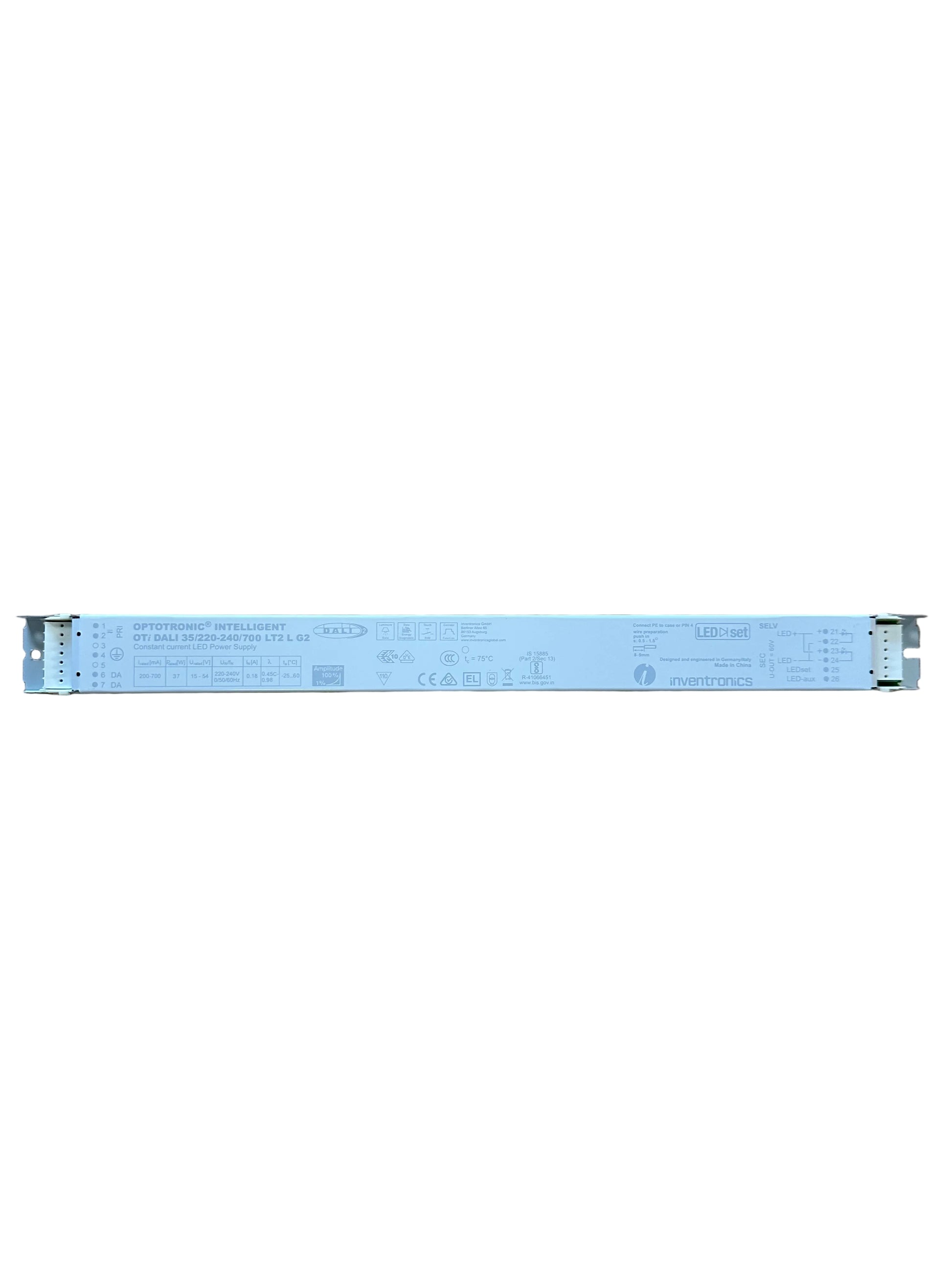

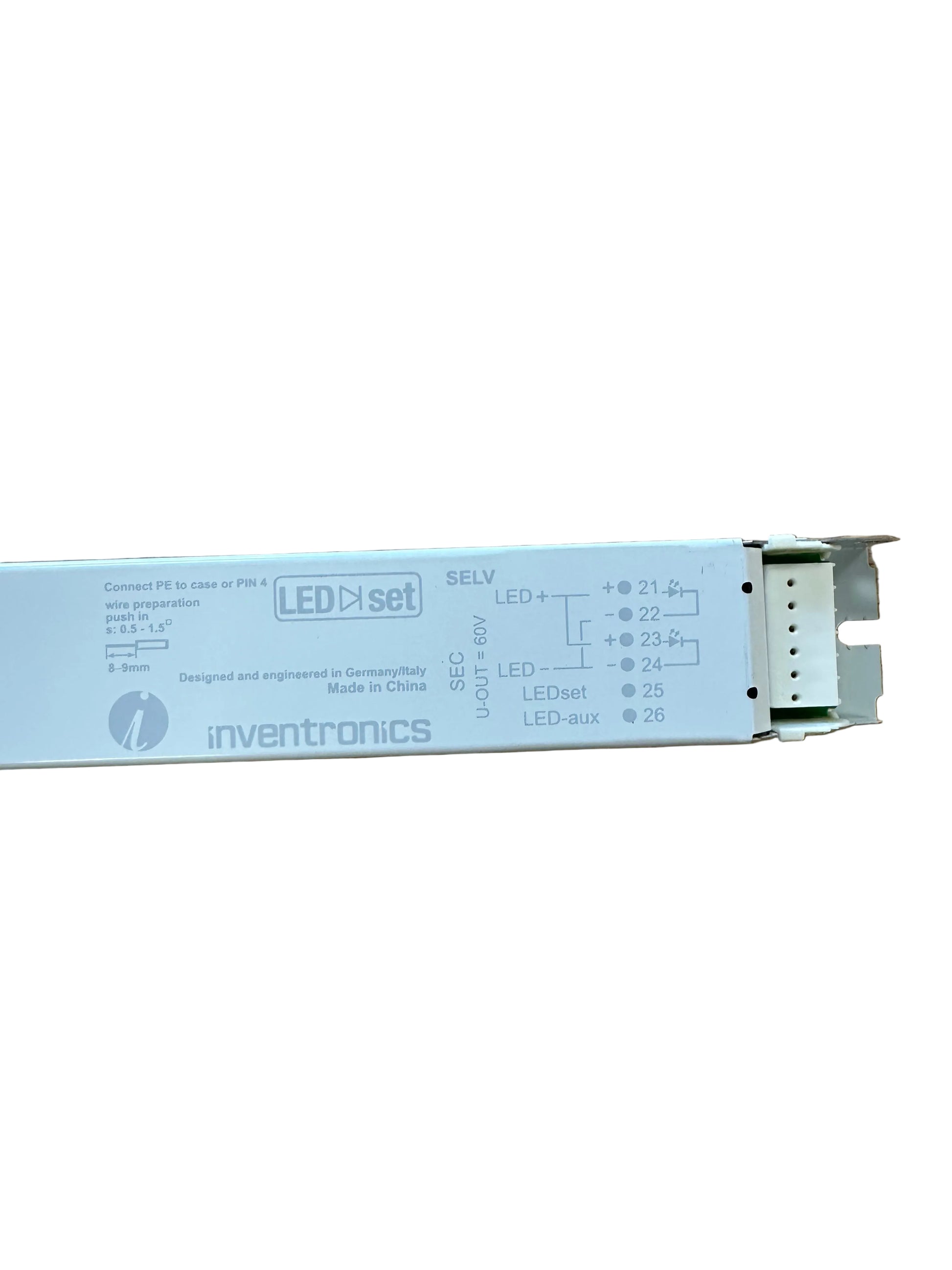

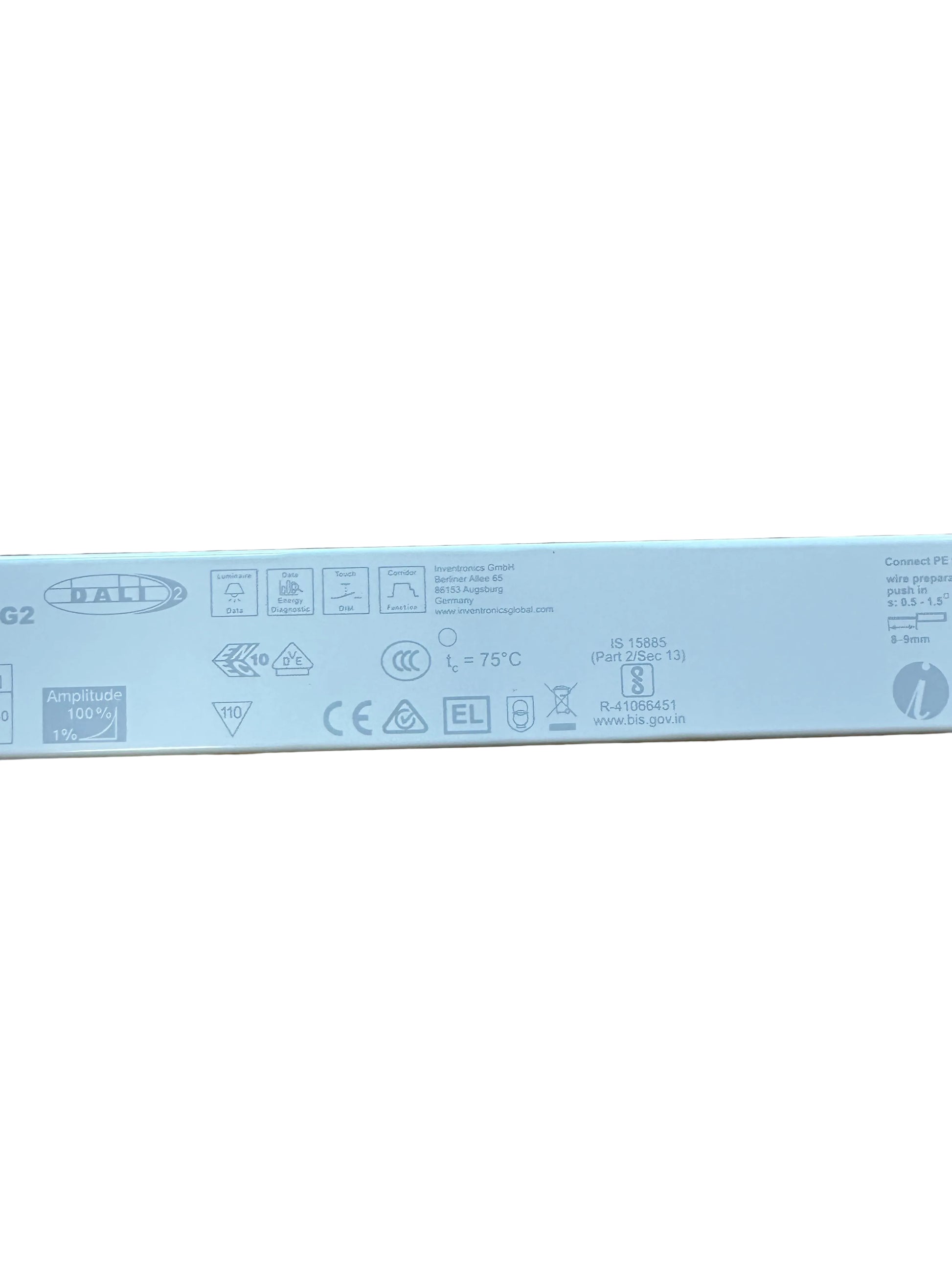

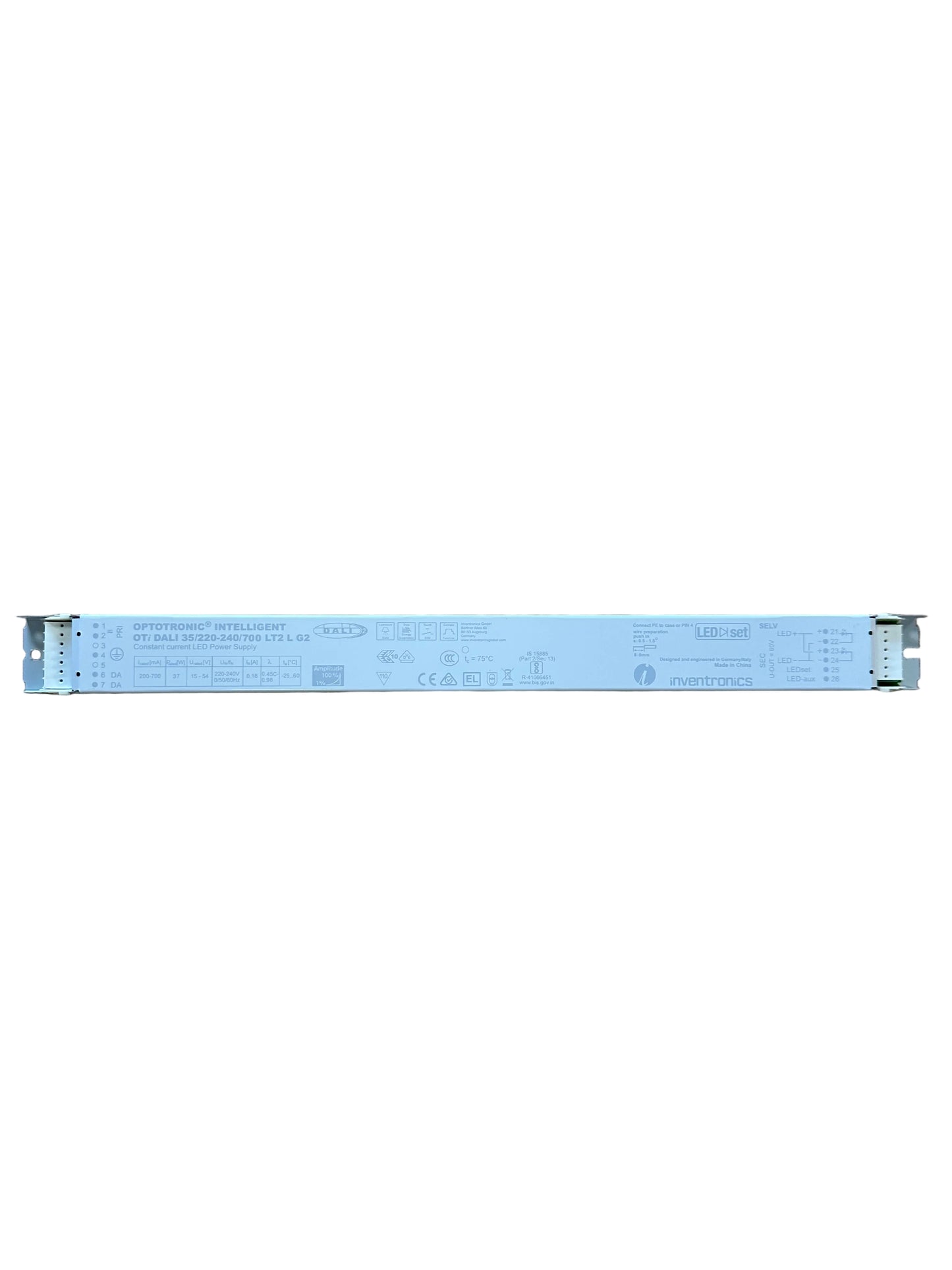

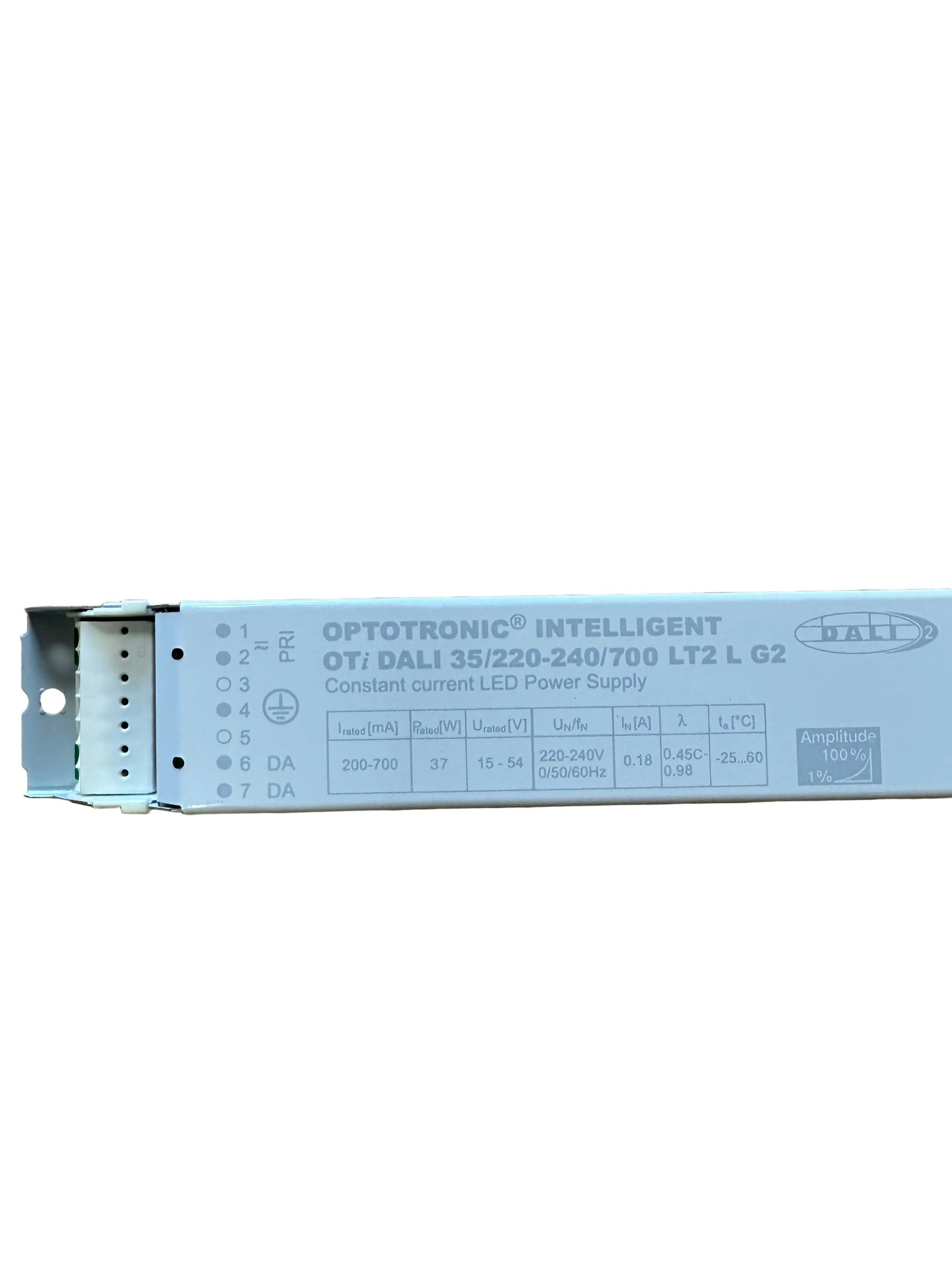

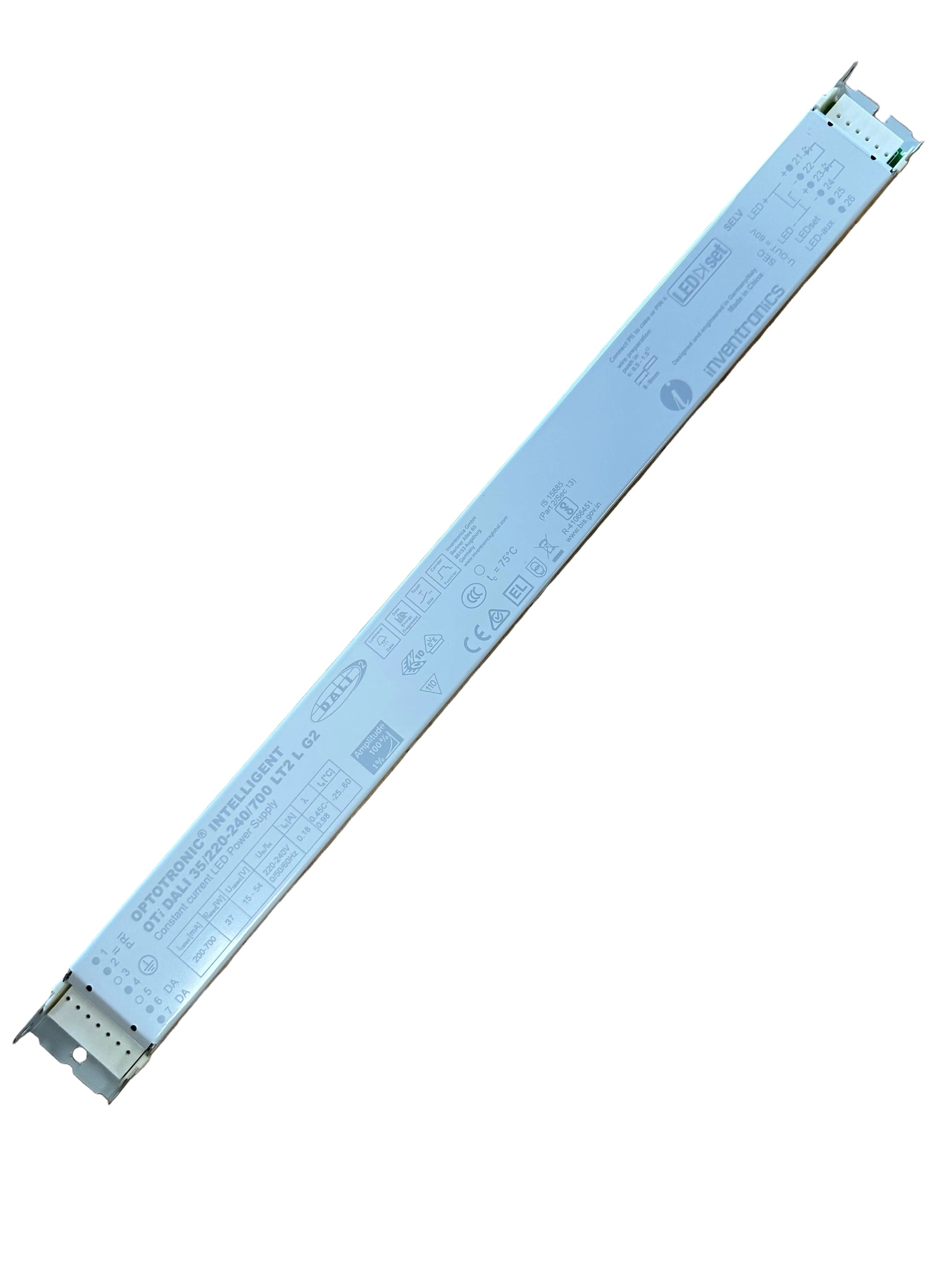

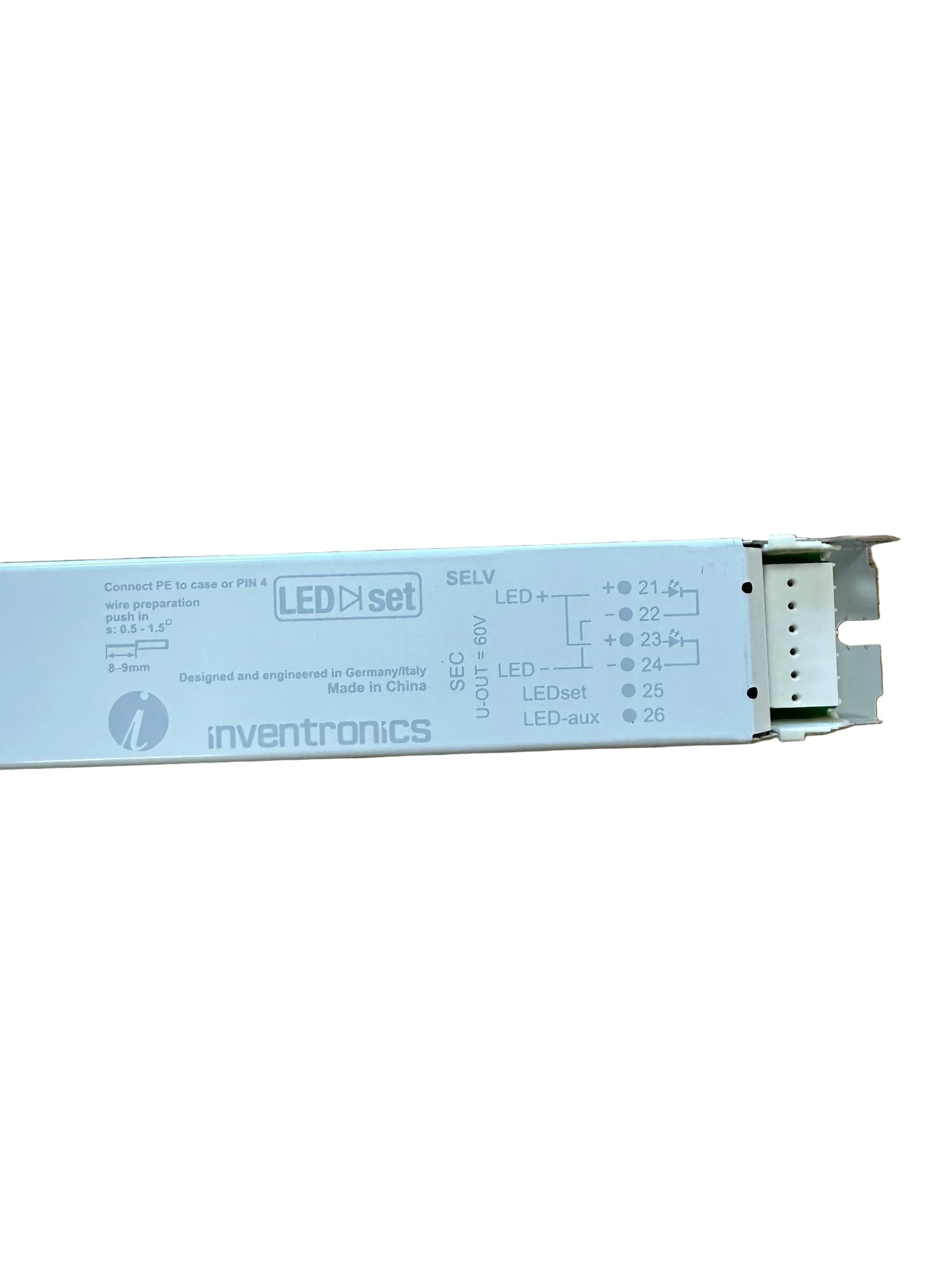

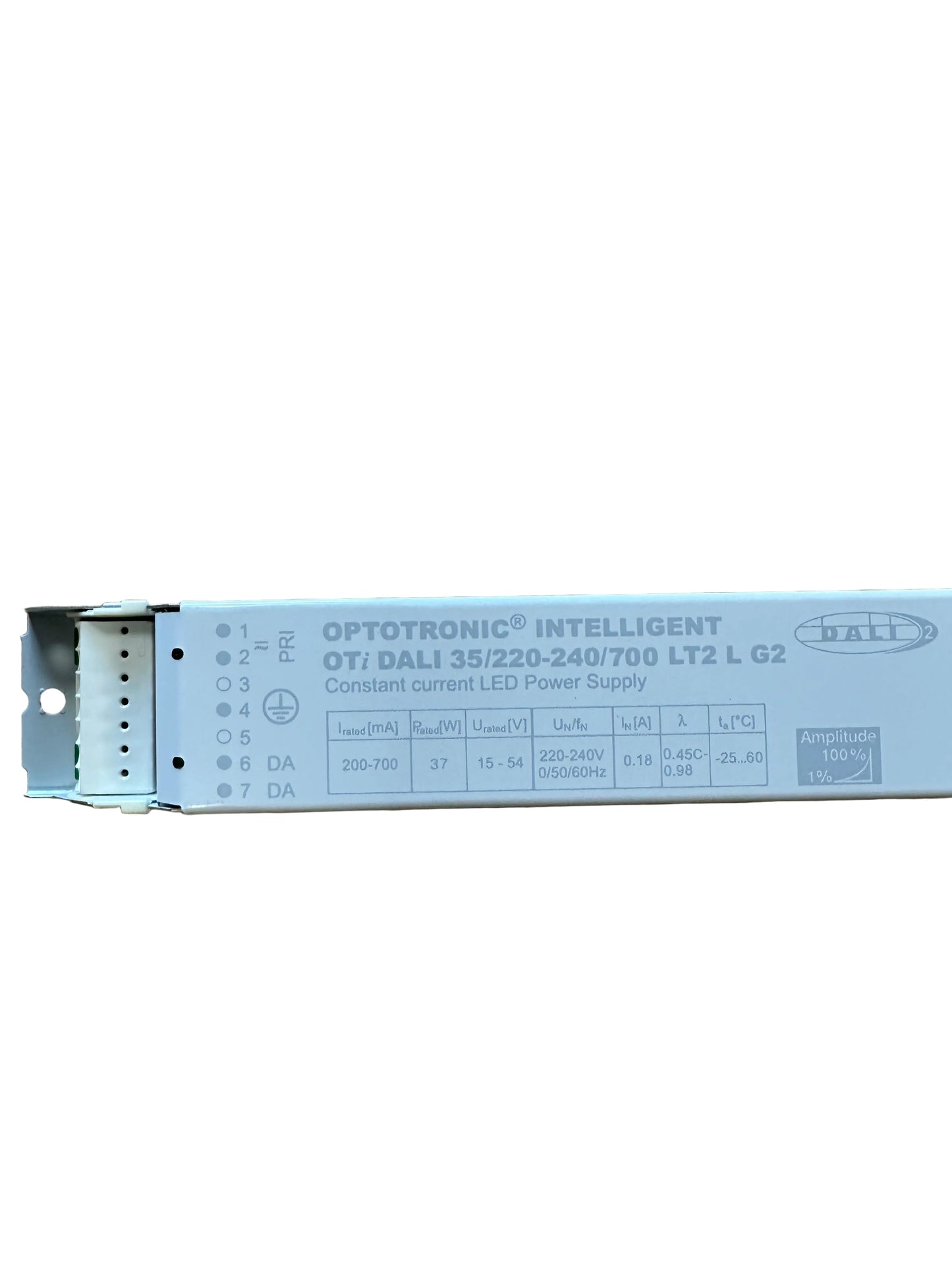

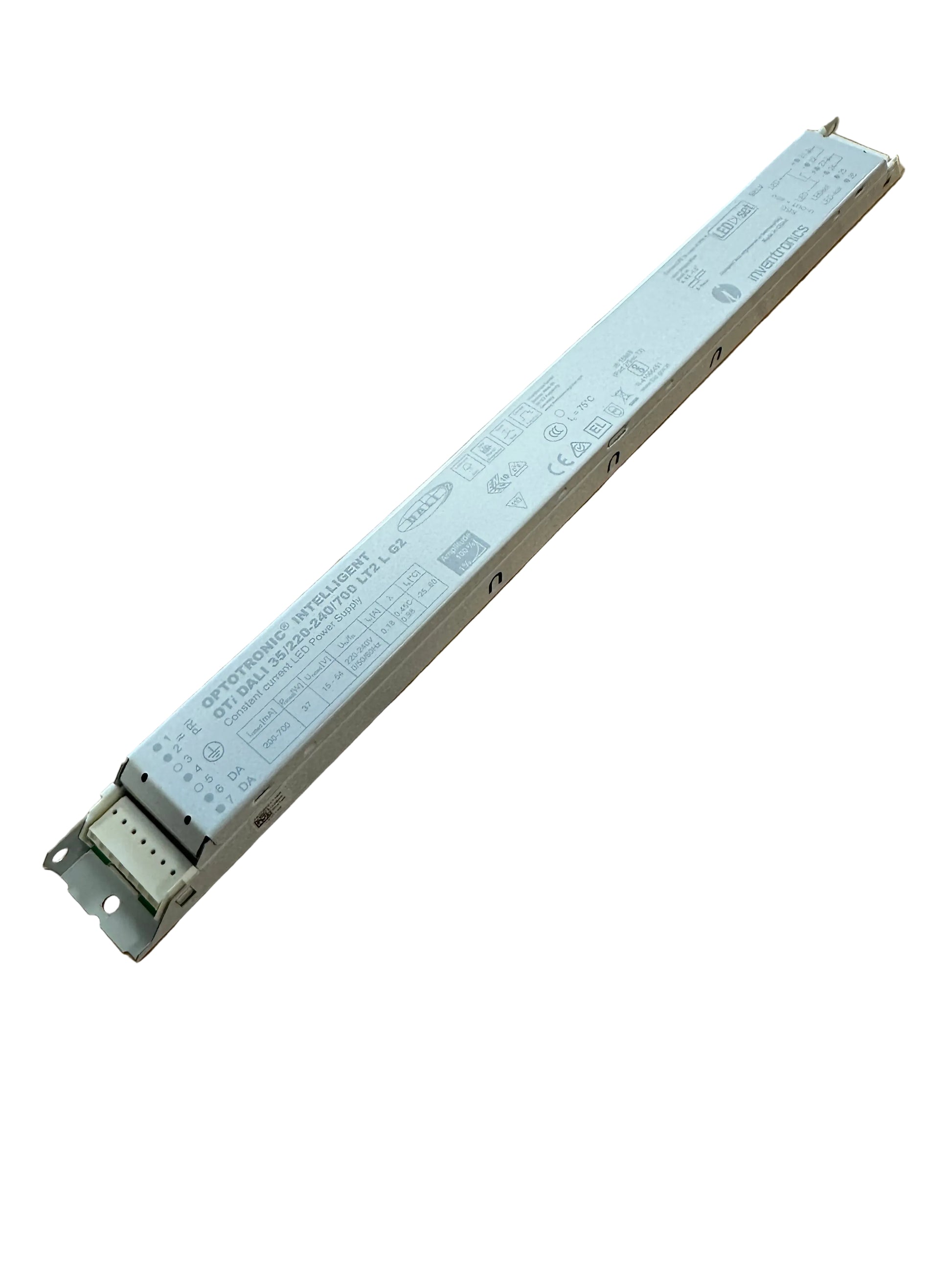

Osram - Inventronics OTi DALI 35/220-240/700 LT2L G2 – OPTOTRONIC® Intelligent
Osram - Inventronics OTi DALI 35/220-240/700 LT2L G2 – OPTOTRONIC® Intelligent
Osram - Inventronics OTi DALI 35/220-240/700 LT2L G2 – OPTOTRONIC® Intelligent
4052899551763 - 6937186112279
OTI DALI 35/220-240/700 LT2L G2 Features
Line frequency: 0 Hz | 50 Hz | 60 Hz
Versatile DALI window driver up to 4-37W due to flexible output characteristic
Supply voltage: 220…240 V
Output current range: up to 200-700 mA
Constant Lumen Output (CLO)
Integrated customizable thermal management (Driver Guard)
DALI-2 certified (Part -101,-102 and -207)
Dimensions 360mmL 30mm W 21mm H
OTI DALI 35/220-240/700 LT2L G2 Benefits
Fully programmable via software (DALI Interface)
Flexible current setting (LEDset2)
Lifetime: up to 100,000 h (temperature at T c = 65 °C, max. 10 % failure rate)
High-quality dimming of 1…100 % by amplitude dimming (except 80 W versions)
High quality of light thanks to <1% output ripple current
Very high efficiency
Very low standby power consumption: < 0.15 W *
Fulfil safety requirement due to overload, overtemperature, Hot Plug protection
Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance
