TCI 122413 127413 DC MAXI JOLLY DALI US

Now code 127413 TCI 122413

Constant Current Dimmable LED Driver 50W Dimming: DALI & Push Dim

• 25-60W (mA Dependent) See chart
• Dimming Range: 0/0.5-100%
• Rated Voltage: 110-127V or 220-240V
• AC working Voltage: 99-264V (50...60Hz)

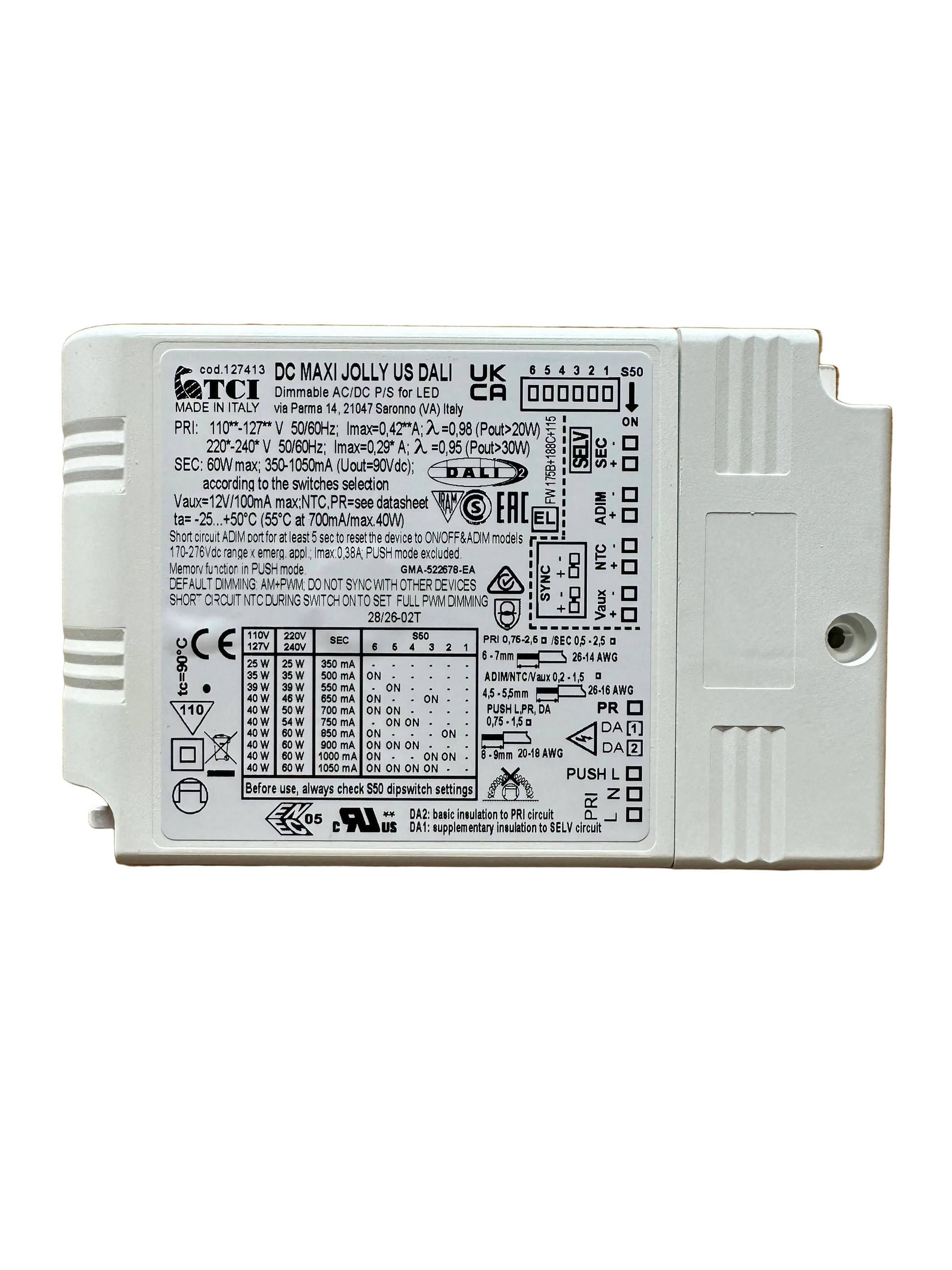

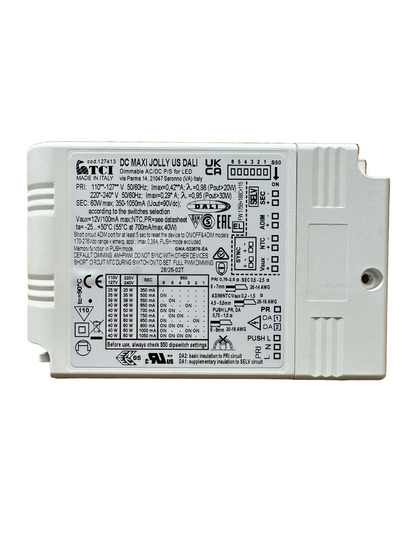

• Constant Current: 350-1050mA See image for full Spec
• Foward Voltage: 2-72V (mA dependent)
• Multipower driver supplied with dip-switch for the selection of the output current.
• IP20 independent driver, for indoor use
• Class II protection against electric shock for direct or indirect contact
• Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Auxiliary output 12 V max. 100 mA.
• Current regulation ±5 % including temperature variations.

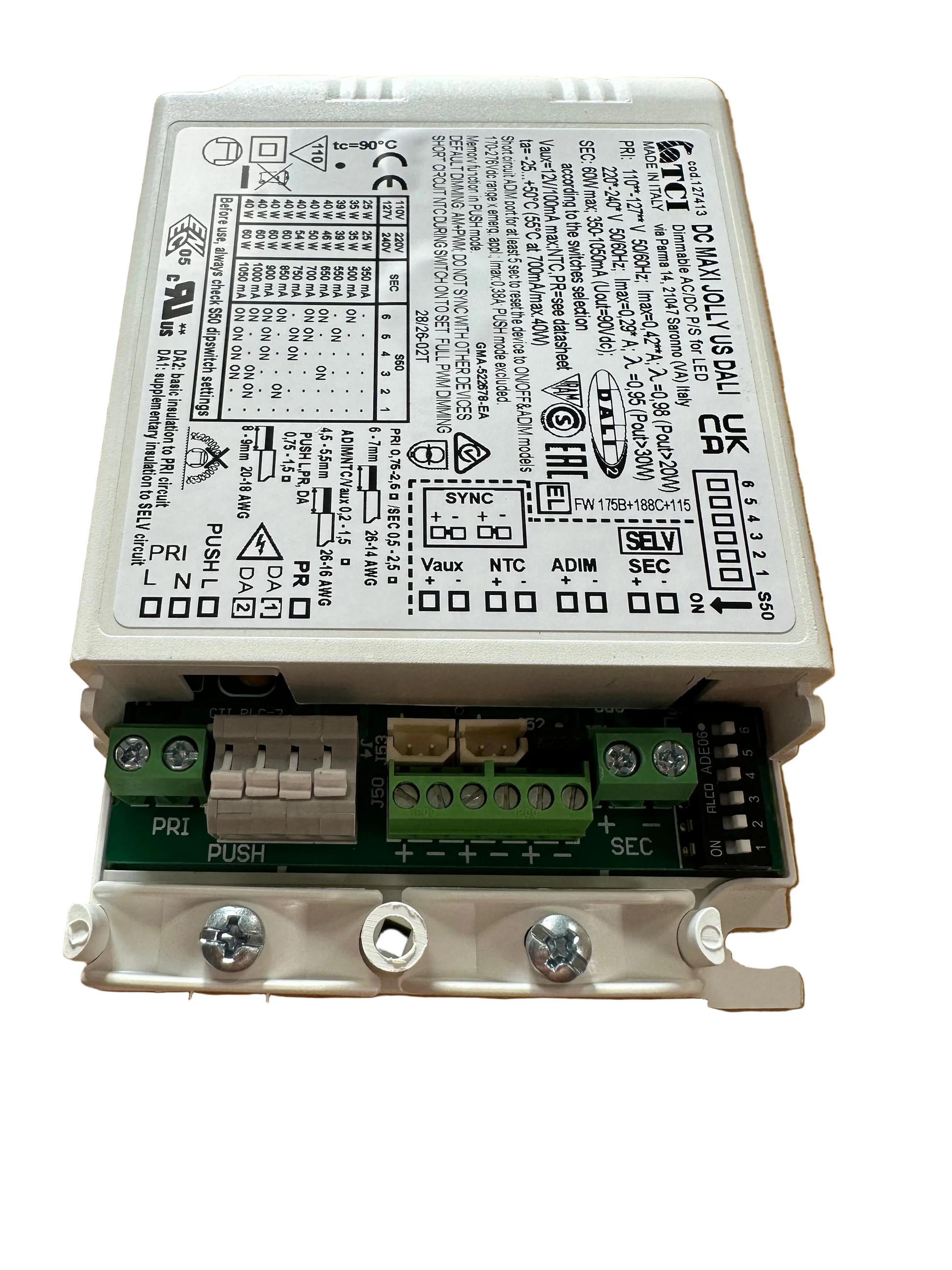

• Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13).
• Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm (DC MAXI JOLLY US DALI).
• Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads.
• Thermal protection = C.5.a.

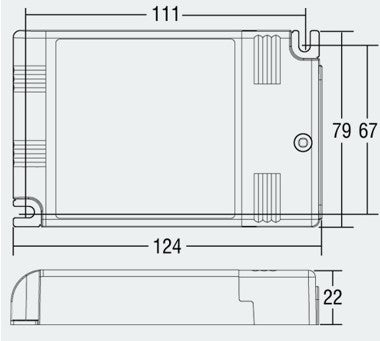

• Dimensions 111mm L 79mm W 22mm W
