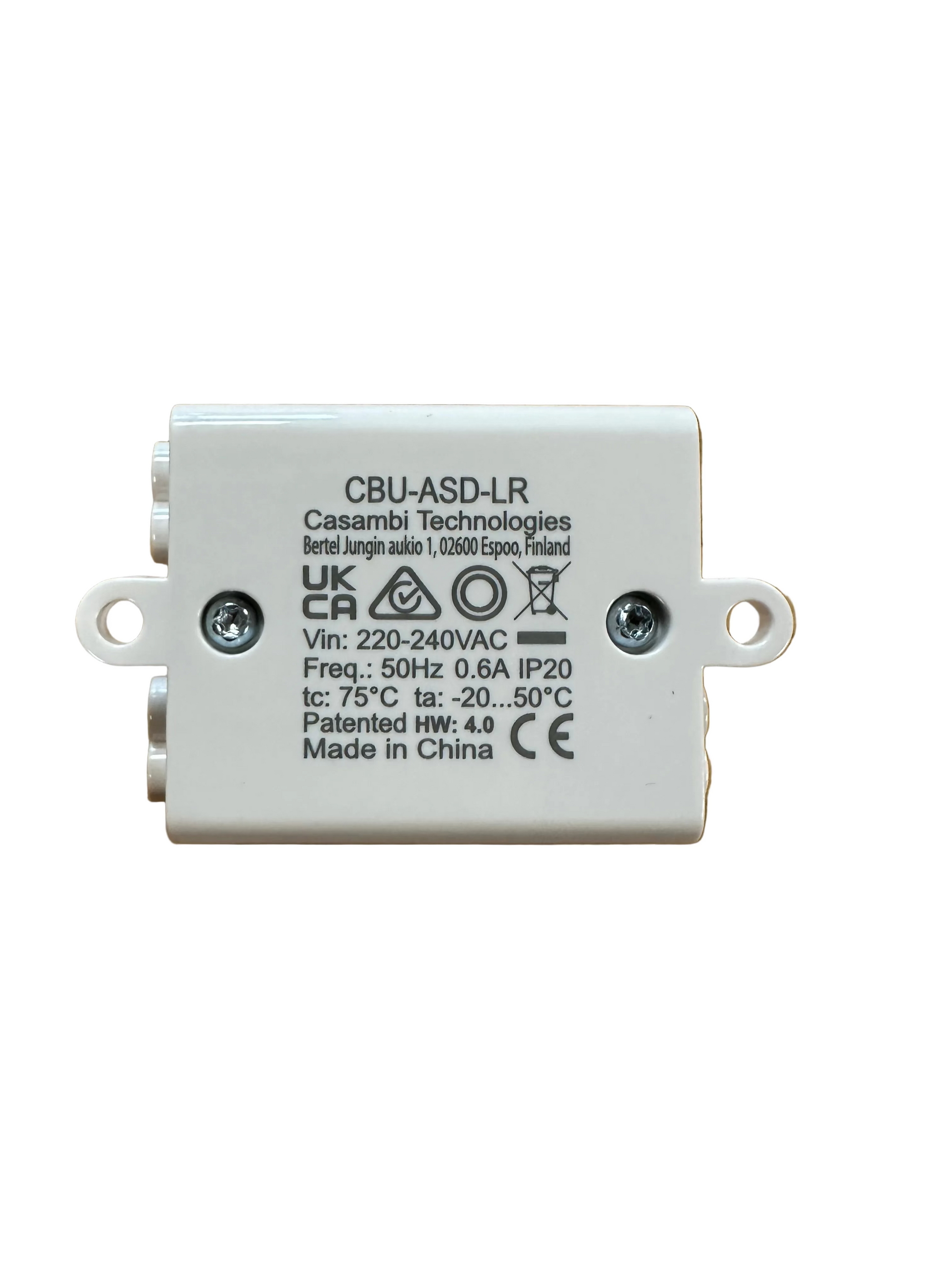

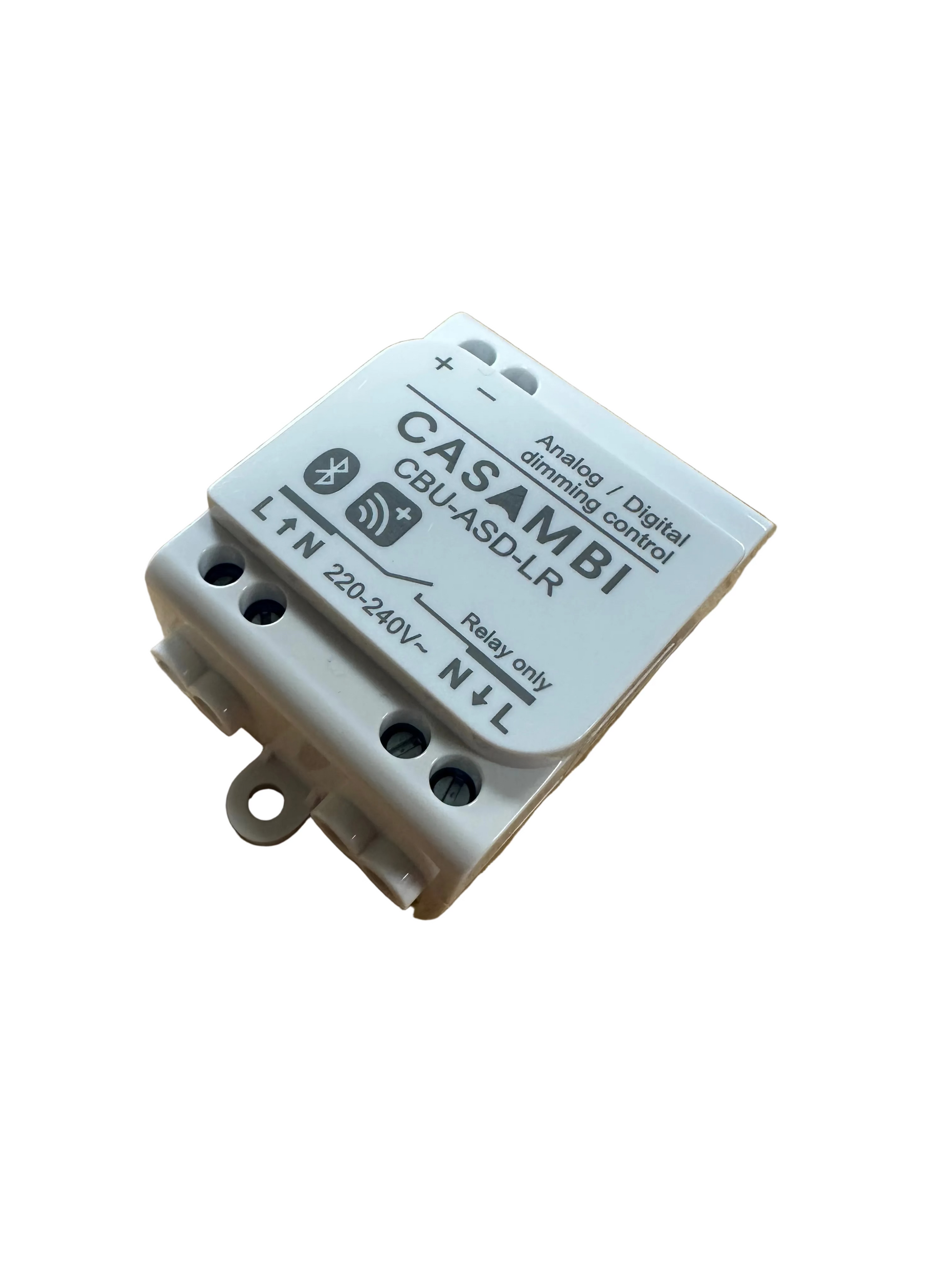

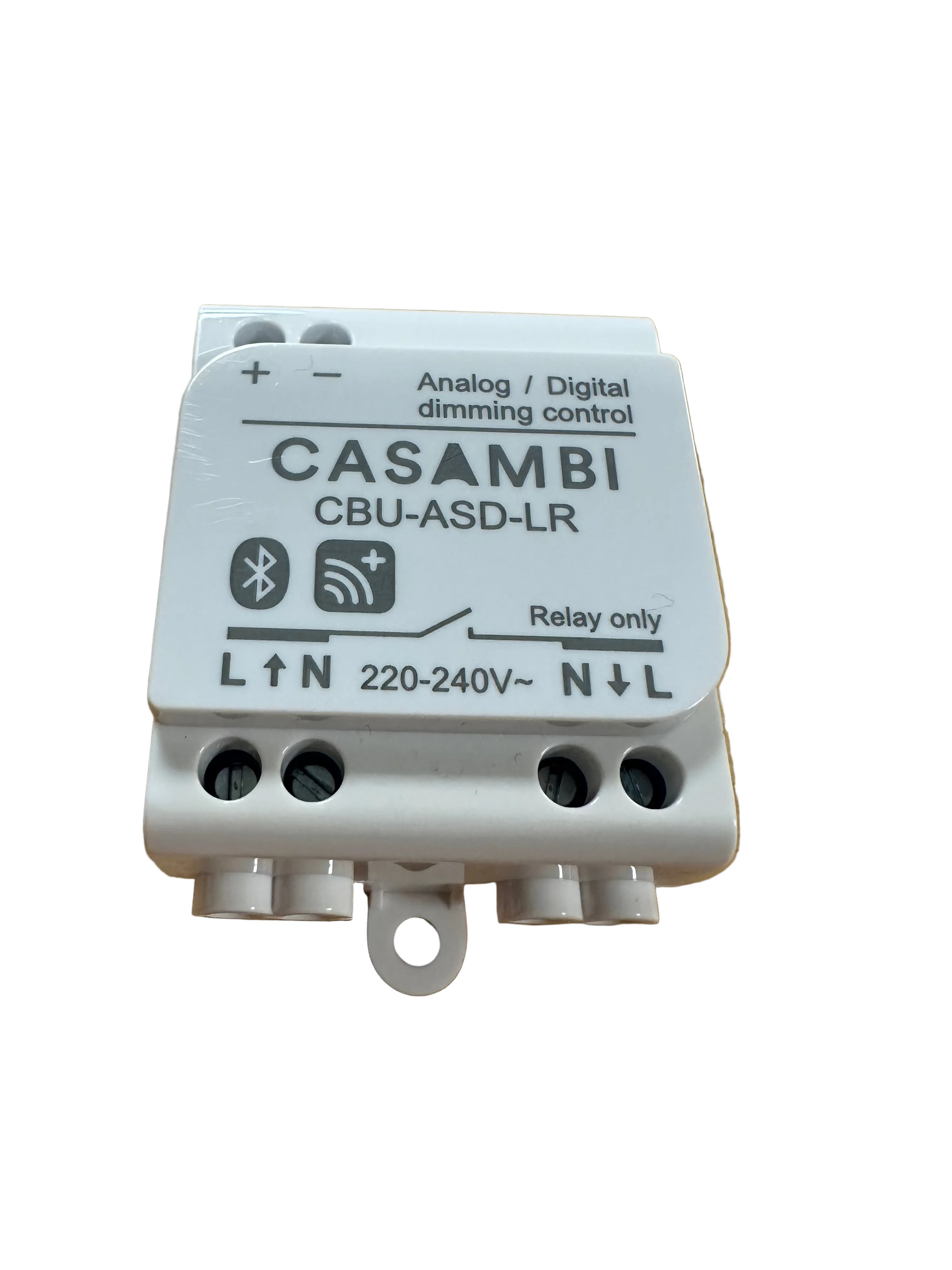

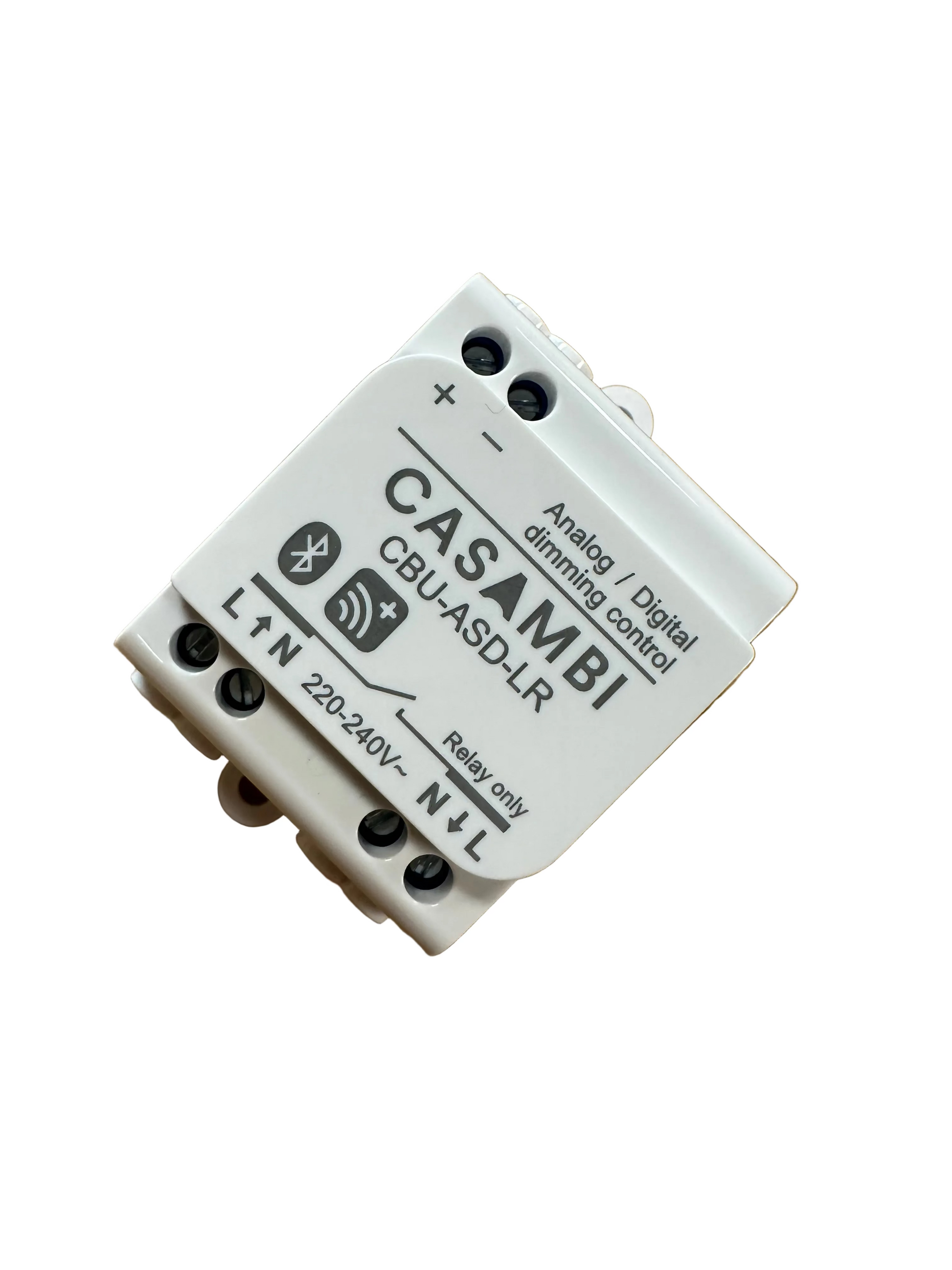

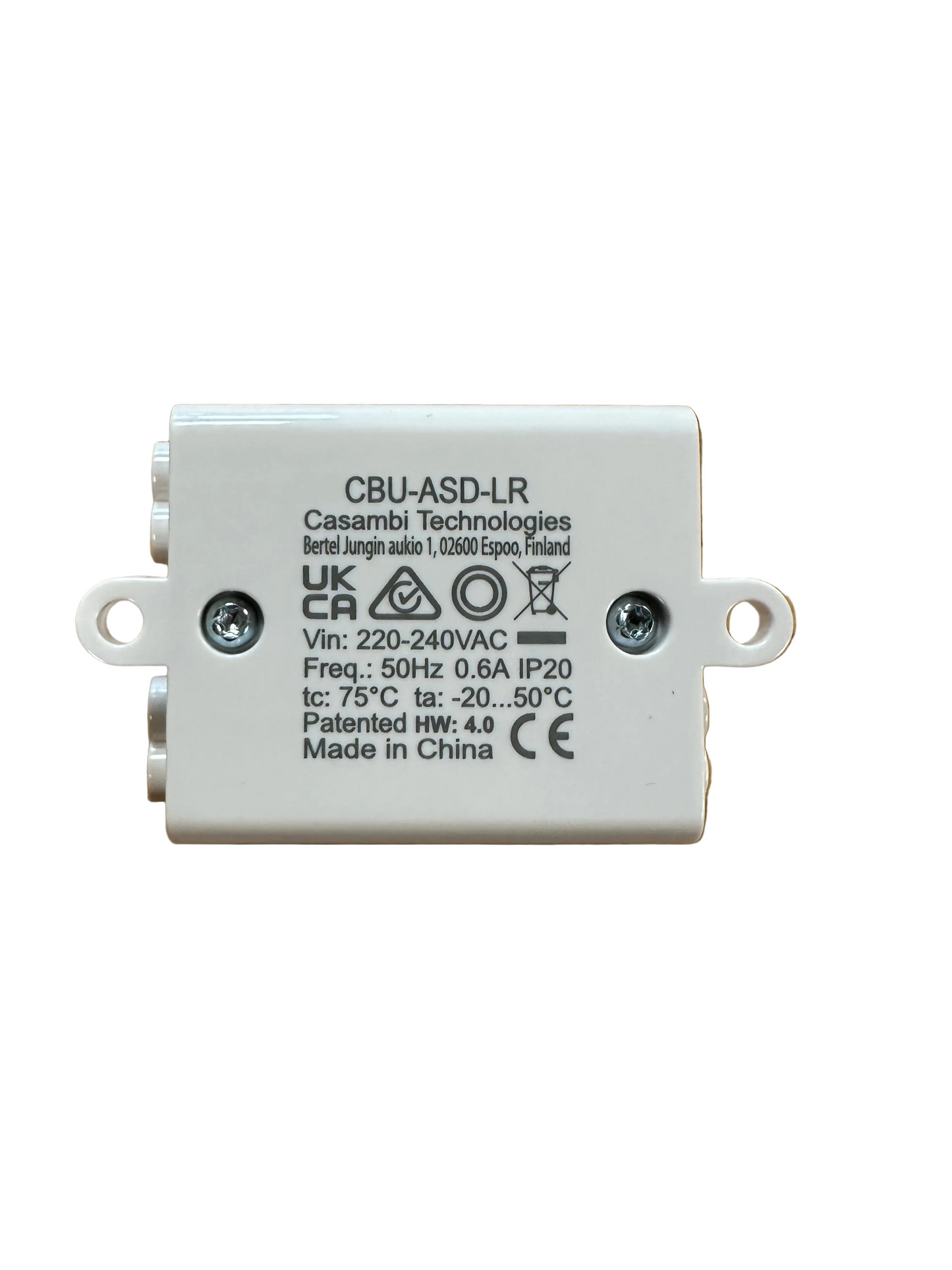

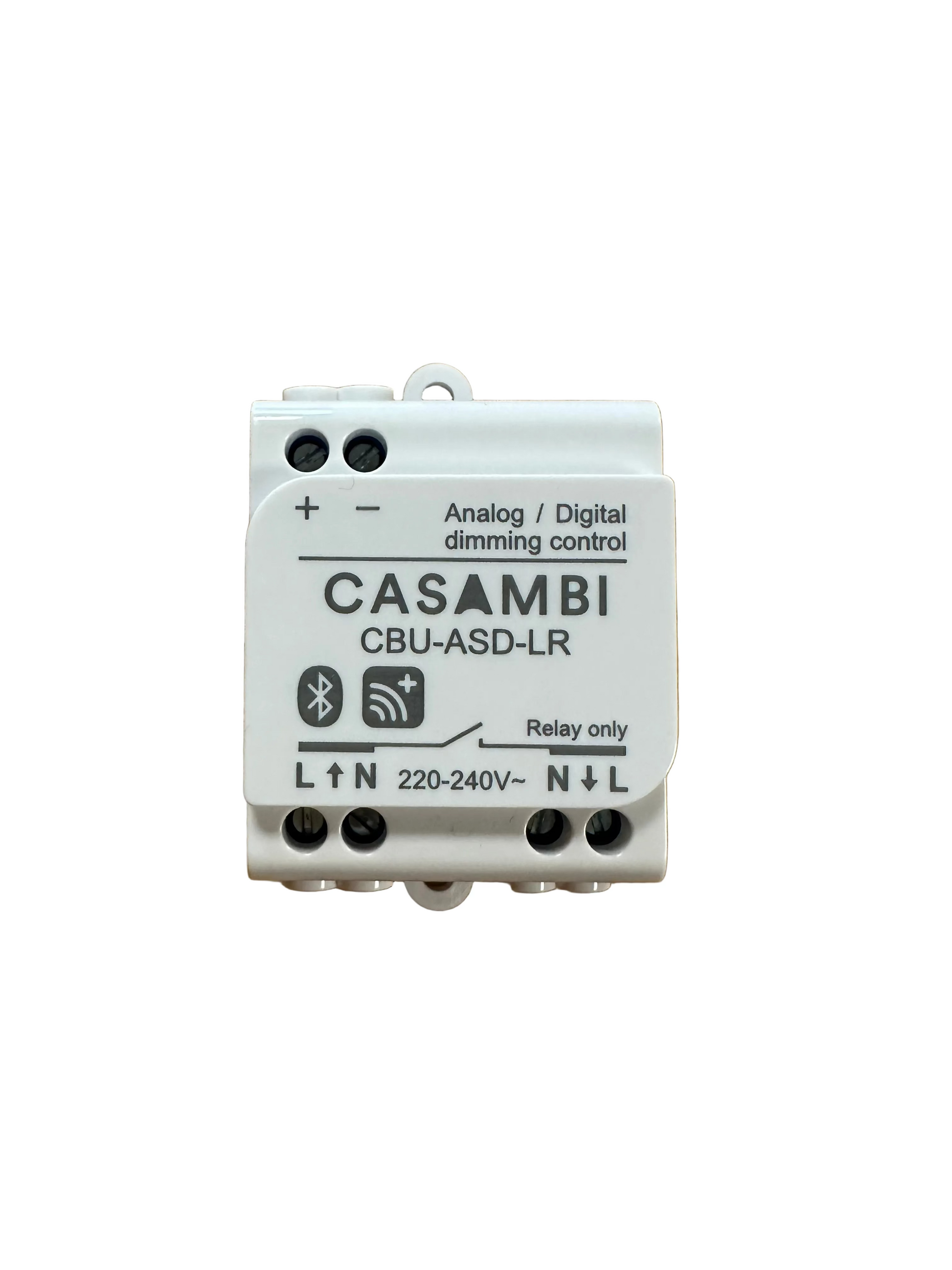

Casambi CBU-ASD-LR Wireless Control Unit for LED Drivers

Casambi CBU-ASD-LR Wireless Control Unit for LED Drivers

Replaces CBU-ASD

CBU-ASD-LR is a wireless, long-range control unit for any type of driver with 0-10V, 1-10V or DALI dimming interface. The CBU-ASD-LR is available with either analog 0-10V (and 1-10V) or digital standalone DALI control interface.

With standalone DALI output, CBU-ASD-LR acts both as a controller and power supply, making it possible to connect directly to an LED driver with DALI interface without needing an external DALI power supply. This so-called standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB and RGBW) or color temperature (CCT), while keeping the wiring and number of components to a minimum.

^[1] The CBU-ASD-LR does not comply with IEC 62386 and therefore is not designed to be connected to an existing DALI network. The module can be used only in a closed system, i.e. as a part of a lighting system which is not connected to an external DALI network.

Features

• Wirelessly controllable
• No need for an external gateway device
• Forms automatically a fast wireless mesh network
• Very small form factor for luminaire installation
• Configurable analog/digital output
• Analog output: 0-10V sinking/sourcing
• Digital output: Standalone DALI
• Easily implemented RGB and color temperature controls
• Controllable switched mains output
• Dimming from a standard on/off wall switches
• Possibility to configure to support “no voltage” push button
• Can be configured to work with a standard PIR sensor (via smart-switching)
• Device firmware can be updated over-the-air
• Casambi cloud service enhances the user experience
