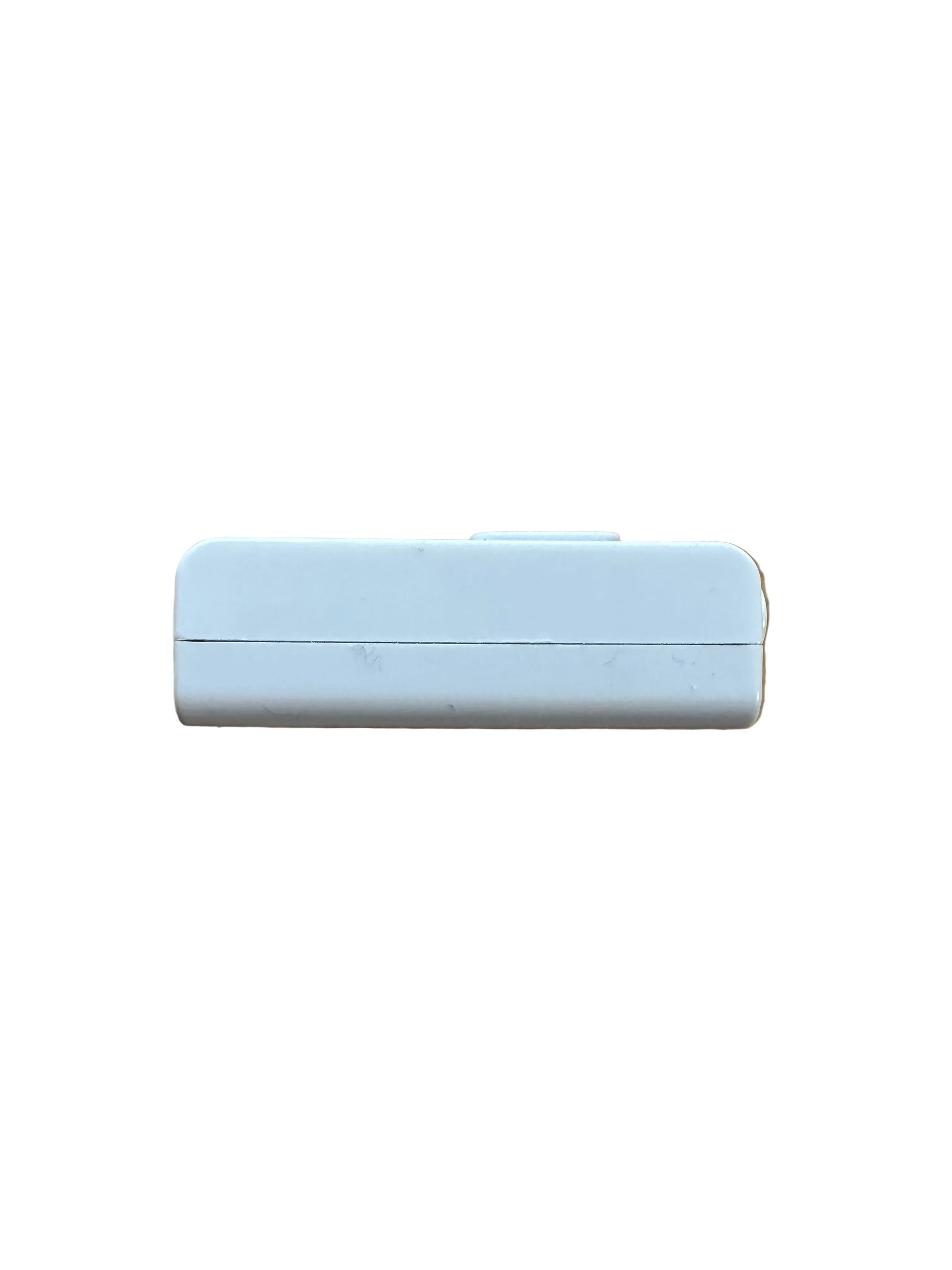

Casambi CBU-DCS Bluetooth DALI Controller

Casambi CBU-DCS Bluetooth DALI Controller

CBU-DCS is a Bluetooth controllable, Casambi enabled DALI controller. CBU-DCS does not have its own power supply. Instead, it is powered directly from a DALI bus.

Product description

CBU-DCS can be used with a DALI sensor for presence detection or daylight harvesting, or it can be used for controlling DALI drivers that have an integrated DALI bus power supply. When used with drivers it supports range of options, including Device Type 6, Device Type 8, Tuneable white control and RGB control.

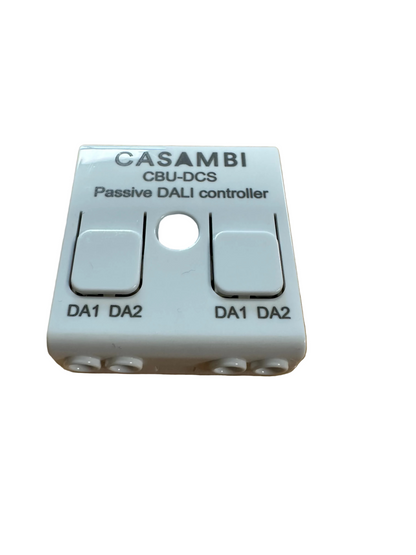

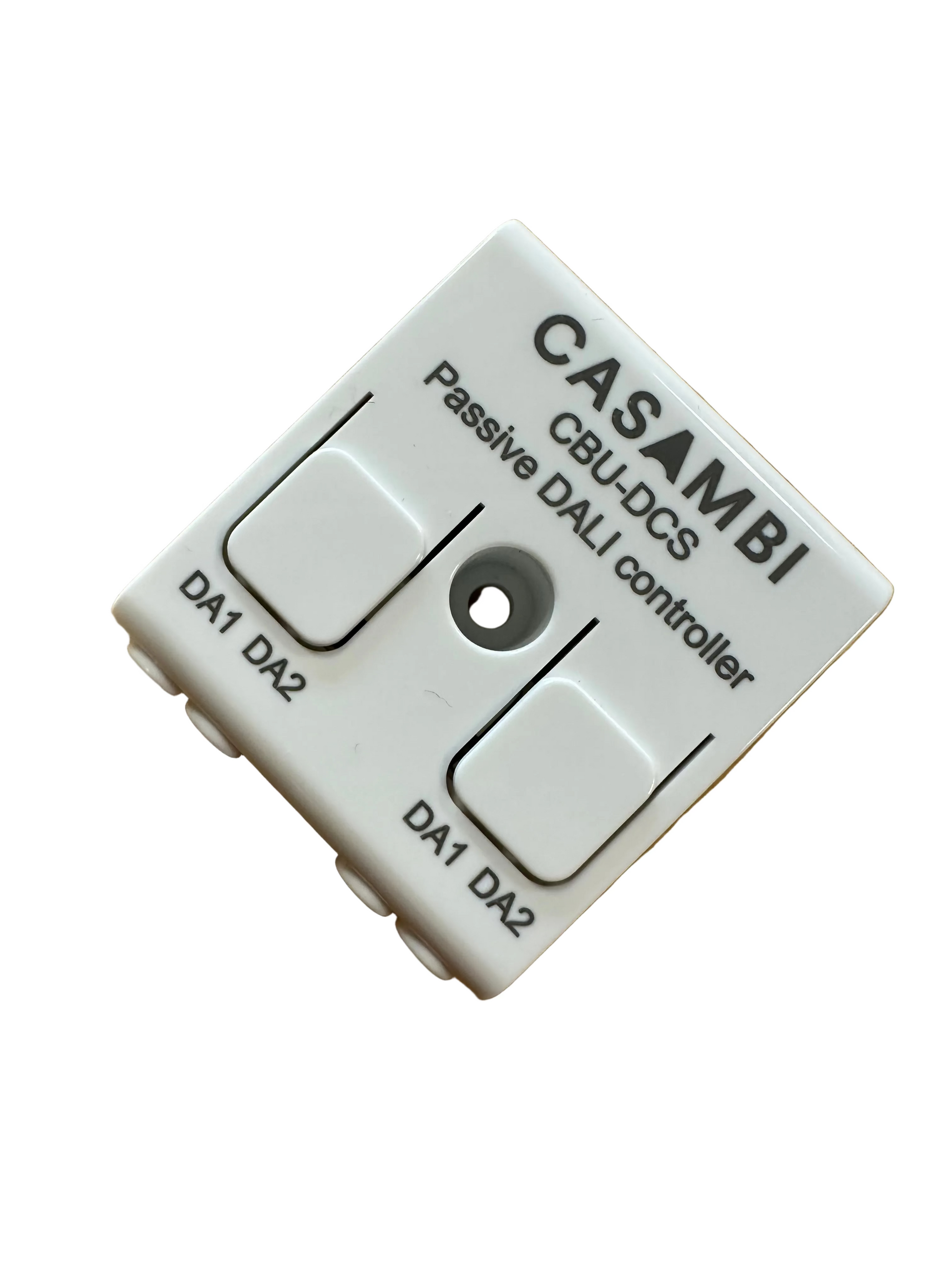

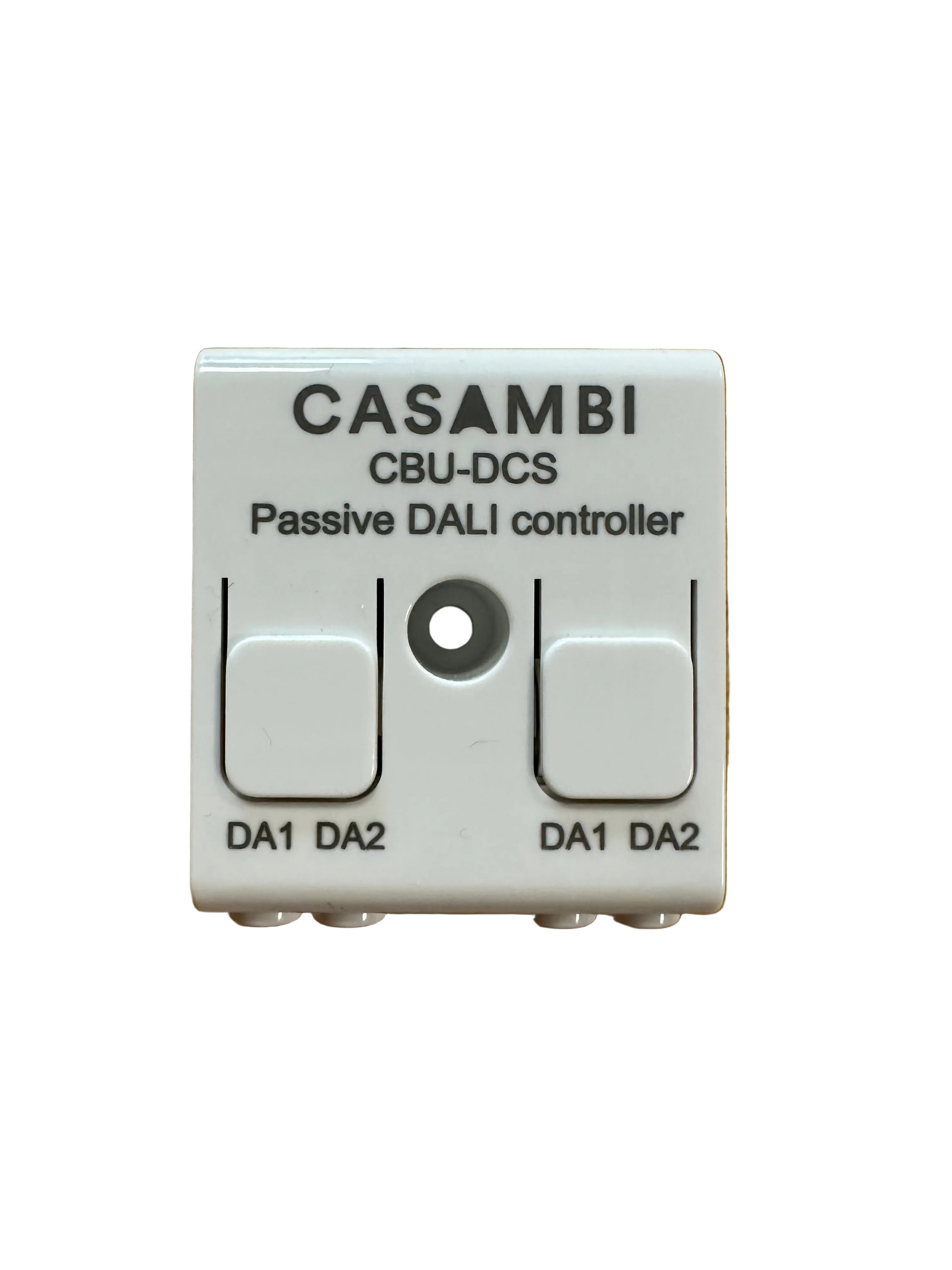

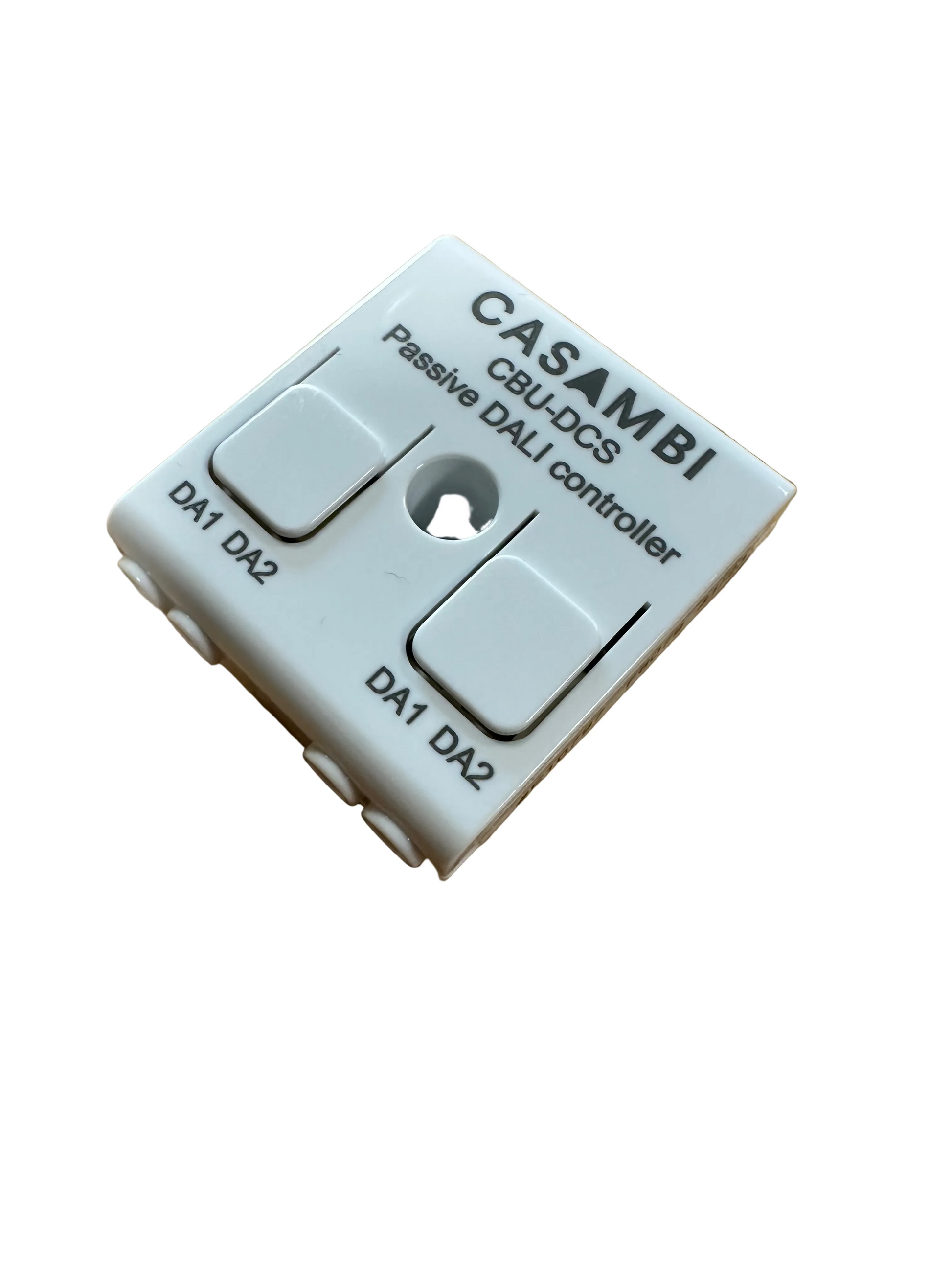

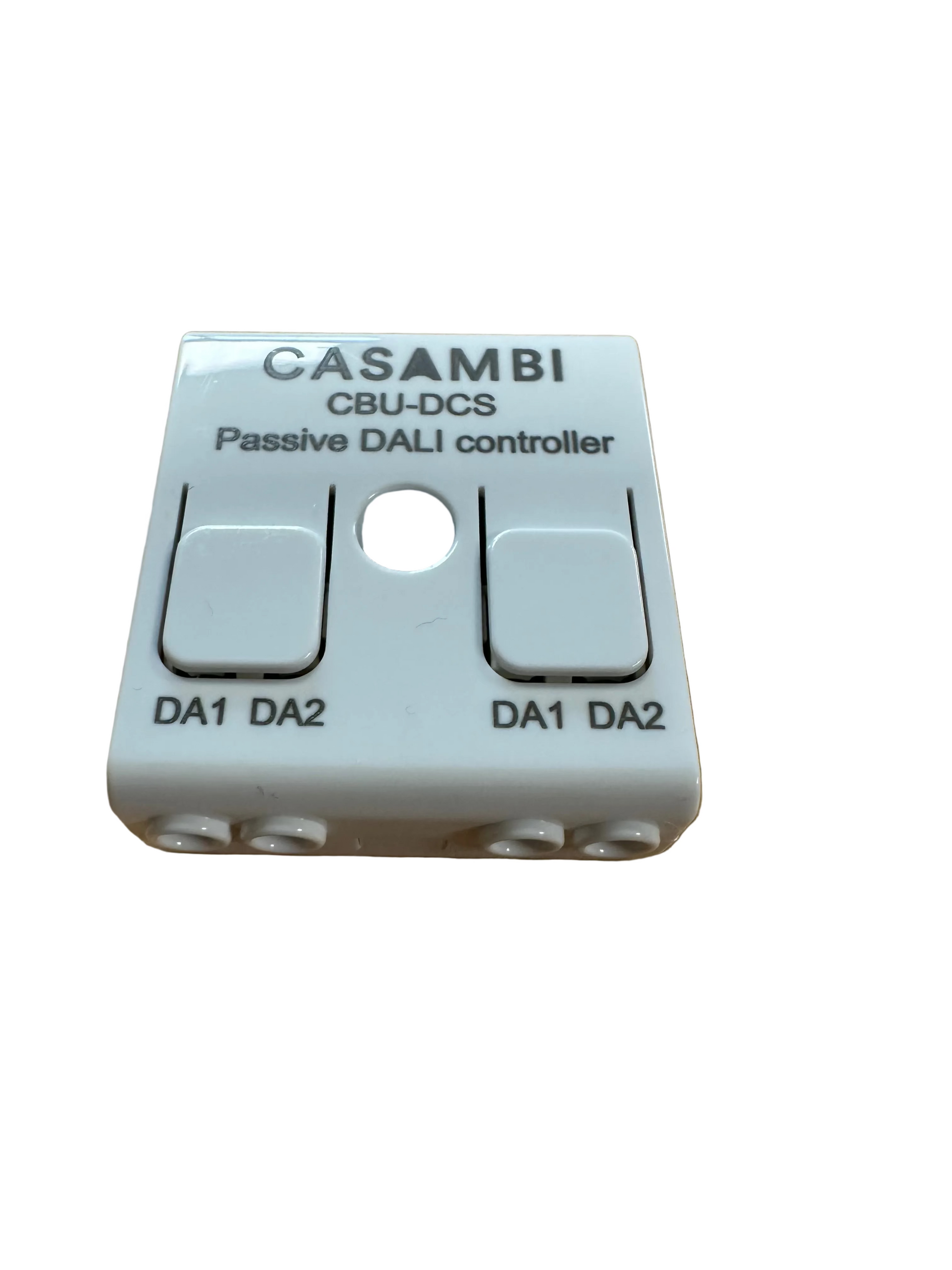

CBU-DCS has two sets of connectors. These connectors are internally connected in parallel with each other. This way the DALI bus can be routed through the product for easy installation.

• Input DALI Bus

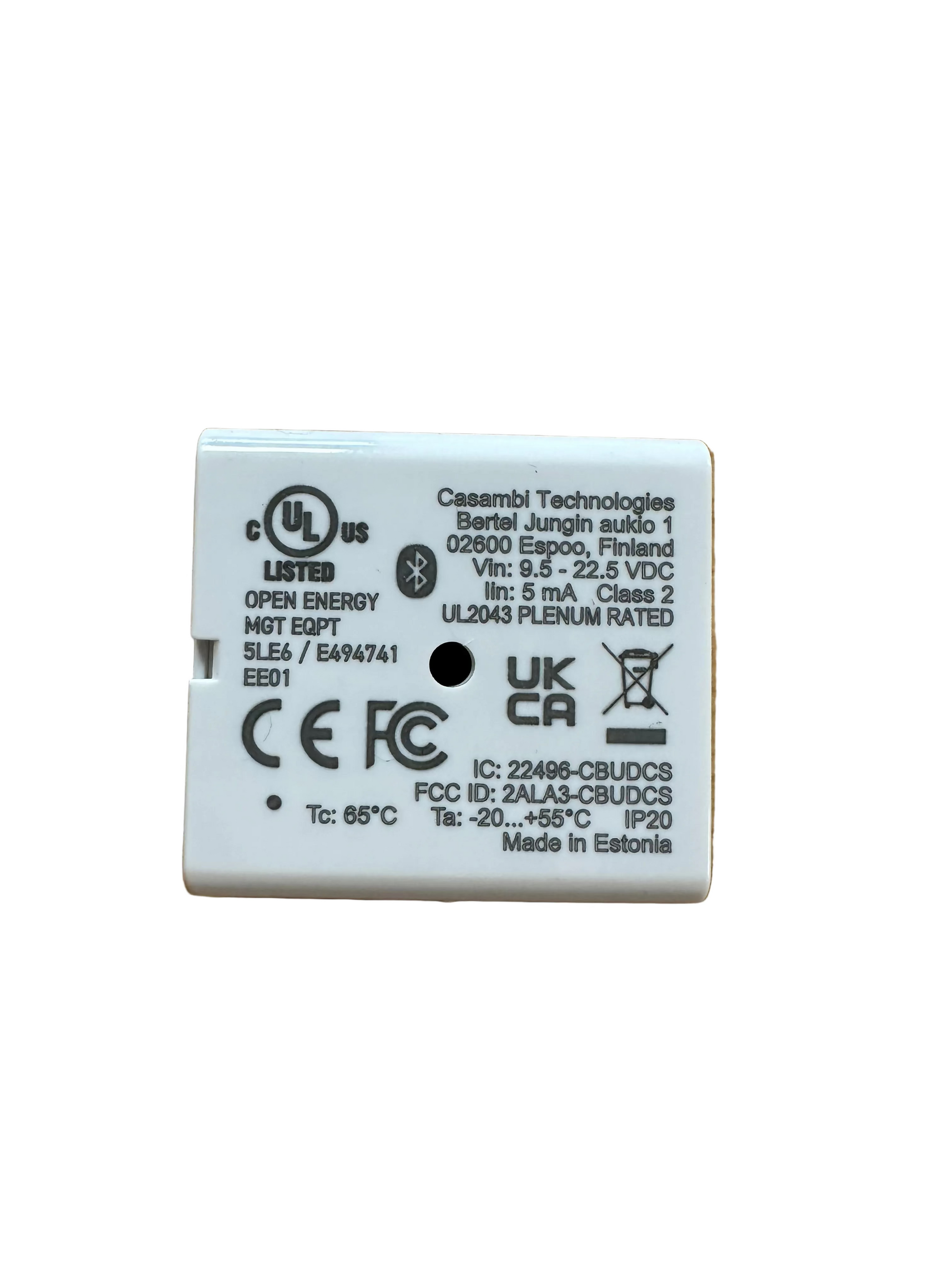

• Voltage range 9,5 – 22,5 VDC
• Max. input current when idle 5 mA
• Peak input current 30 mA
• Max. DALI bus current 250 mA
• DALI loads 3

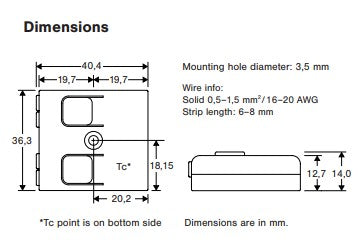

• Dimensions 40,4 x 36,3 x 14,0 mm
• Weight 15 g
• Protection IP20 (indoor use only)
• Note: DALI gateway function works only with Casambi Evolution firmware
