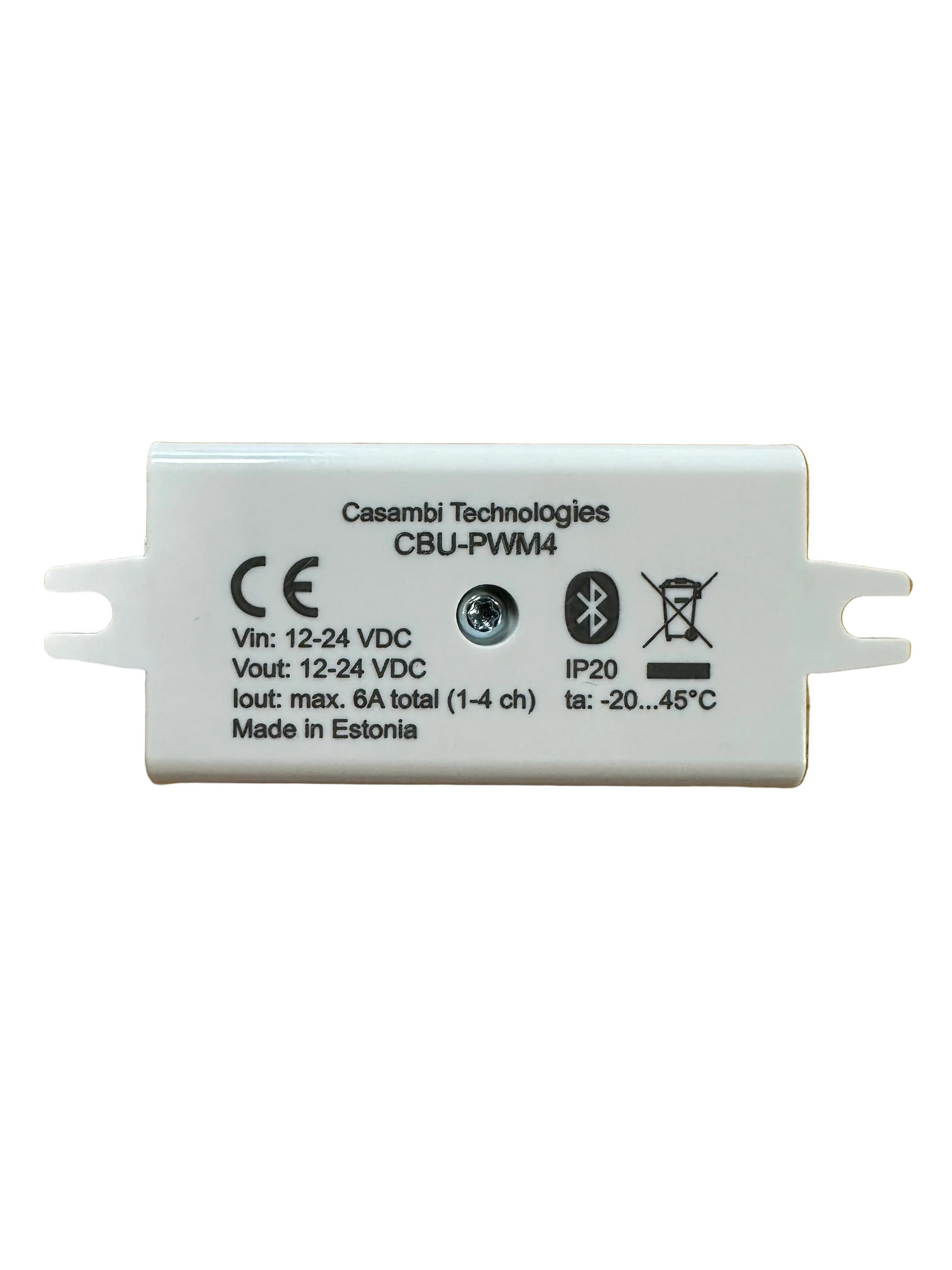

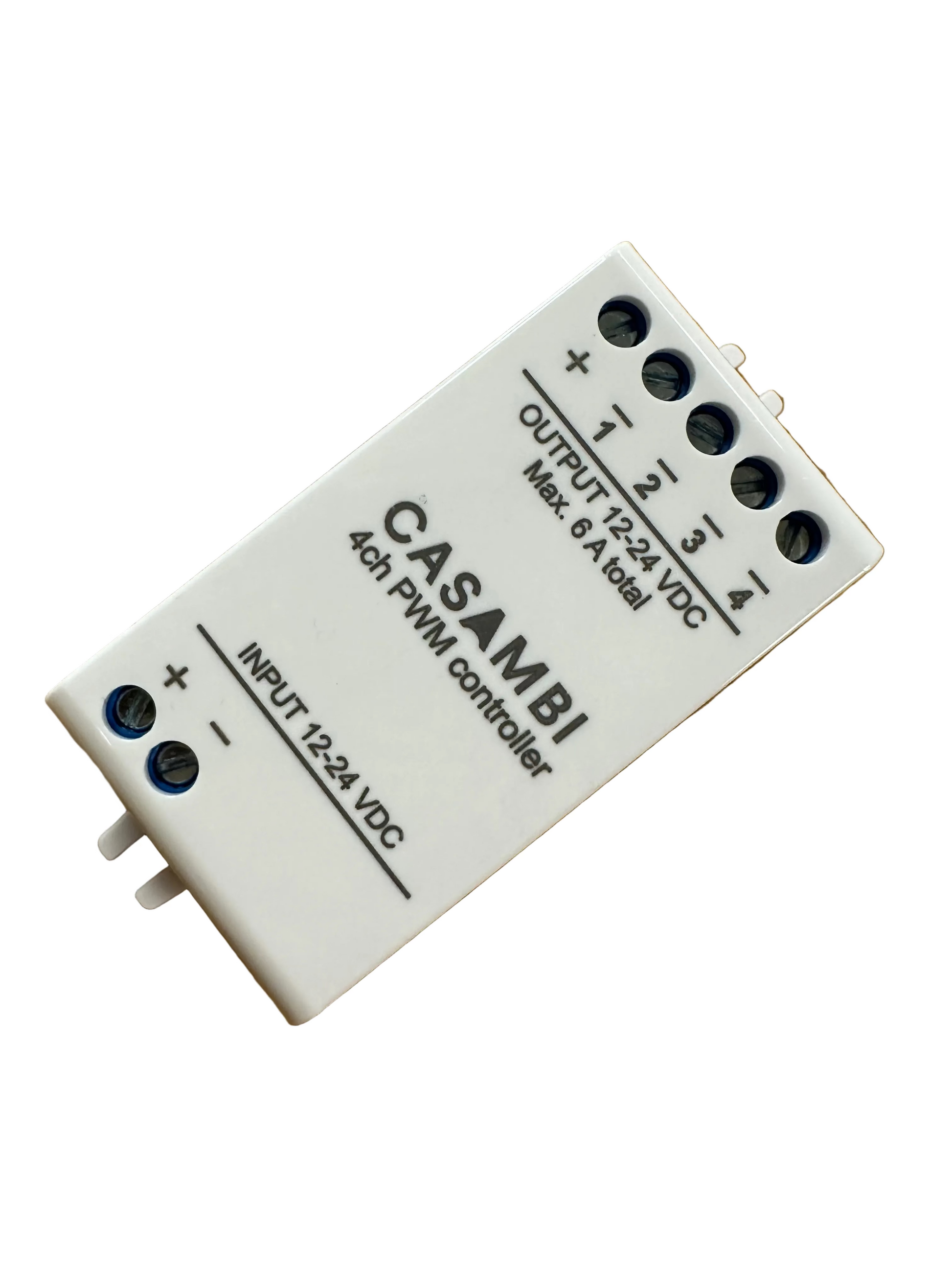

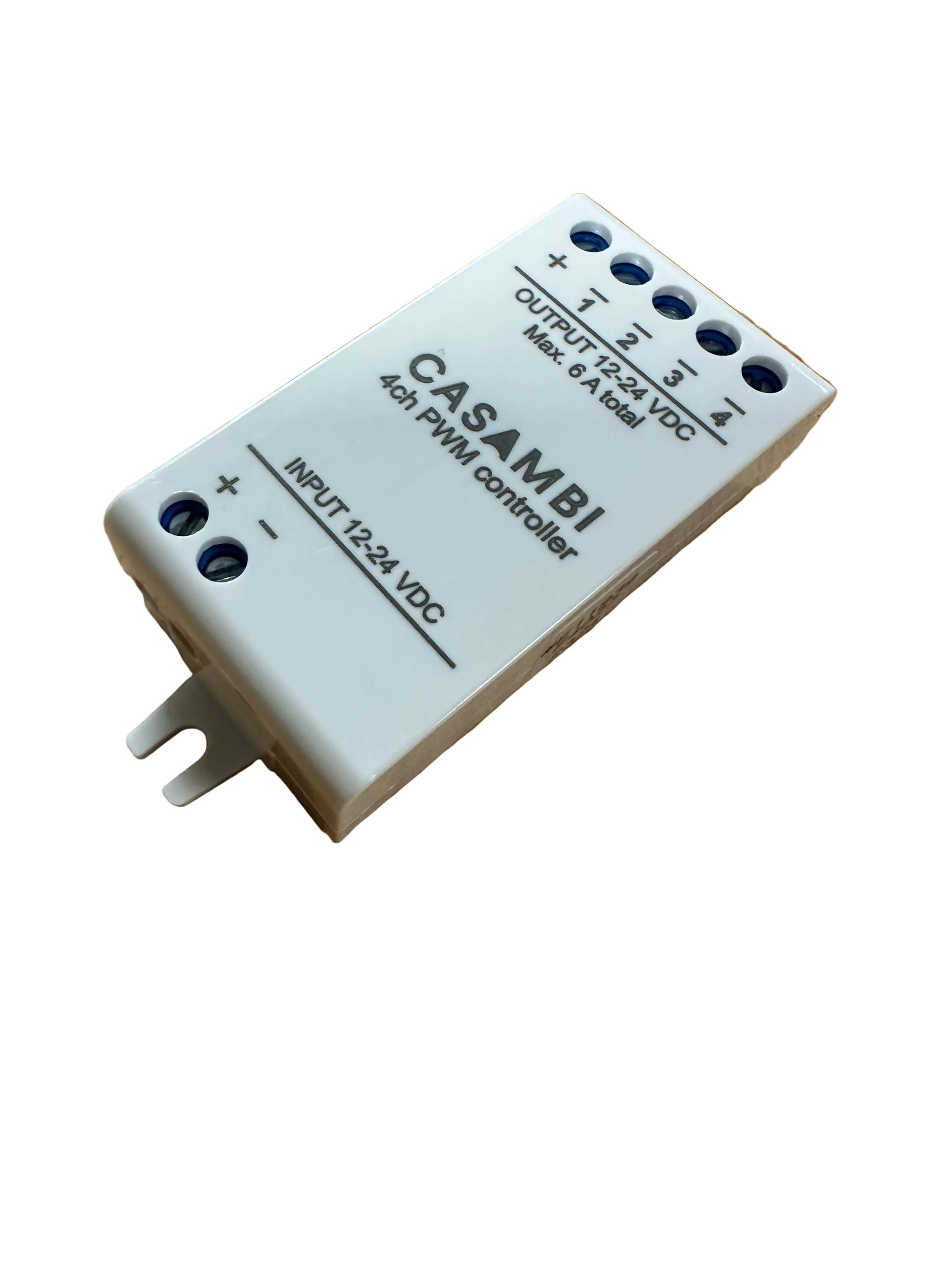

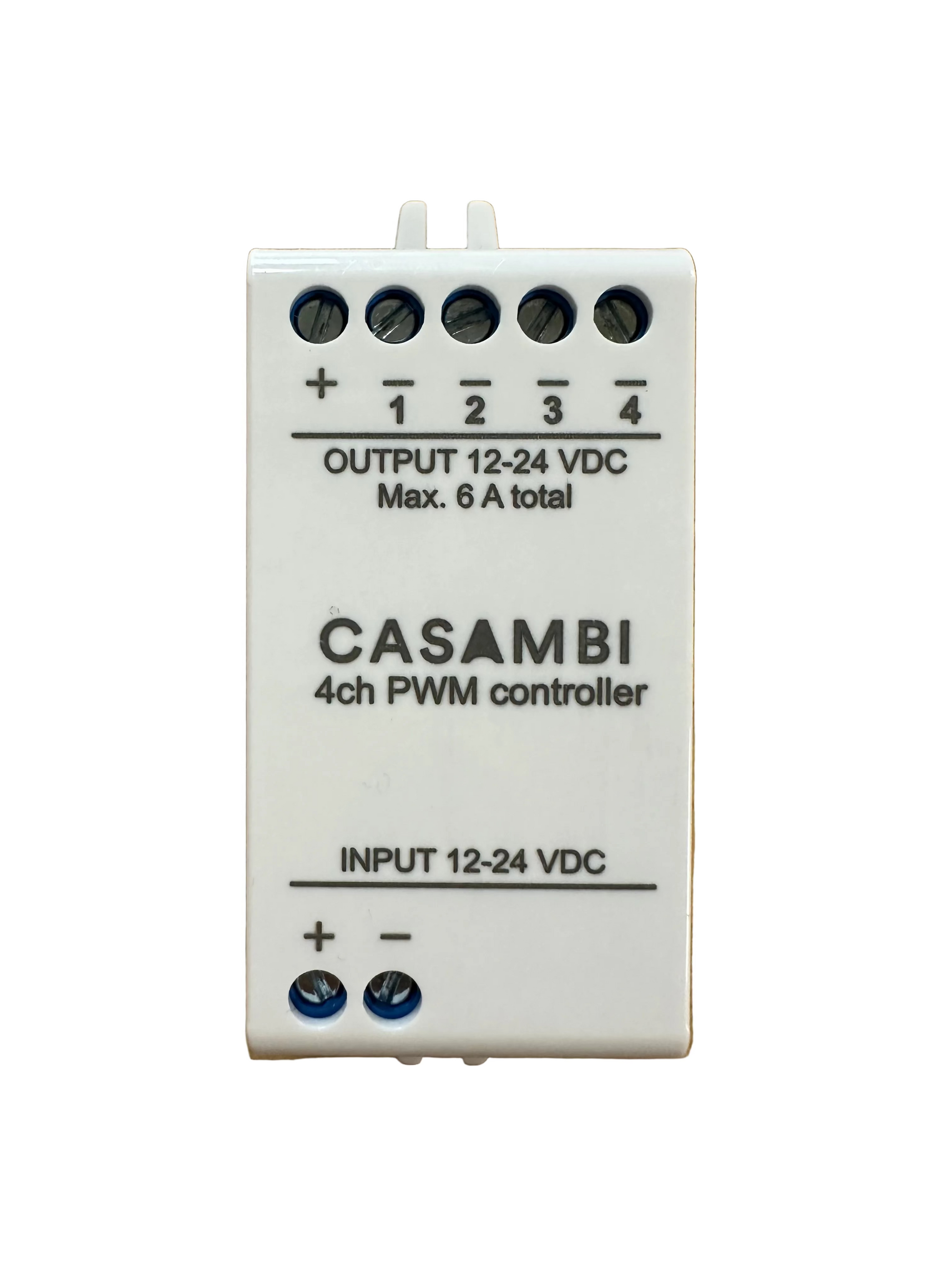

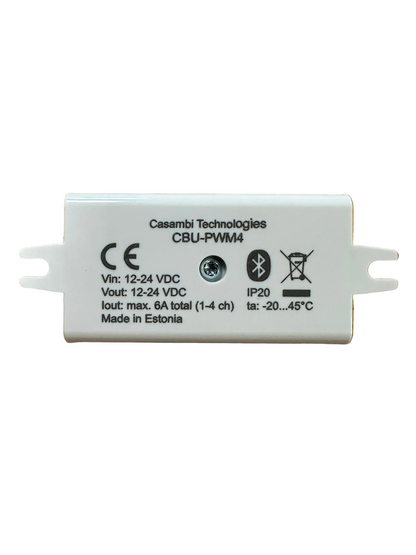

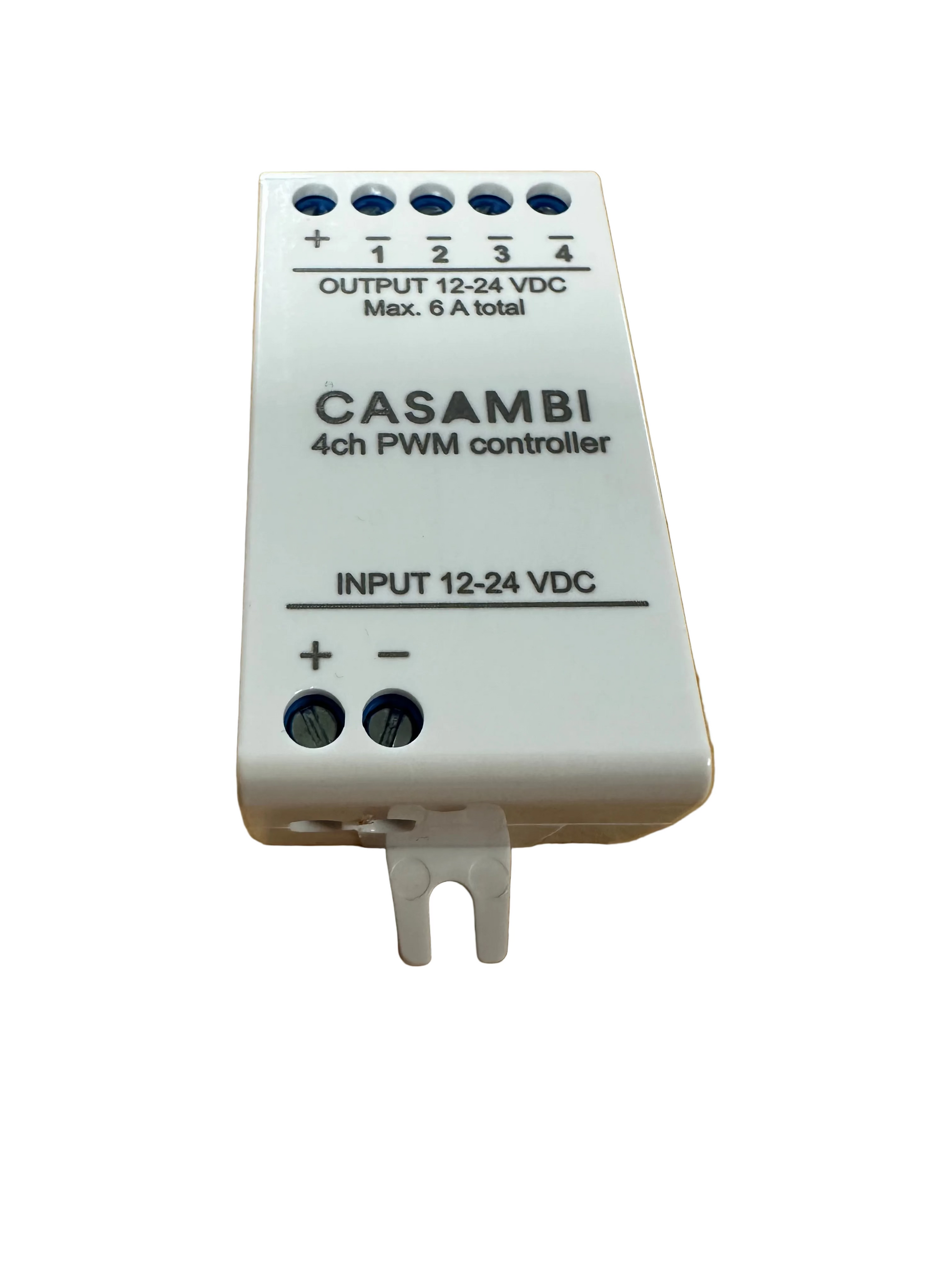

Casambi CBU-PWM4-LR Bluetooth 4 Channel Constant Voltage LED Dimmer

Casambi CBU-PWM4-LR Bluetooth 4 Channel Constant Voltage LED Dimmer

Replaces the CBU-PWM4-LR

CBU-PWM4-LR can control up to four channels making it an ideal partner for RGBW and tunable white (TW) applications. The maximum combined output current is 6 A which can be freely divided between 1 -4 channels. CBU-PWM4-LR is protected against overvoltage, overcurrent and short circuit situations.

CBU-PWM4-LR can be controlled with Casambi app which can be downloaded free of charge from Apple App Store and Google Play Store.

Different Casambi enabled products can be used from a simple one luminaire direct control to a complete and full-featured light control system, in which up to 250 units automatically form an intelligent mesh network.

• Voltage range 12-24 VDC
• Max. input current: 6 A
• No-load standby power < 0,3 W
• Output voltage Same as input voltage
• Max. output power 144 W @ 24 VDC, 72 W @ 12 VDC
• Max. output current 6 A (can be freely divided between the channels)
• Min. load requirement 0 W
• Dimming method Pulse Width Modulation (PWM)

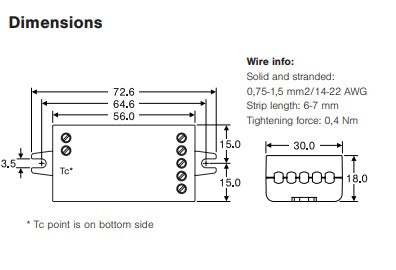

• Dimensions 72,6 x 30,0 x 18,0 mm
• Protection IP20
