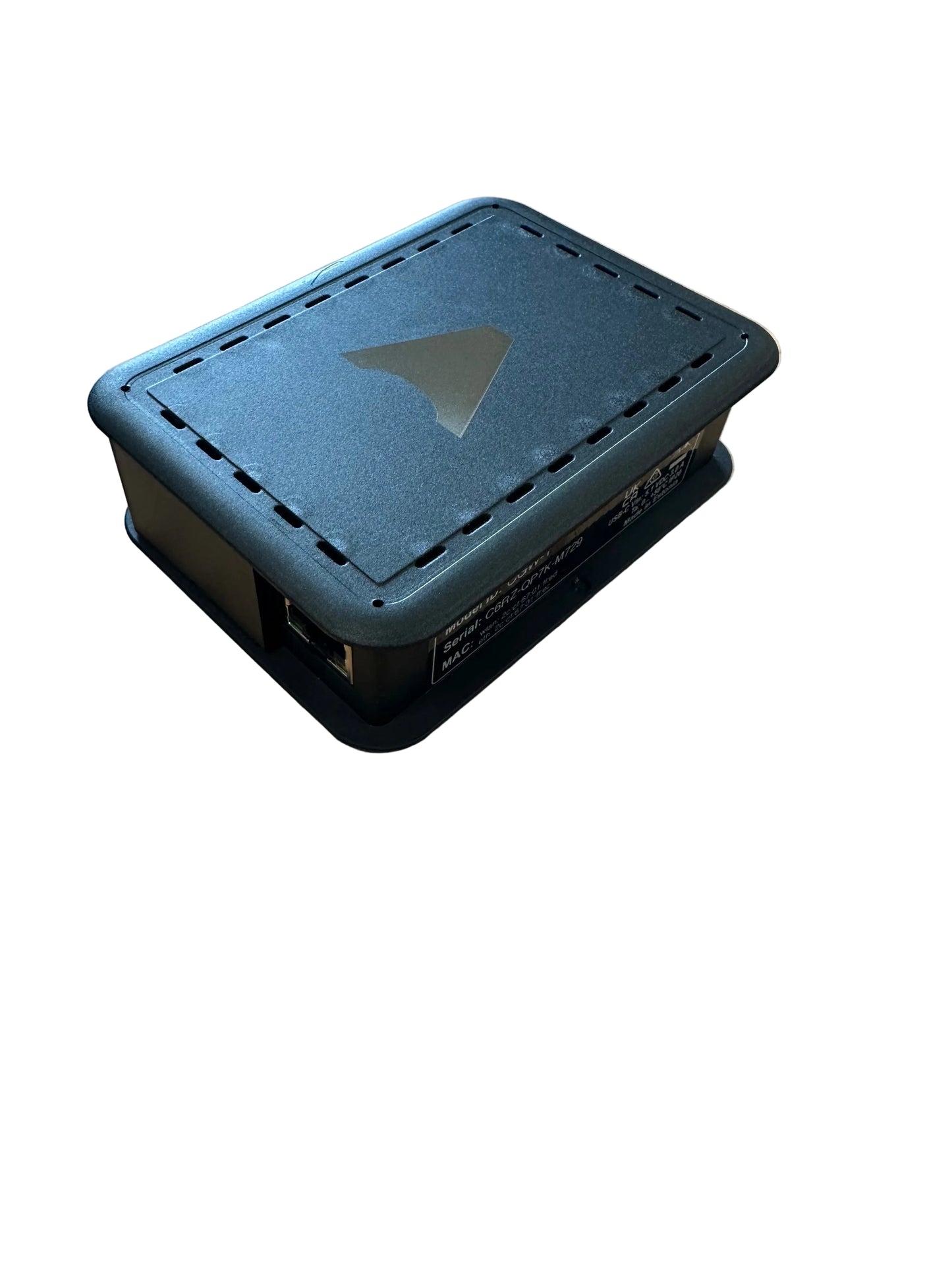

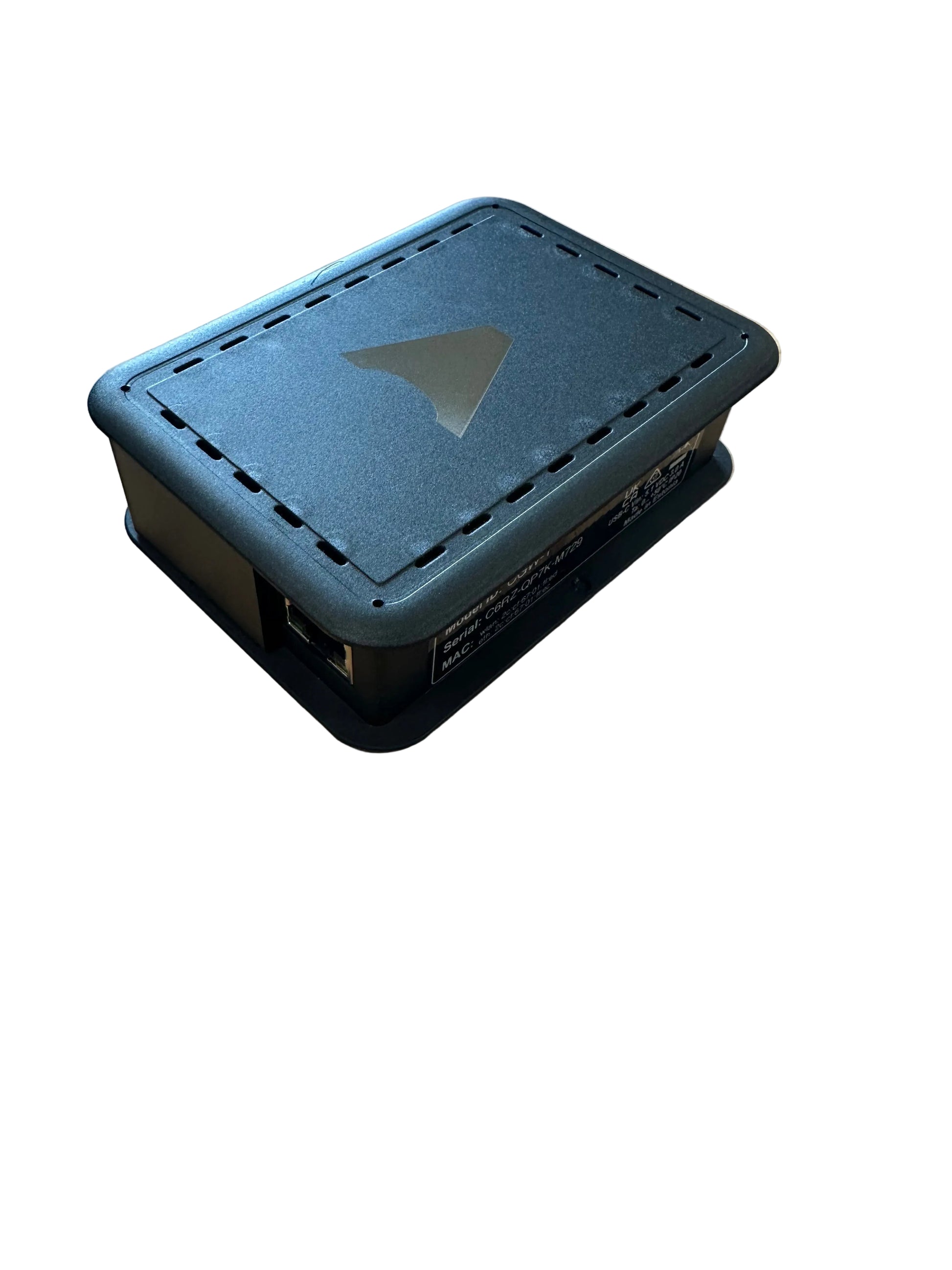

Casambi Cloud Gateway

Casambi Cloud Gateway

Receive data from your Casambi network and remotely control it over the internet with a Casambi Cloud Gateway.

Based on Raspberry Pi hardware, the Casambi Cloud Gateway comes with Ethernet and Wi-Fi connections for internet access. The user interface is the Casambi App. Two product variants are available; PSU (CGW-001-PSU) and PoE-enabled (CGW-001-POE). The Power Supply Unit (PSU) version comes with a power adapter that’s suitable for the EU, UK, US, AU and PRC regions. The Power over Ethernet (PoE) version comes with a splitter to separate the power from the data and feed it into a separate input.

Lighting control options

It affords much of the same end-user functionality as the Casambi App.

• Create groups, scenes, animations.
• Dim or turn on/off singular or groups of luminaires.
• Dim or turn on/off a whole network.
• Turn on/off scenes and animations.
• Control color temperature, hue and saturation utilizing the control slider in the app.
• Create and edit timers.

Further considerations

• For indoor use only.
• Use one Casambi Cloud Gateway per Casambi network.
• Works with Casambi’s Evolution firmware only.
• For remote control and monitoring of a Casambi network in real-time.

• Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• 4GB LPDDR4-3200 SDRAM
• 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
• Gigabit Ethernet

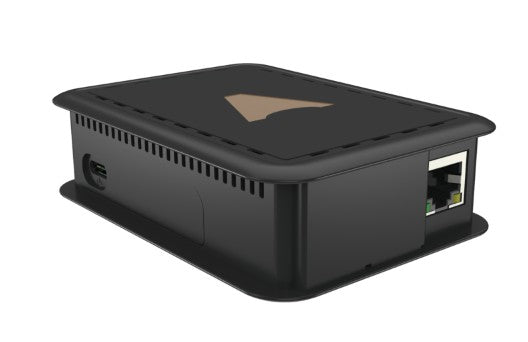

• USB-C and Ethernet ports
• 5V DC via USB-C connector (minimum 3A)
• Power over Ethernet (PoE) enabled
• Operating temperature: 32 – 122 degrees F ambient (0 – 50 degrees C ambient).
