Casambi Salvador Series 2000

Casambi Salvador Series 2000

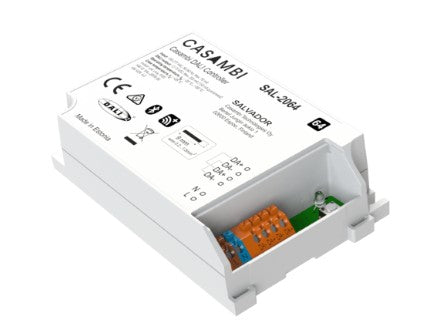

The Salvador Series 2000 product family includes three models: SAL-2016, SAL-2032 and SAL-2064.

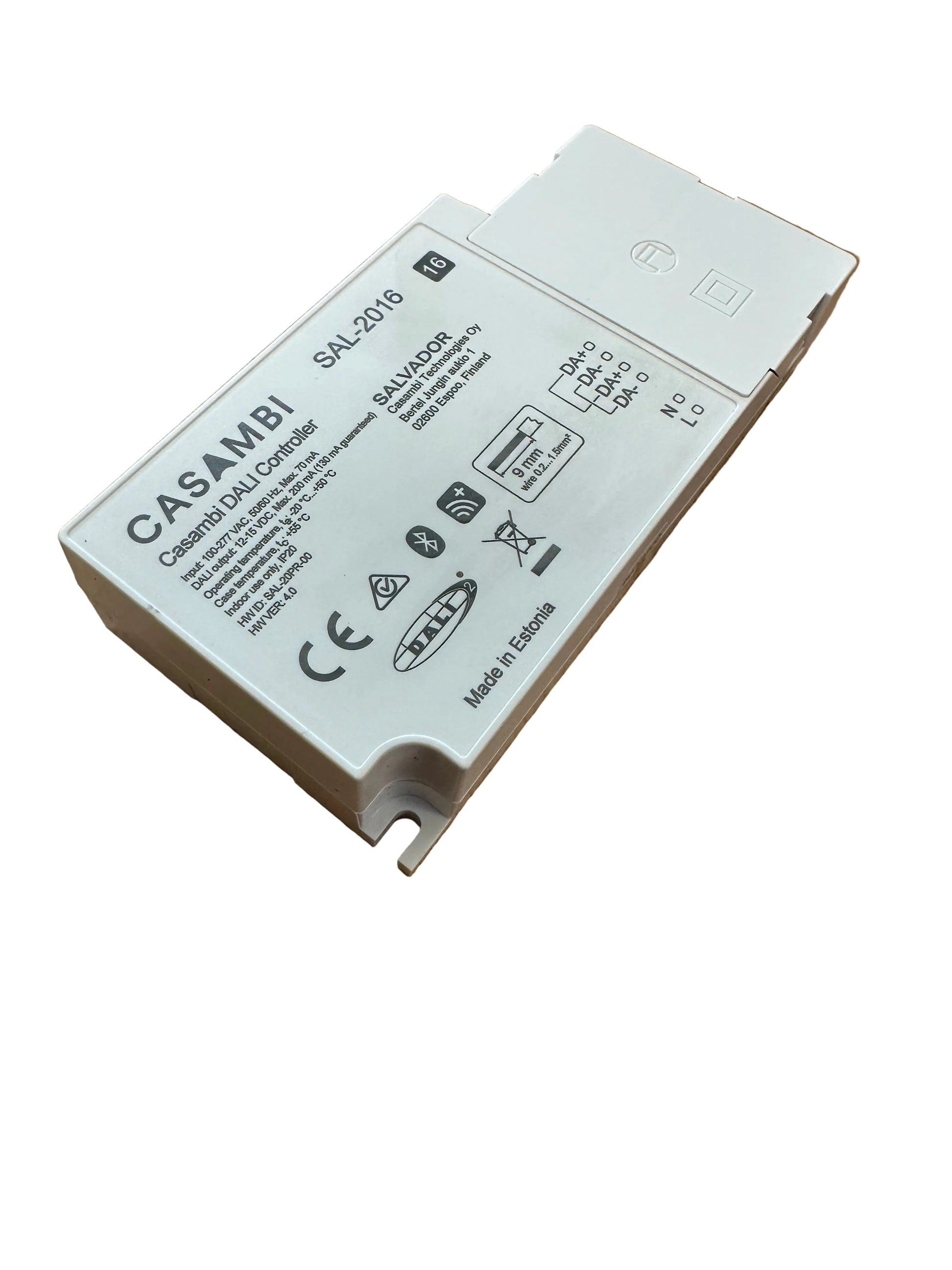

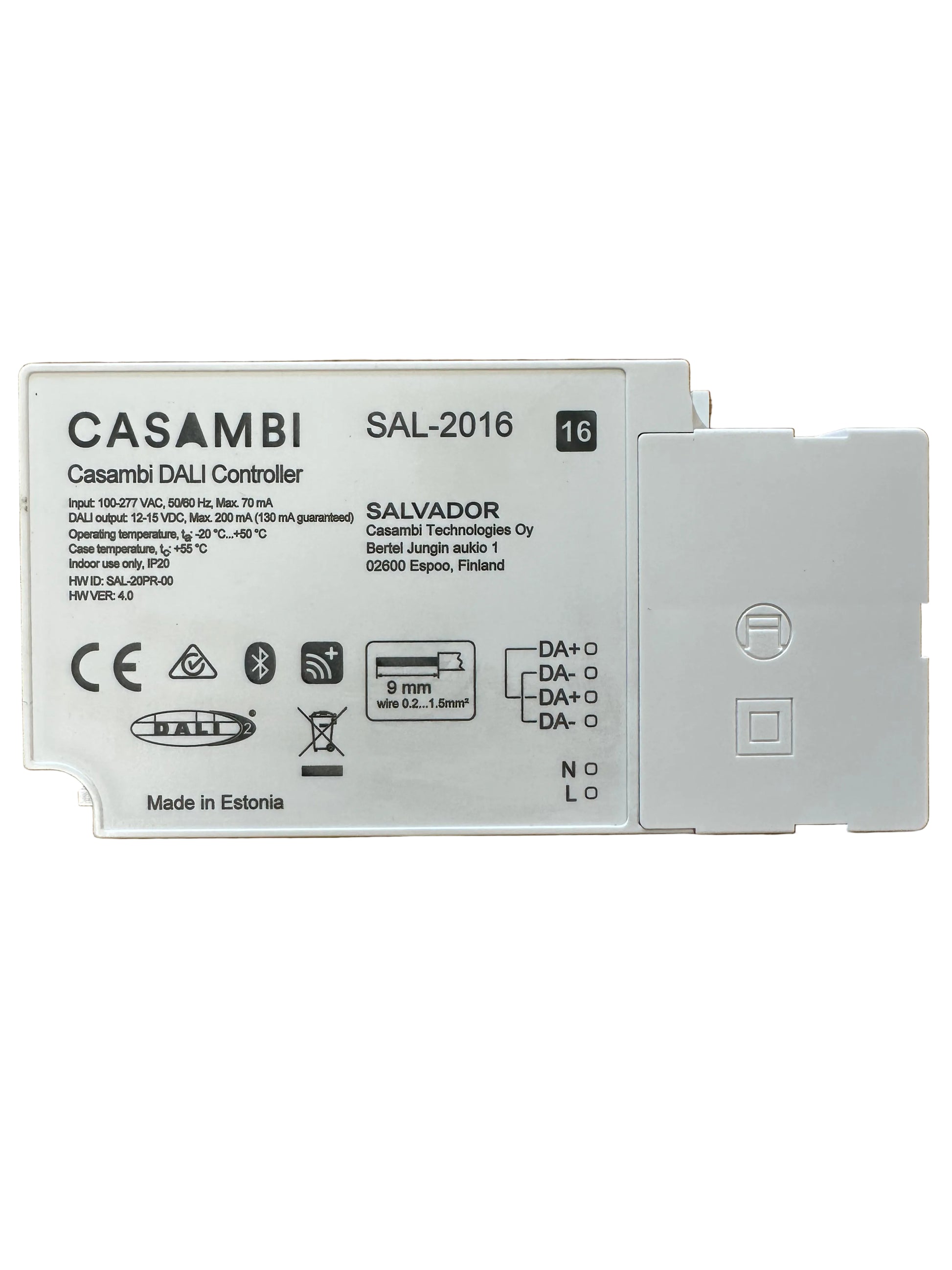

SAL-2016: Can address up to 16 DALI driver addresses.

SAL-2032: Can address up to 32 DALI driver addresses.

SAL-2064: Can address the maximum allowed 64 DALI driver addresses.

The Salvador Series 2000 seamlessly integrates wired DALI drivers into the Casambi system. When integrated, DALI luminaires appear as luminaires in the Casambi network. Notably, this product supports industry standards such as DALI D4i, DALI DT6, and DALI DT8.

The Salvador Series 2000 is only for connecting to DALI drivers. No DALI controls must be connected to Salvador Series 2000 products.

The Salvador Series 2000 has integrated 130 mA bus power supply for the DALI operation.

The Salvador Series 2000 allows the addressing, programming and control of wired DALI drivers individually from the Casambi App. It enables the creation of hybrid networks consisting of both Casambi Ready and DALI devices. All DALI drivers connected to a Salvador can be easily programmed and controlled in the same way as Casambi Ready devices via the Casambi App. This eliminates the need for a specific DALI controller, complex DALI configuration software, or a DALI specialist. The Salvador SAL-2016 is ideal for low-budget renovations, replacing multiple standalone DALI networks, while the Salvador SAL-2064 is designed for larger hybrid network setups.

Casambi Nodes

One Salvador is one Casambi node. Each addressed wired DALI driver is one Casambi node. A Casambi network can contain up to 250 nodes, regardless of whether they are wired DALI drivers or Casambi Ready devices.

Groups and Scenes

Wired DALI luminaires appear in the Casambi App in the same way as Casambi Ready luminaires. They can be individually controlled, grouped, or used in scenes that combine both Casambi Ready and wired DALI luminaires.

• Voltage range: 100 – 277 VAC
• Frequency: 50/60 Hz
• Max. mains current: 70 mA
• Inrush current: 20 A

DALI Output

• Voltage range: 12 – 15 VDC
• Guaranteed current: 130 mA
• Max. current: 200 mA
• Max. shutdown current: <4 mA

Radio transceiver

• Operating frequencies: 2402…2480 MHz
• Maximum output power: +8 dBm

Operating conditions

• Ambient temperature, ta : -20 °C to +50 °C
• Max. case temperature, tc : +55 °C
• Storage temperature: -25…+75 °C
• Max. relative humidity: 0…80 %, non-cond.

Mechanical data

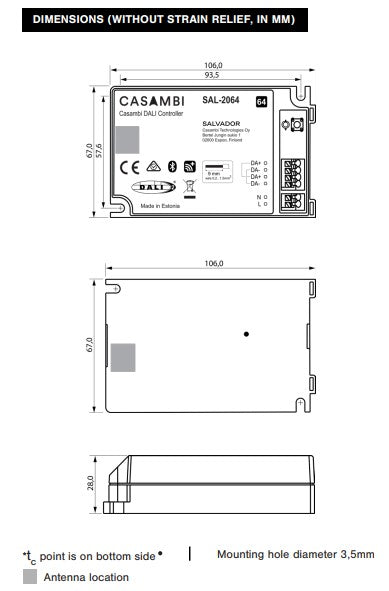

• Dimensions (w/o strain relief): 106,0 x 67,0 x 28,0 mm
• Weight (w/o strain relief): 100 g
• Degree of protection: IP20 (indoor use only)

Connectors

• Wire range, solid/flexible: 0,2 – 1,5 mm² AWG 16–24
• Wire strip length: 9 mm

Insulation

• Casing to DALI: Reinforced
