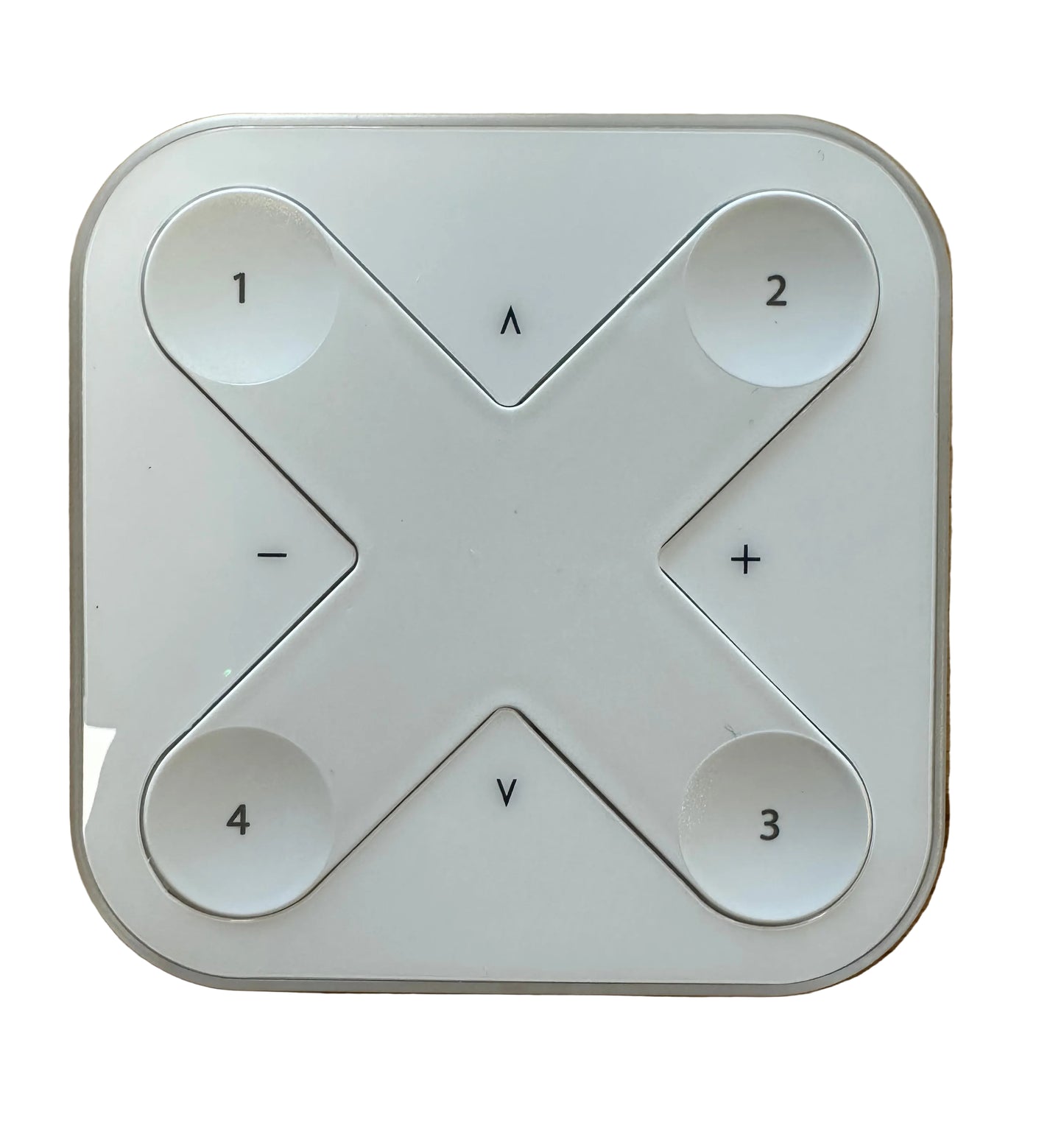

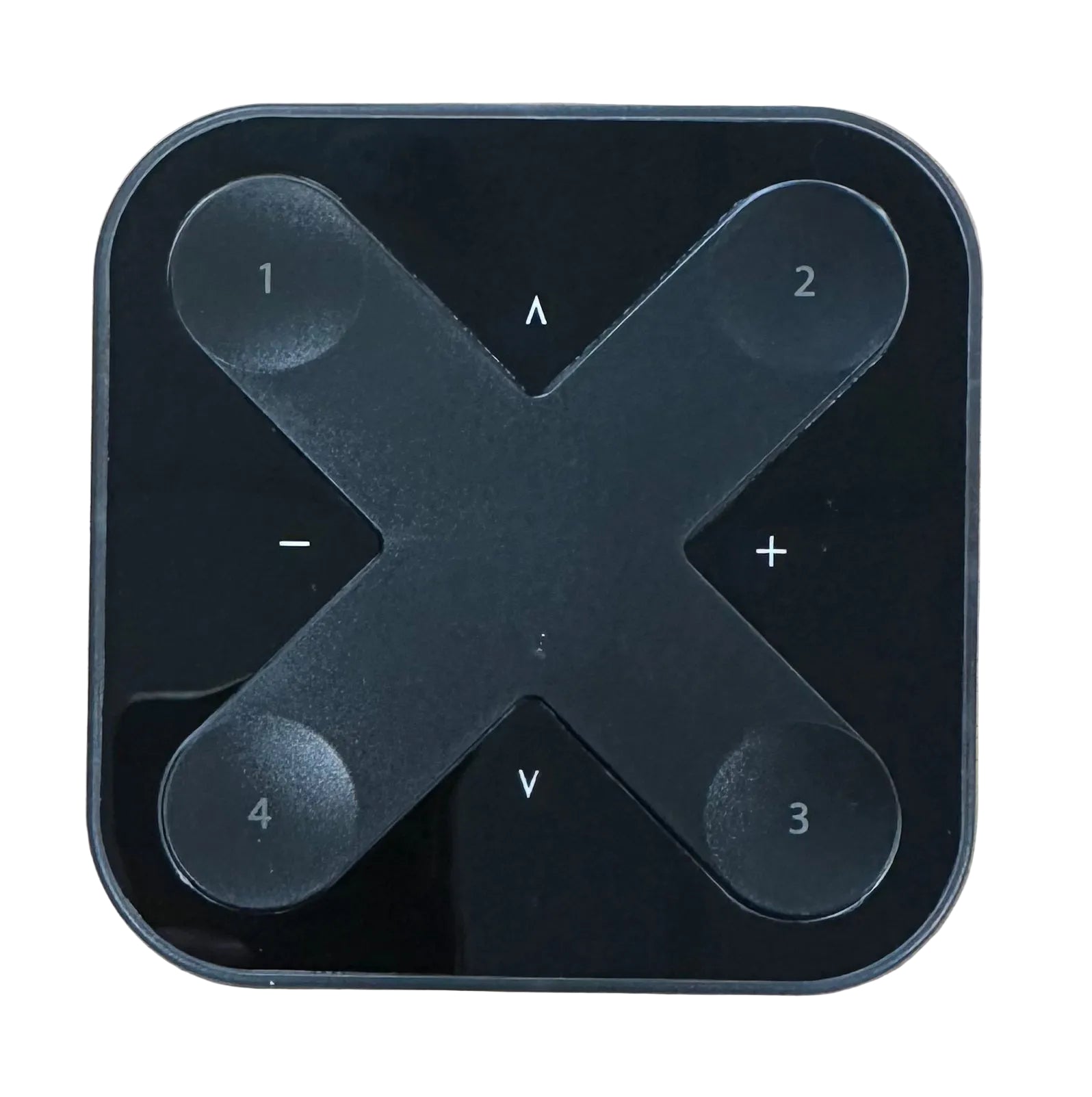

Casambi Xpress-LR Wireless Xpress Smart Switch Long Range

Casambi Xpress-LR Wireless Xpress Smart Switch Long Range

Versatile

Xpress-LR is a wireless user interface that brings huge flexibility to interior design as furniture can be replaced and walls can be rebuilt without having to take the wiring of switches or switch placement into account. It can be kept wherever the user needs it.

Highly customizable

The Xpress-LR gives direct access to all the important Casambi lighting control functionalities. The preset buttons of Xpress can be configured via the Casambi App.

Long Range Mode

There are three radio modes: ‘Balanced’, ‘Better Performance’ and now ‘Long Range’ options. Long-range capabilities can reach approx. 200 meters (650 feet) with a good line of sight connection between nodes.

• Luminaire control
• Group control
• Control all luminaires
• Recall Scenes
• Recall Animations
• Smooth dimming
• Change of colour temperature
• Change of indirect/direct lighting ratio

Input

• Voltage: 3VDC
• Battery Type: CR2430 Lithium Coin Cell

Radio Transceiver

• Operating frequencies: 2.402…2.480 Ghz
• Maximum output power: +8 dBm

Operating conditions

• Operating temperature: +32°F… +104°F (0°C… 40°C)
• Storage temperature: -13°F… +158°F (-25°C… 70°C)
• Max. relative humidity: 0…80%, non-cond.

Mechanical data

• Dimensions: 3.54”x3.54”x.47” (90 x 90 x 12 mm)
• Weight: 2.54 oz (72 g)
• Degree of protection: IP20 (indoor use only)
