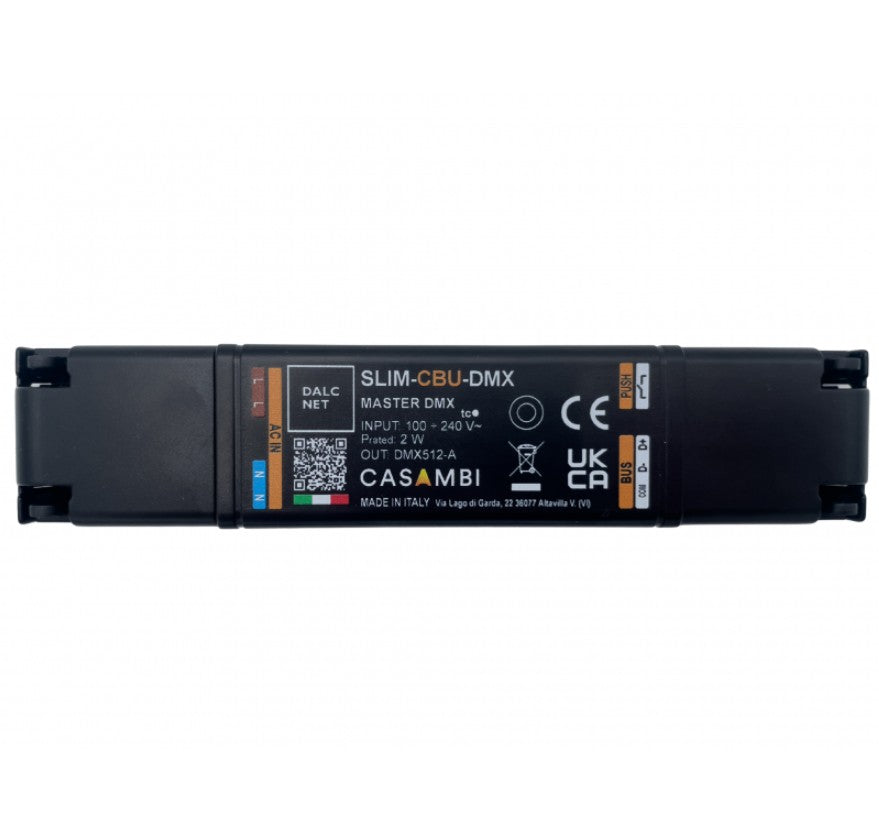

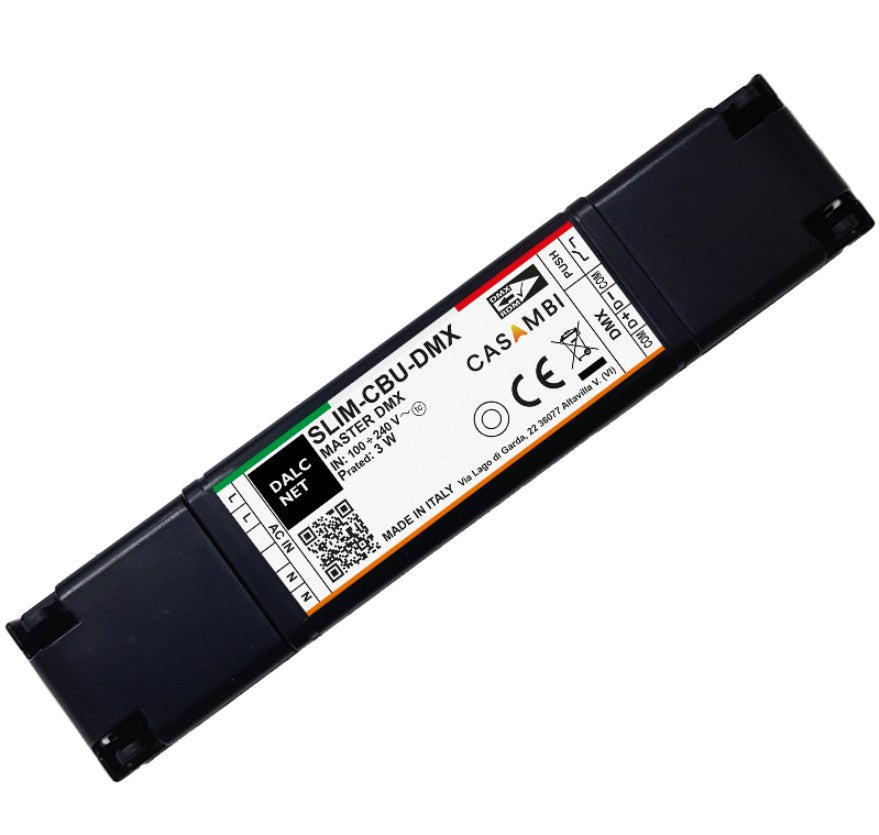

DalcNet SLIM-CBU-DMX Casambi to DMX Protocol Converter

DalcNet SLIM-CBU-DMX Casambi to DMX Protocol Converter

• CASAMBI©-to-DMX PROTOCOL CONVERTER
• Signal converter from CASAMBI© to DMX
• Input voltage: 230 Vac @50/60 Hz
• Remote control: via Bluetooth Low Energy (BLE)
• Local control: Normally Open (N.O.) push-button
• Configuration and control via CASAMBI© mobile application
• Extended Temperature Range
• 100% Functional Test - 5 years warranty


SLIM-CBU-DMX is a CASAMBI© Bluetooth Unit (CBU) designed to function as protocol converter between CASAMBI© and DMX networks. In Master mode, the CBU receives a command from CASAMBI© Mesh network or mobile app and converts it into a DMX
command signal; in Slave mode, the CBU receives a command signal from DMX bus and translate it into a command on CASAMBI© Mesh network (sent over BLE).
Both operating modes Master and Slave can be managed via CASAMBI© mobile app (refer to §Profiles Overview: Fixtures for Master/Slave conversion profiles).
The device operates on Mains voltage 230 Vac @50/60 Hz power supply and features built-in logic control protections, including overvoltage and input-fuse protections.
Through the CASAMBI© mobile application and smartphones equipped with Bluetooth technology, it is possible to configure multiple values. CASAMBI© mobile application can be downloaded free of charge from the Apple APP Store and Google Play Store.

⇢ For the most up-to-date manual, please visit our website www.dalcnet.com or scan the QR code on product label.
⇢ For the correct functioning of the CASAMBI© mobile app, please visit the forum on the Casambi website: https://support.casambi.com/support/home
