Danlers CBU-RELAY Relay For Use With Casambi Controls

Danlers CBU-RELAY Relay For Use With Casambi Controls

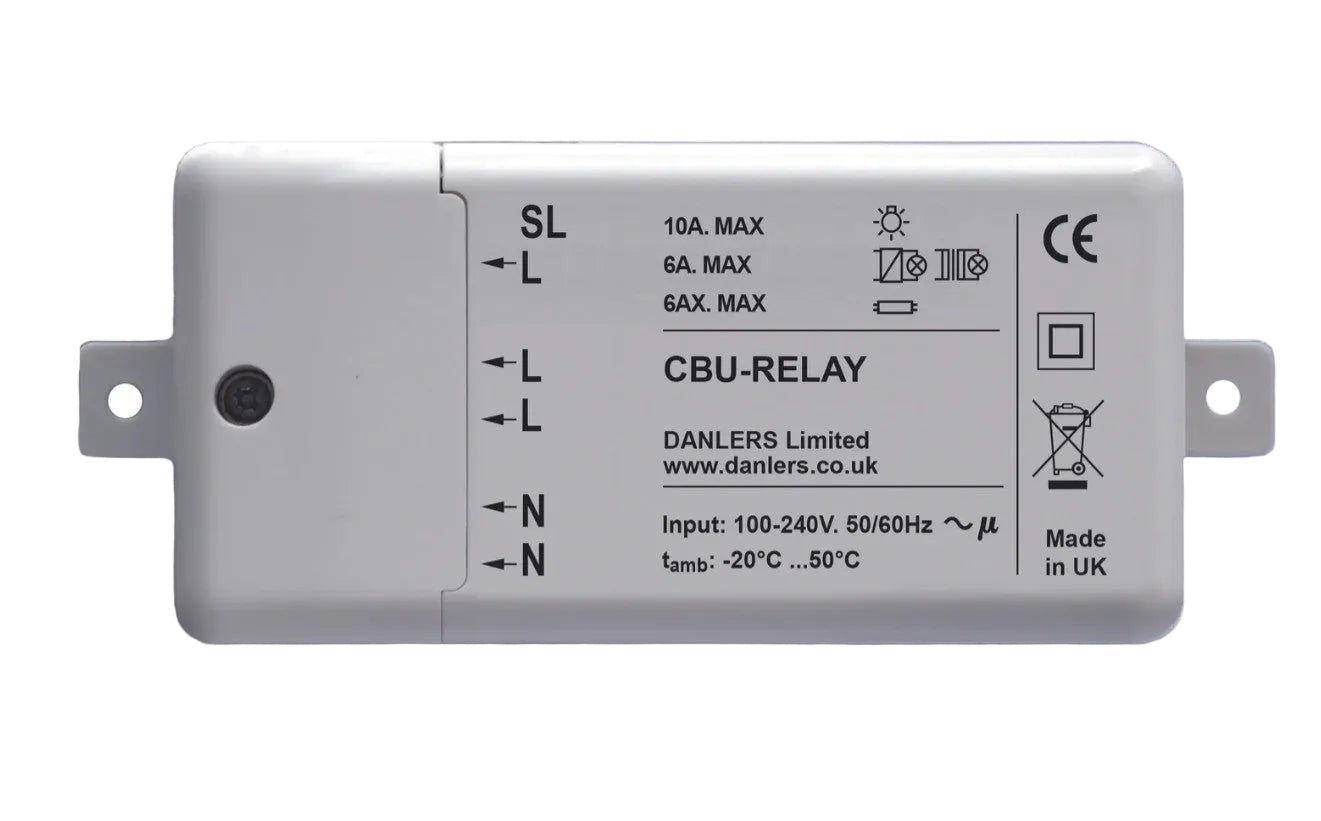

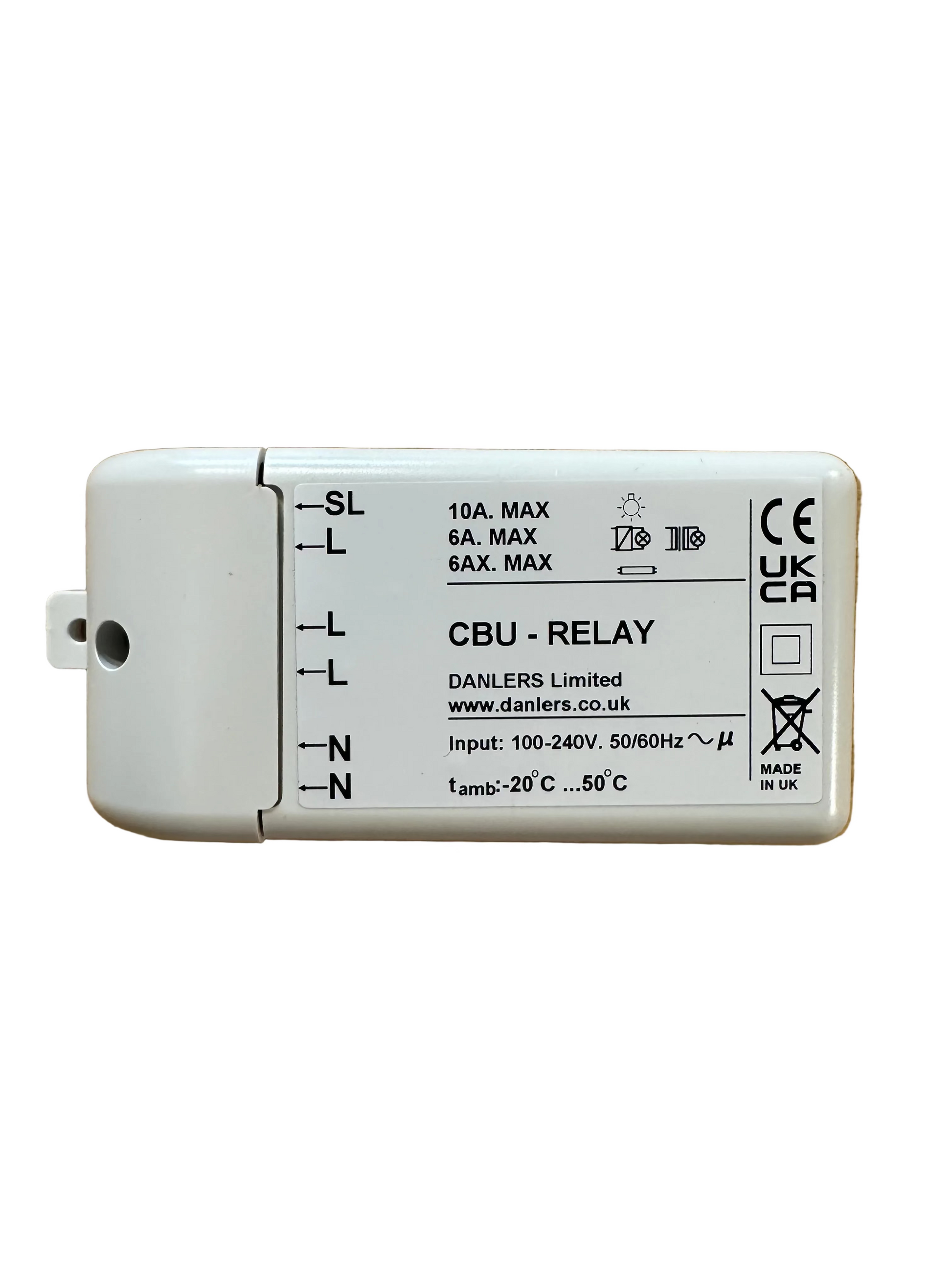

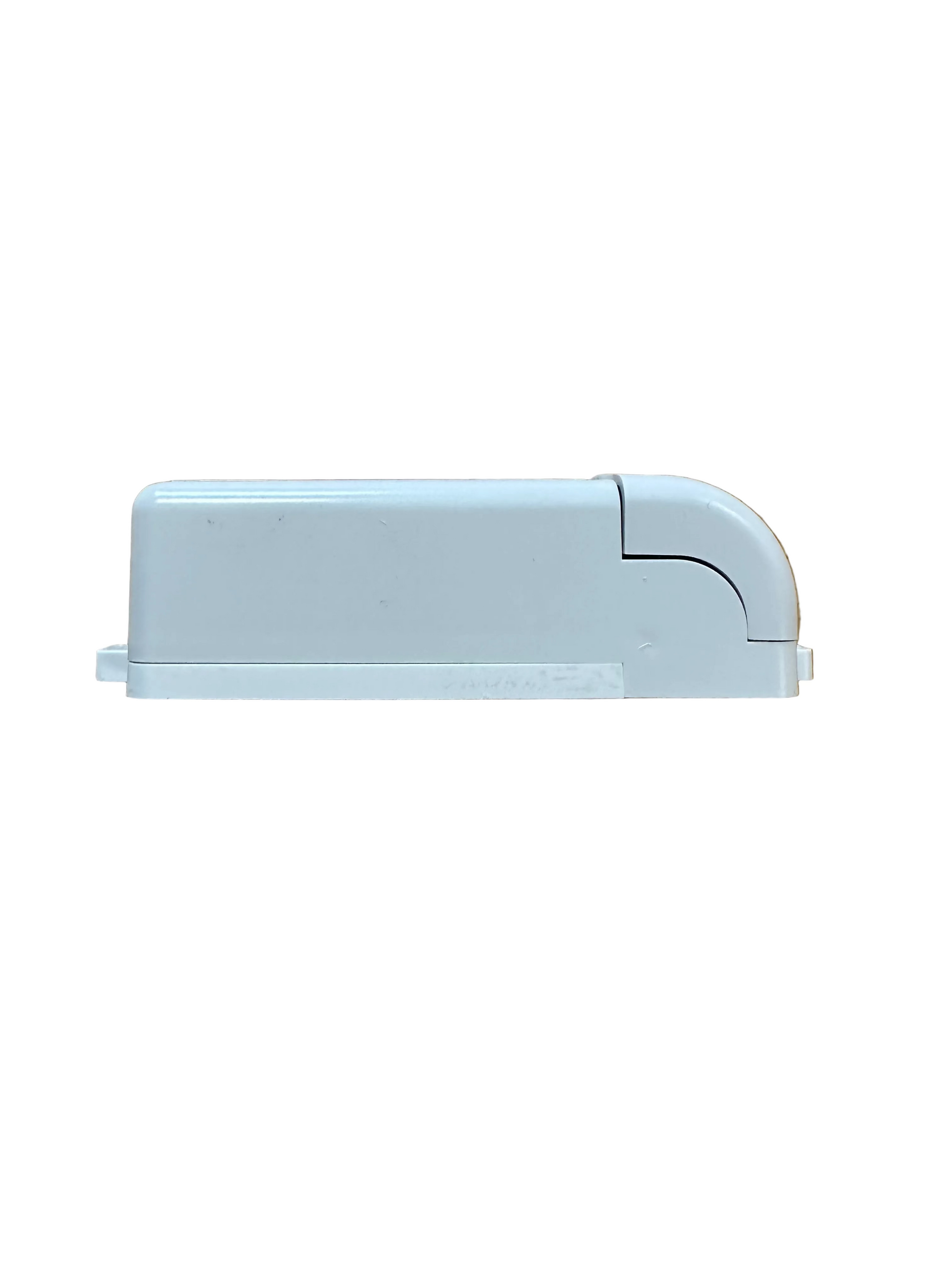

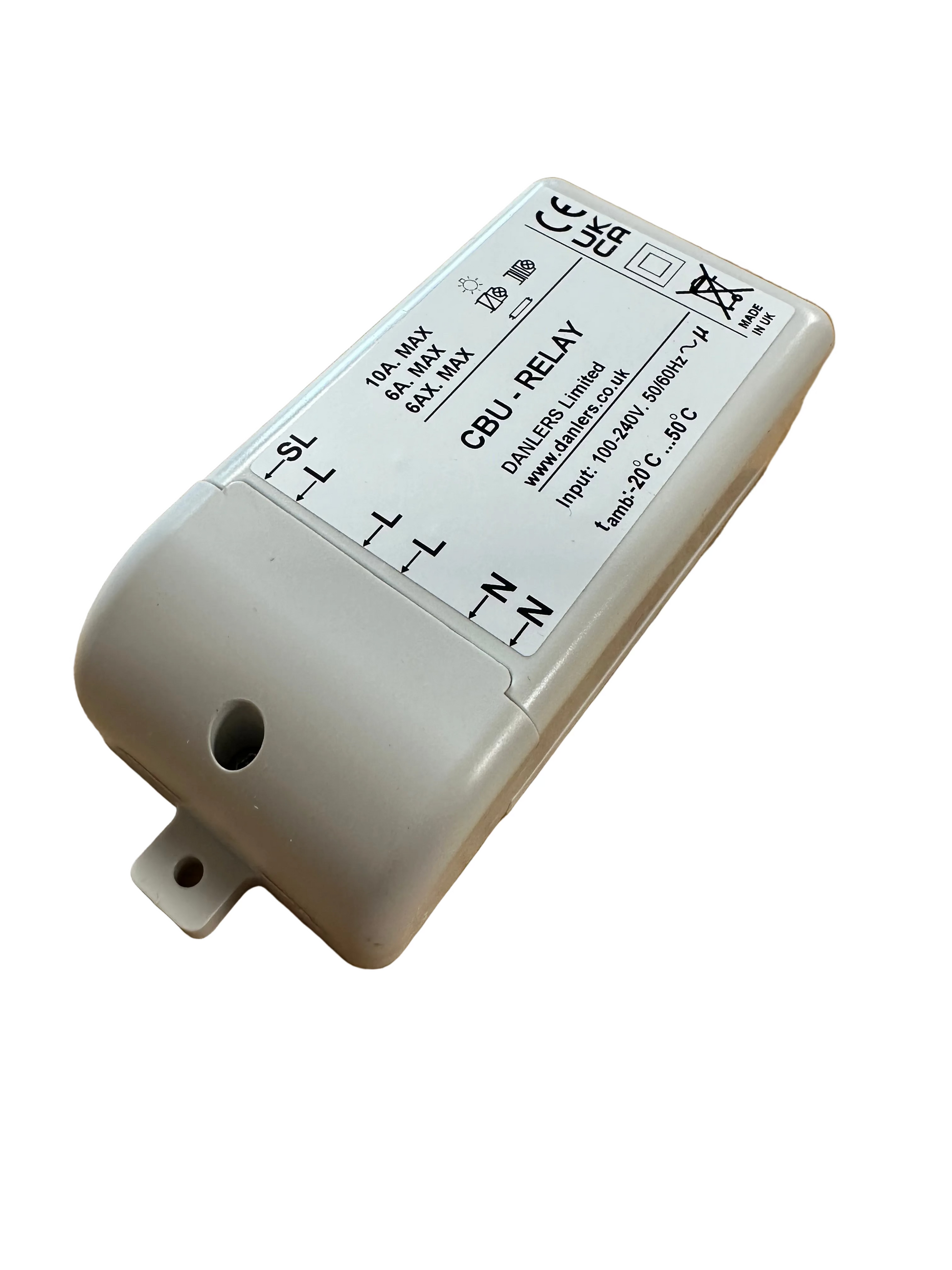

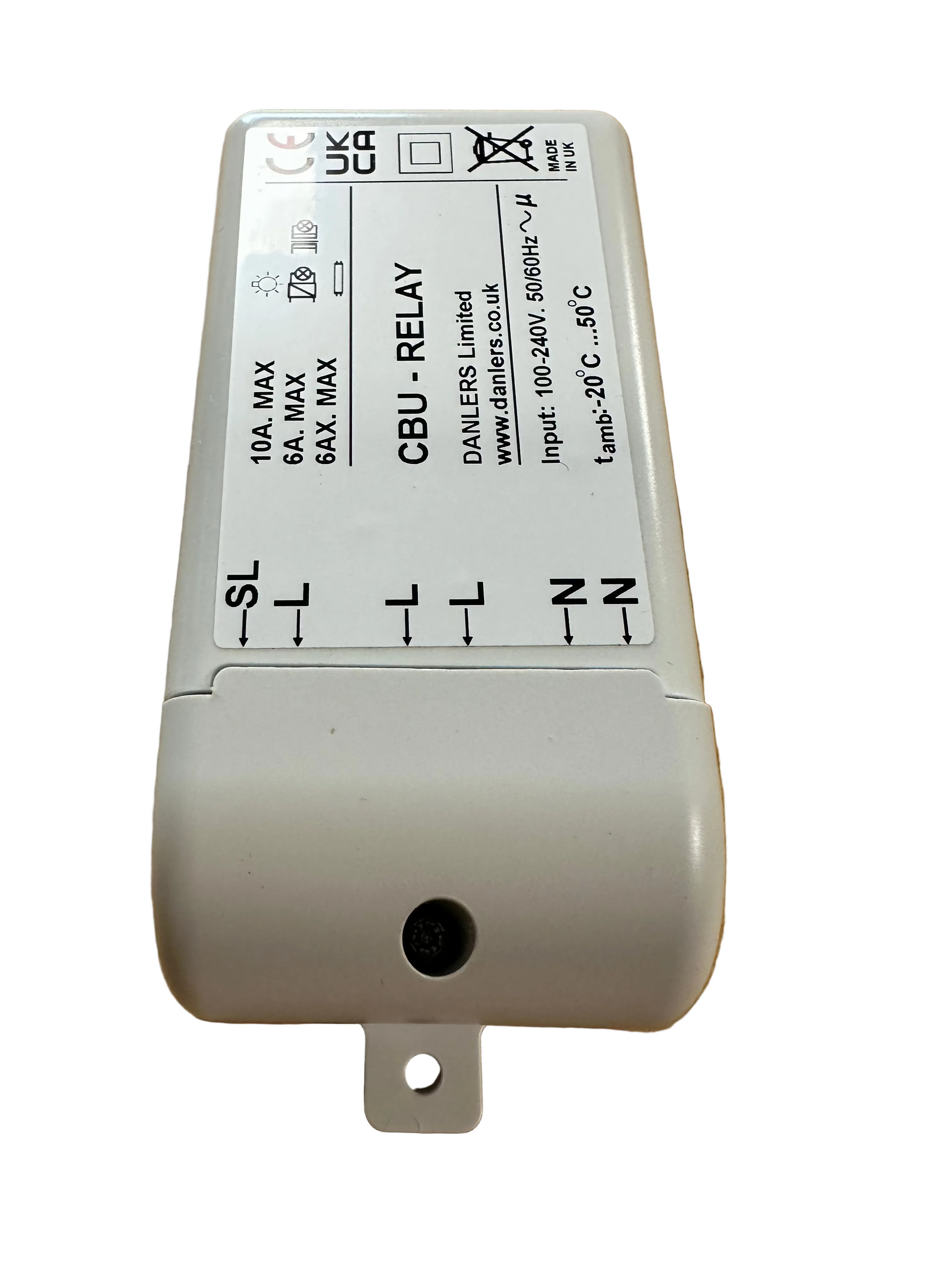

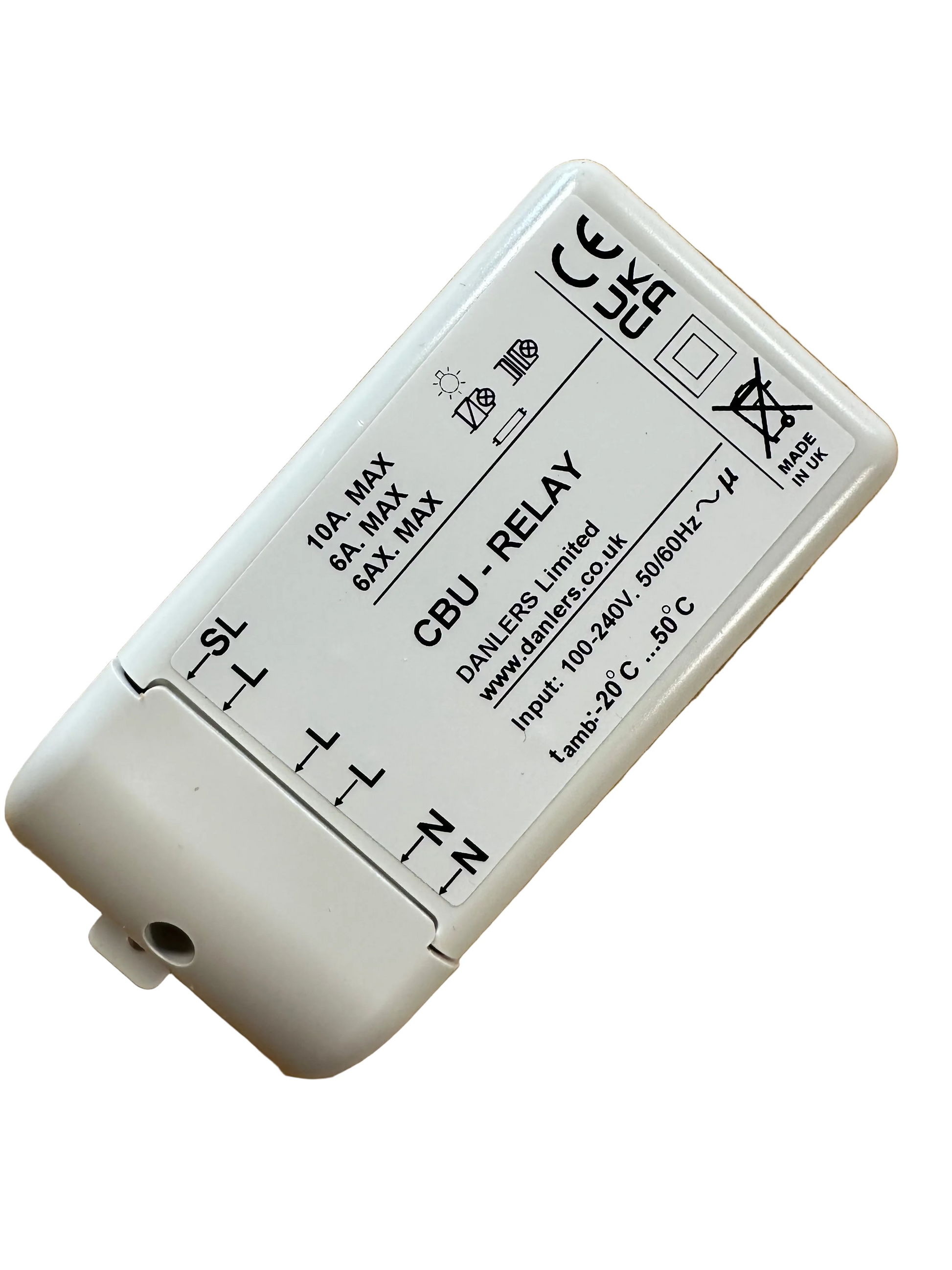

CBU-RELAY is a single channel relay, capable of switching loads up to 10A (dependent on type of load) via Casambi. Complete with cable clamp providing strain relief.

• Fluorescent lamps, either high frequency of switch start : 10 amps (2300W)
• Incandescent or mains halogen lamps : 10 amps (2300W)
• Electronic or wire wound transformers. : 6 amps (1500W)
• LED lamps and drivers (PF ? 0.95): 6 amps (1500W)
• Compact fluorescent: 6 amps (1500W)
• Fans: 1 amp (250W)
• Degree of protection: IP40
