Ecopac DALI-801-8A DALI Dimmable Driver LED Interface (Constant Voltage)

Ecopac DALI-801-8A DALI Dimmable Driver LED Interface (Constant Voltage)

The Dali-CV LED Interface is a intelligent electronic constant-voltage 1-channel DALI dimmer.

• Input Voltage 12-36VDC
• Output Current 1x8A
• Output Power 1x(12V 96 - 24V 288)W
• Size 95 x 37 x 20 mm
• Constant Voltage
• DO NOT install with power applied to device
• DO NOT expose the device to moisture

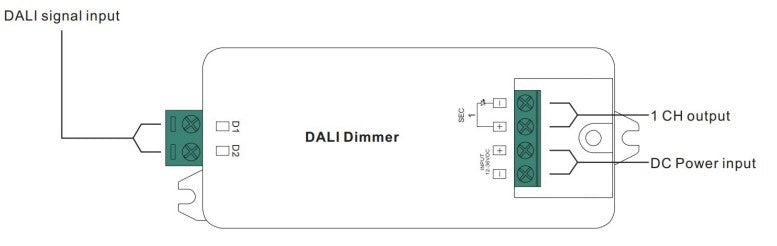

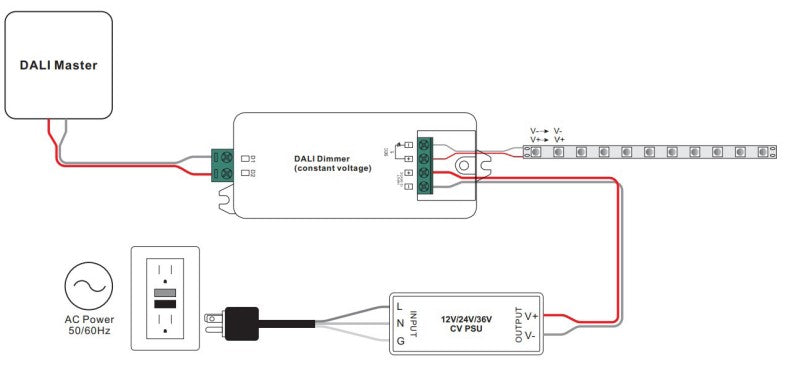

Do wiring according to connection diagram. DALI Address Assigned by DALI Masters This product is designed with 1 DALI address input and 1 channel output, DALI address is assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
