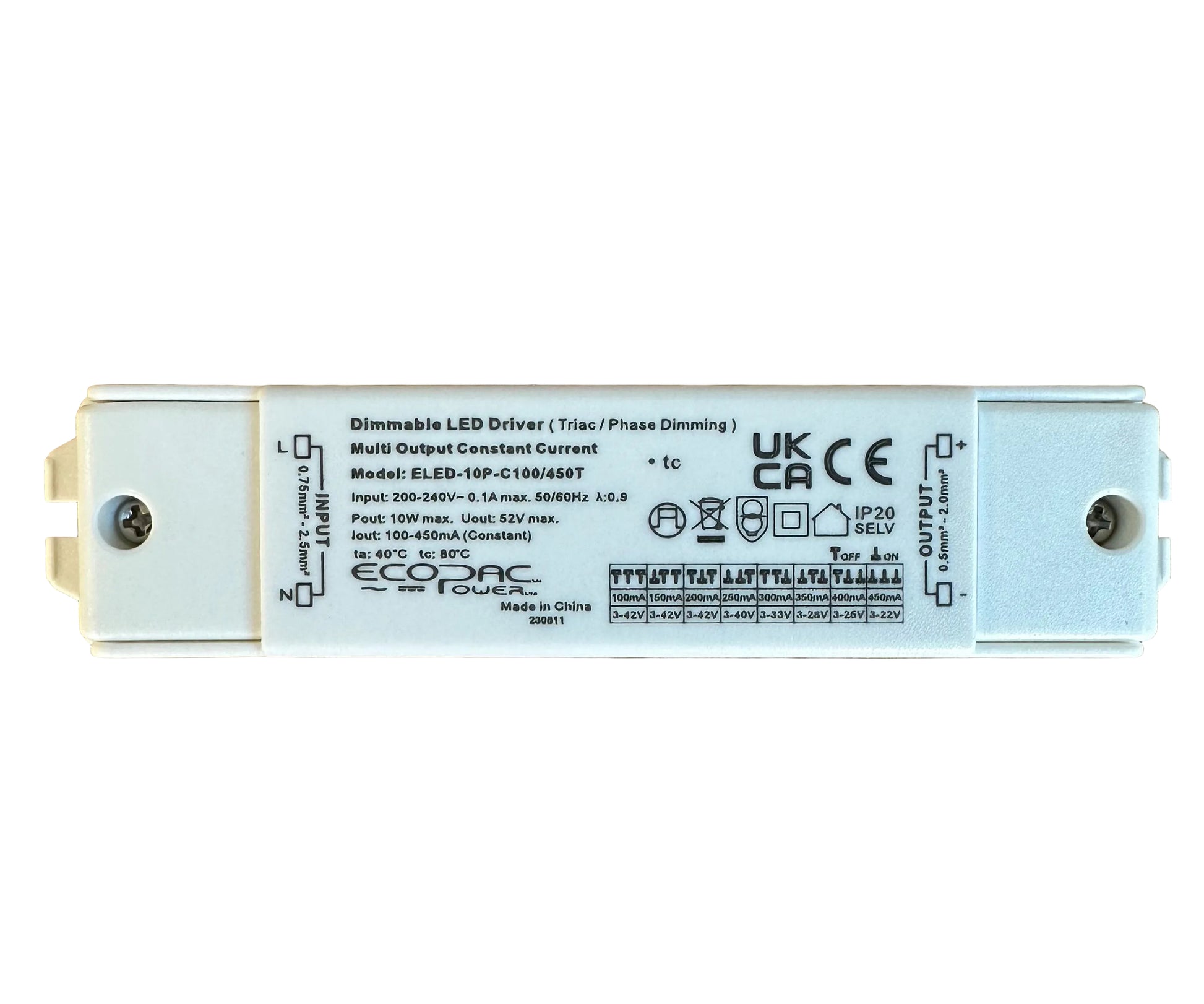

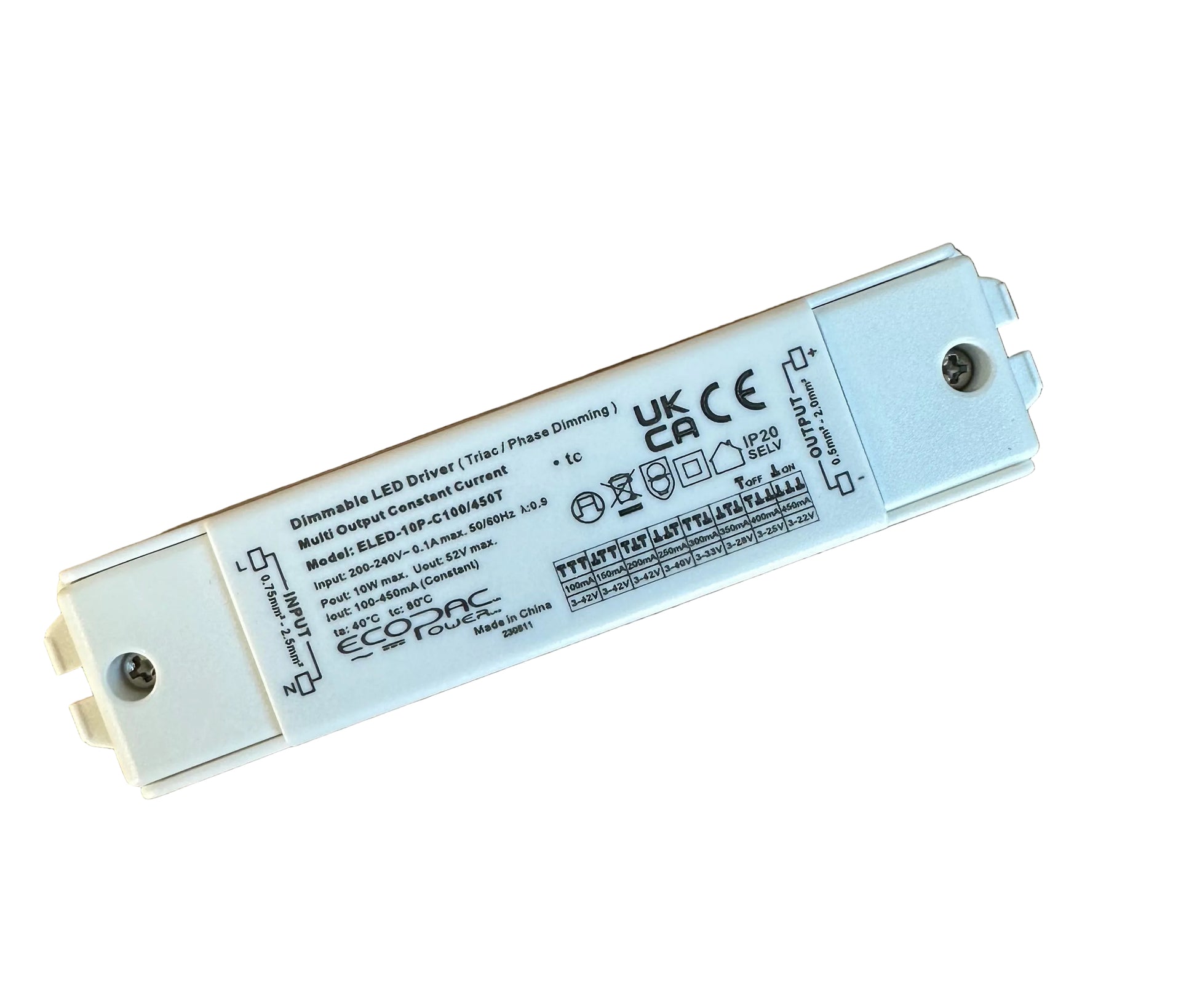

ECOPAC ELED-10P-C100/450T 10W 100-450mA (Dip-Switch)Triac Dimmable LED Driver

ECOPAC ELED-10P-C100/450T 10W 100-450mA (Dip-Switch)Triac Dimmable LED Driver

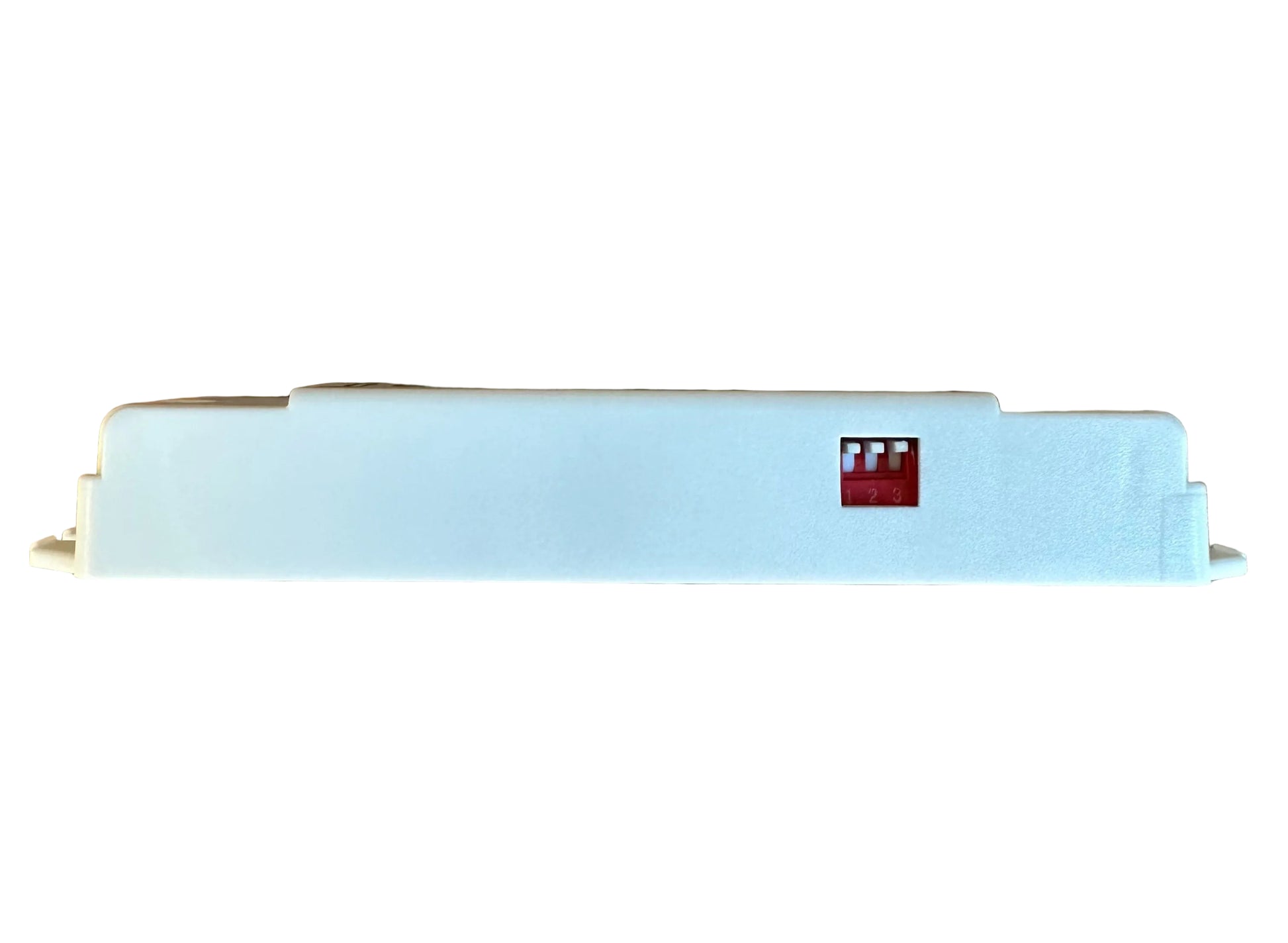

• Constant Current mode output with multiple levels selectable by dip switch

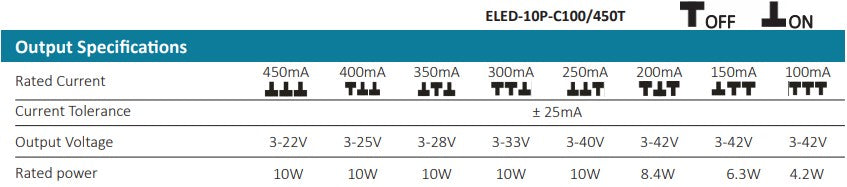

• 100mA - 3-42V 150mA 3-42V 200mA 3-42V 250mA 3-40V 300mA 3-33V 350mA 3-28V 400mA 3-25V 450mA 3-22V
• Dimming function: Triac/phase cut dimming
• Work with leading or trailing edge Triac dimmer

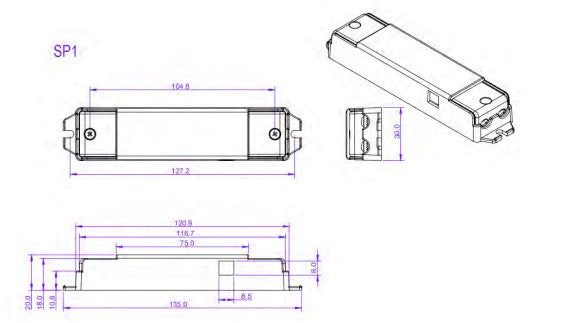

• Dimensions: 135mm L 30mm W 20mm H
• (ON key: leading edge; 1 key: trailing edge)
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 75%
• IP20 design for indoor installation
• Full protection plastic housing easy installation
• Protections: Short circuit/ Over load
• Cooling by free air convection
• Suitable for LED lighting and moving sign applications
• Strong compatibility, flicker-free dimming
