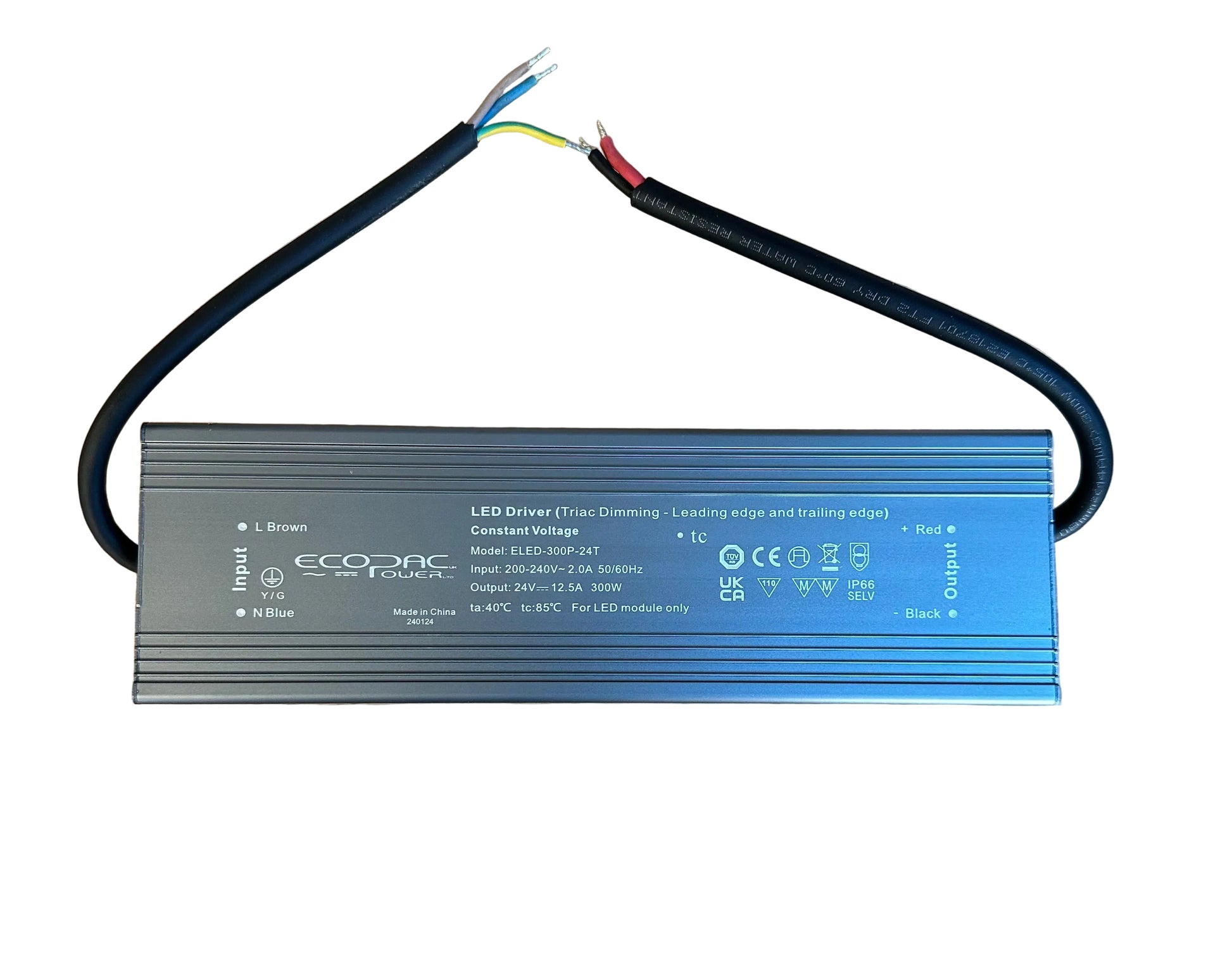

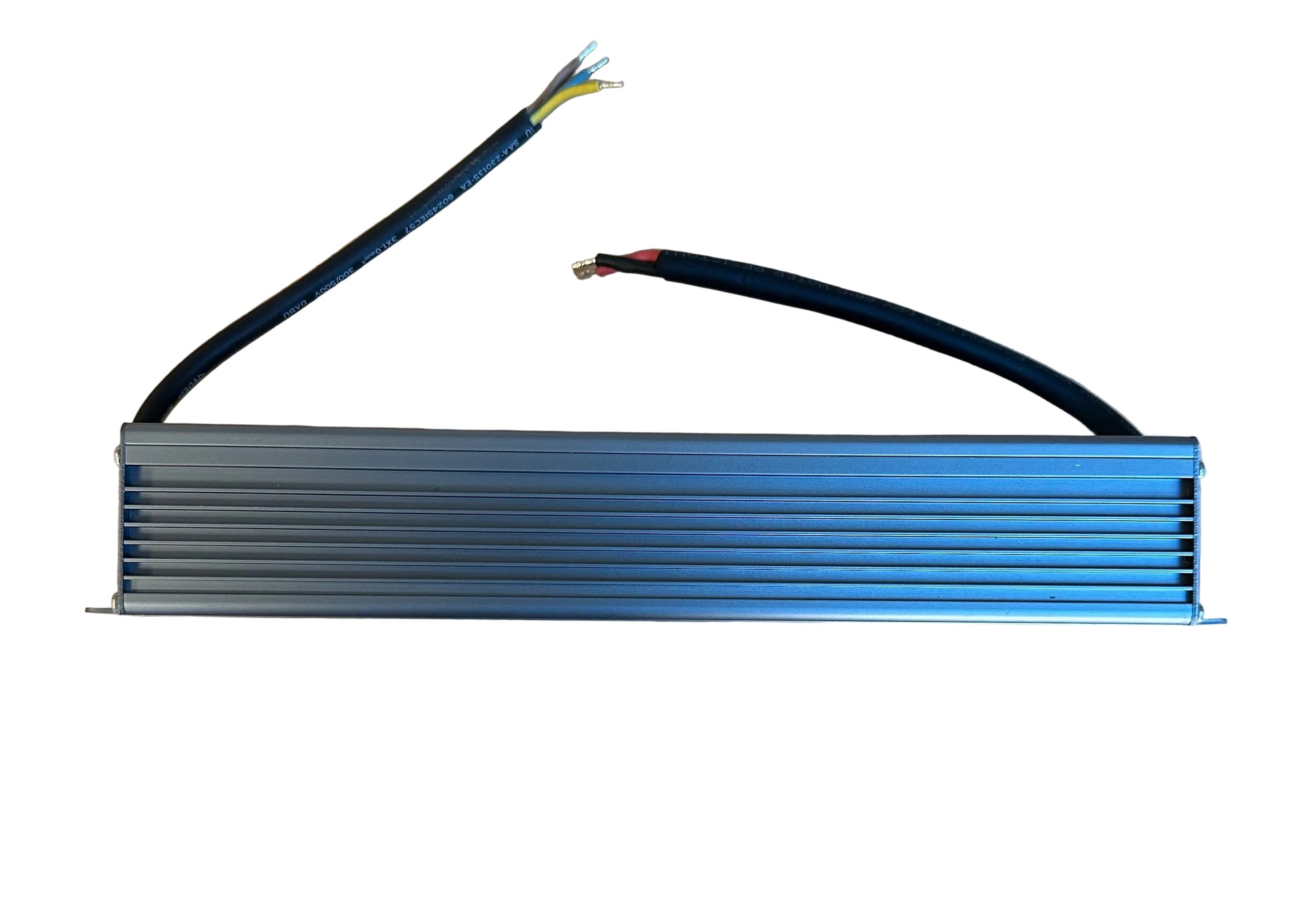

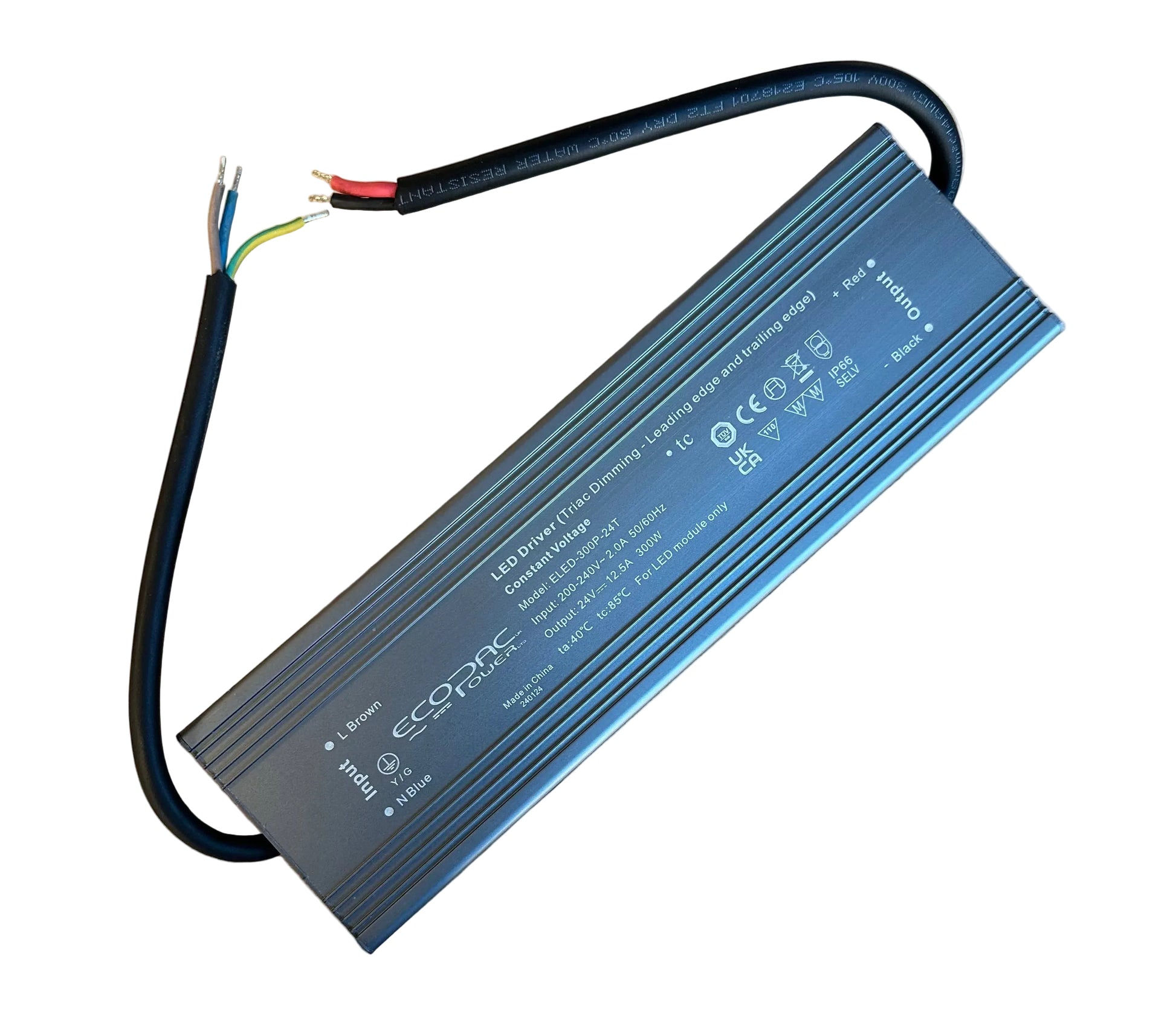

Ecopac ELED-300P-24T 300W 24V IP66 Triac Dimmable LED Driver

Ecopac ELED-300P-24T 300W 24V IP66 Triac Dimmable LED Driver

Constant voltage/ PWM Output

Leading & Trailing edge dimmable

Other features:

• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 89%
• Protections: Short circuit/ Over load/Over temperature/Over Current
• Cooling by free air convection
• IP66 design

Specification:

• Wattage: 300W

• Input Voltage: 220-240 VAC
• Output Current: 12.5A
• Output Voltage: 24V
• Output Voltage Options: Single

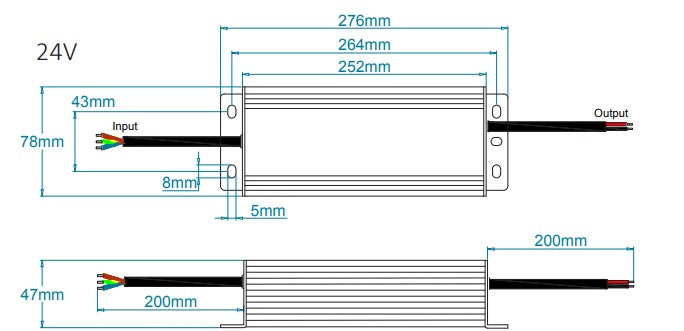

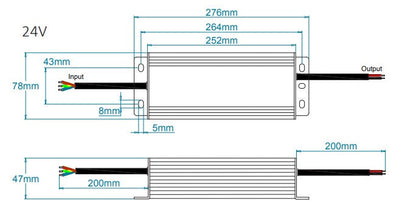

• Dimensions: 276 x 78 x 47mm
• Working Temperature: -40 + 60
