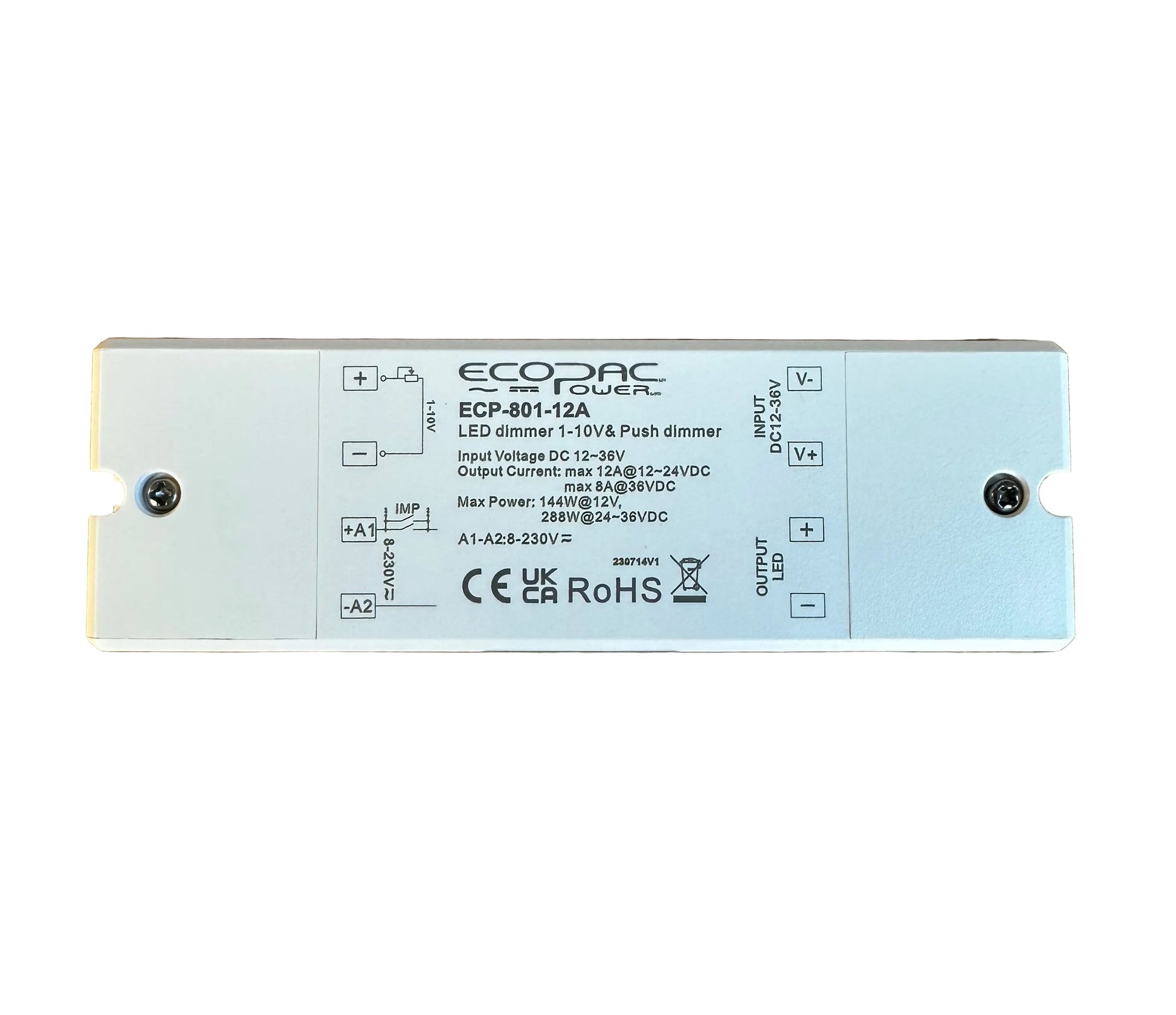

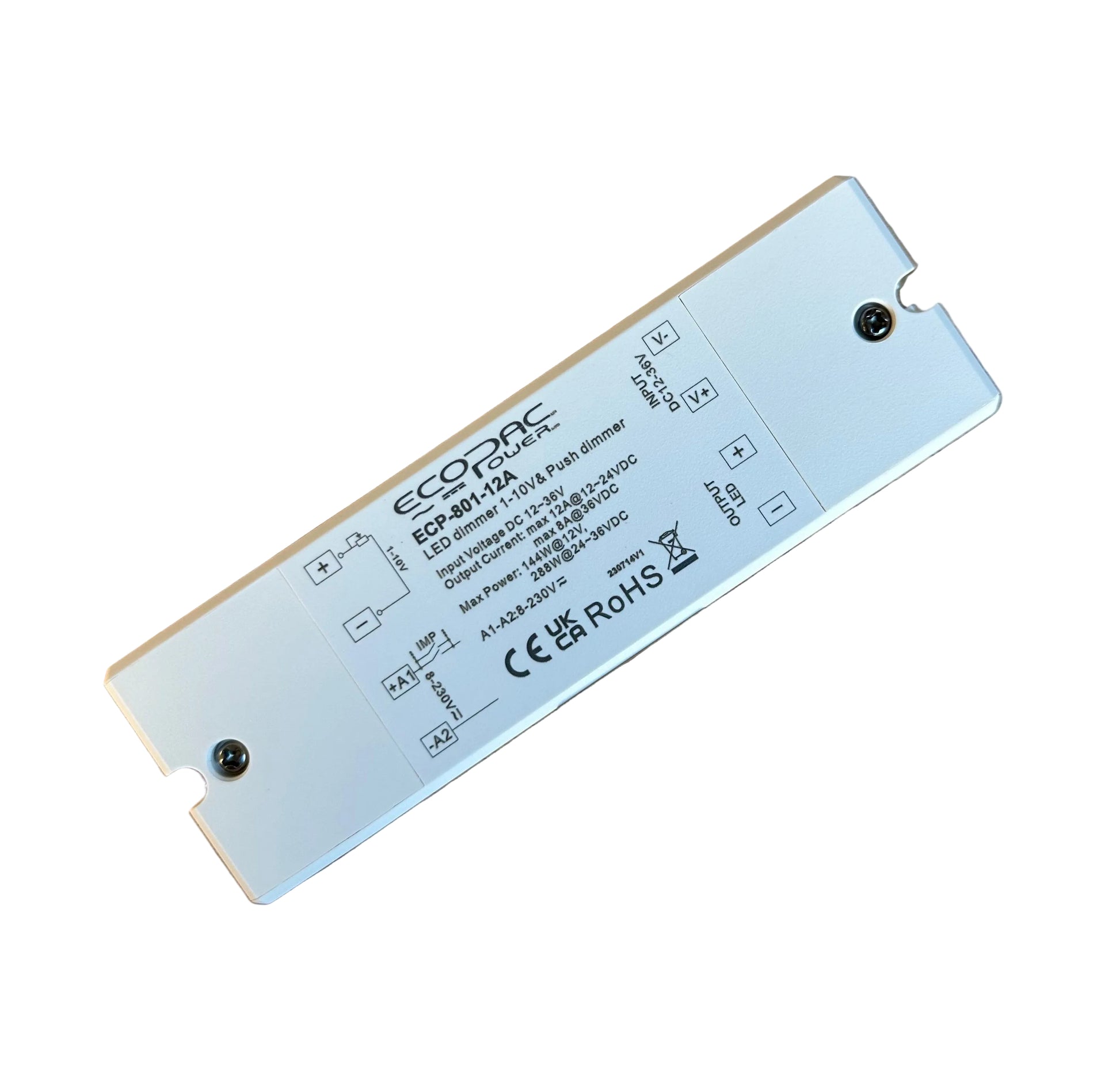

Ecopac LED 1-10V Dimming Interface ECP-801-12A

Ecopac LED 1-10V Dimming Interface ECP-801-12A

The Ecopac ECP-801-12A LED dimming interface can be used in conjunction with non dimmable LED drivers to provide 1-10V signal dimming or enable push switch dimming.

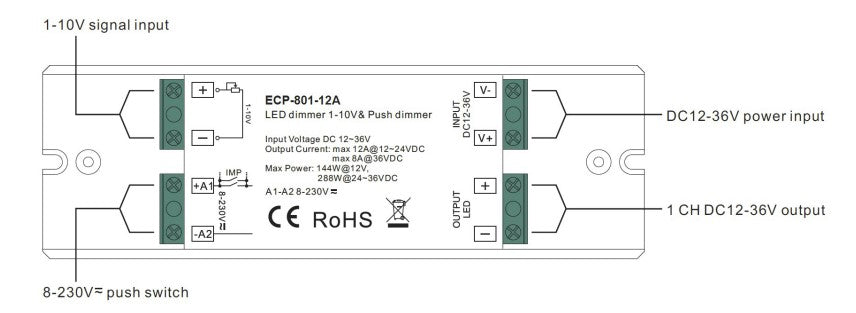

• With 1 Channel 1-10V signal Input, 1 Channel PWM Output
• Compact Size, High Output Current
• 1 Channel, max 12A@12~24VDC/max 8A@36VDC/CH Output
• Ultra-pro Push Dim Function

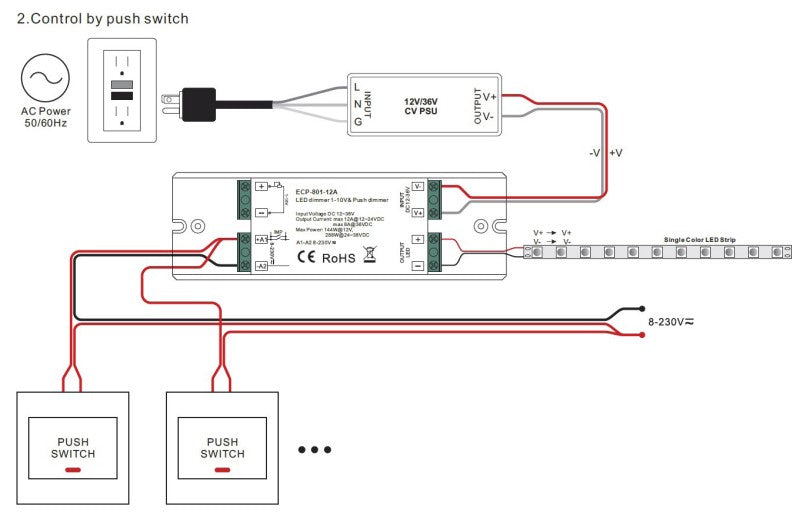

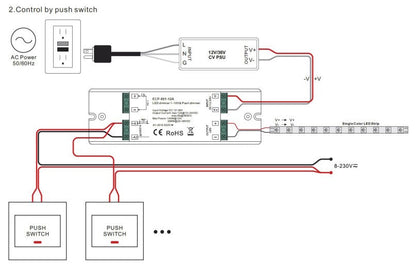

• Directly Support Both AC and DC Input Push Switches
• 1-10V Dimmer Function While Controlled by 1-10V Signal
• Input Voltage 12-36VDC
• Output Current max 12A@12~24VDC, max 8A@36VDC
• Output Power 1x(144-288)W
• Size 145 x 46.5 x 16 mm
• Constant voltage
• IP Rating IP20
