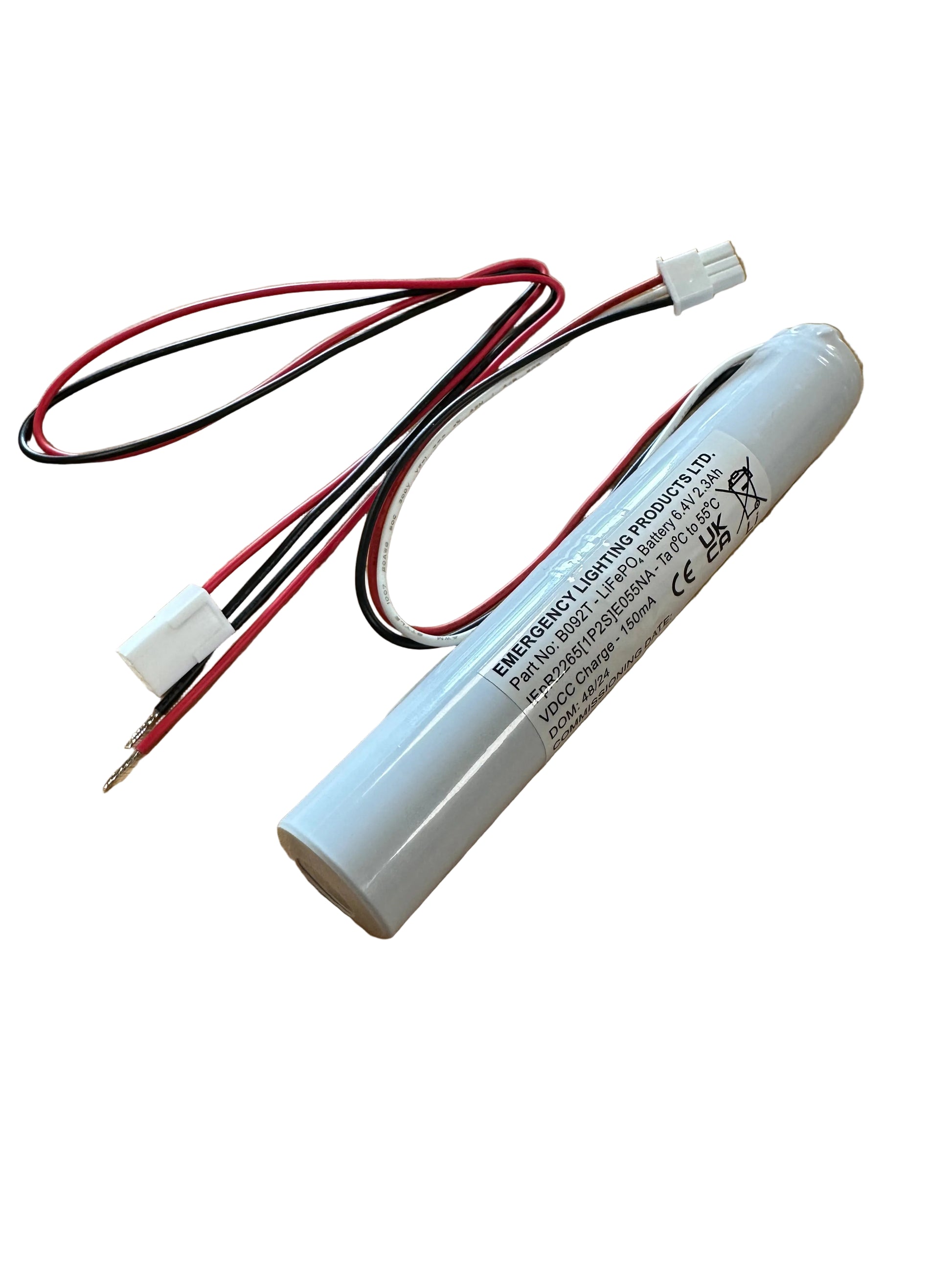

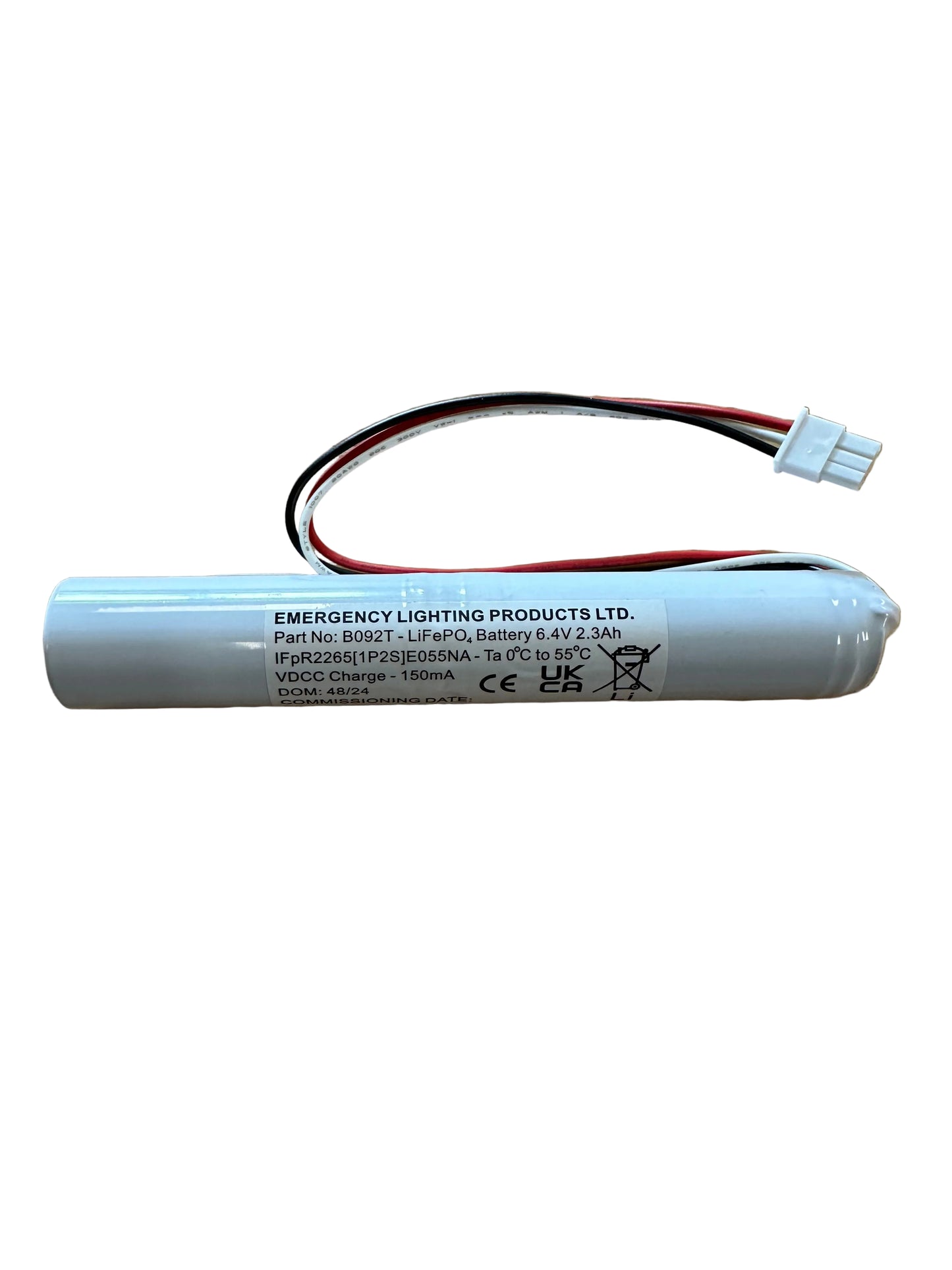

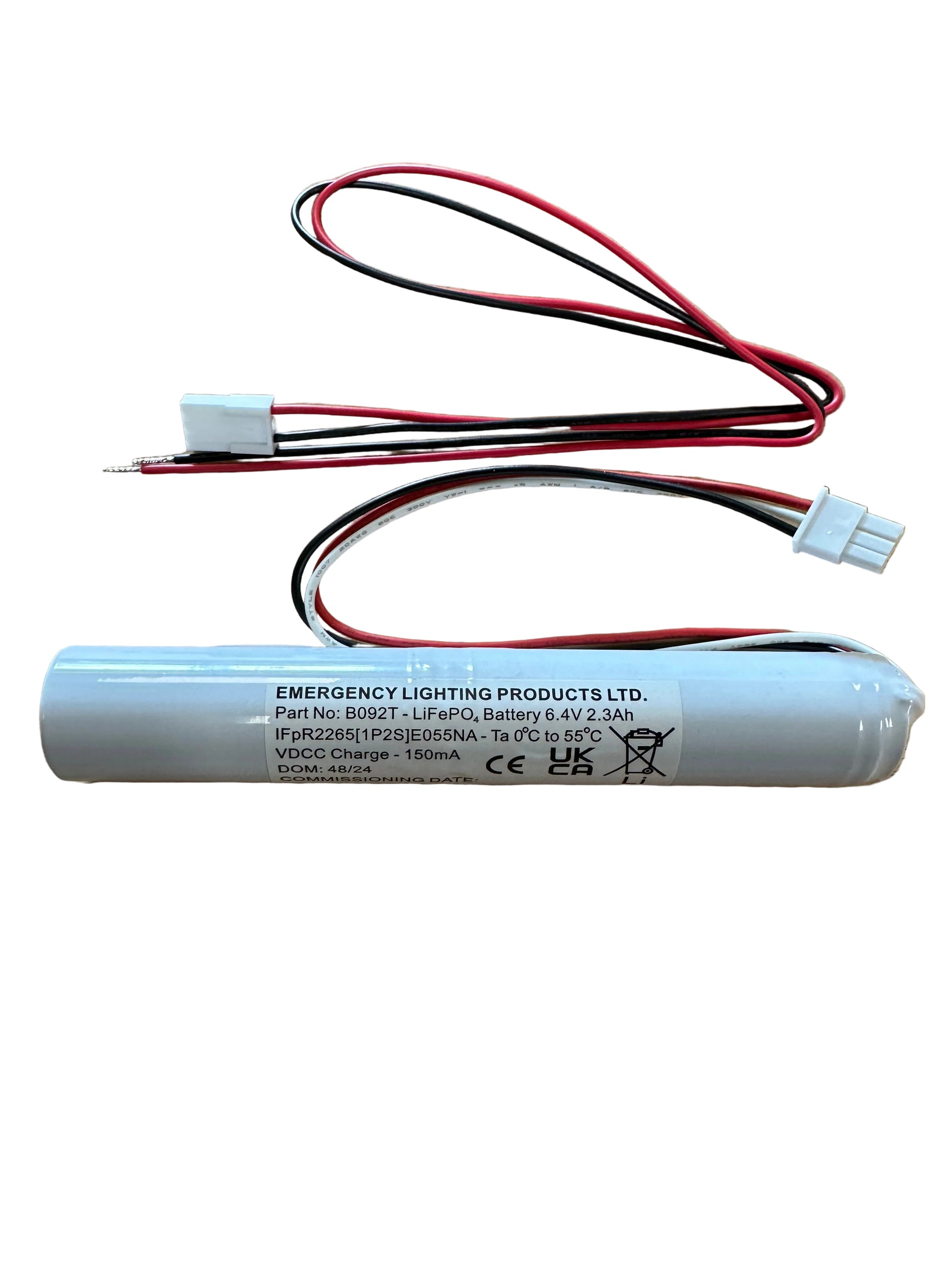

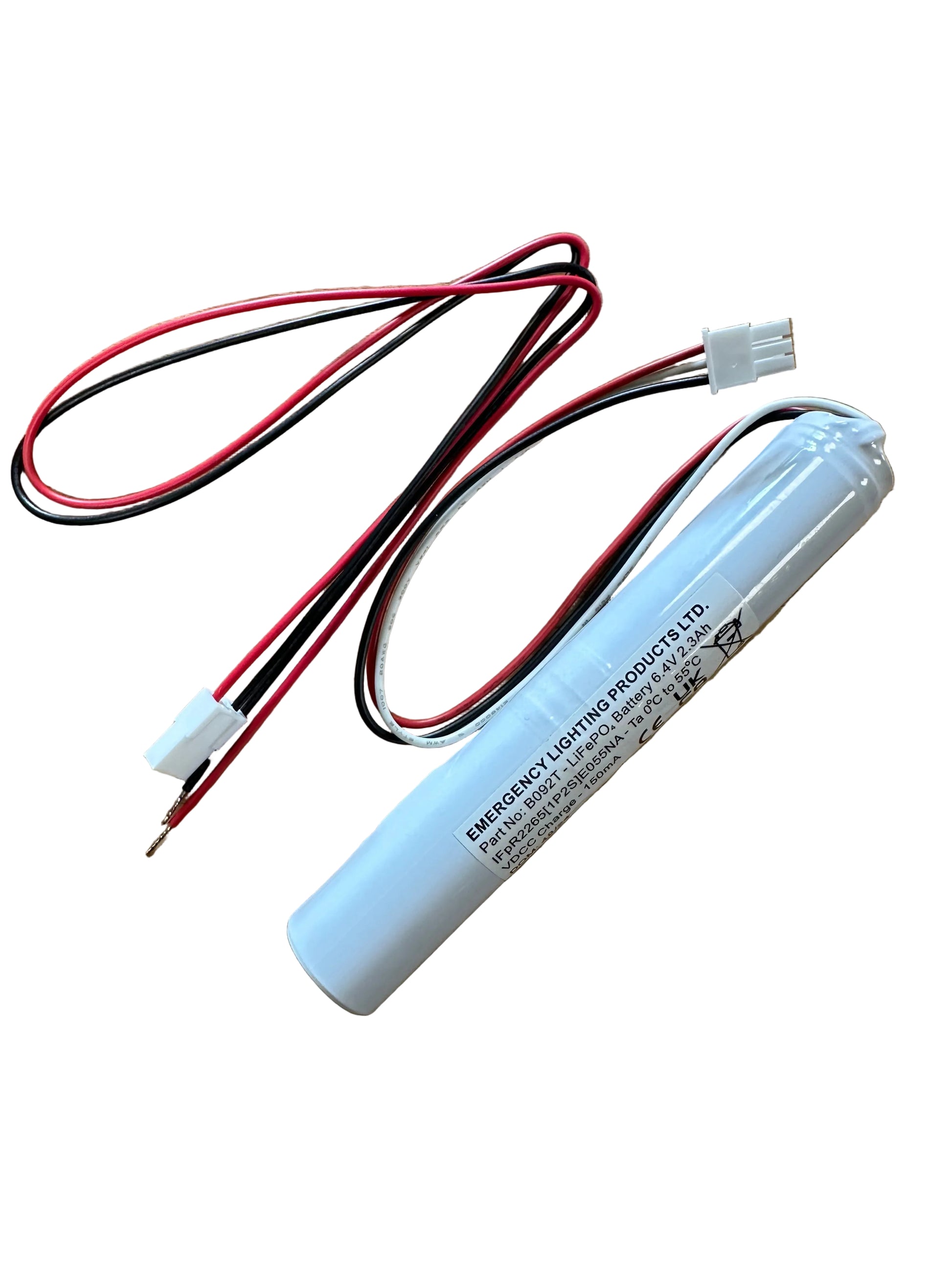

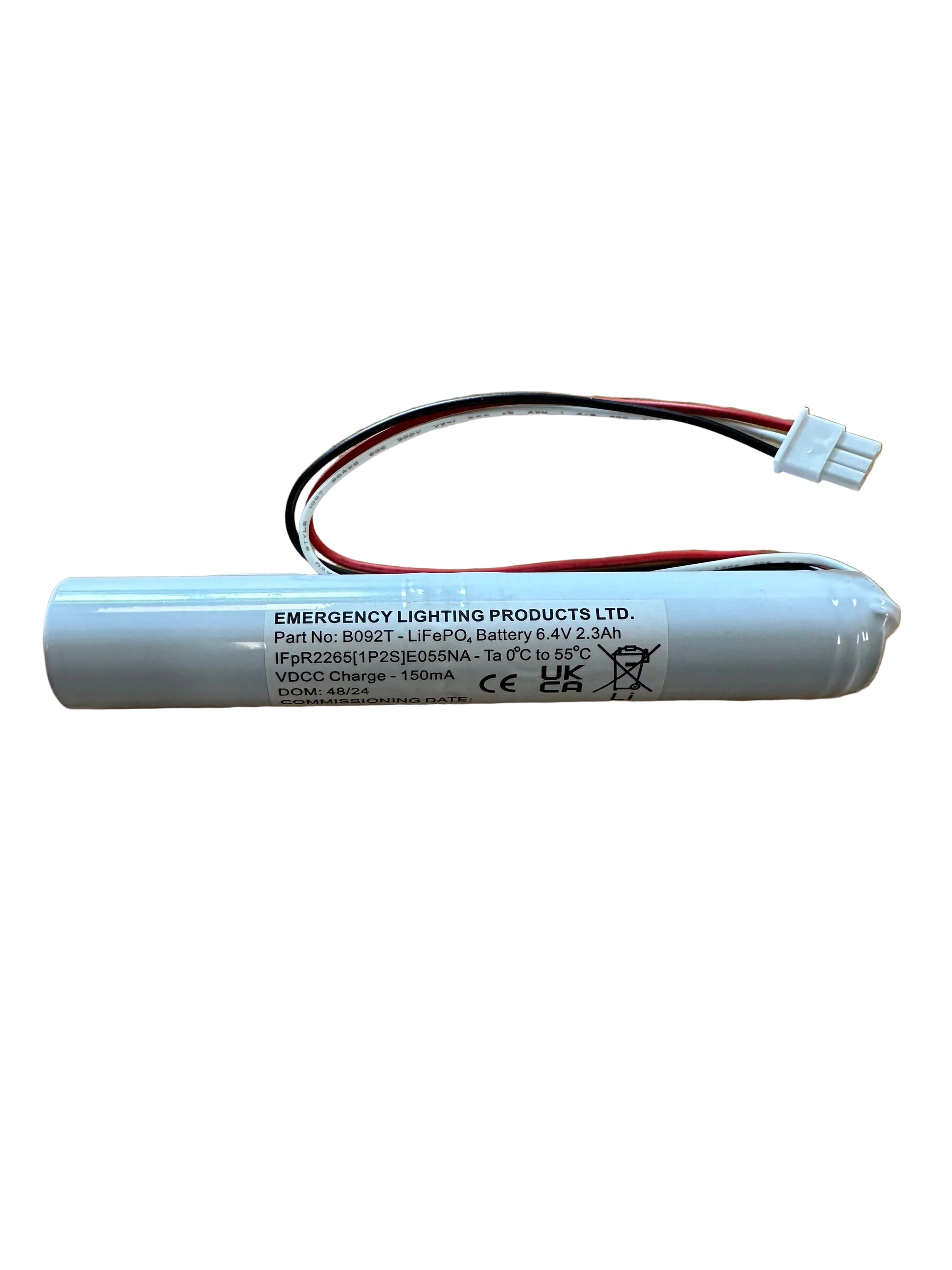

ELP B092T 2 Cell 6.4V 2.3Ah LiFePO4 Emergency Lighting Battery Stick

ELP B092T 2 Cell 6.4V 2.3Ah LiFePO4 Emergency Lighting Battery Stick

ELP B092T 2 Cell 6.4V 2.3Ah LiFePO4 STICK BATTERY

The B092T is the next generation of Lithium battery due to new regulations put in place where they would now need to be 3-wired which would allow for thermal regulating.

The B092T comes complete with a two wire adaptor lead, making it compatible with the previous 2 wire B092 and associated 2 wire modules.

ELP B092T

Part number B092T
Chemistry LiFePO4
Voltage 6.4V
Capacity 2300mAh
Size 138mm x 28mm
Lead length 220mm + 100mm 2 wire adaptor lead

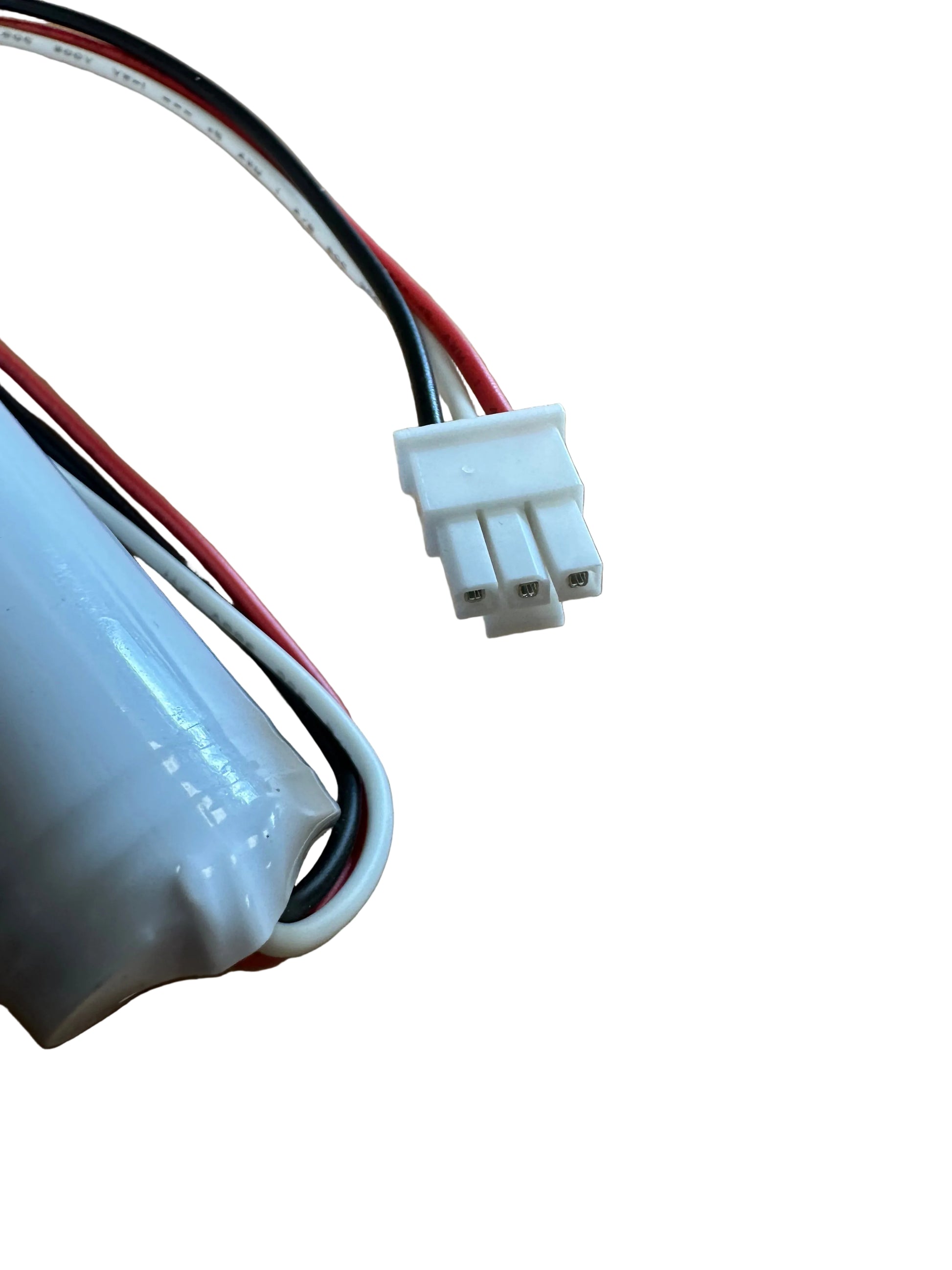

The B092T has been upgraded to a 3-wire version as the latest version of the control gear standard BS EN 61347-2-7 has a section that calls for Lithium batteries in emergency lighting equipment to not start charging if they are too hot or too cold.

To remain backwards compatible, ELP also supply a 2-wire adaptor that will connect to the 3-wire replacement battery, and plug into the + & – terminals, as per the original battery within the fitting.
