FOXLUX FXE03-55-KIT Micro Conversion Module - Battery - LED Indicator - Self Test - 10-50V

FOXLUX FXE03-55-KIT Micro Conversion Module - Battery - LED Indicator - Self Test - 10-50V

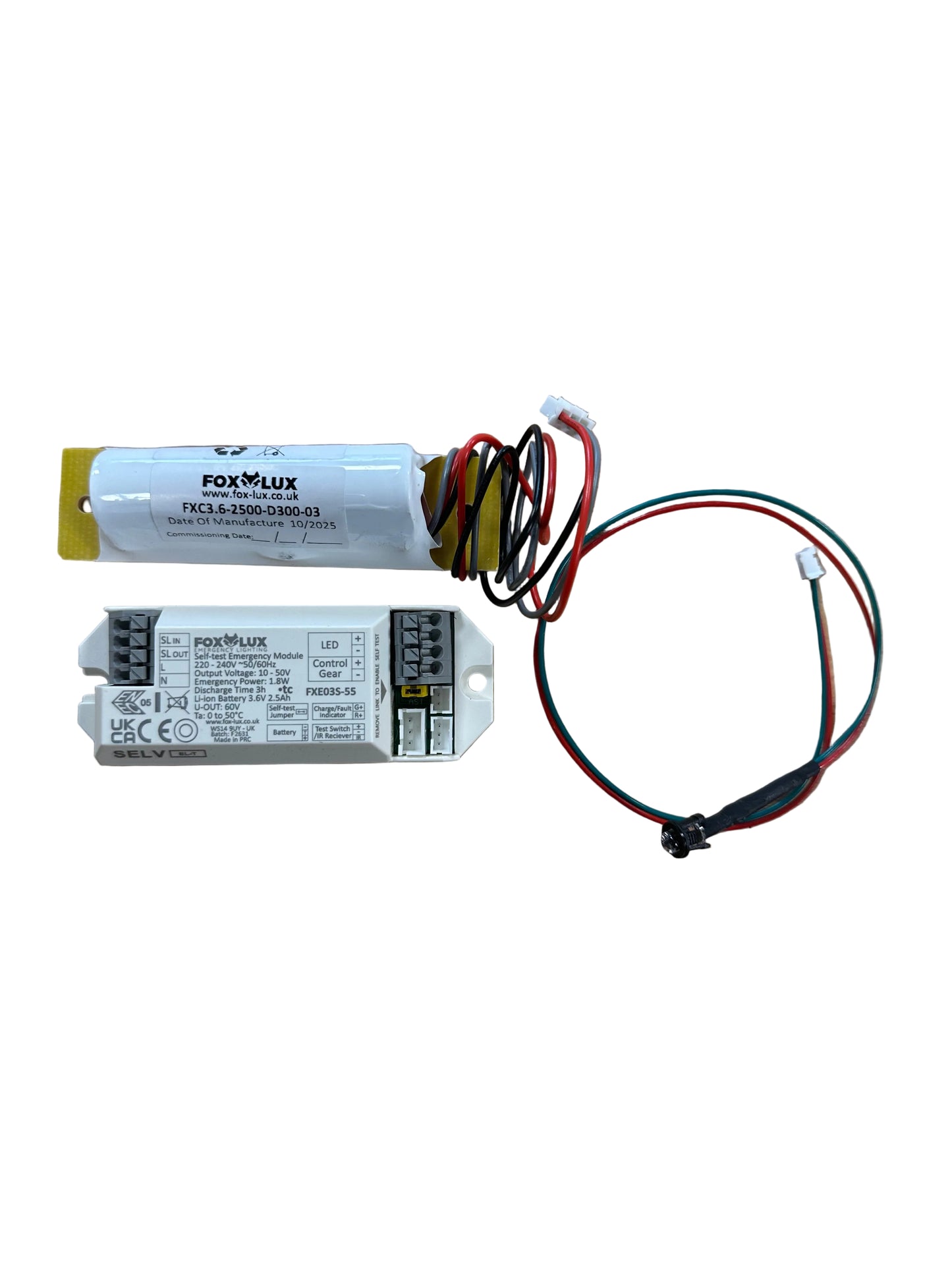

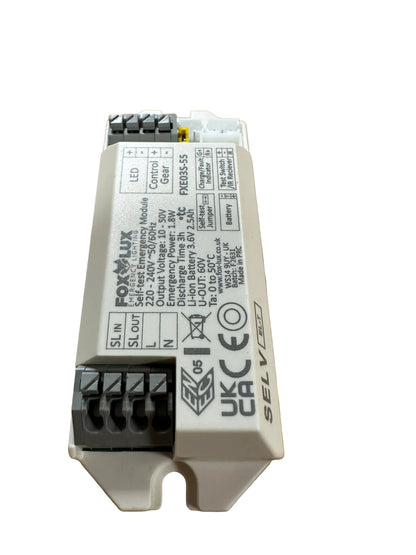

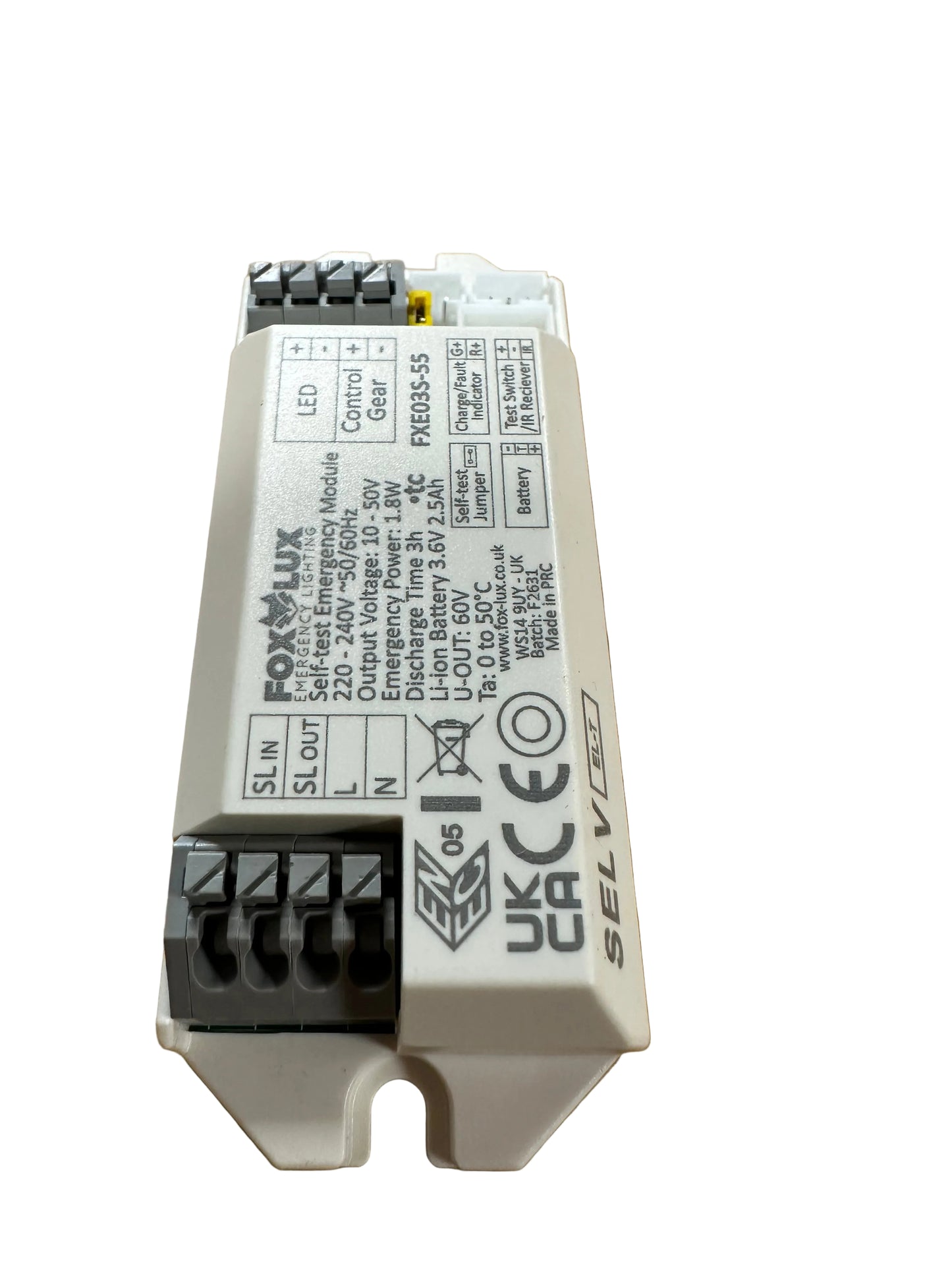

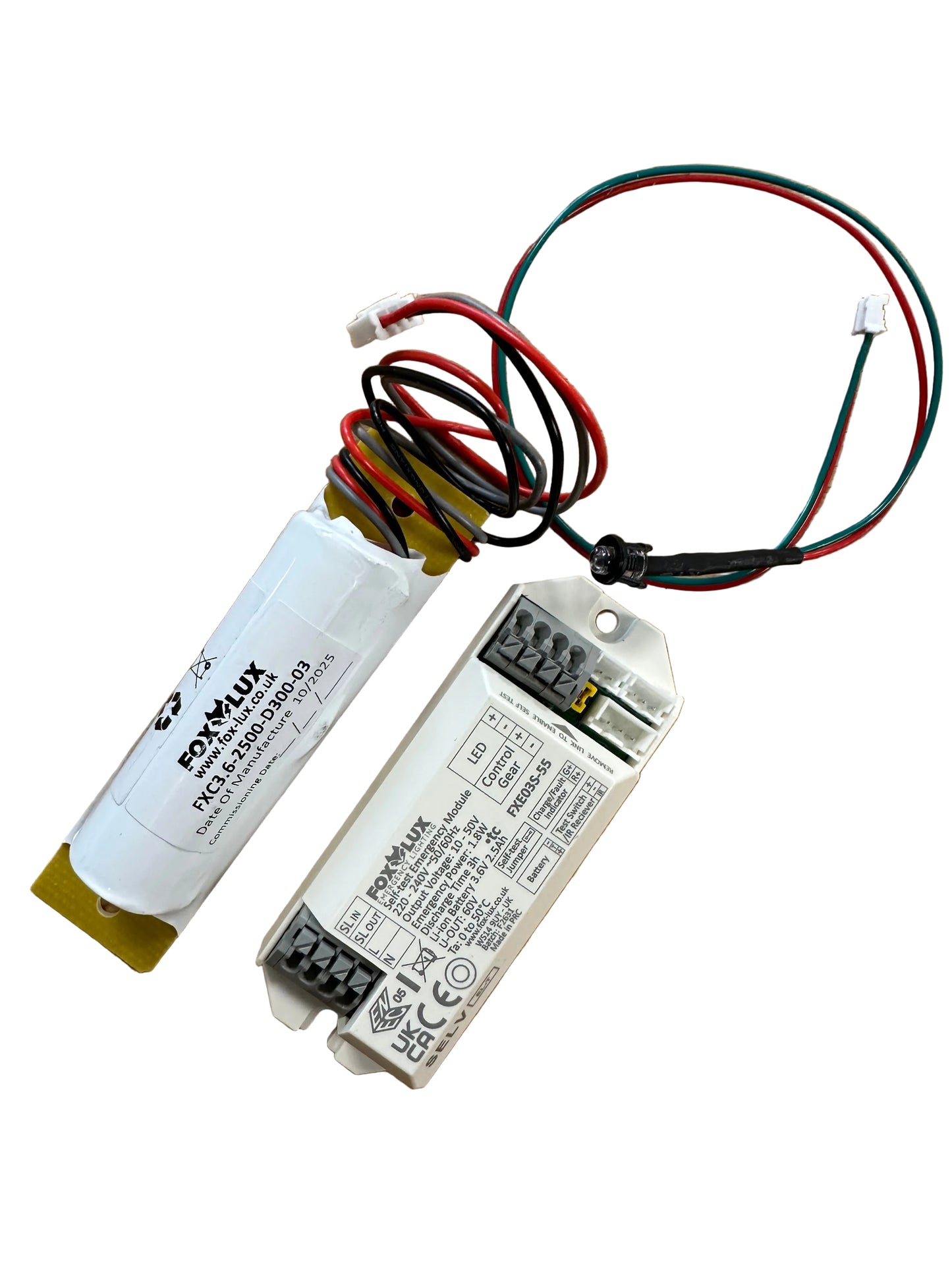

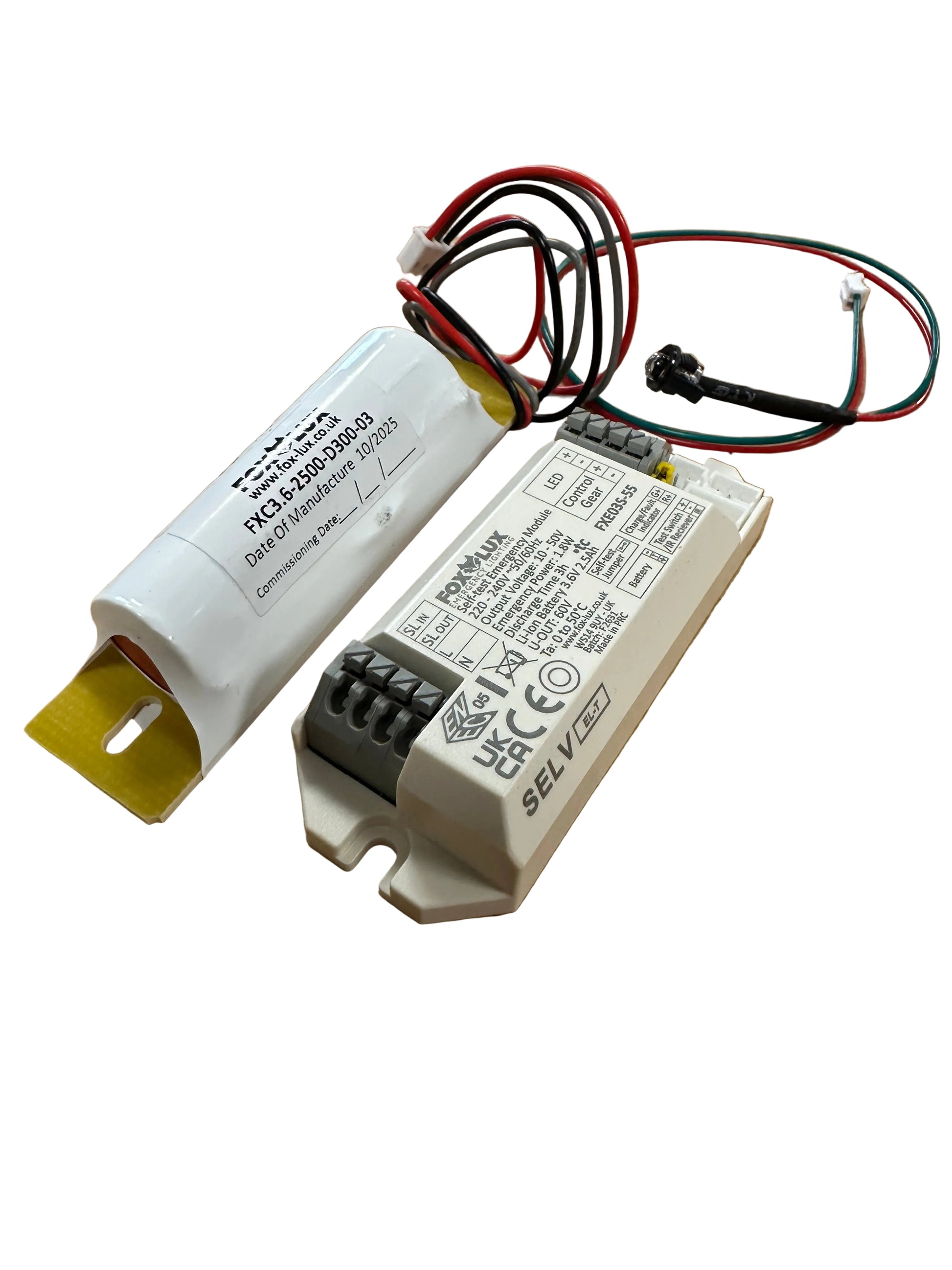

Module FXE03S-55 Battery FXC3.6-2500-D300-03 LED Indicator LED300RG-C-03

• Smallest maintained Module on the UK market
• Complete KIT Including EM Module, Battery & LED Indicator
• 8 Year warranty including battery
• For LED arrays with a forward voltage 10-50V
• Remote Control compatible with optional reciever (IR-R-03)

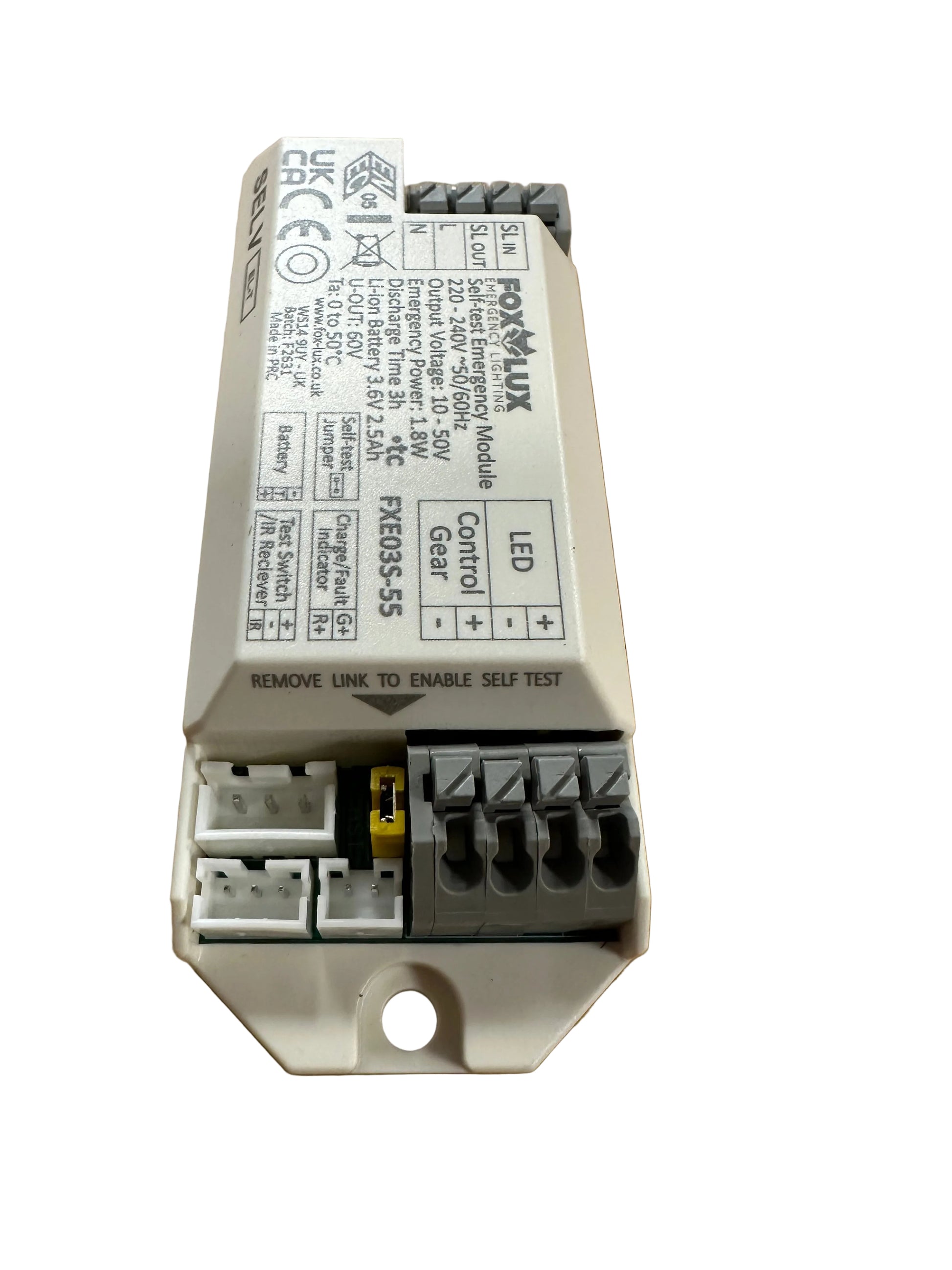

• Self-test conversion modules are configured to manual test mode by default. If self-test mode is required, it should be activated by removing the jumper on
  top of the module.
• Rated Supply Voltage: AC 220‐240V AC
• Mains Frequency: 50 / 60 Hz
• Max. Power Consumption: 5W
• Standby Power: <0.8W

• Emergency Output Power: 1.8W nominal

• LED Forward Voltage Range:10 to 50V

• Max. Output Voltage: 60V DC

• Rated Emergency Duration: 3 hrs

• Battery Charge Time: 8 hrs (Initial up to 16 hrs)

• Operational Temperature: 0°C to 50°C

• Max. Case Temp: 70°C
• Insulation Class: Reinforced
• SELV: Yes

• Battery Type: 1 x 18650 Li-ion 3.6V 2.5Ah
• Battery Code: FXC3.6‐2500‐D300-03
• Dimensions: Module 92 x 34 x 19mm Battery 100 x 21 x 25mm
