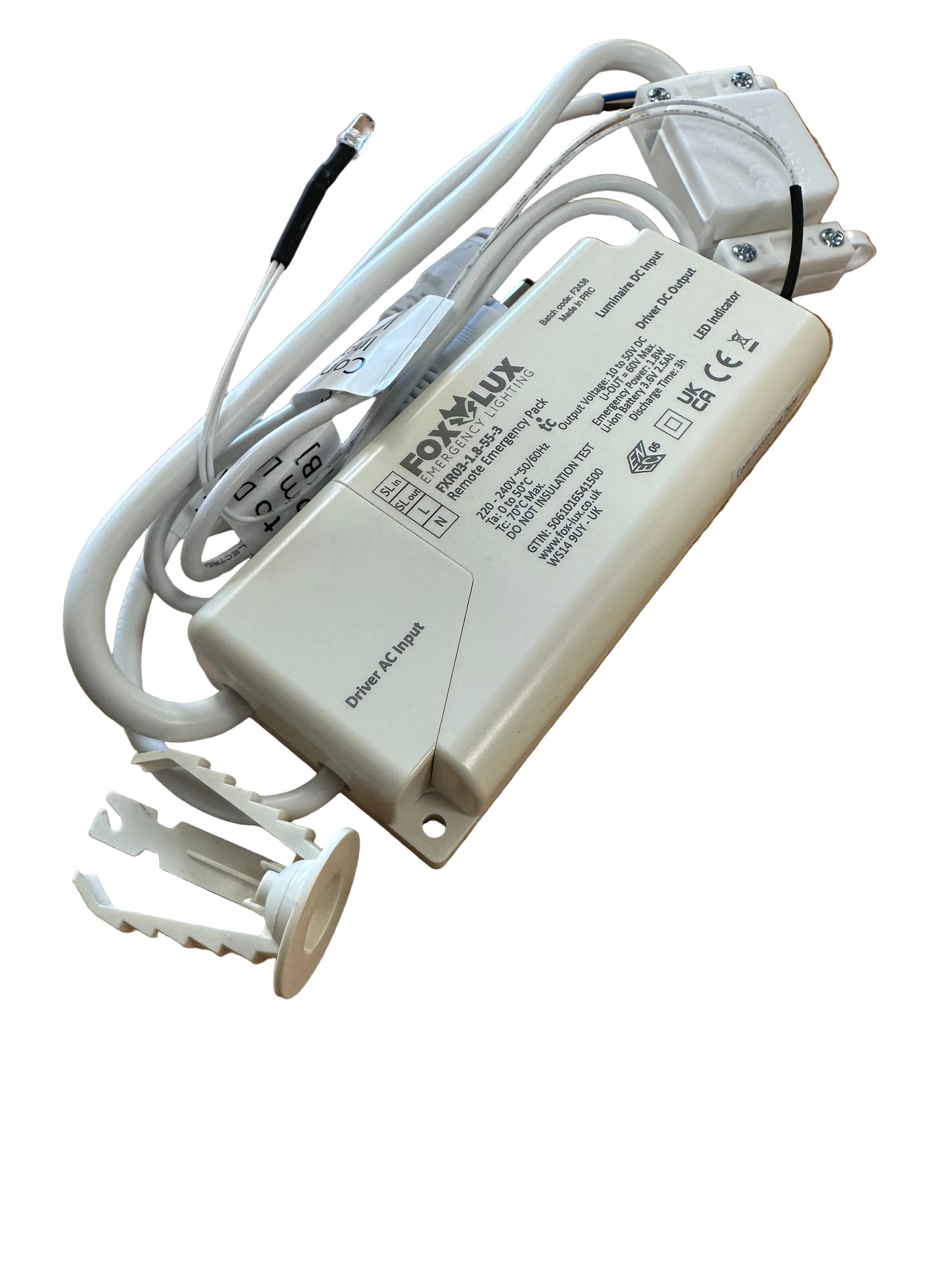

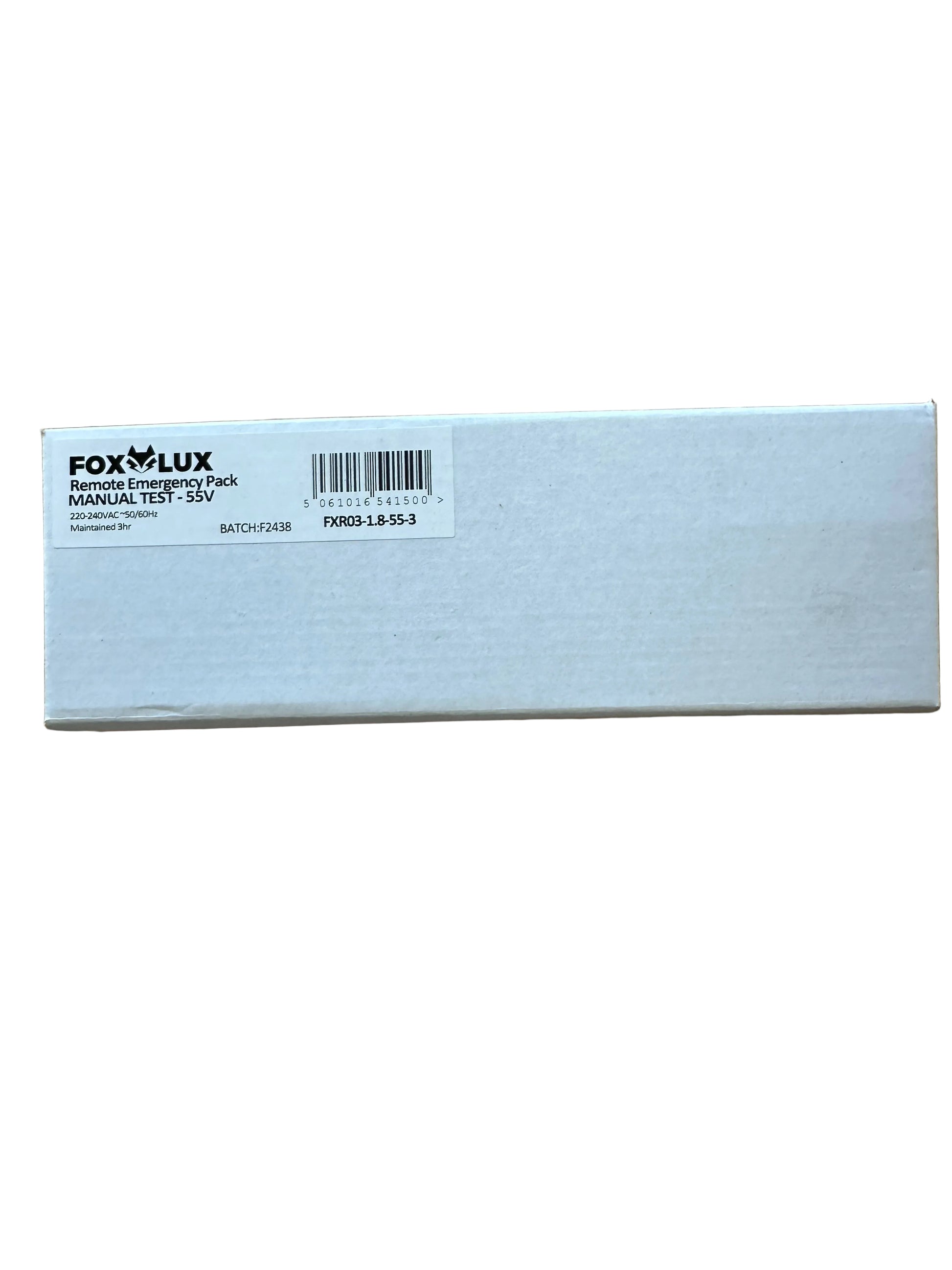

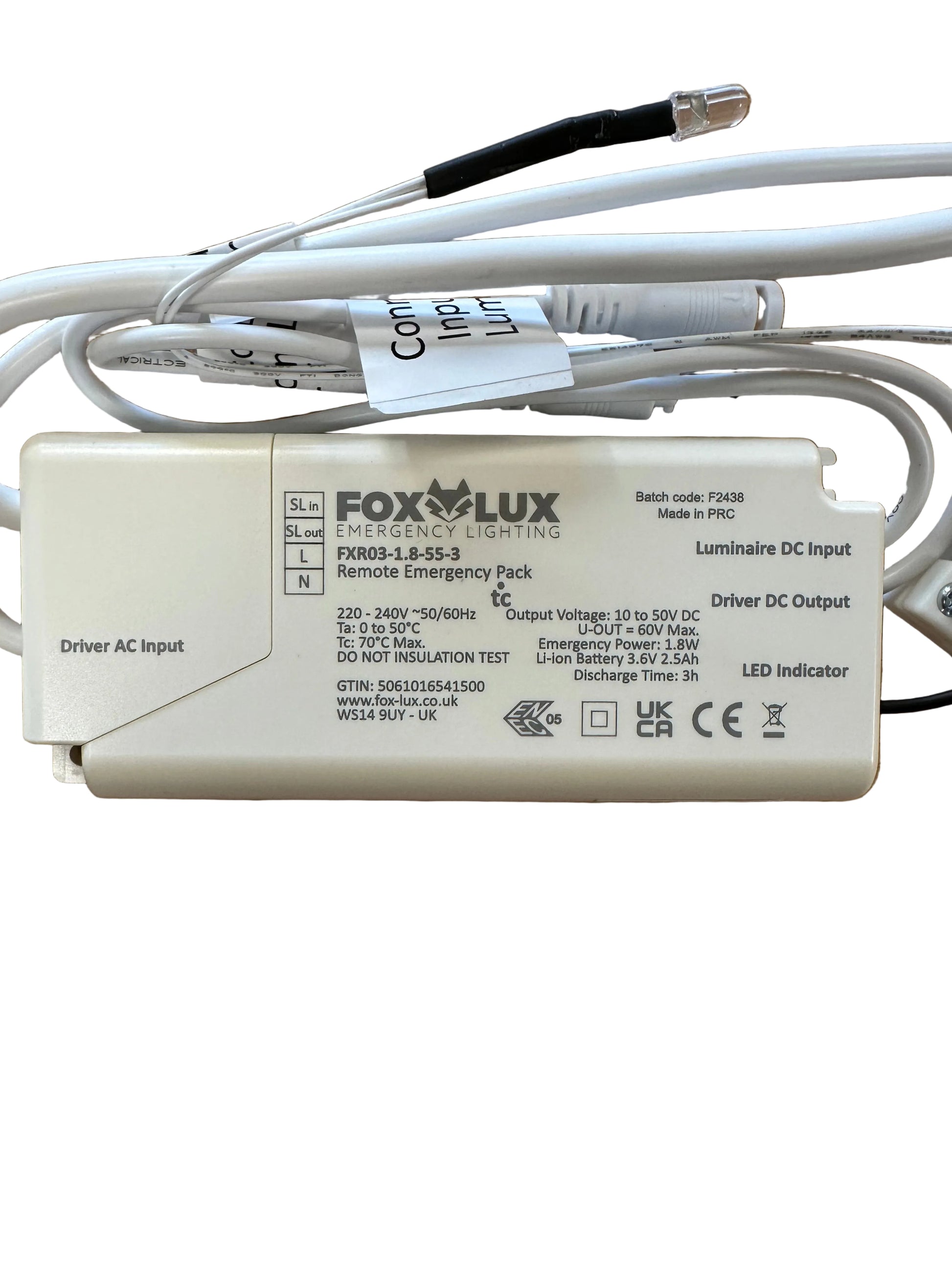

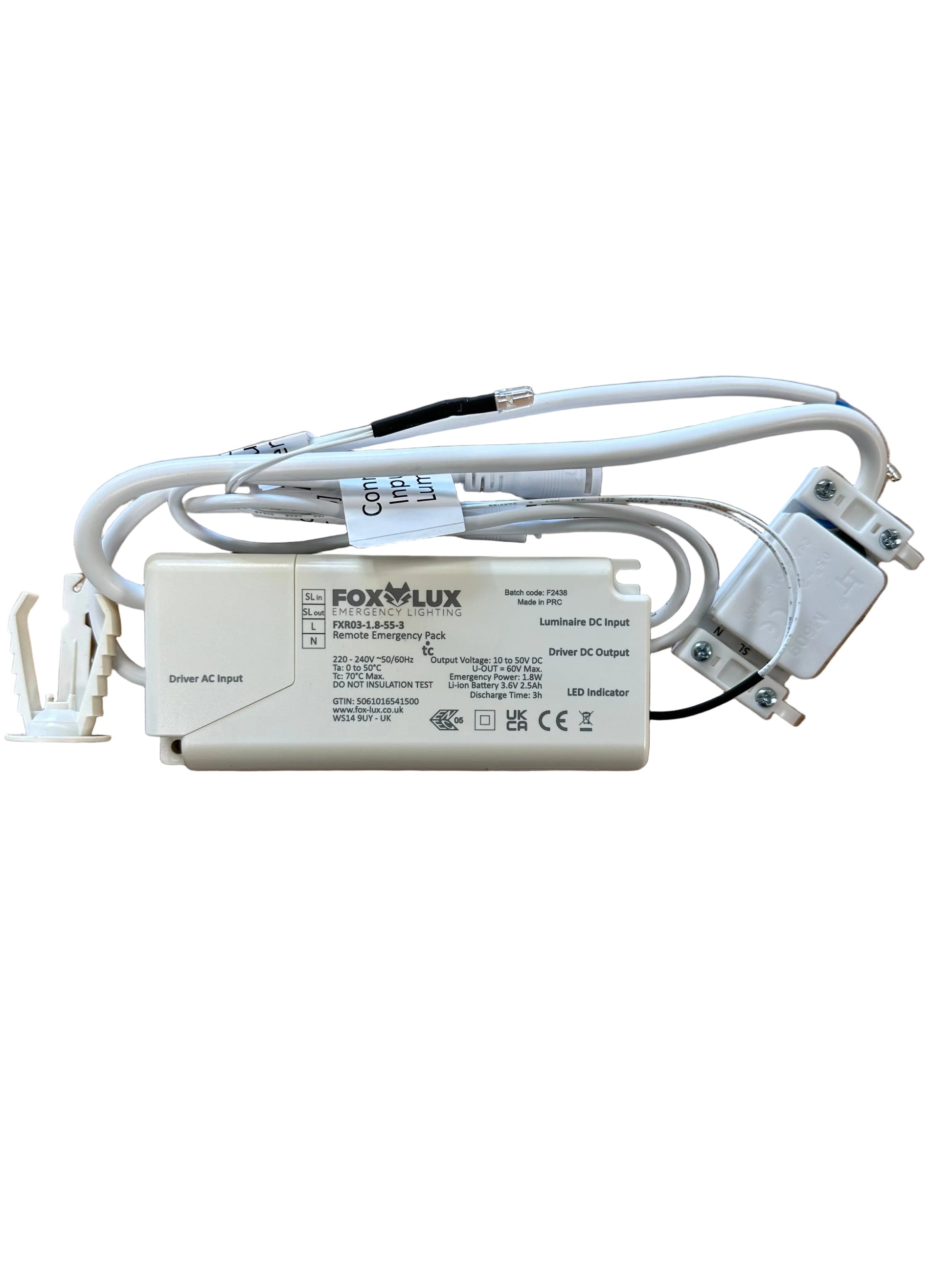

FoxLux FXR03-1.8-55-3 Micro Remote Pack Manual Test 10-50V 1.8W

FoxLux FXR03-1.8-55-3 Micro Remote Pack Manual Test 10-50V 1.8W

• Compatible with all popular LED panels
• Plug and Play – Twist lock connectors pre-fitted
• Compact enclosure with integral battery and strain relief
• Mains connector and LED bezel included
• Remote control compatible with optional receiver (IR-R-03)
• 8 Year warranty including battery

Rated Supply Voltage: 220‐240V AC
Mains Frequency: 50 / 60 Hz
Max. Power Consumption: 3W
Standby Power: <0.8W
Emergency Output Power: 1.8W nominal
LED Forward Voltage Range: 10 to 50V
Max. Output Voltage: 60V DC
Rated Emergency Duration: 3 hrs*
Battery Charge Time: 8 hrs (Initial up to 16 hrs)
Operational Temperature: 0°C to 60°C
Max. Case Temp: 70°C
Insulation Class: II
SELV: Yes
Battery Type: 1 x 18650 Li-ion 3.6V 2.5Ah
Battery Code: FXC3.6‐2500‐A35
