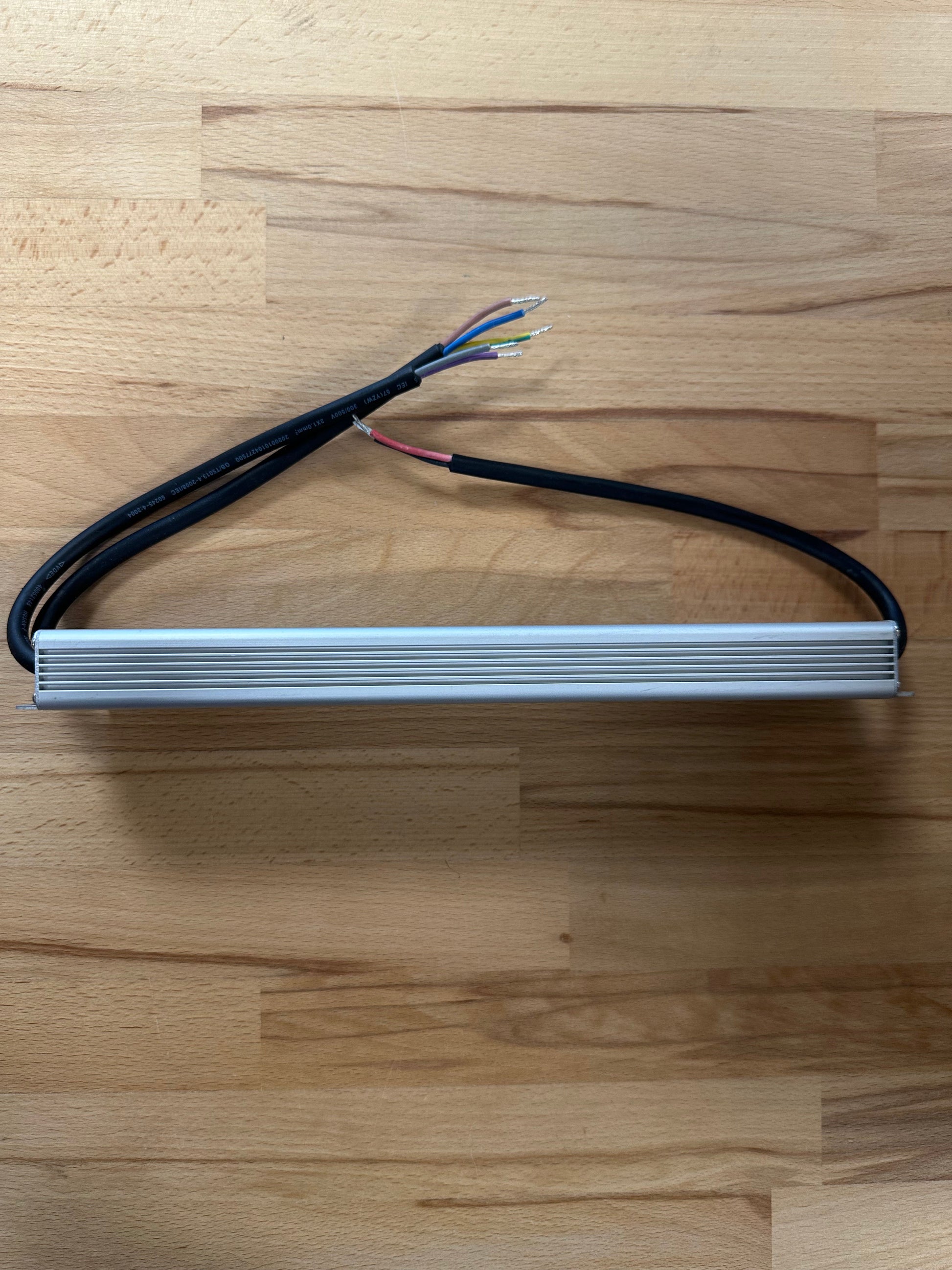

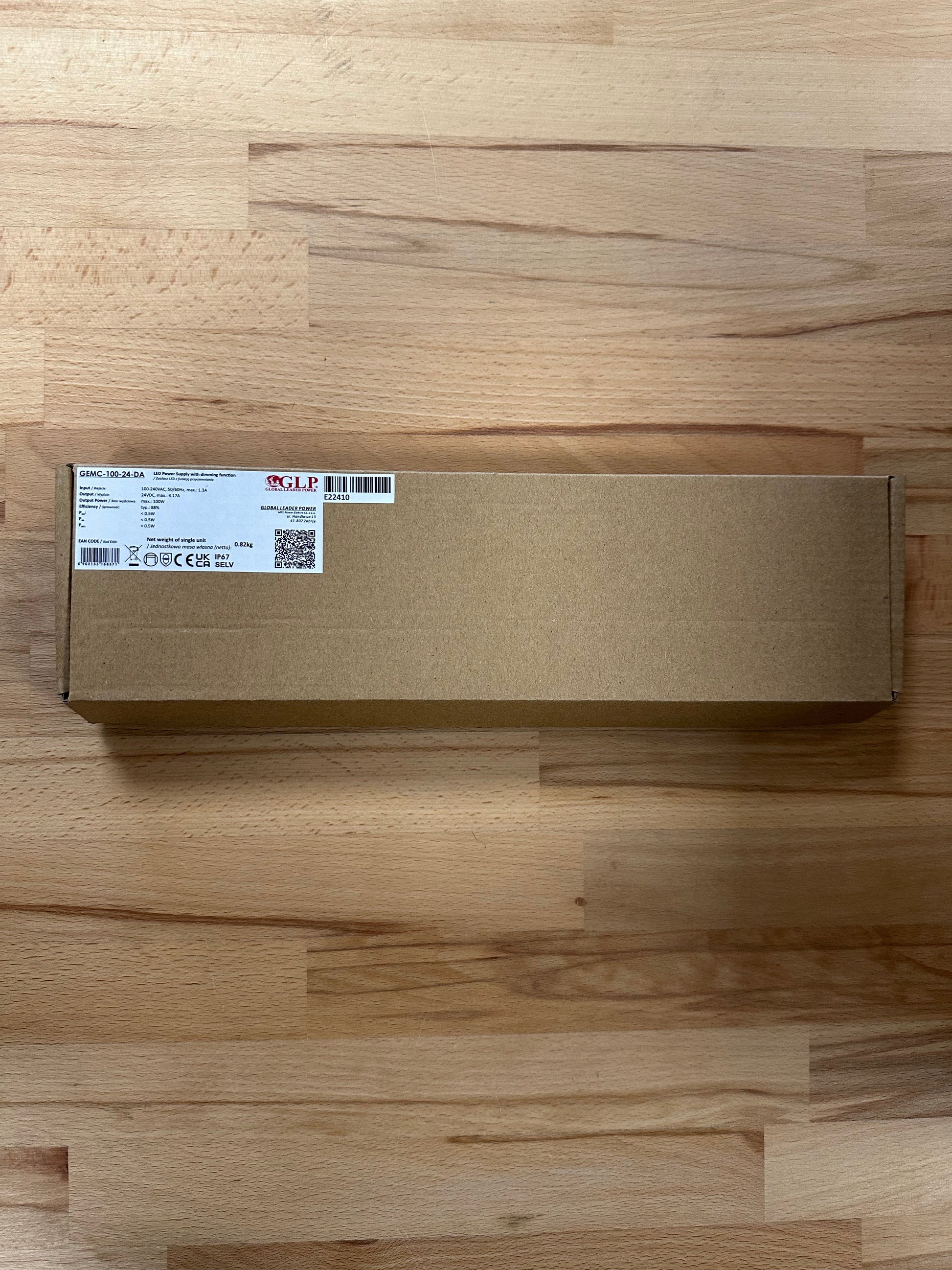

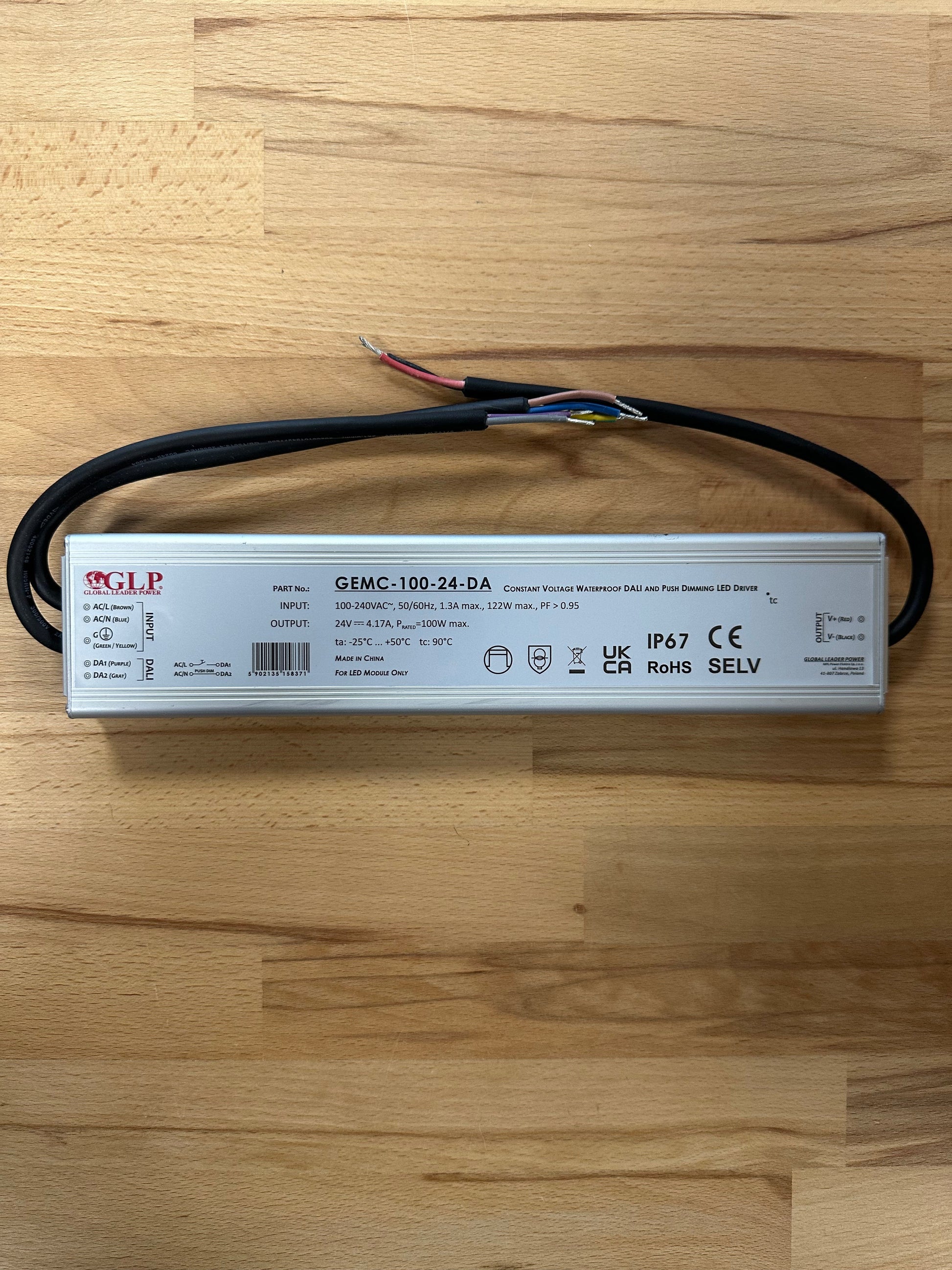

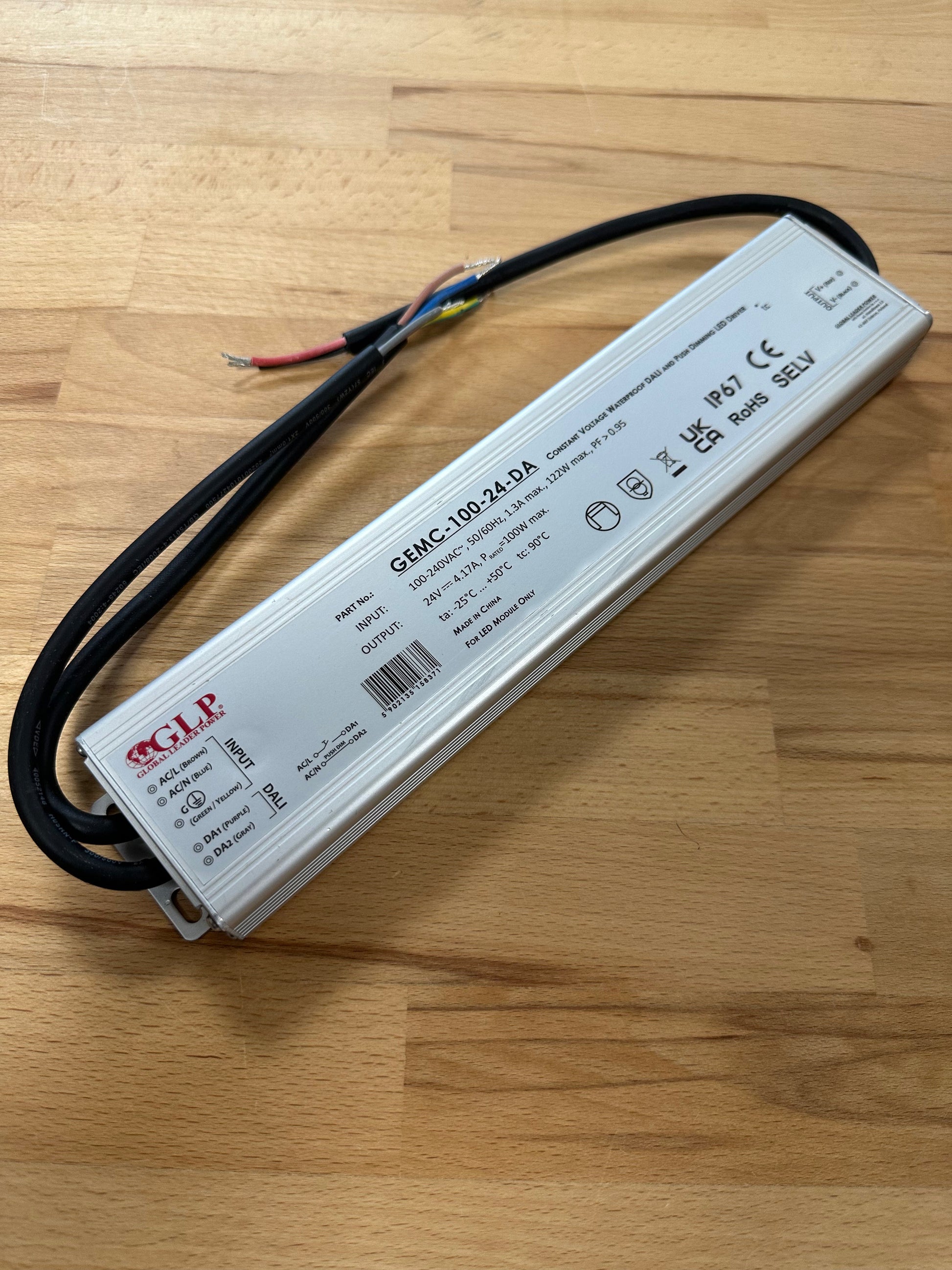

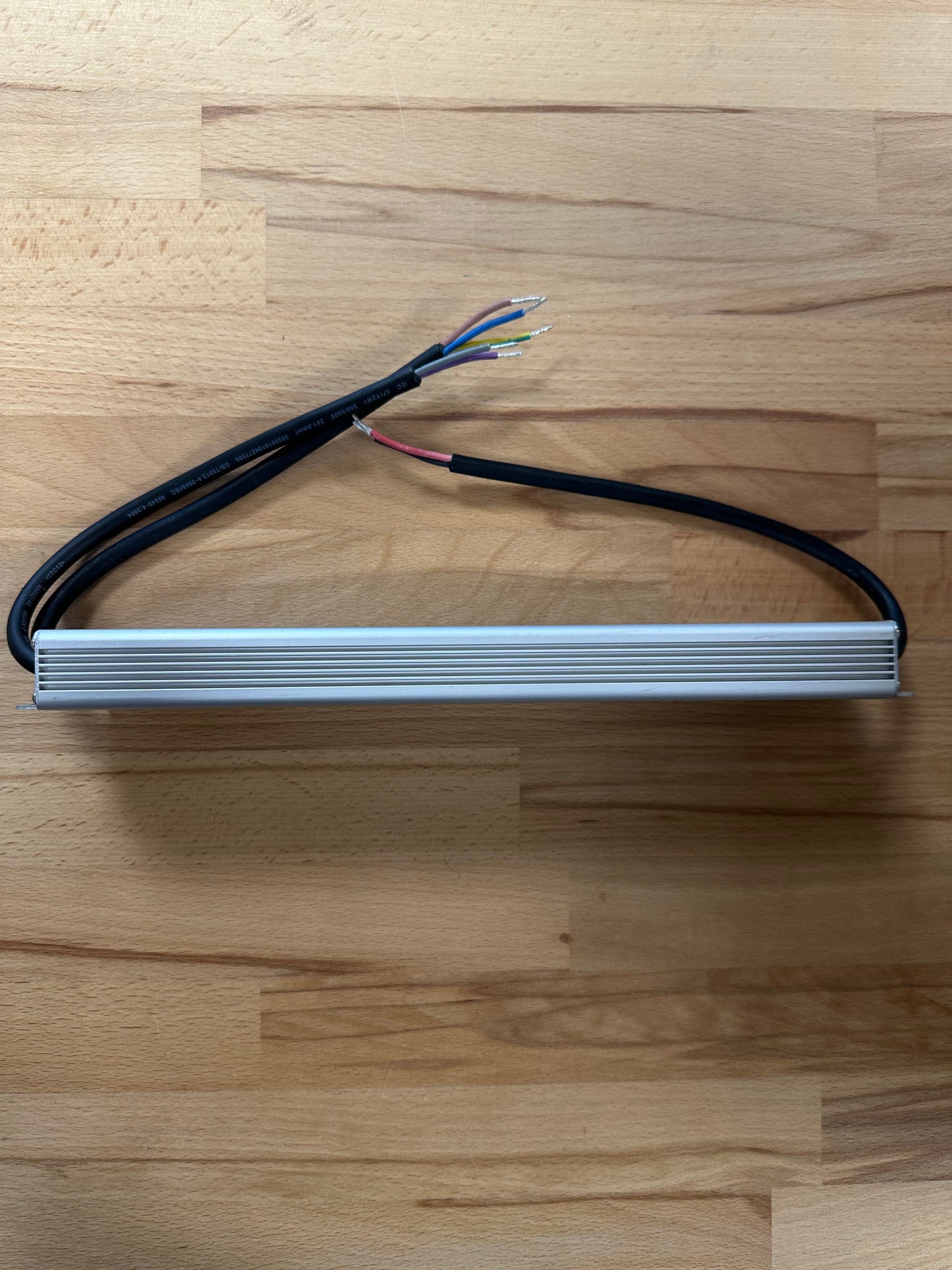

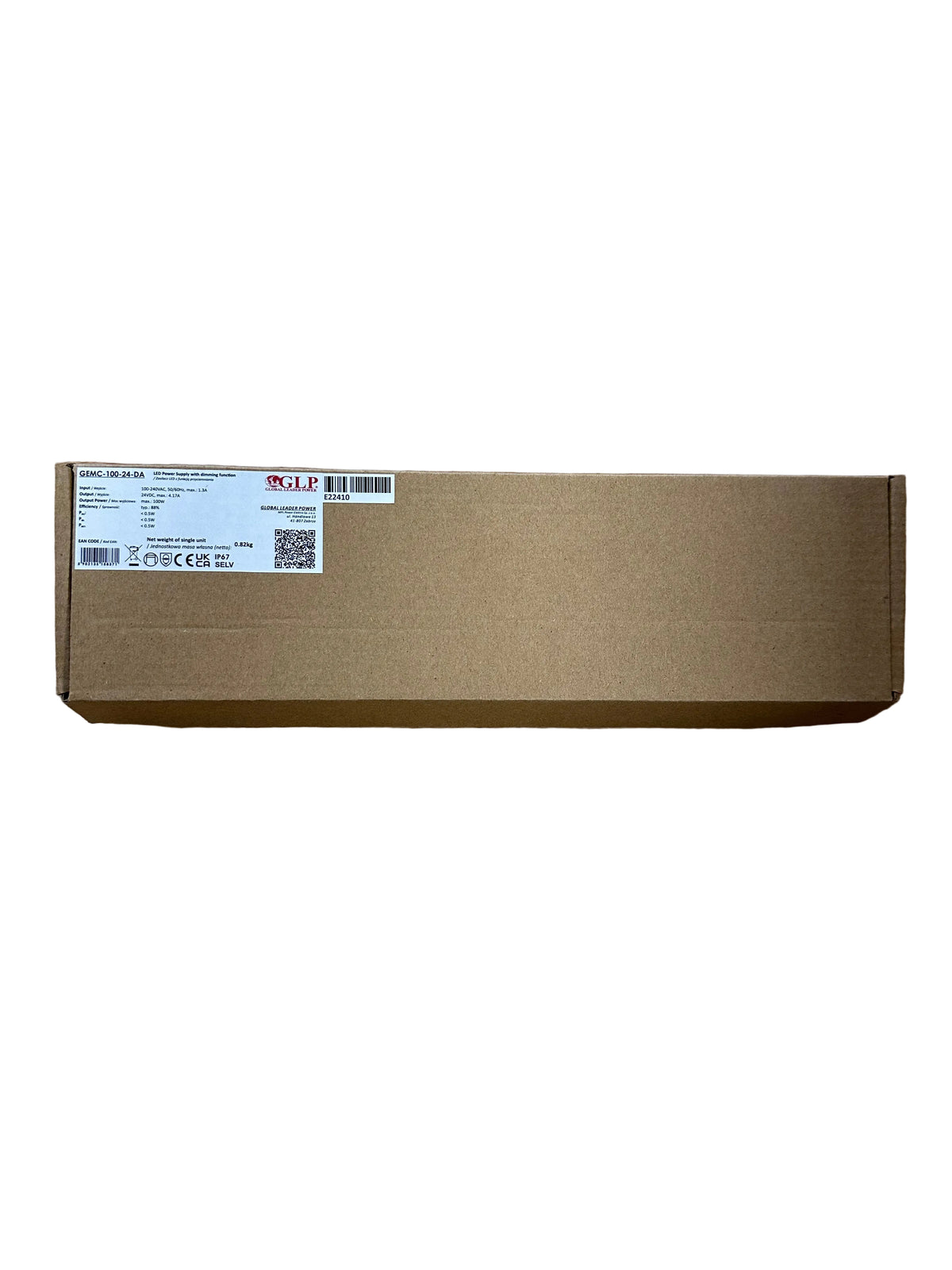

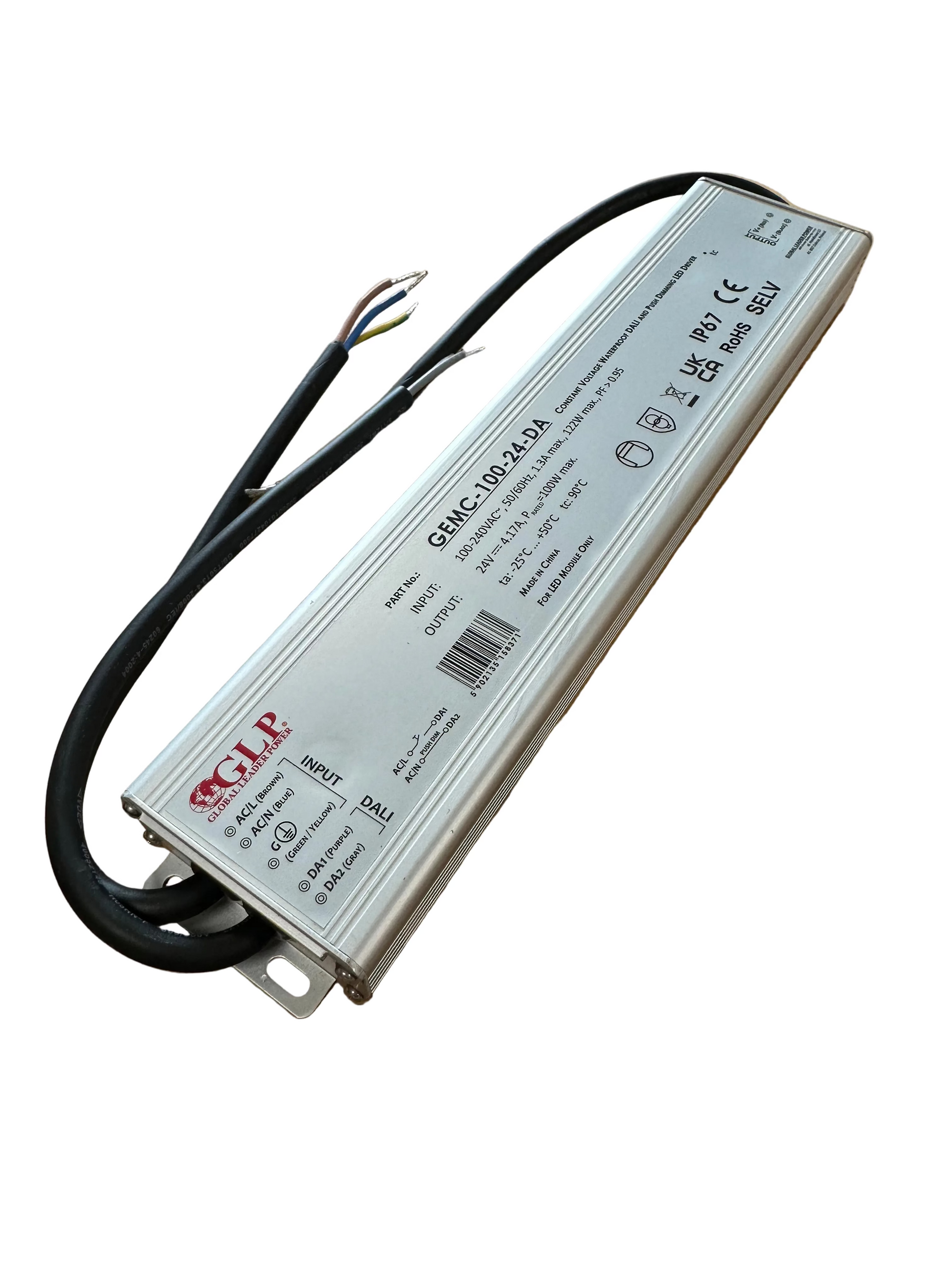

GEMC-100-24-DA 100W 24V 4.17A IP67 DALI2 - Push Dim Dimmable LED Driver

GEMC-100-24-DA 100W 24V 4.17A IP67 DALI2 - Push Dim Dimmable LED Driver

• Product Type: Power supply, LED Driver
• Output Voltage: 24V DC
• Rated Current: 4.17 A

• Power (W): 100 W

• Dimming: PUSH, DALI

• Voltage Ripple & Noise (max.): <120mVp-p

• AC input voltage range: Universal

• PFC: Yes

• Protection class I

• Efficiency (typ.) 88%@230VAC, Full load

• No Load Power Consumption (typ. / max.) <0.5W

• AC Current (typ.) 1.35Amax@100VAC

• Inrush Current (typ.) Cold start 50A(measured50% Ipeak twidth=60us) @230VAC

• IP protection level IP67

• Short Circuit protection Close output, recovers automatically after fault removed

• Over Current / Overload protection Type: hiccup mode, auto-recovery.

• Over Voltage protection Close output, recovers automatically after fault removed
• Dimensions: 290mm L 61mm W 25mm H
