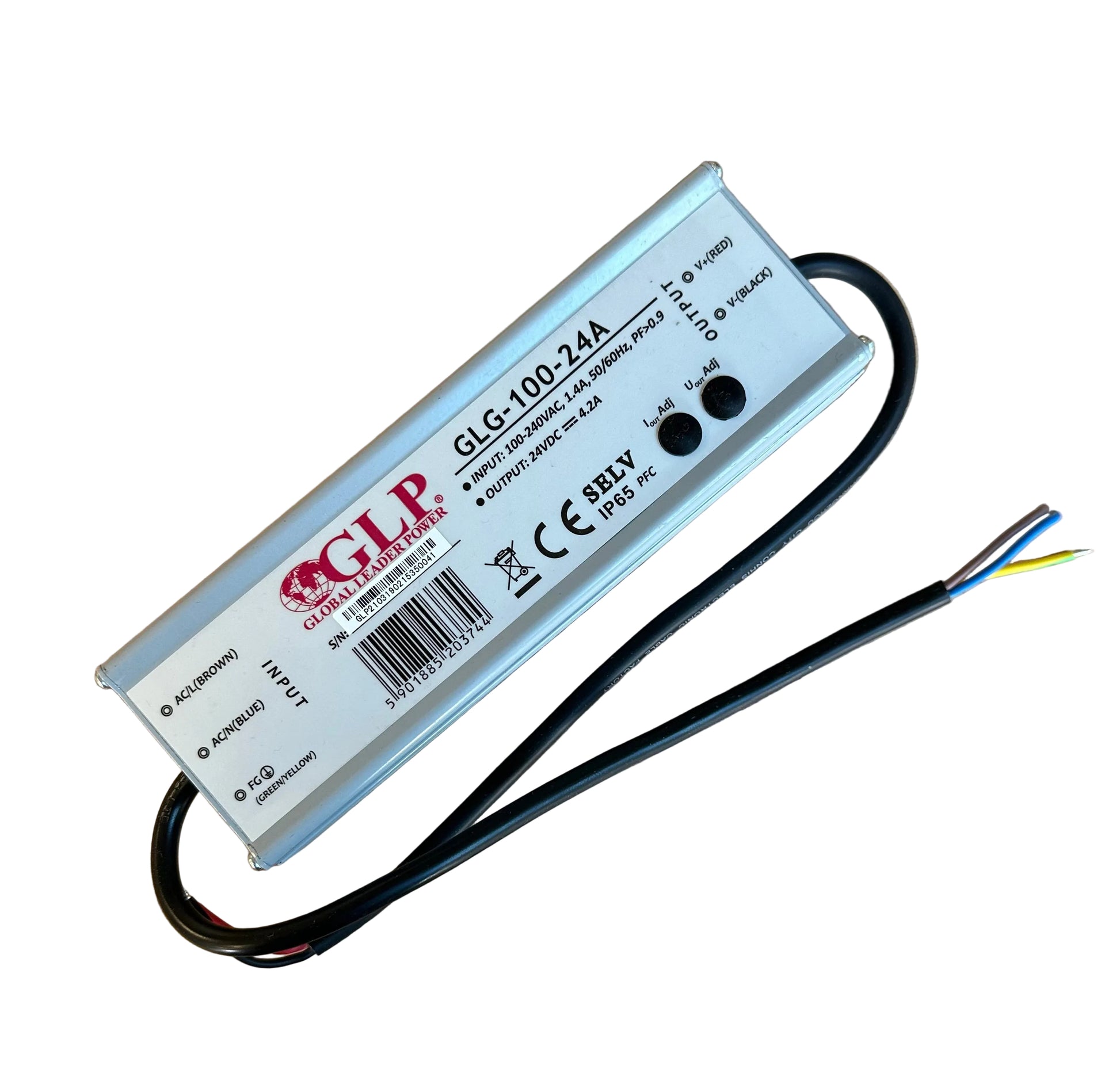

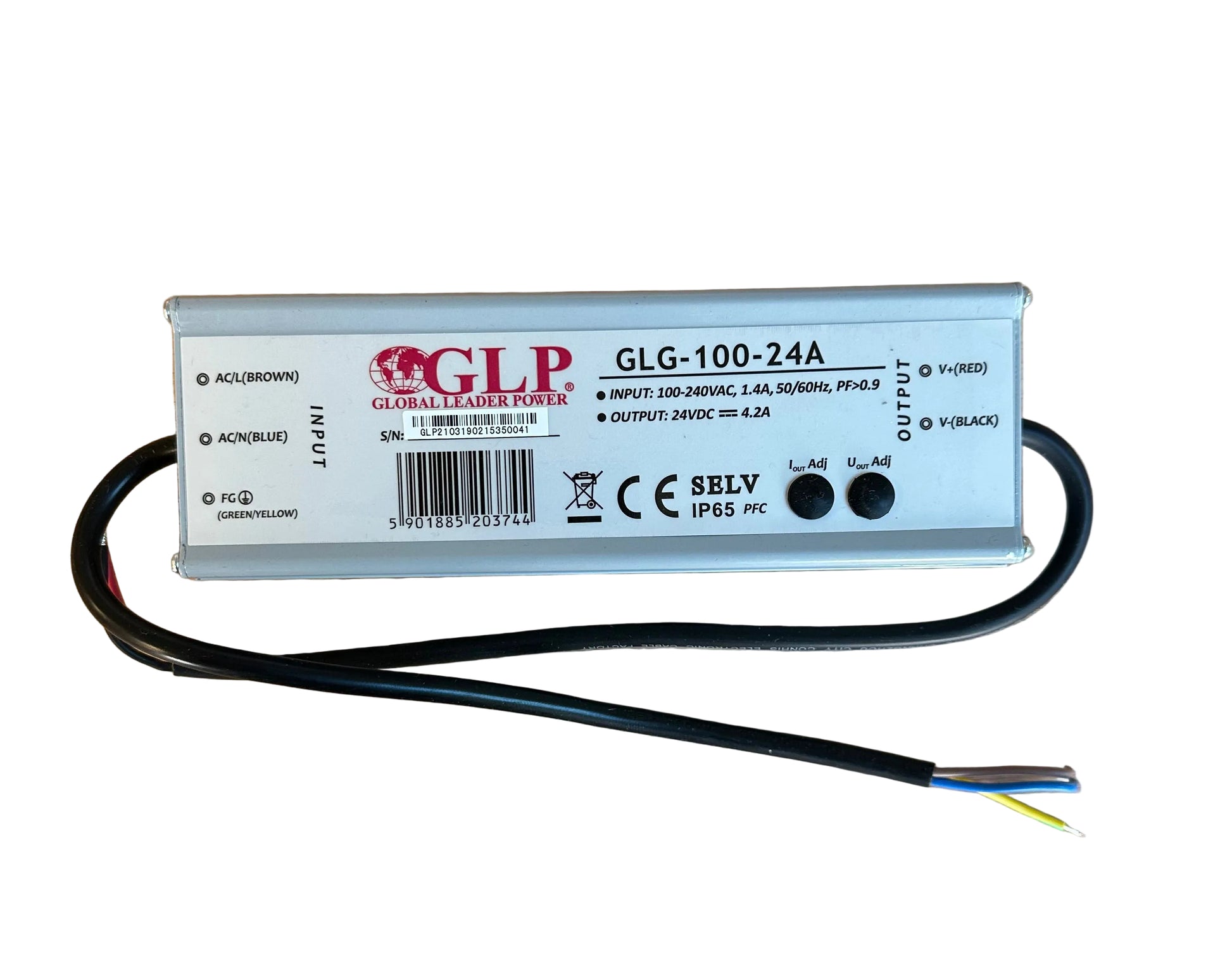

GLP GLG-100-24A 100W 12-24V 2.2-4.2A IP65 ADJ Output LED Driver

GLP GLG-100-24A 100W 12-24V 2.2-4.2A IP65 ADJ Output LED Driver

Replaces Meanwell HLG-100H-24A

Rated Voltage        12-24V

Rated Current        4.2A

Current Range       2.2-4.2A

Rated Power          100.8W

Voltage Range       90 - 264VAC

Frequency Range  47 - 63Hz

Features:

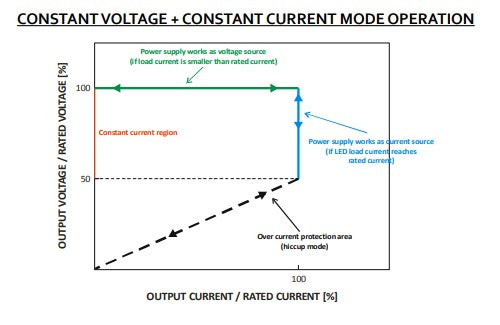

• CV + CV mode power supply
• Built-in active PFC function, PFC > 0.95
• Universal AC input / Full range
• Protections: Short circuit / Over current / Over voltage / Over temperature
• Cooling by free air convection
• 100% full load burn-in test
• Built-in potentiometers to adjust output voltage and current
• IP65 design
