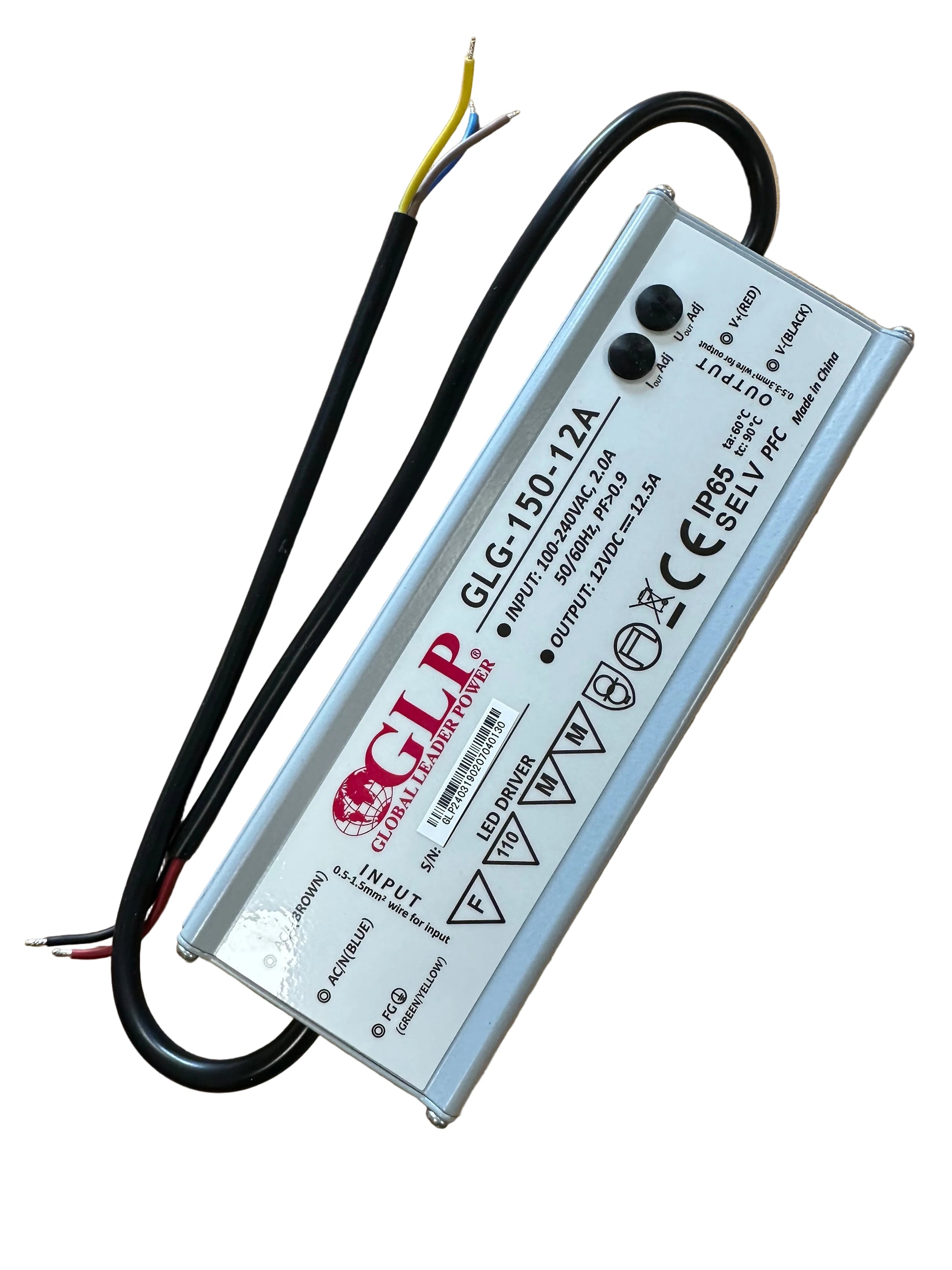

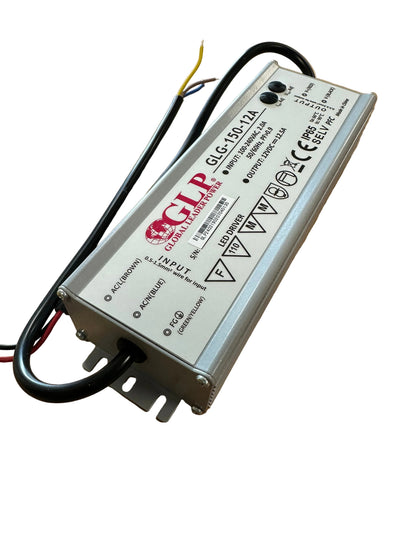

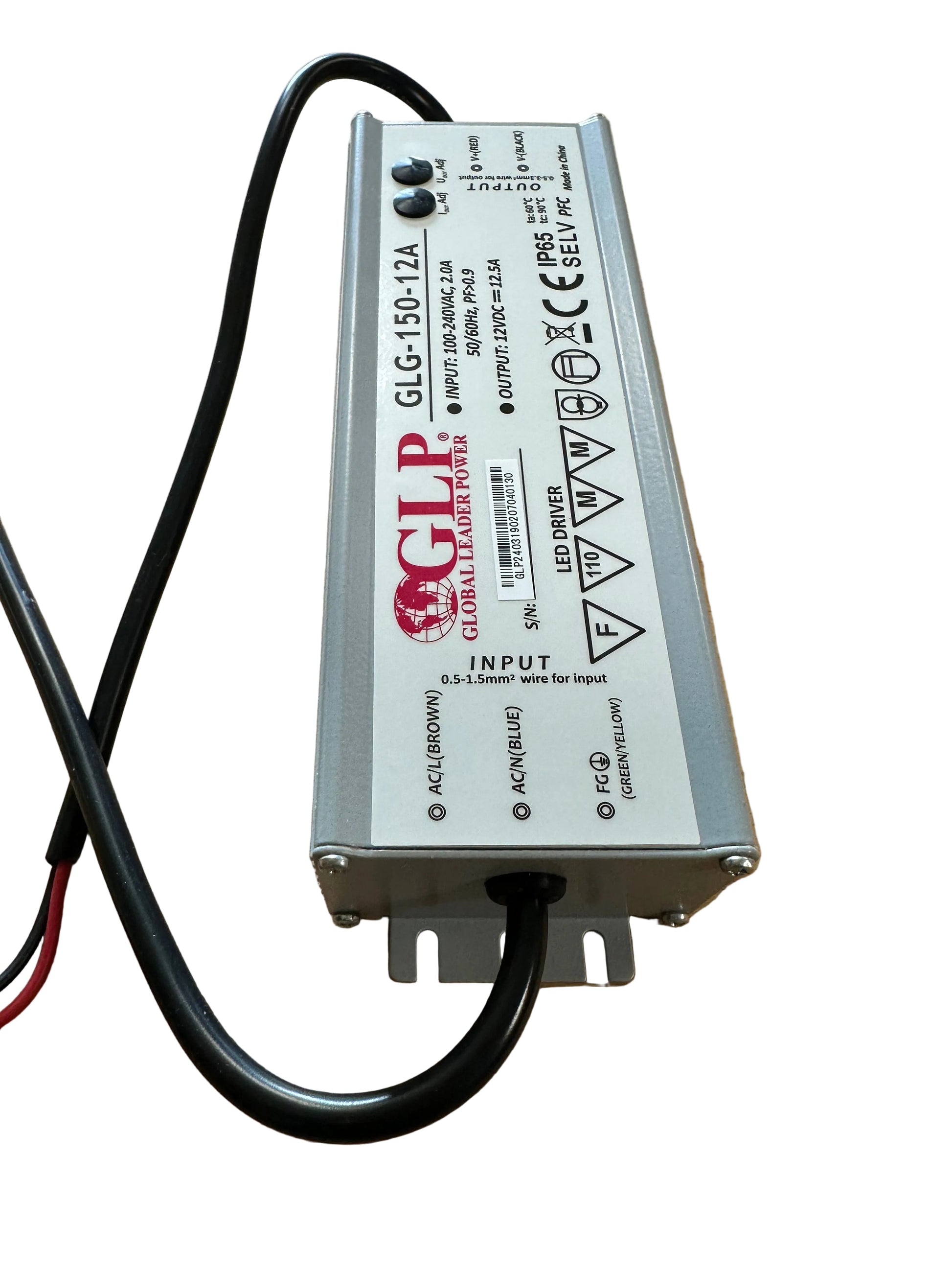

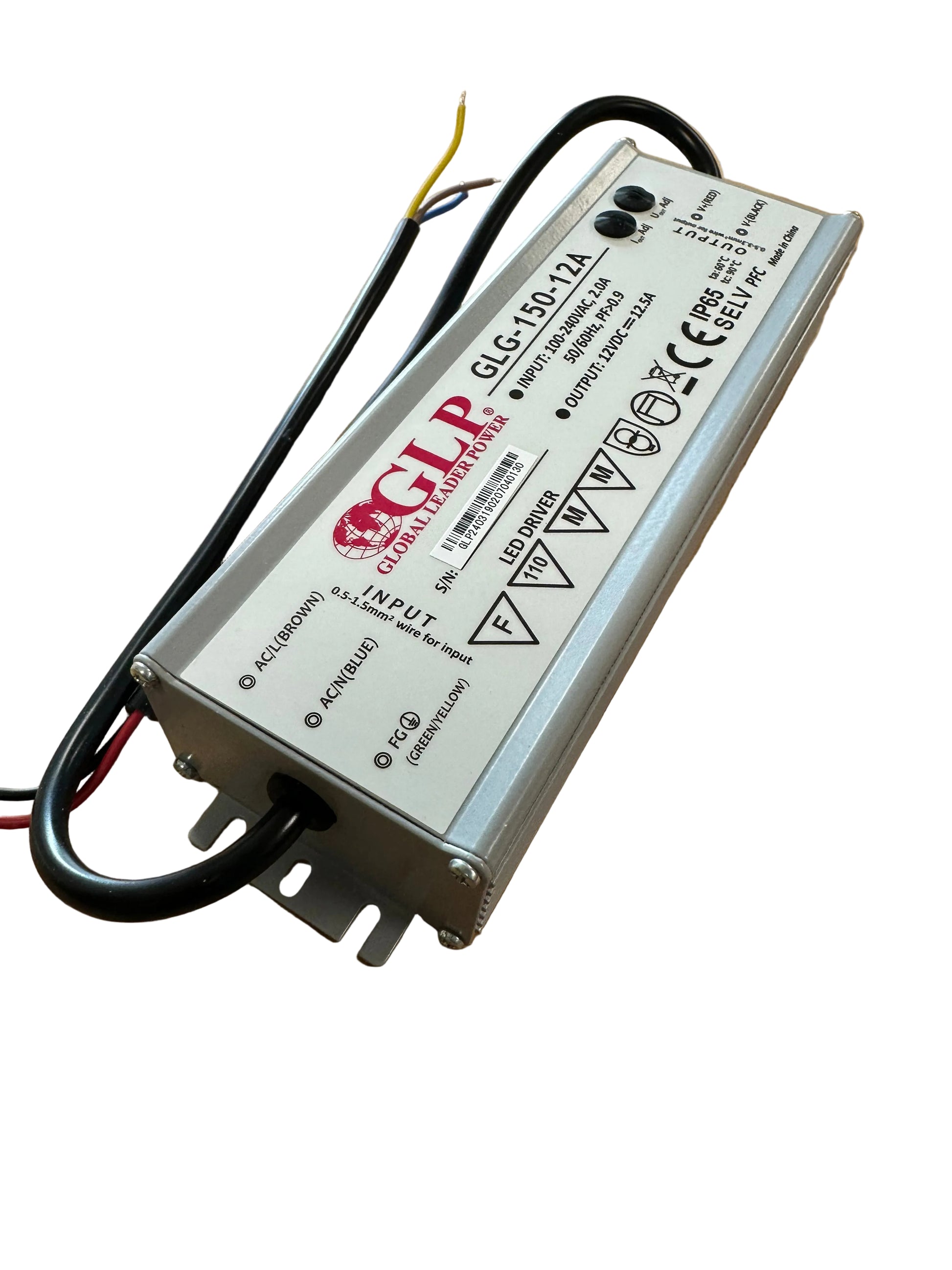

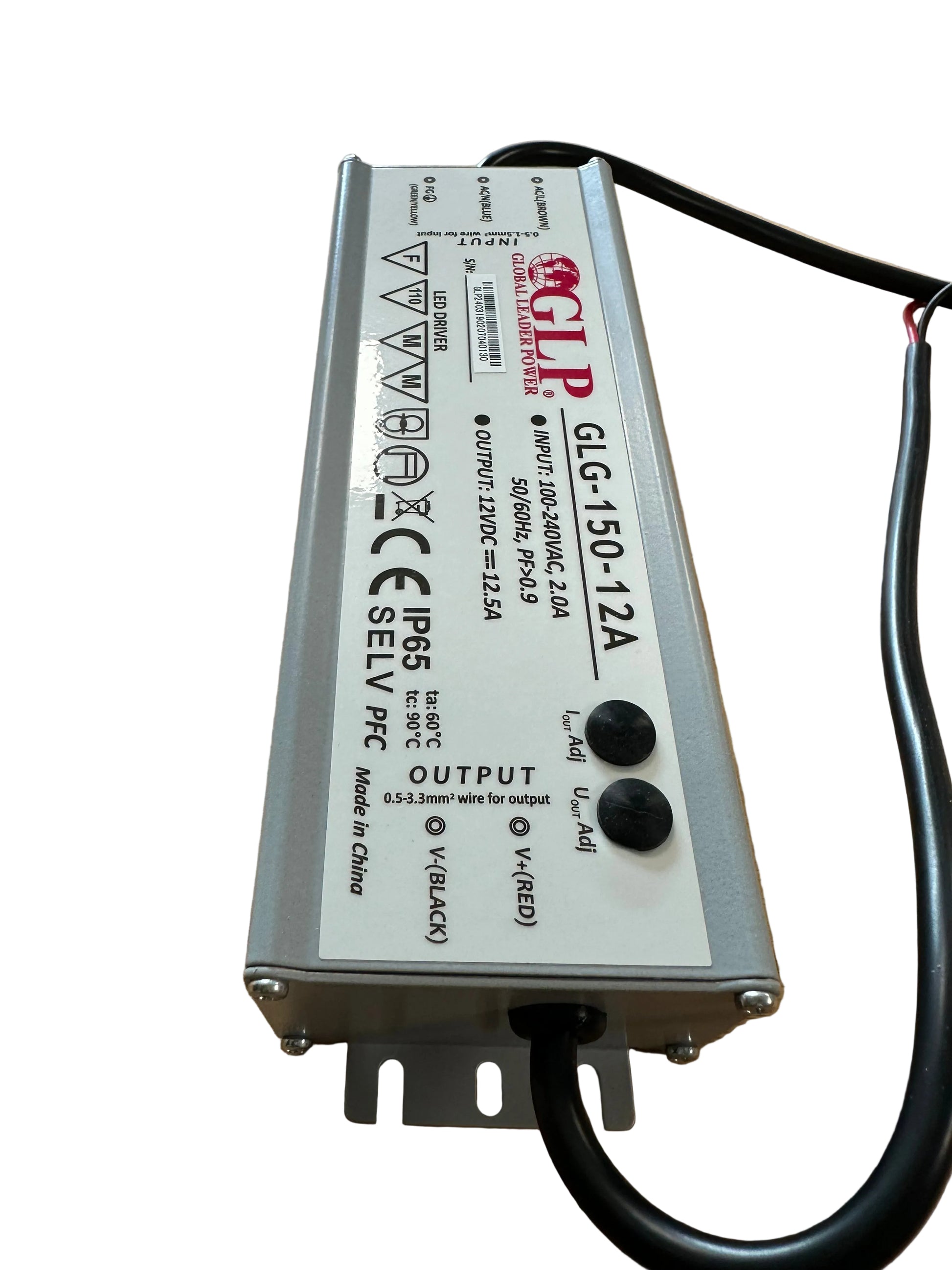

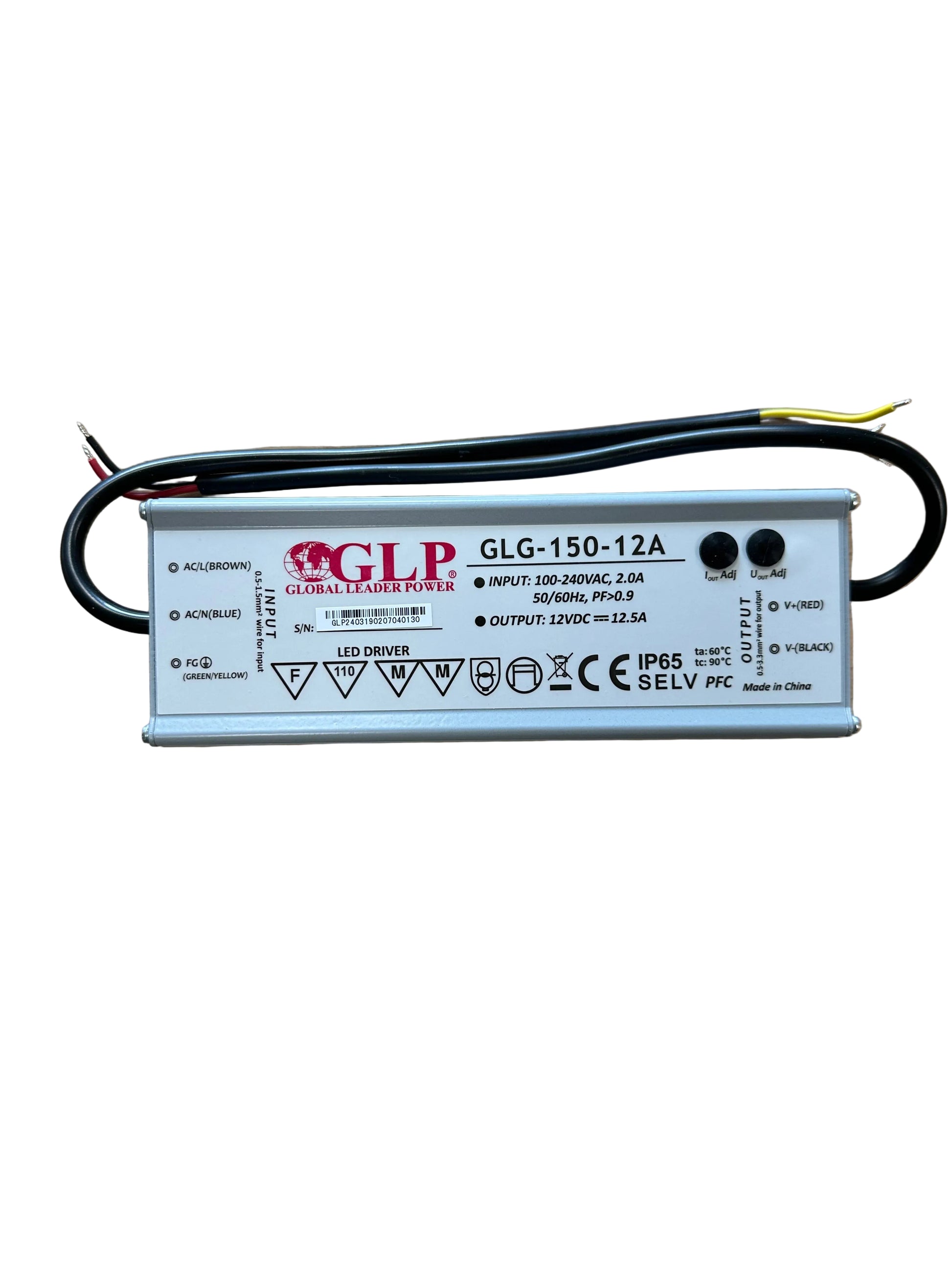

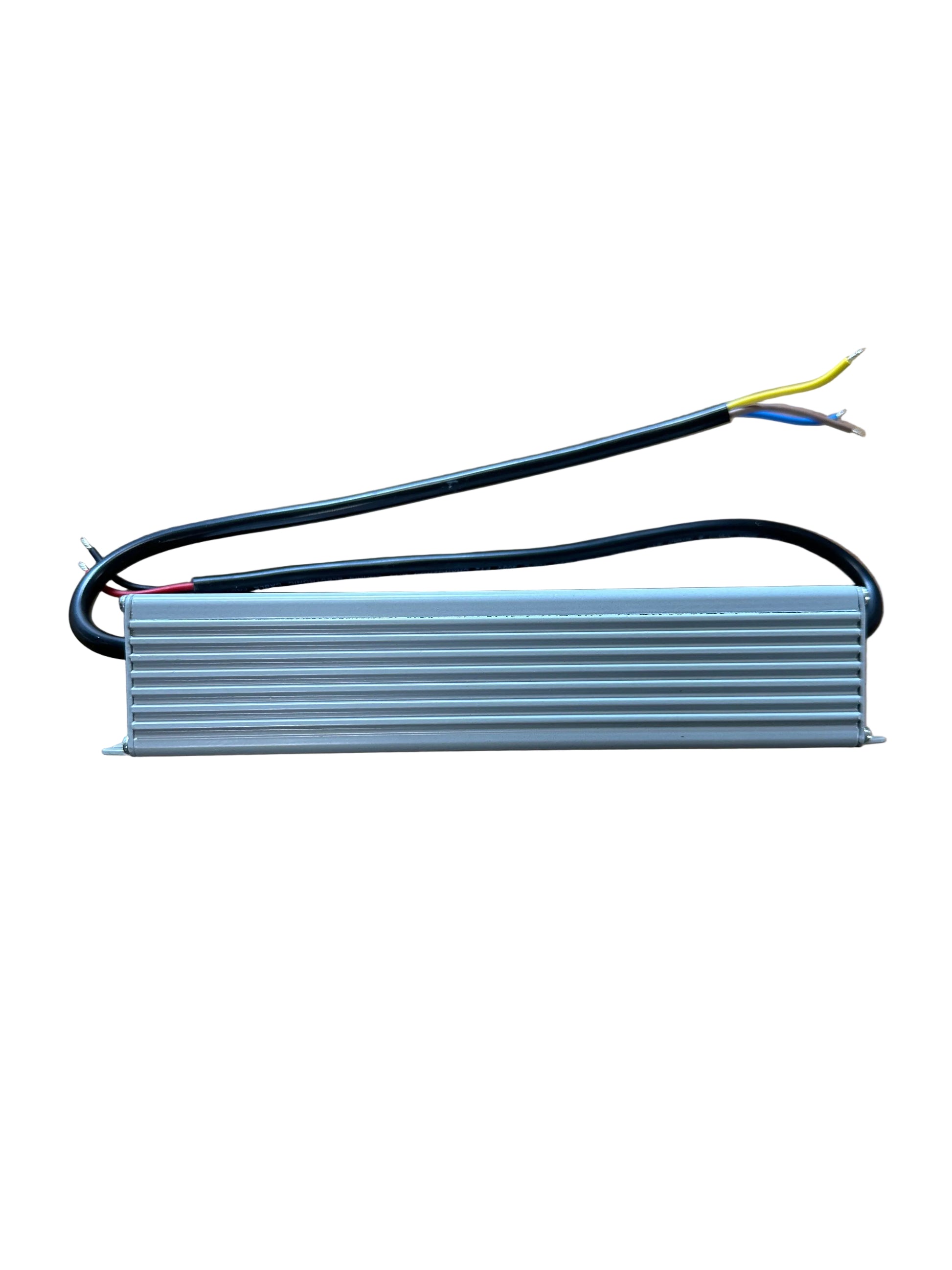

GLP GLG-150-12A 100W 9-12V 6.5-12.5A IP65 ADJ Output LED Driver

GLP GLG-150-12A 100W 9-12V 6.5-12.5A IP65 ADJ Output LED Driver

Replaces Meanwell HLG-150H-24A

Rated Voltage        9-12V

Rated Current        6.3A

Current Range       6.5 - 12.5A

Rated Power          150W

Voltage Range       90 - 264VAC

Frequency Range  47 - 63Hz

Features:

• CV + CV mode power supply
• Built-in active PFC function, PFC > 0.95
• Universal AC input / Full range
• Protections: Short circuit / Over current / Over voltage / Over temperature
• Cooling by free air convection
• 100% full load burn-in test
• Built-in potentiometers to adjust output voltage and current
• IP65 design
