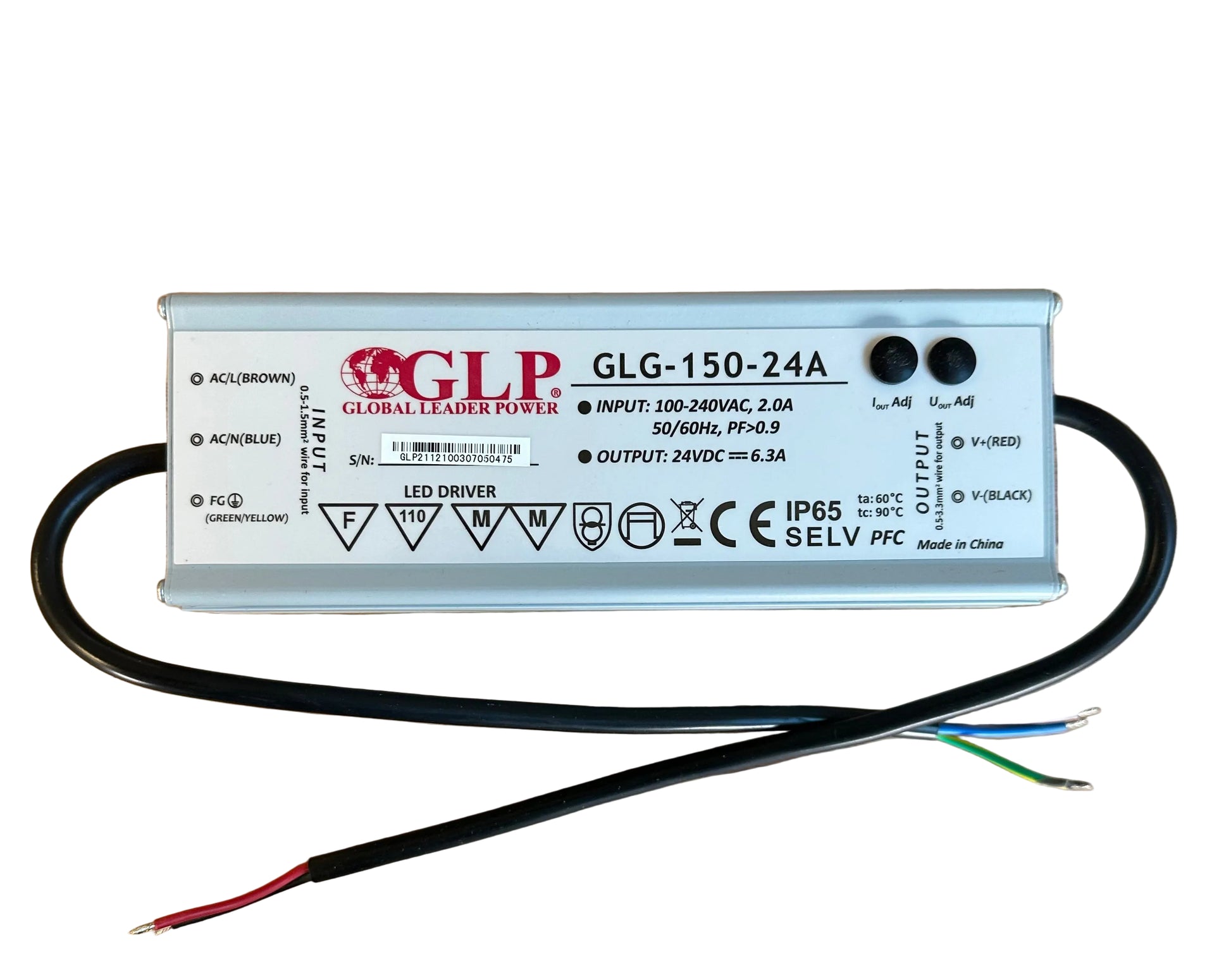

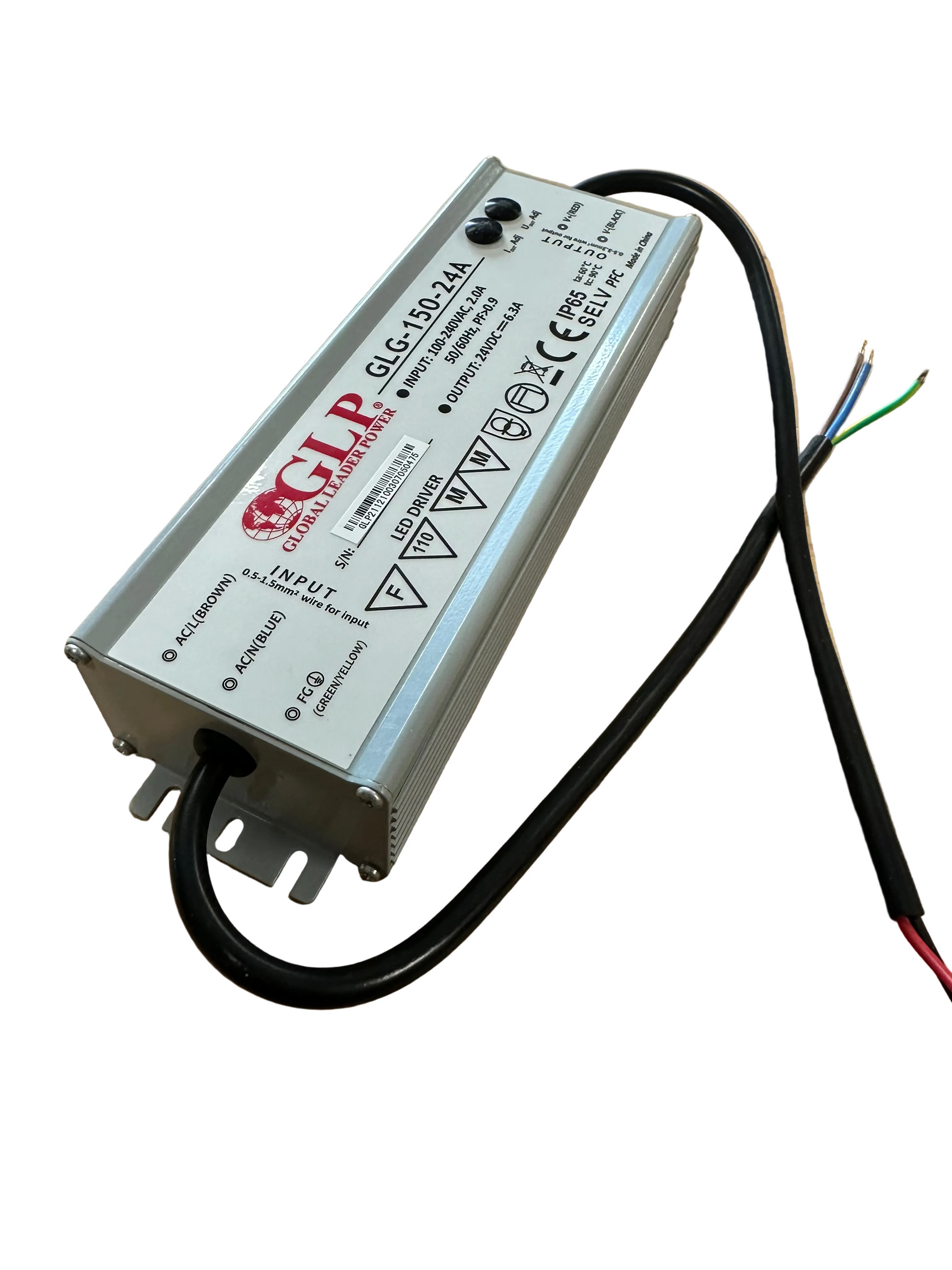

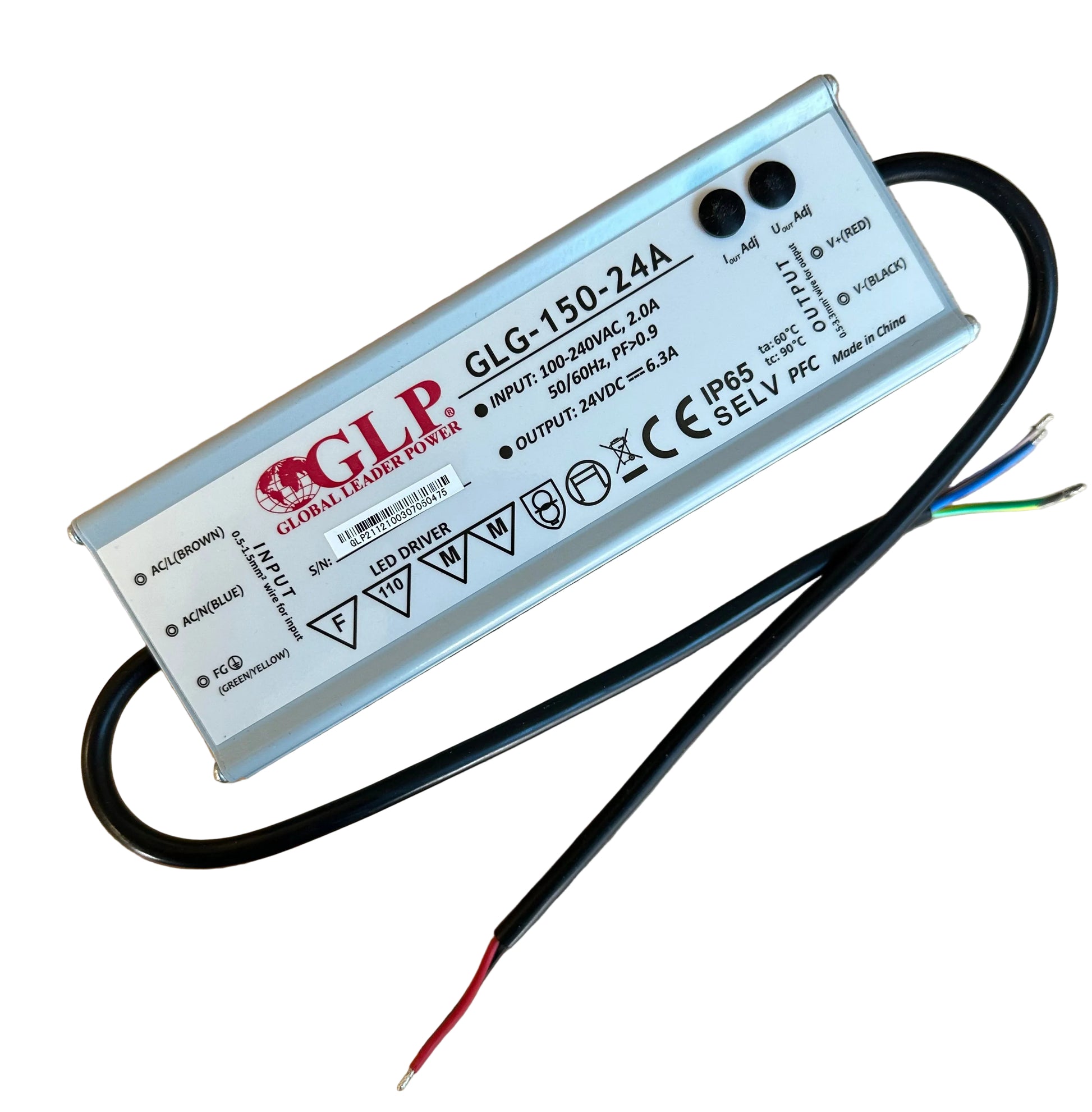

GLP GLG-150-24A 100W 18-24V 3.2-6.3A IP65 ADJ Output LED Driver

GLP GLG-150-24A 100W 18-24V 3.2-6.3A IP65 ADJ Output LED Driver

Replaces Meanwell HLG-150H-24A

Rated Voltage        18-24V

Rated Current        6.3A

Current Range       3.2-6.3A

Rated Power          151.2W

Voltage Range       90 - 264VAC

Frequency Range  47 - 63Hz

Features:

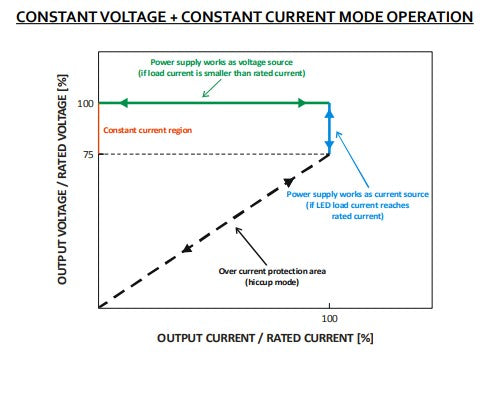

• CV + CC mode power supply
• Built-in active PFC function, PFC > 0.95
• Universal AC input / Full range
• Protections: Short circuit / Over current / Over voltage / Over temperature
• Cooling by free air convection
• 100% full load burn-in test
• Built-in potentiometers to adjust output voltage and current
• IP65 design
