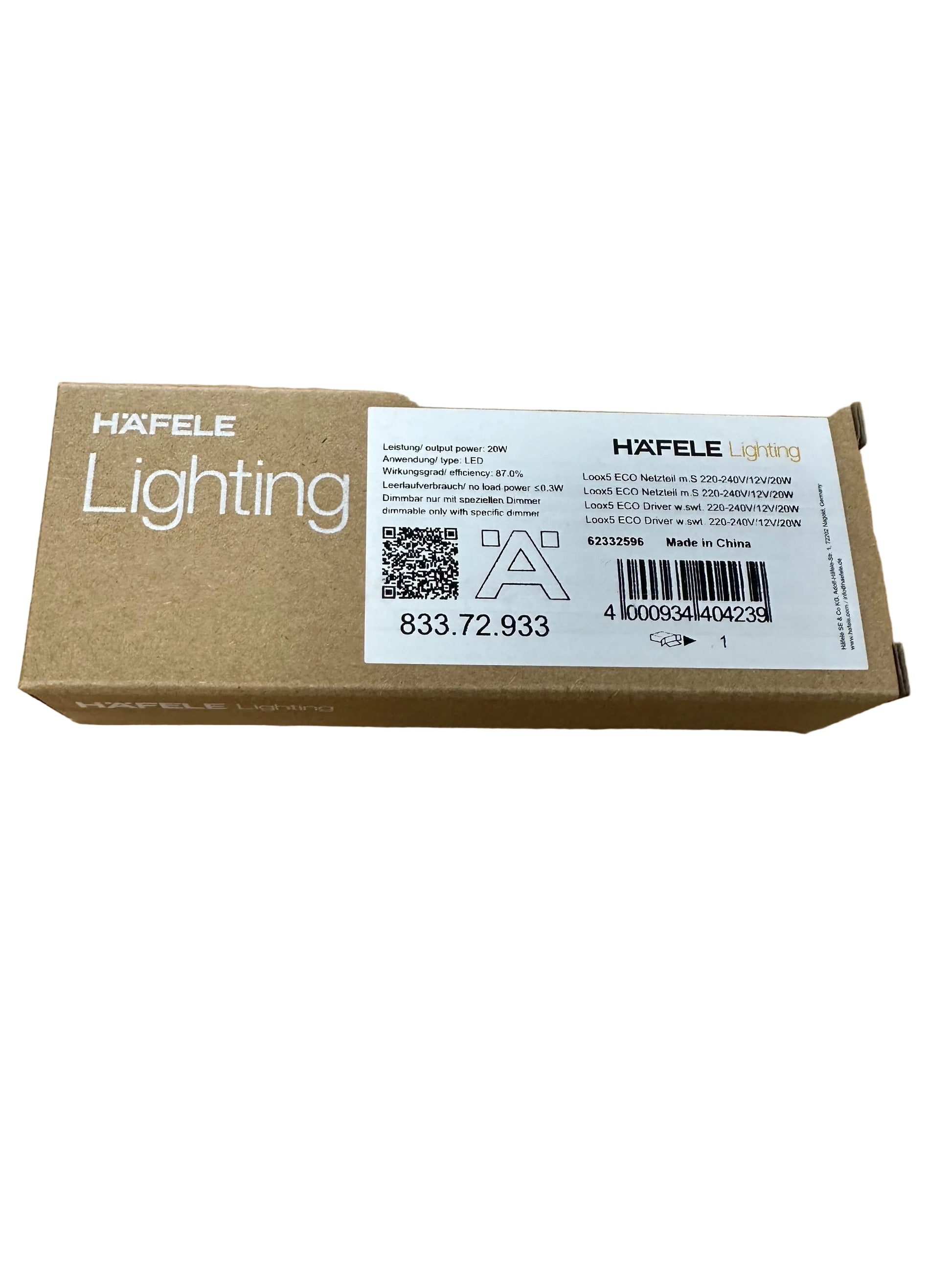

Hafele LED Driver 20W 12 V, without Mains Lead, Rated IP 20, Loox5 Eco
Hafele LED Driver 20W 12 V, without Mains Lead, Rated IP 20, Loox5 Eco
Regular price
£27.90 GBP + VAT
Regular price
Sale price
£27.90 GBP
Shipping calculated at checkout.
Art. no. 833.72.933

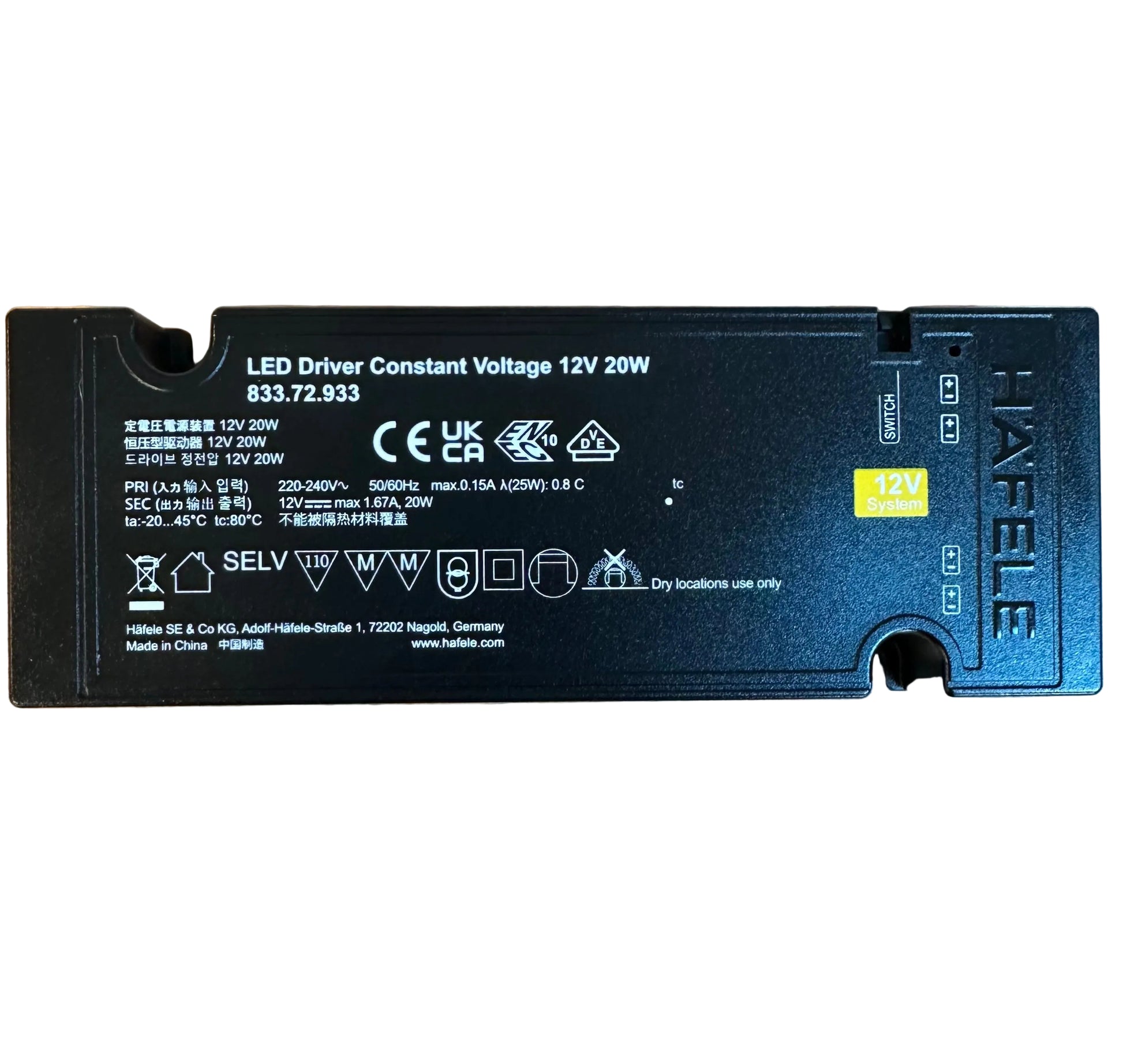

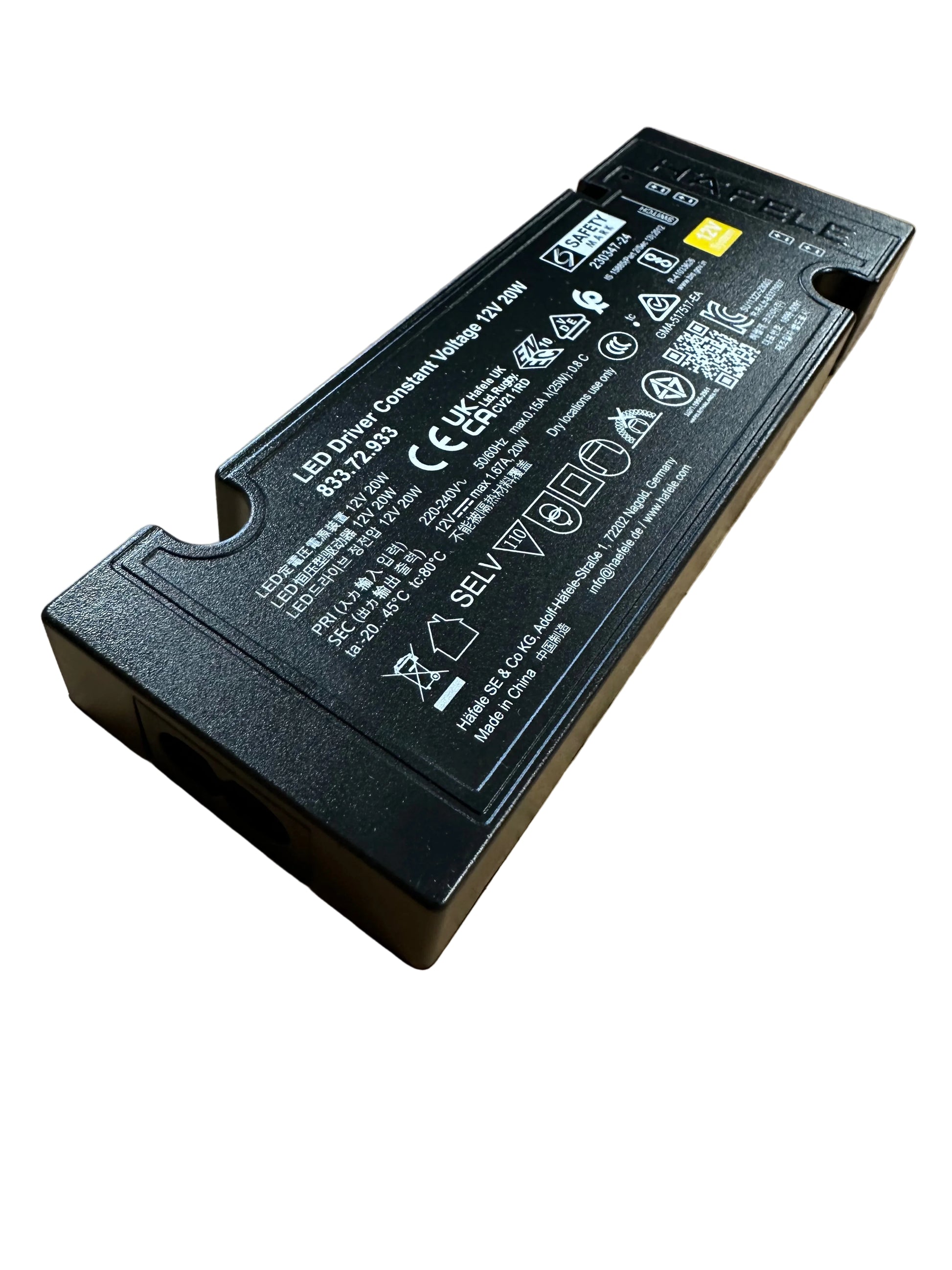

Hafele LED Driver 20W 12 V, without Mains Lead, Rated IP 20, Loox5 Eco
With switching function for 1 switch, Length x width x height 138 x 50 x 16 mm, Wattage 0 - 20 W
For use with Loox5 or Loox5 compatible 12V light. With switching function. Extremely flat, 16 mm 12 V drivers with Loox5 generation plug system Max. recommended lead length from driver to switch: 6000 mm (leads not included)
- Mains voltage: 220 – 240 V
- Mains frequency: 50 – 60 Hz
- With switching function: Yes
- Ambient temperature: -25–45 °C
- Number of switch connections: 1.00
- Output voltage: 12 V DC
- Area of application: LED (no other device)
- Area of application: For LED lights (not suitable for other devices)
- Version: With overload protection
- Material: Plastic
- Colour/finish: Black

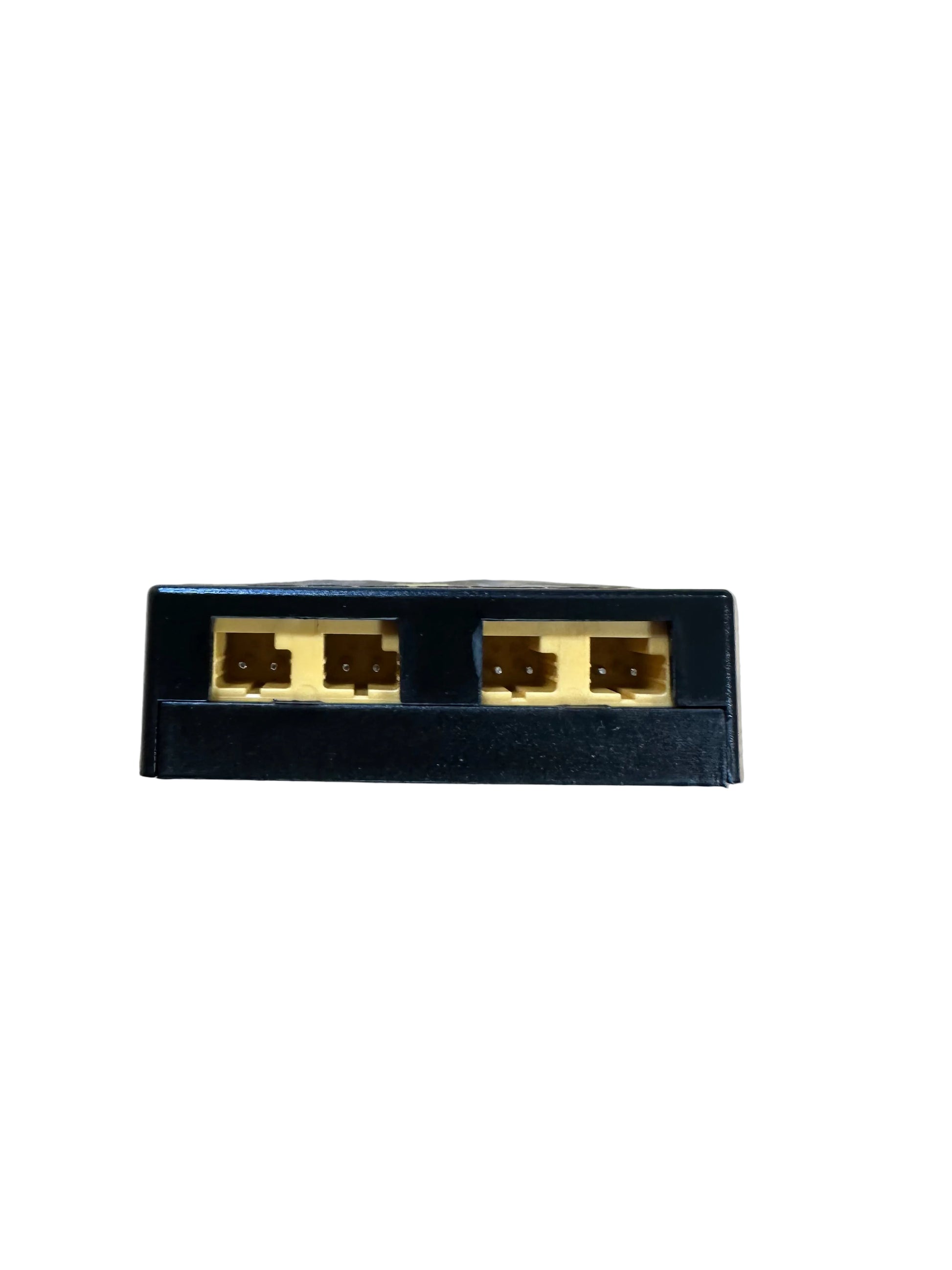

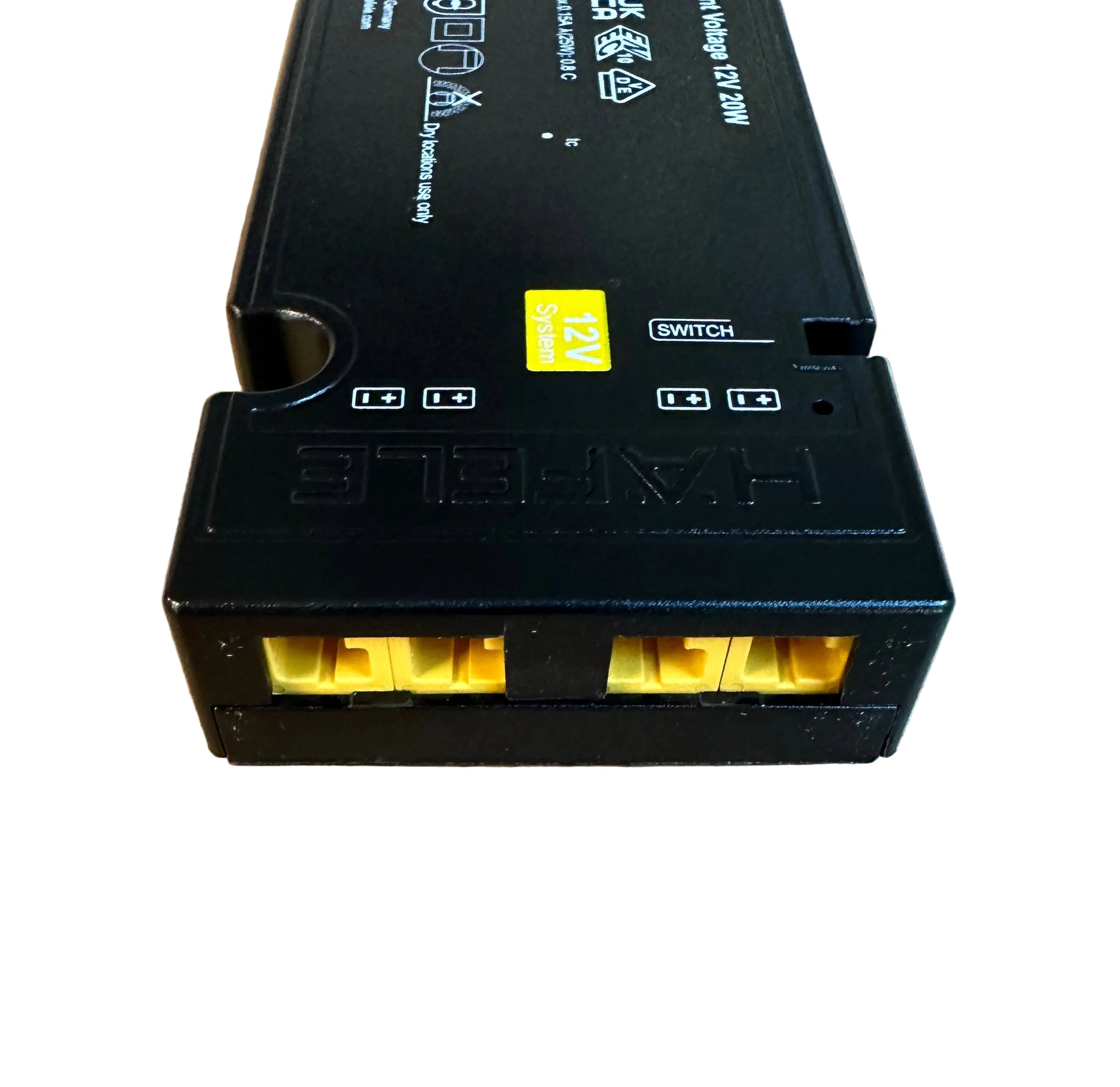

- Connected output ports: 4 x sockets, Loox5 2-pin 12 V

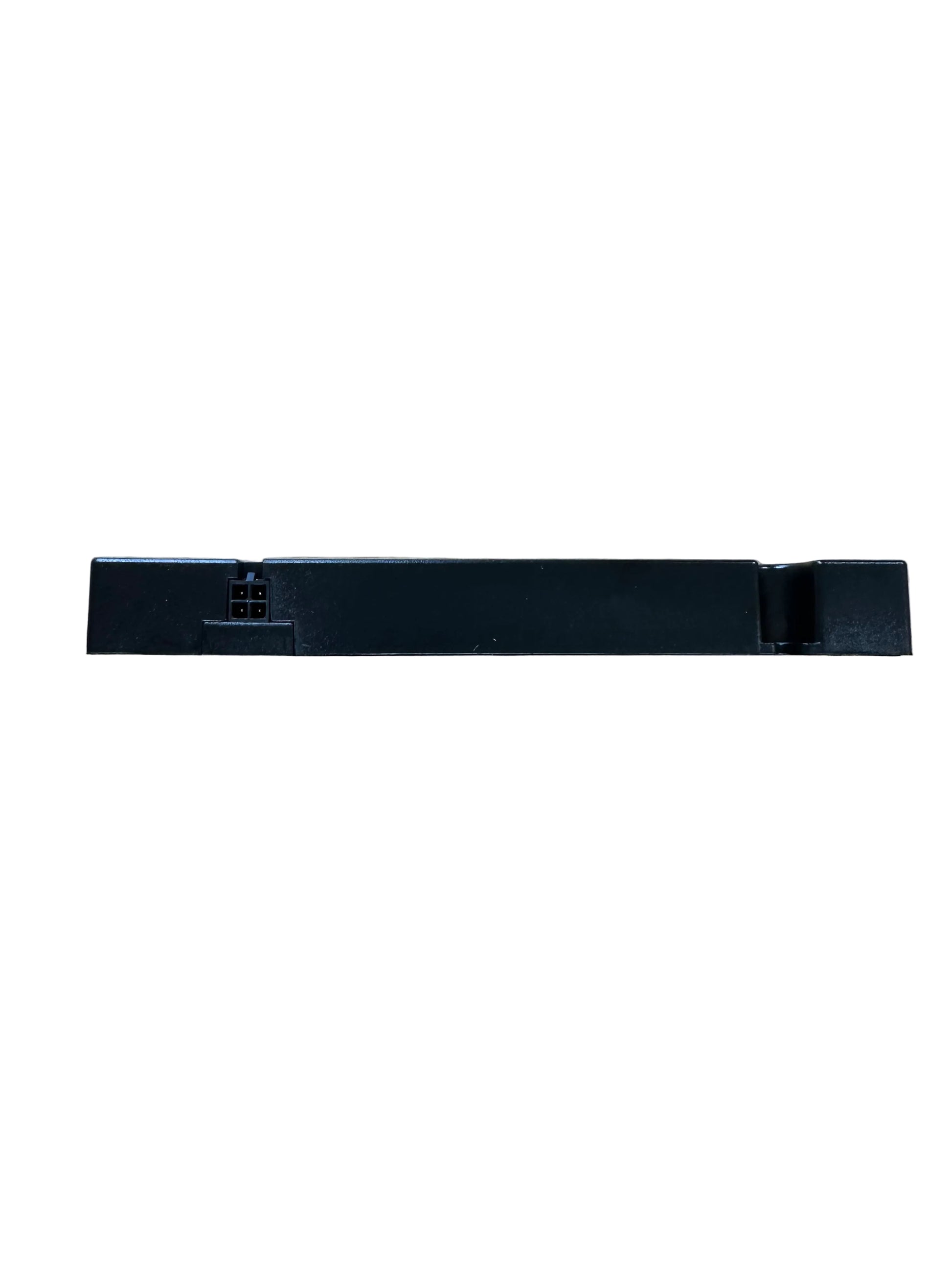

- Control input ports: 1 x socket, Loox switch
- Installation: for glue fixing, Screw fixing
- Installation reference: Provide for sufficient air supply and circulation at the mounting location. Provide inspection opening.
- Efficiency at 230 V full load: 87 %
- Power consumption at 230 V no load: 0.30 W
- Output current: 1.67 A

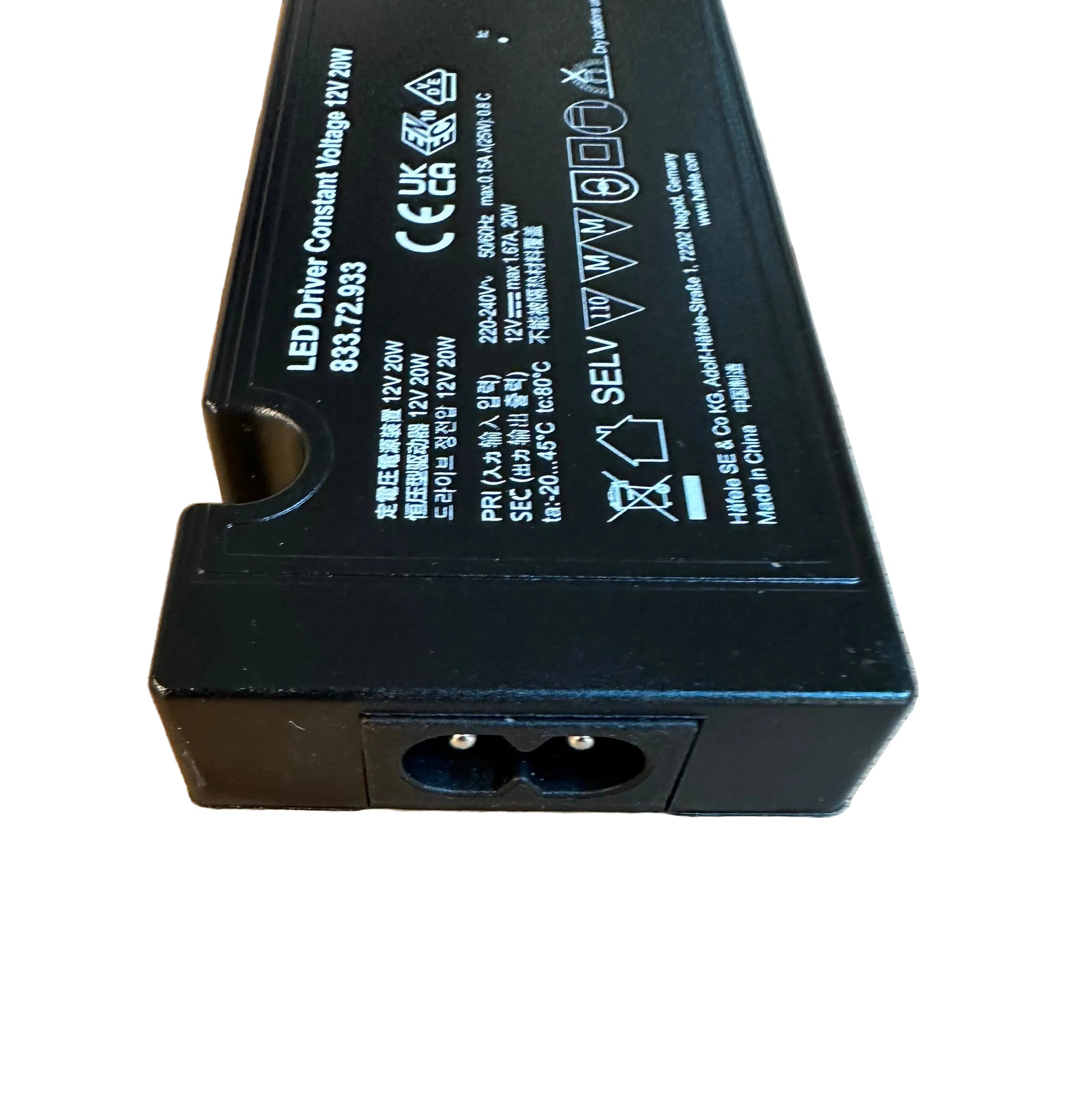

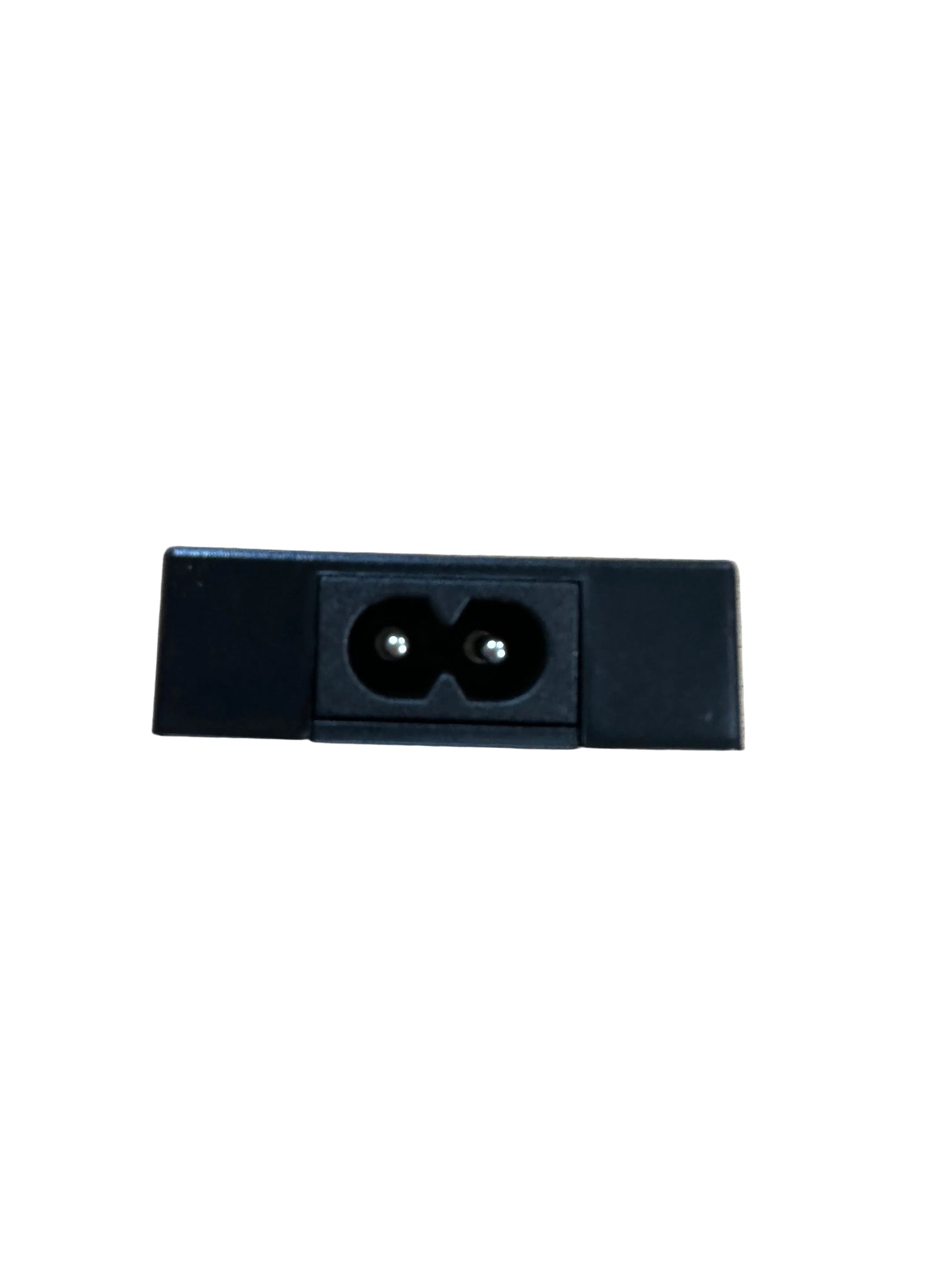

Loox mains leads must be ordered separately; e.g. 833.89.000
Product features
Product features
Energy Saving, Compact Design
