Häfele Loox 12V 40W Constant Voltage - 833.74.962

Häfele Loox 12V 40W Constant Voltage - 833.74.962

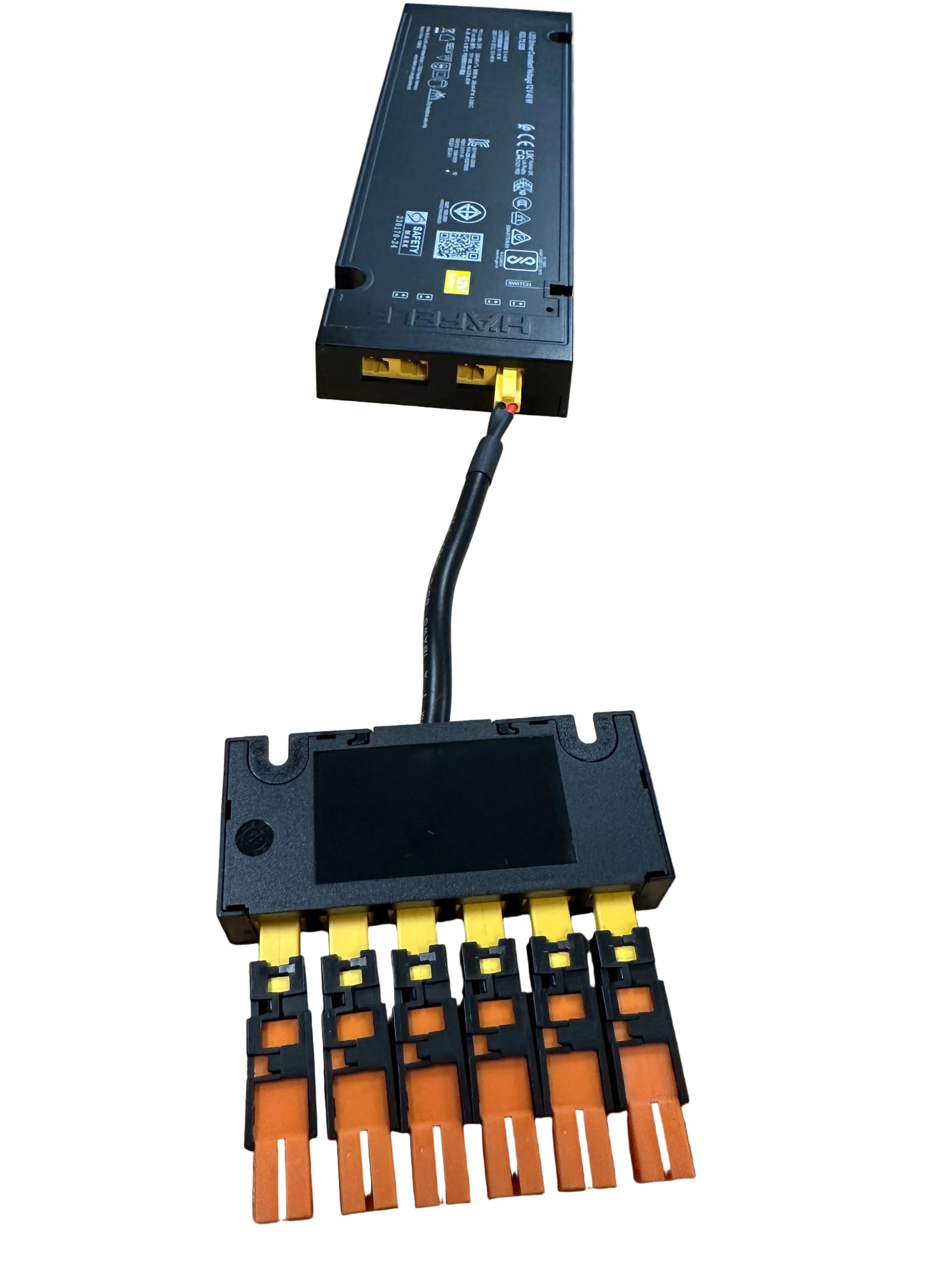

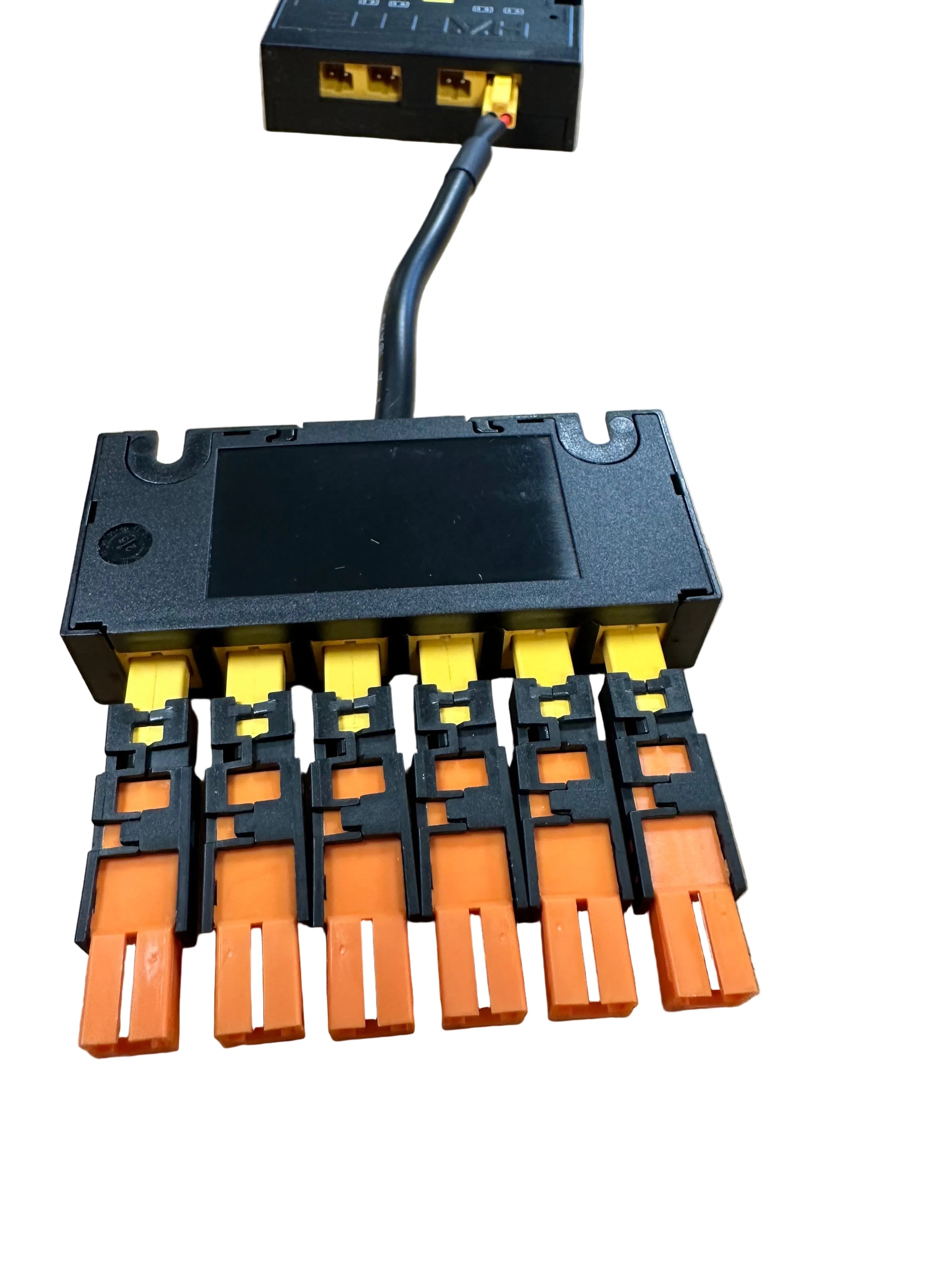

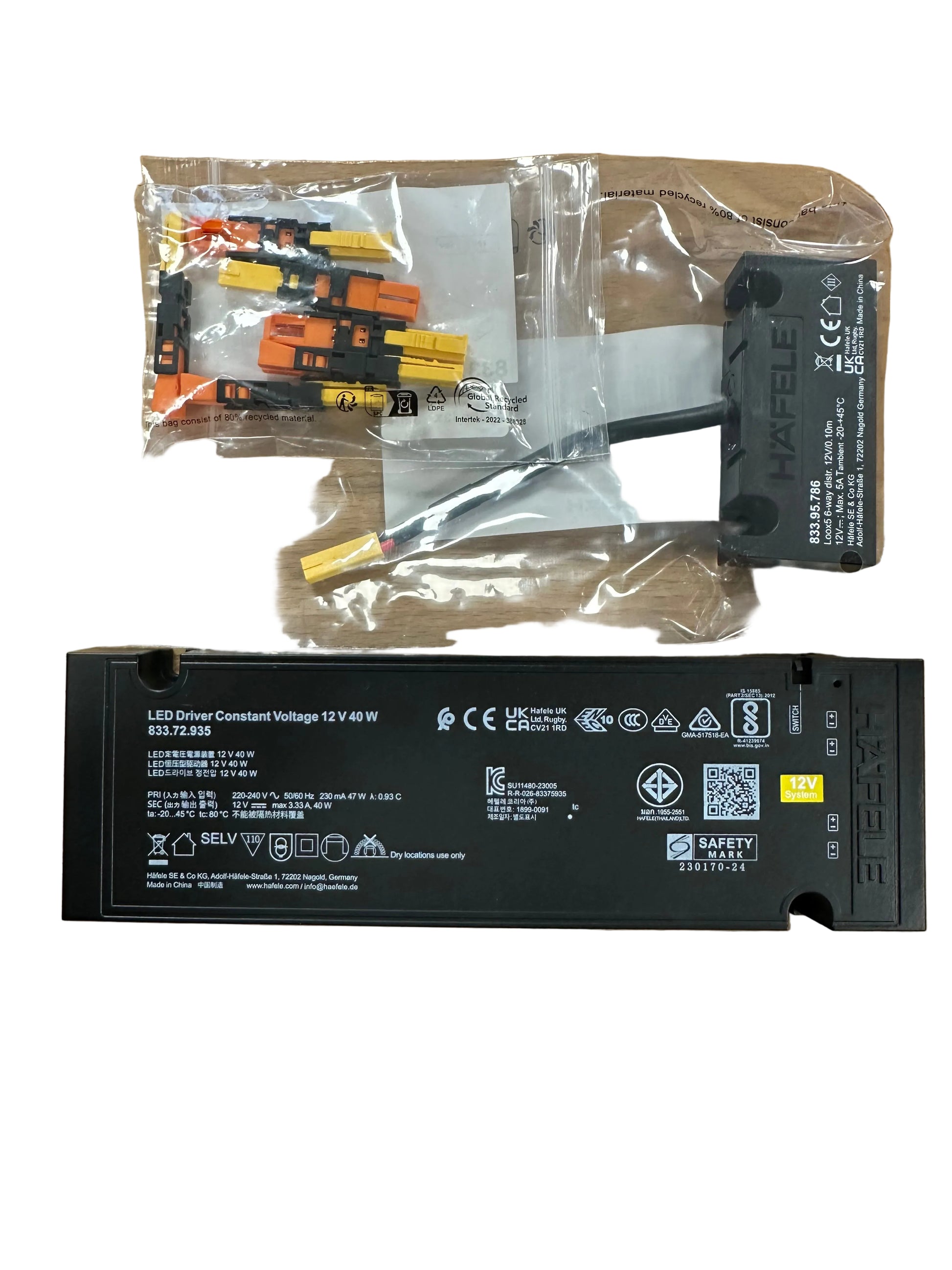

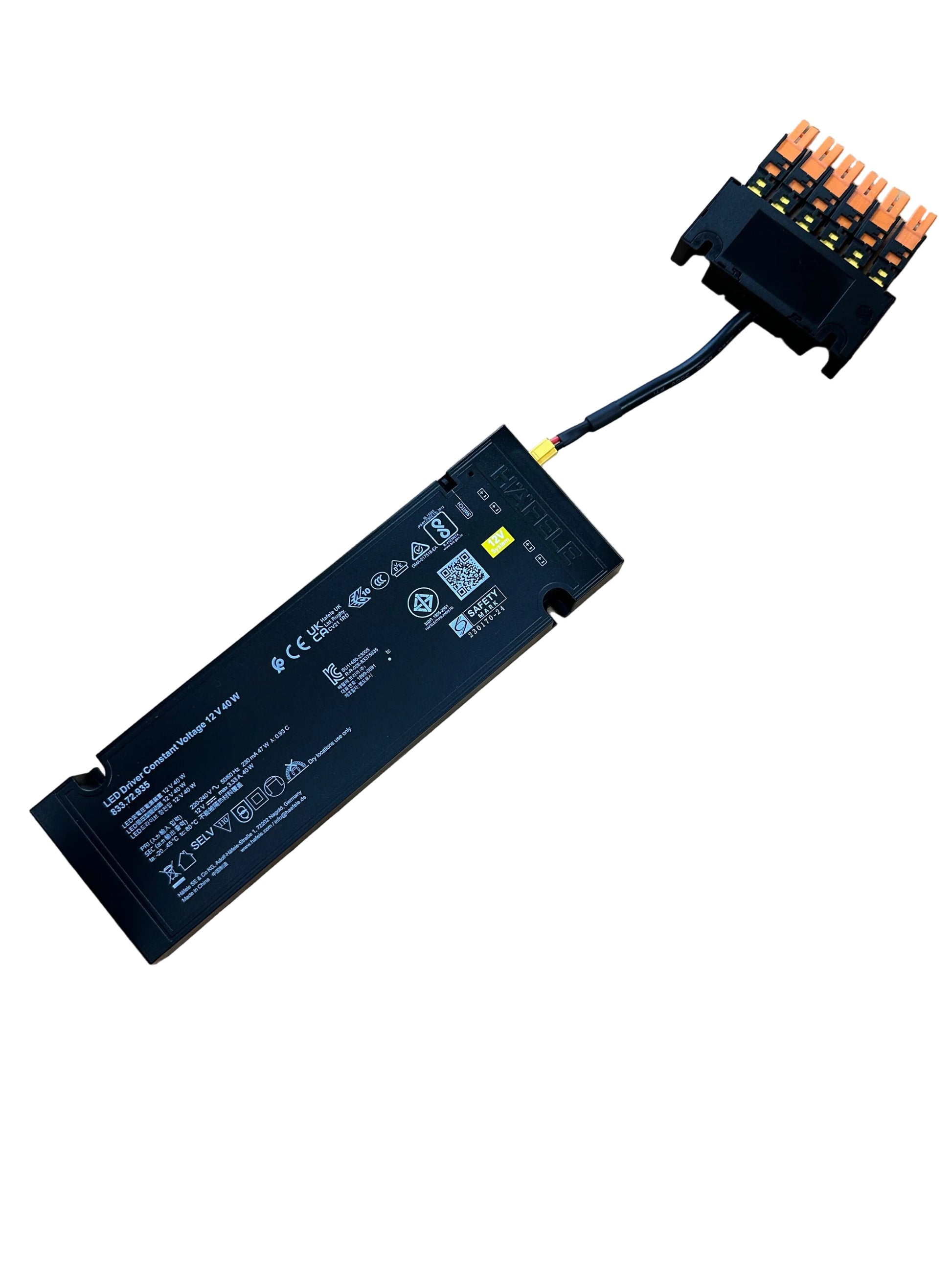

This Driver is obsolete, we now supply the Hafele 833.72.935 complete with a 6 way distributor and the adapters to allow the old Loox cables to fit in the New Loox 5 drivers.

The heart of the Loox system
Suitable for connecting to all of the world’s power systems
Offers an integrated switching function and connections for all of the most popular types of Loox switches
Input voltage: 100-240 V;50-60 Hz
Output voltage: DC 12 V
6 sockets for Loox/Loox Compatible 12 V lights
1 socket for country-specific mains lead
All lights and switches must be connected to the driver before connecting to the mains
Lead length from driver to switch max. 6 m

• Mains voltage 100-240V
• Mains frequency 50-60Hz
• With switching function Yes
• Number of switch connections 1
• Output voltage 12 V DC
• Power consumption at 230 V no load
• Area of application For Loox 12 V lights
• Version Parallel connection
• Installation For screwing on
• Installation reference Min. distance surrounding 50 mm. Provide for sufficient air supply and circulation. Please note max. ambient temperature. Overvoltage protection must be provided. Provide inspection opening
