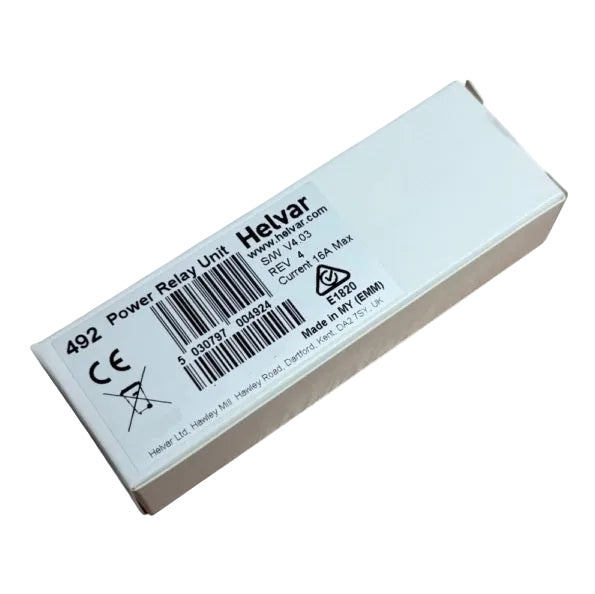

Helvar 492 16 A Power Relay Unit

Helvar 492 16 A Power Relay Unit

Lighting Control Solution:
ActiveAhead
Imagine
RoomSet
Lighting Control Protocol: DALI lighting control

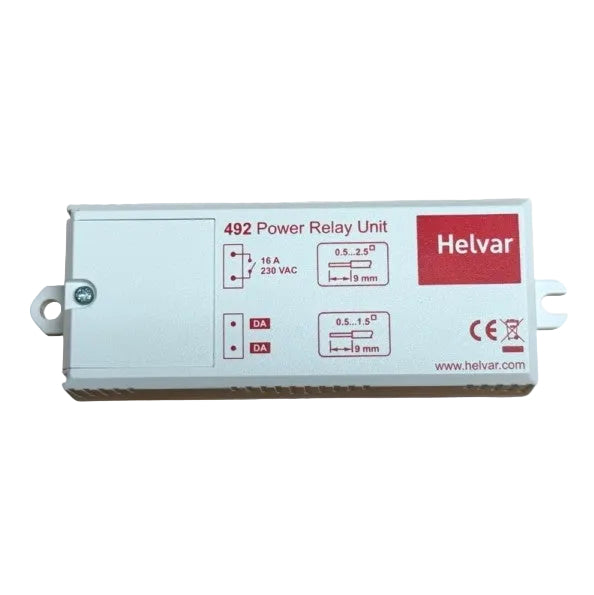

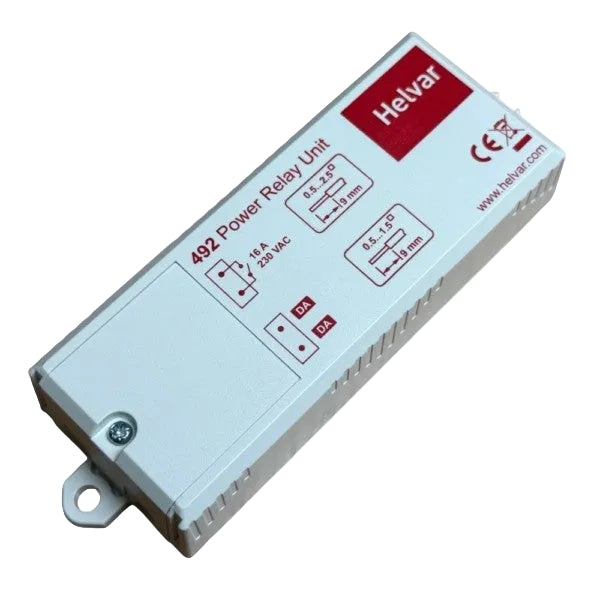

Helvar 492 16 A Power Relay Unit

Helvar 492 is a single-channel relay unit designed to allow control of non-DALI, non dimmable loads.

The relay is a latching, volt-free contact, high-inrush type, with a contact rating of 16 A.

The 16 A Power Relay Unit is packaged within a plastic enclosure that can be installed within a luminaire or an electrical cabinet, or used as an in-line unit. This compact enclosure has mounting lugs at each end, and cable grips are an integral part of the terminal cover.

The unit is powered from the DALI network. It forms a DALI relay node with a typical current consumption of 2 mA, and it can be programmed as a single-channel relay with Helvar’s lighting design software, Designer and Toolbox.

Helvar 492
