Helvar LC27MINI-DA-150-700 - 5920005

Helvar LC27MINI-DA-150-700 - 5920005

• DALI2 Dimmable LED Driver
• Adjustable constant current output: 300 mA to 1050 mA (default)

• 150mA - 7.8W 200mA - 10.4W 250mA - 13W 300mA - 15.6W 350mA - 18.2W 400mA - 20.8W 450mA - 23.4W 500mA - 26W 550mA 26.1W 600mA 26.1W 650mA - 26W 700mA 26.3W

• Forward Voltage 9-52V upto 500mA 550mA 9-47.5V 600mA 9-43.5V 650mA       9-40V 700mA 9-37.5V

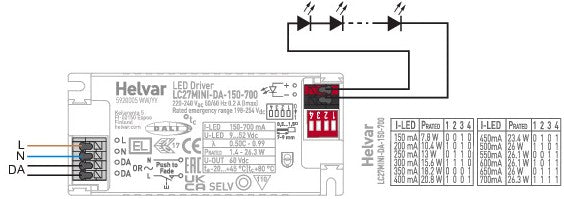

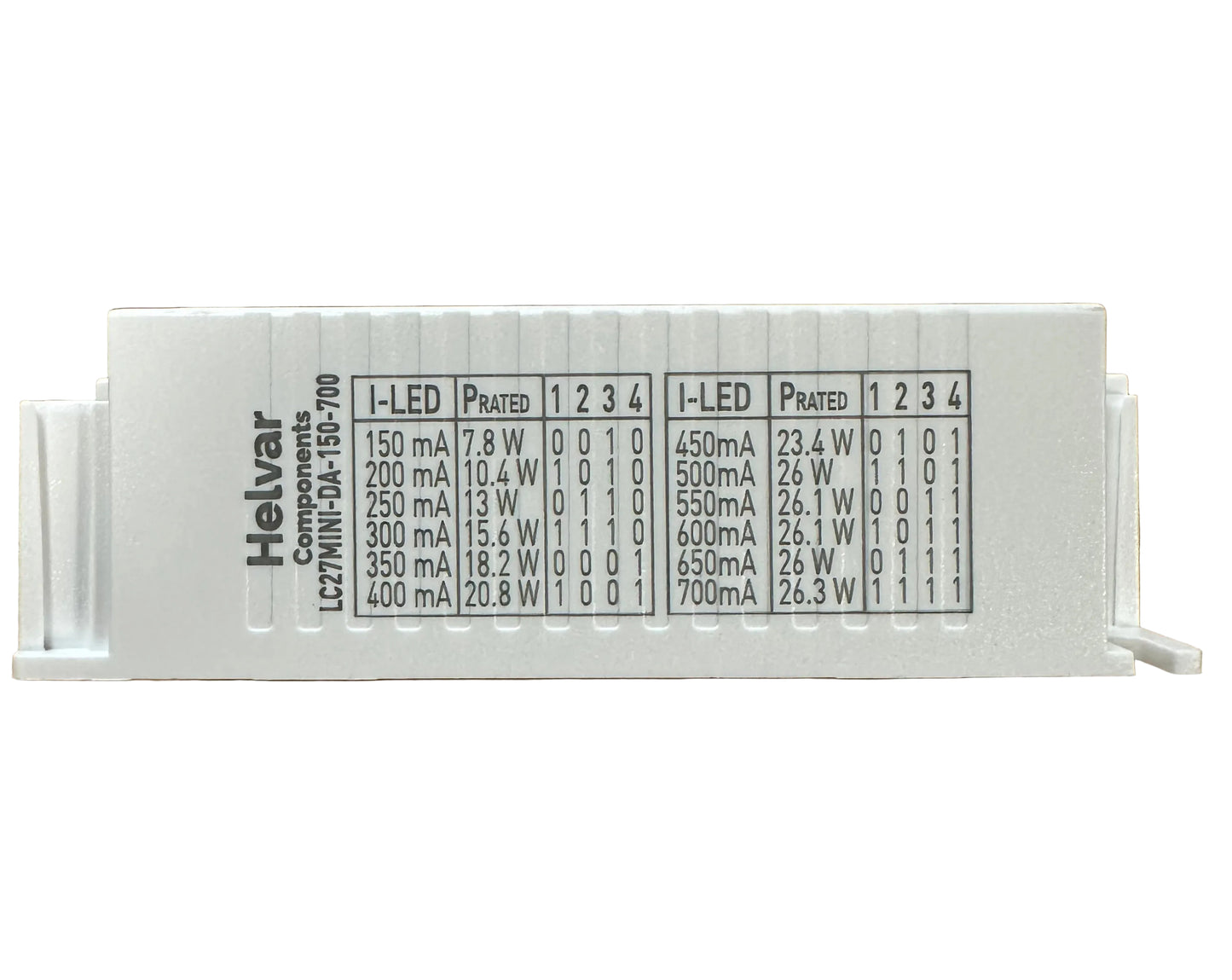

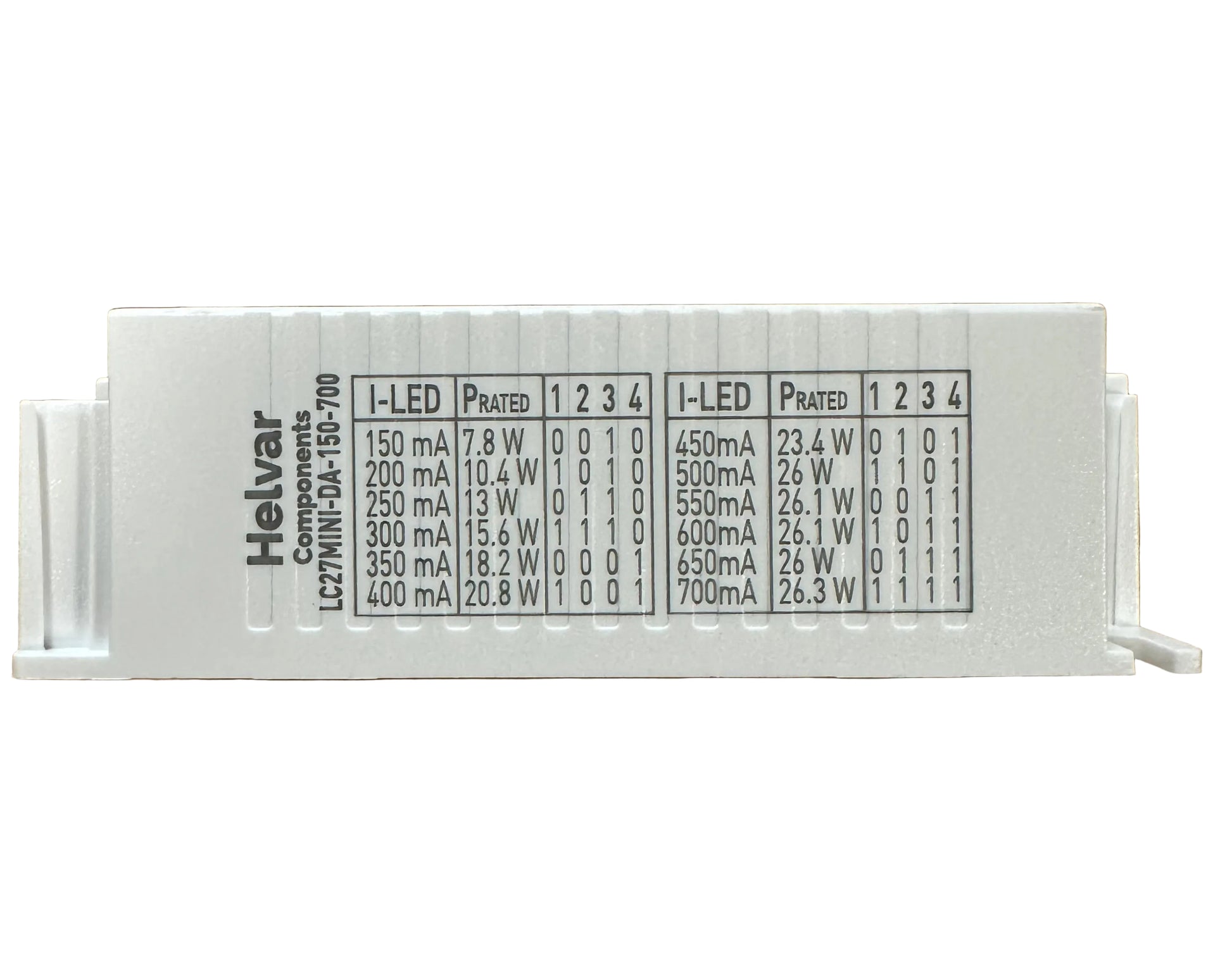

• Current setting via dip-switches

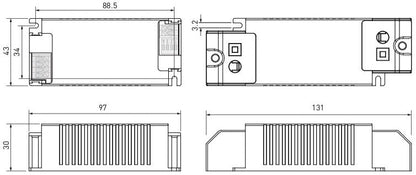

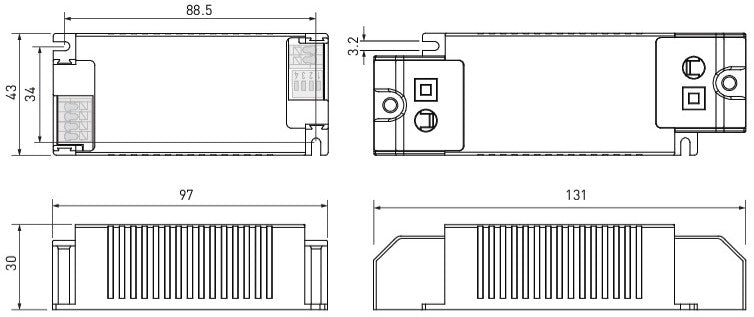

• Dimensions 97mm L 43mm W 30mm H
• Overload, open & short circuit protection
• SELV output protection for safety and flexibility in luminaire
• Low current ripple, complying with IEEE 1789 recommendation
• Extremely compact dimensions for flexible usage
• Ideal solution for Class I and Class II luminaires
• For driving Class II (SELV) luminaires, optional strain relief for independent use outside of luminaire click here LC-SR-MINI
