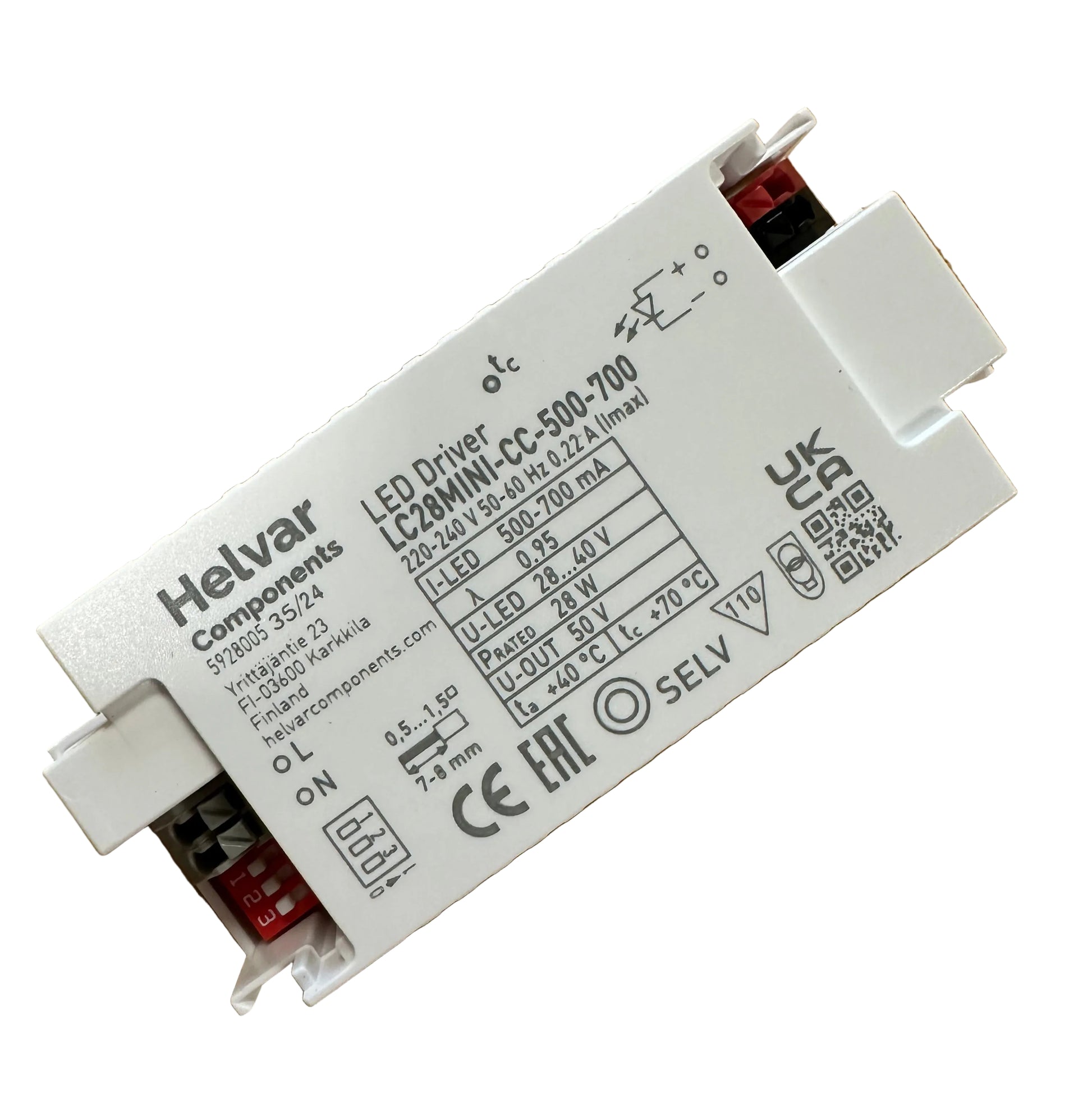

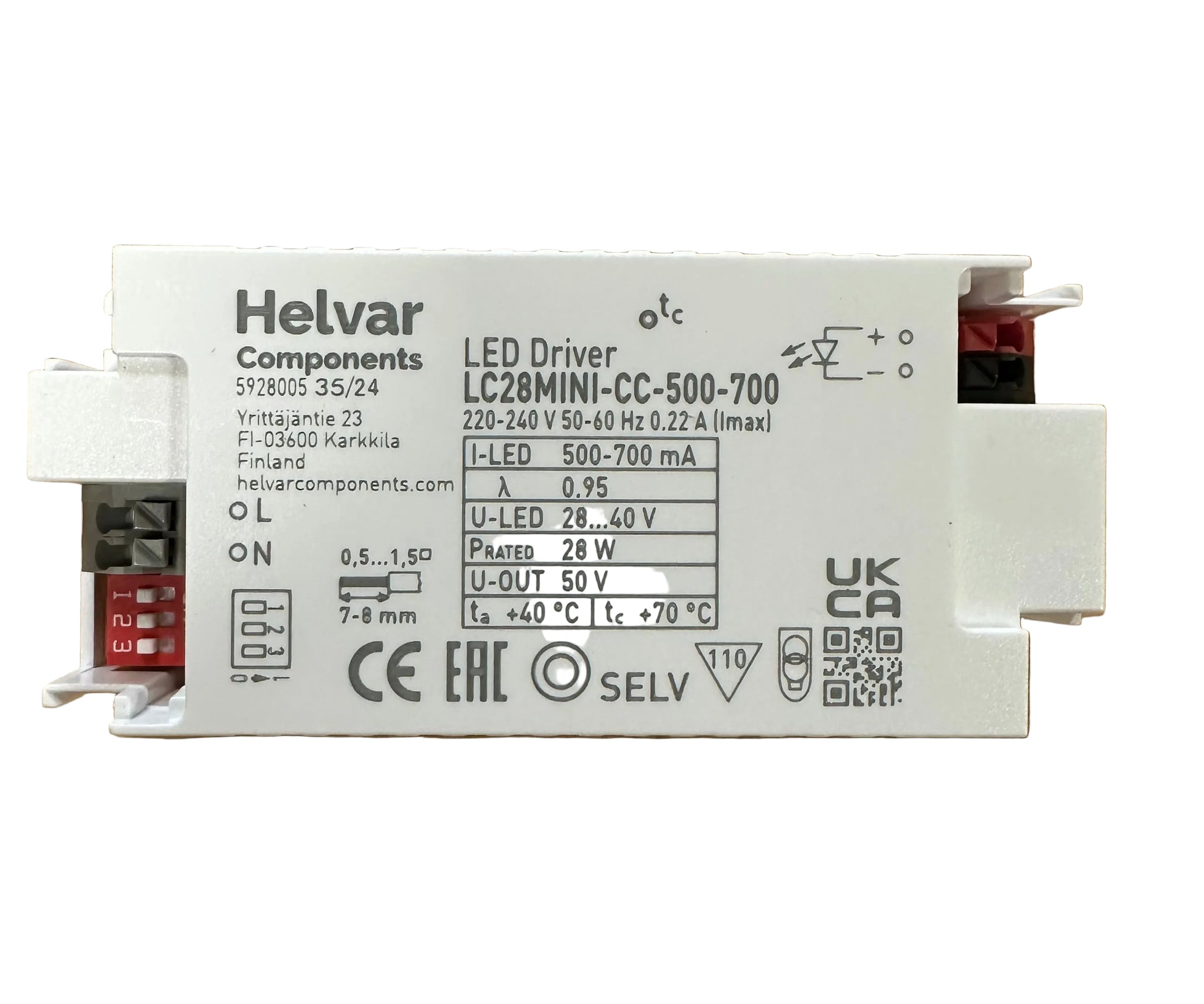

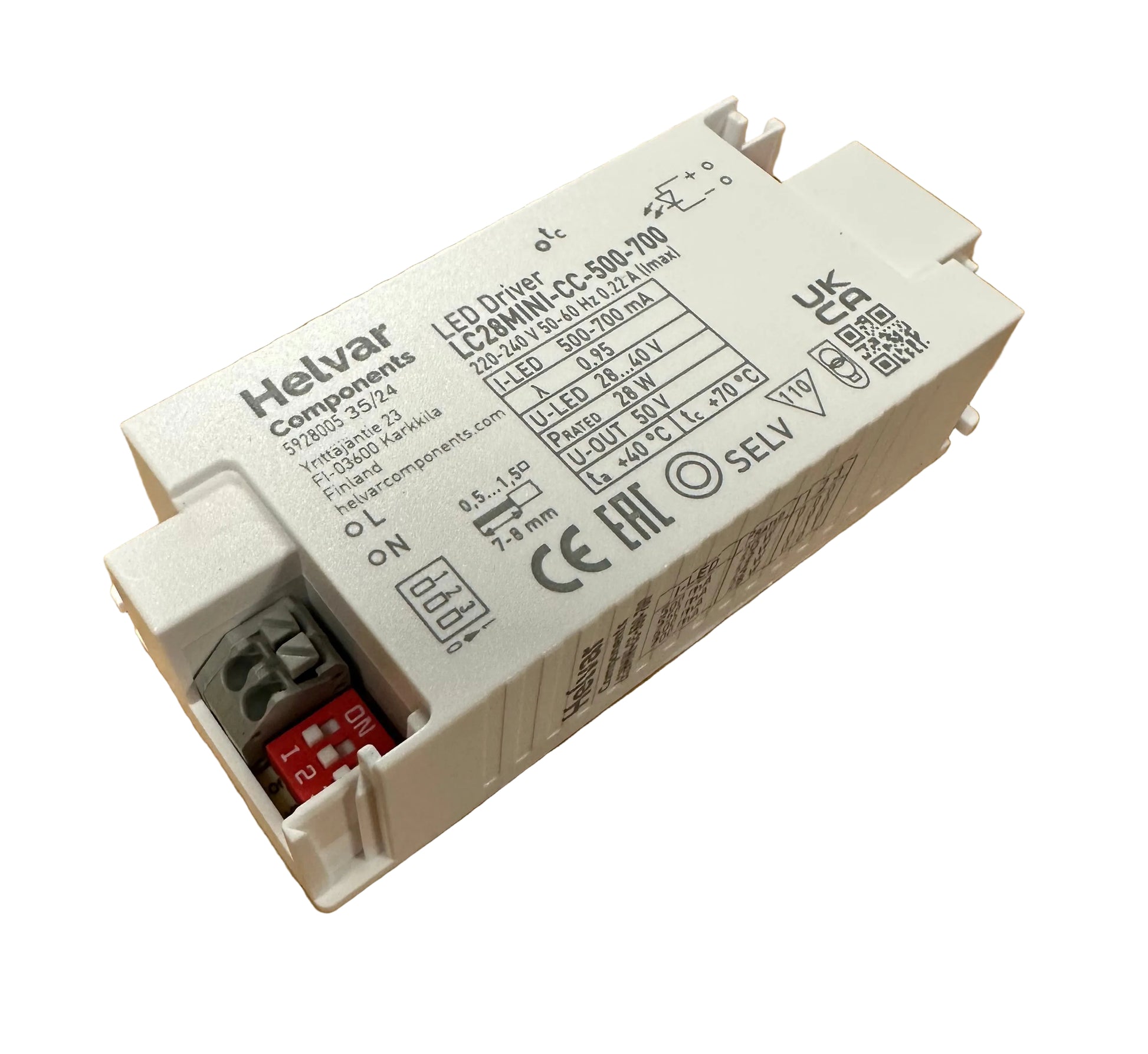

Helvar LC28MINI-CC-500-700 - 5928005

Helvar LC28MINI-CC-500-700 - 5928005

• Adjustable constant current output: 500 mA to 700 mA (default)

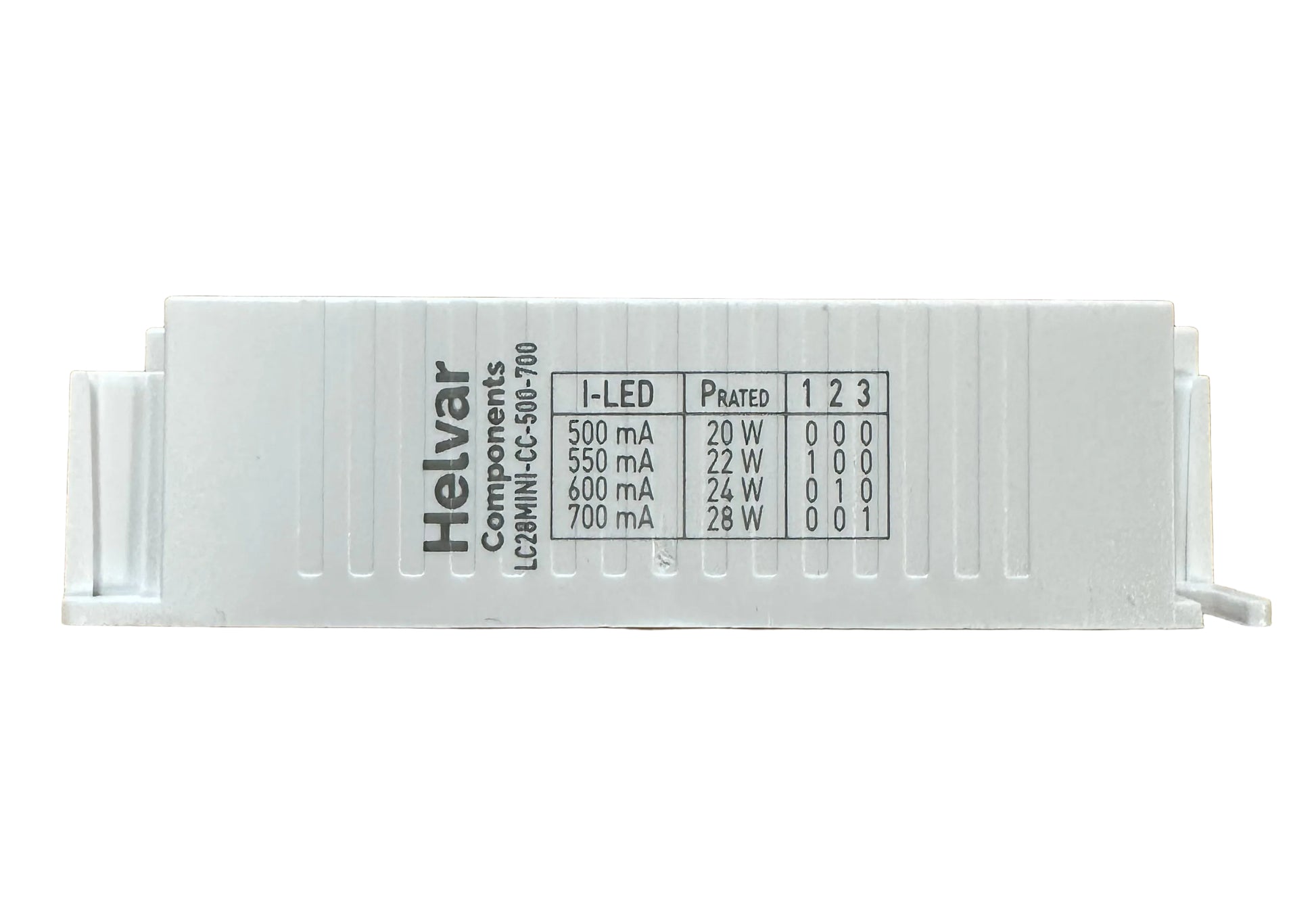

• 500mA - 20W 550mA - 22W 600mA - 24W 700mA - 28W

• Forward Voltage 28-40V
• Current setting via dip-switches

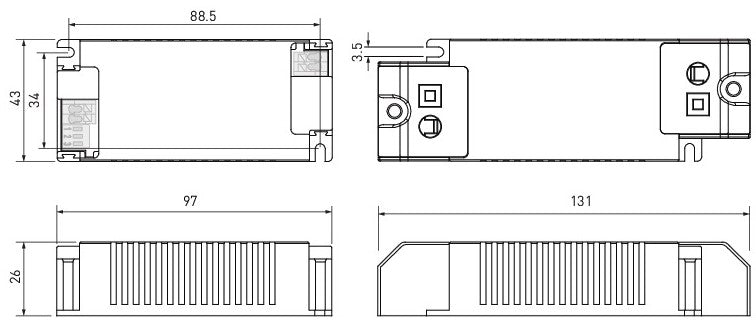

• Dimensions 97mm L 43mm W 30mm H
• Overload, open & short circuit protection
• SELV output protection for safety and flexibility in luminaire
• Low current ripple, complying with IEEE 1789 recommendation
• Extremely compact dimensions for flexible usage
• Ideal solution for Class I and Class II luminaires
• For driving Class II (SELV) luminaires, optional strain relief for independent use outside of luminaire click here LC-SR-MINI
