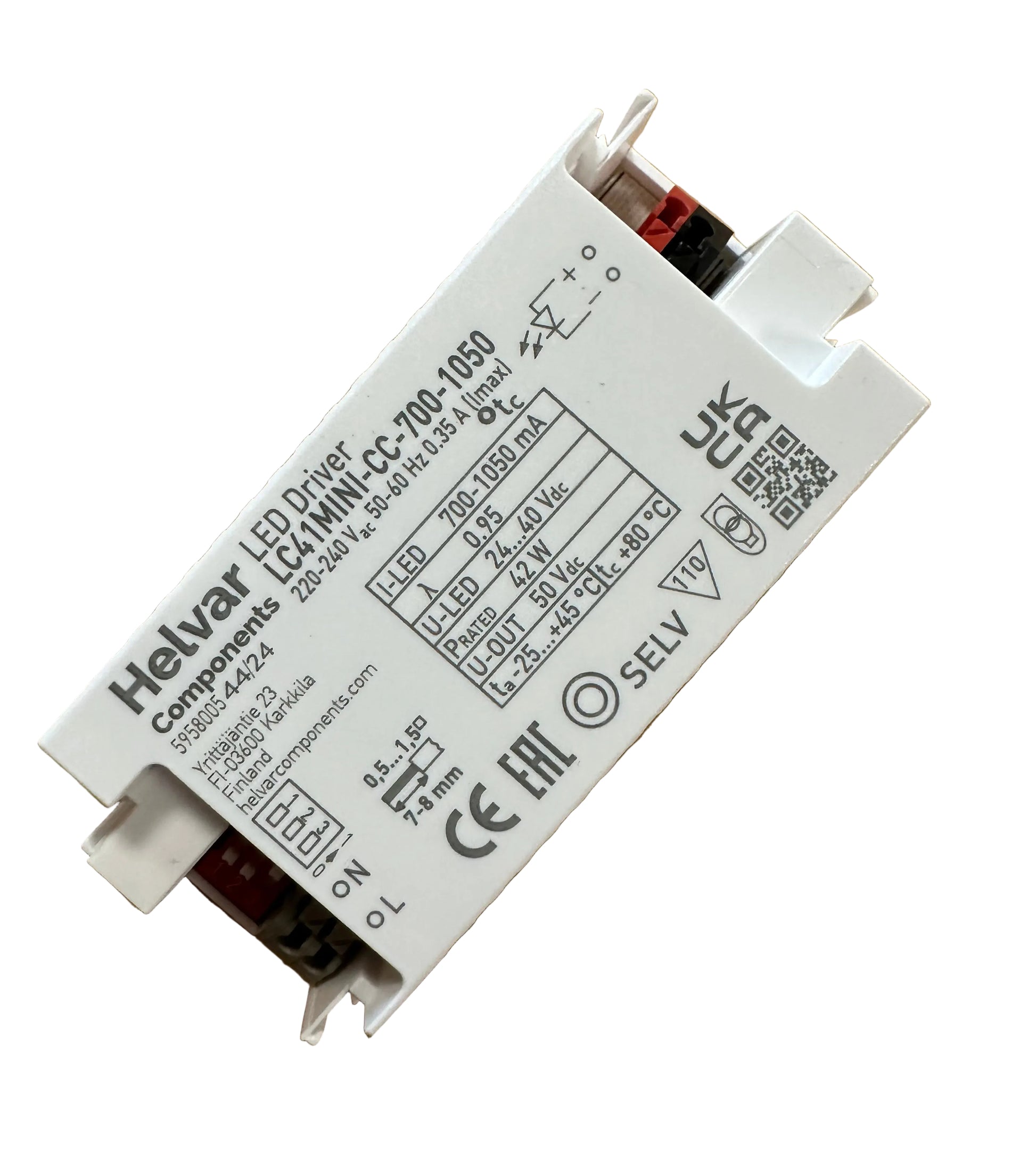

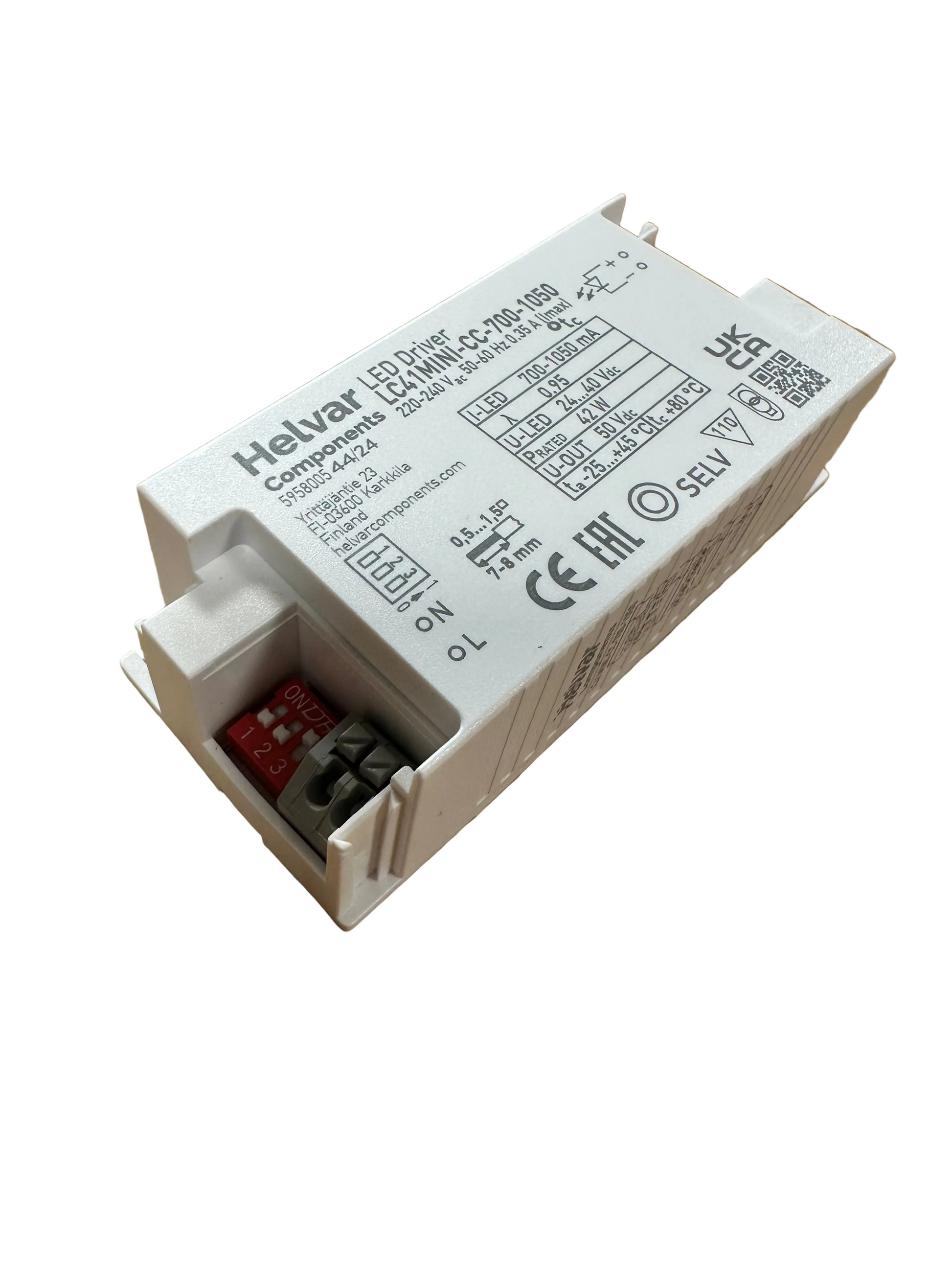

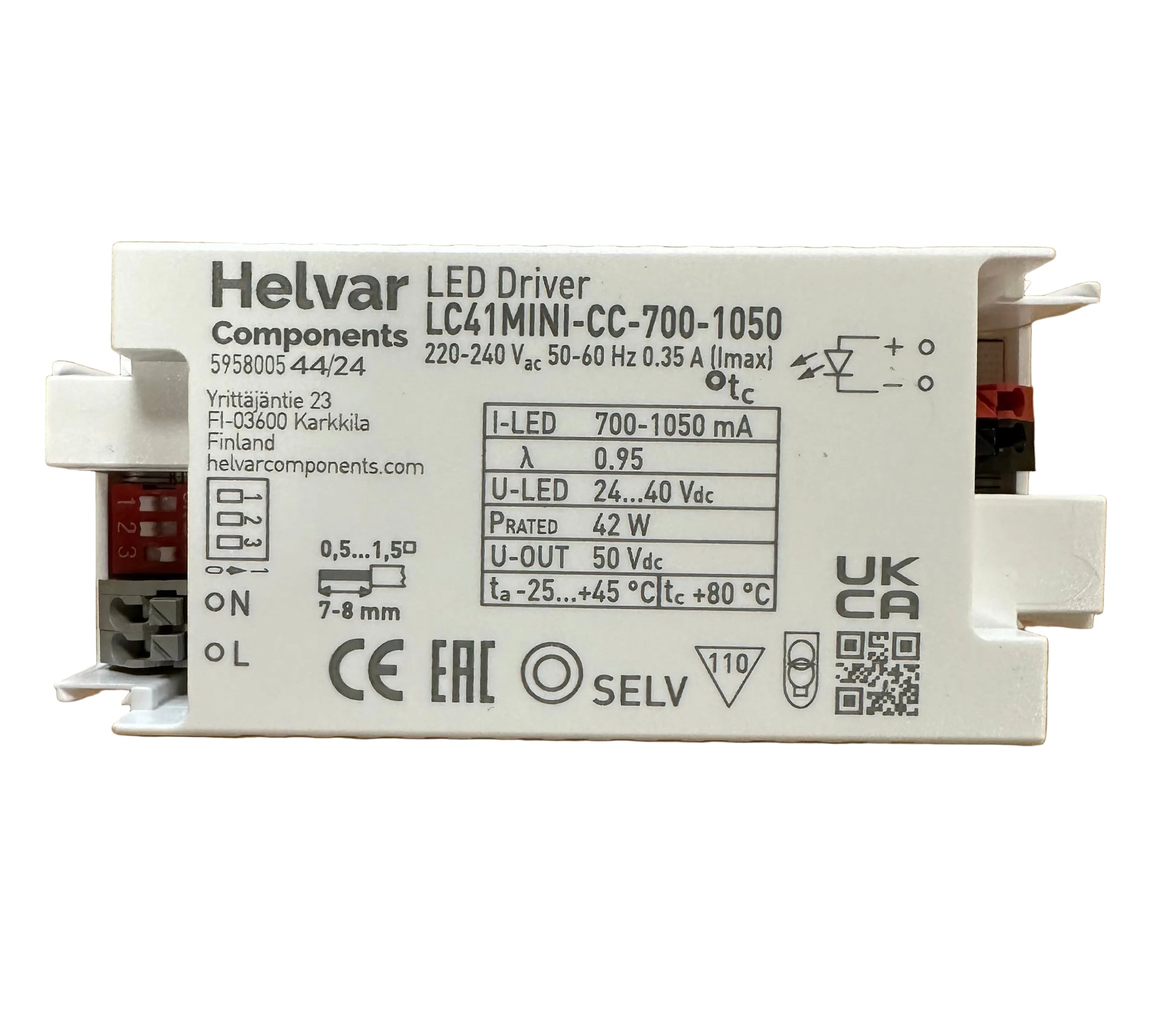

Helvar LC41MINI-CC-700-1050 - 5958005

Helvar LC41MINI-CC-700-1050 - 5958005

• Adjustable constant current output: 700 mA to 1050 mA (default)

• 700mA - 16.8-28W 800mA - 19.2-32W 900mA - 21.6-36W 1050mA - 25.2-42W

• Forward Voltage 24-40V

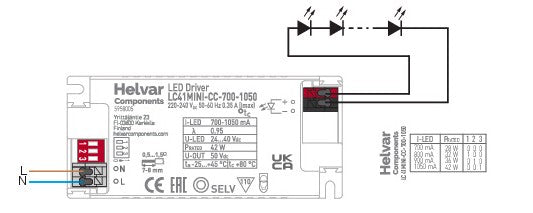

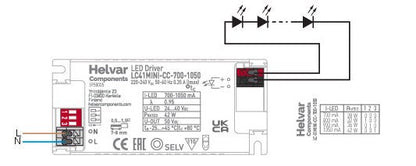

• Current setting via dip-switches

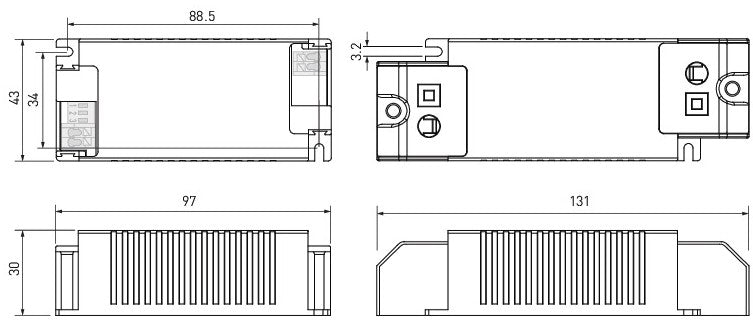

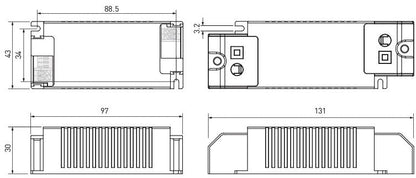

• Dimensions 97mm L 43mm W 30mm H
• Overload, open & short circuit protection
• SELV output protection for safety and flexibility in luminaire
• Low current ripple, complying with IEEE 1789 recommendation
• Extremely compact dimensions for flexible usage
• Ideal solution for Class I and Class II luminaires
• For driving Class II (SELV) luminaires, optional strain relief for independent use outside of luminaire click here LC-SR-MINI
