Helvar LC43MINI-CC-300-1050 - 5945005

Helvar LC43MINI-CC-300-1050 - 5945005

• Adjustable constant current output: 300 mA to 1050 mA (default)

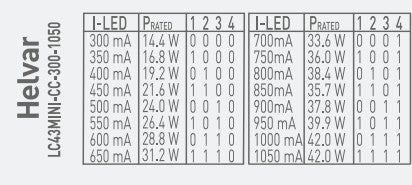

• 300mA = 14.4W 350mA = 16.8W 400mA = 19.2W 450mA = 21.6W 500mA = 24W 550mA = 26.4W 600mA = 28.8W 650mA = 31.2W 700mA = 33.6W 750mA = 36W 800mA = 38.4W 850mA = 35.7W 900mA = 37.8W 950mA = 39.9W 1000mA = 42W 1050mA = 42W

• Forward Voltage 9-48V upto 800mA 9-42V upto 1000mA 9-40V 1050mA

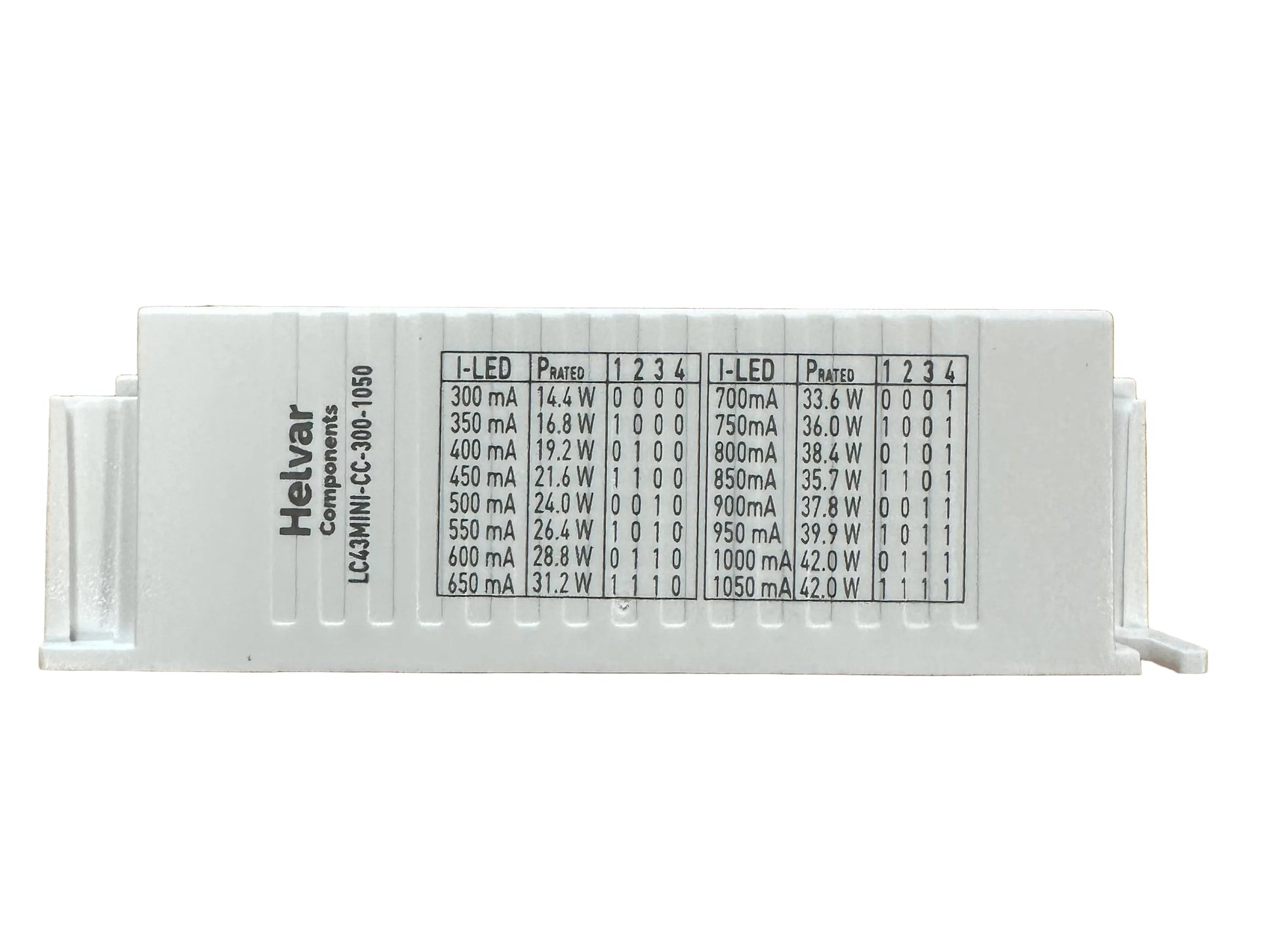

• Current setting via dip-switches

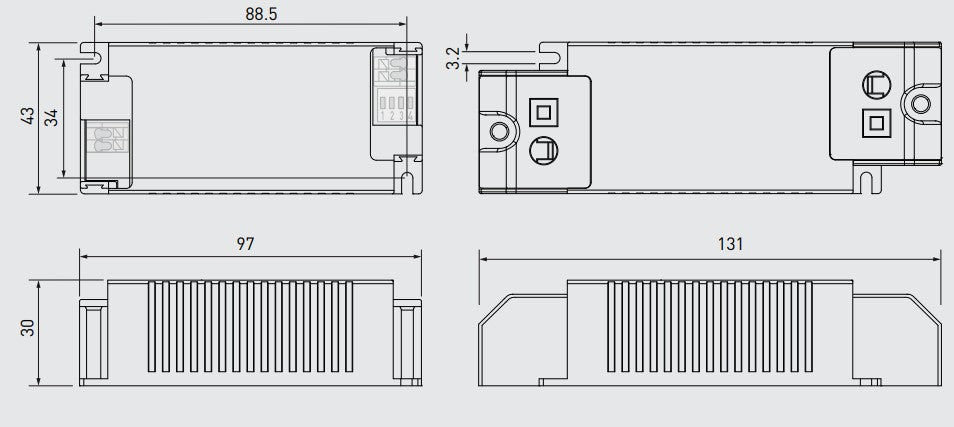

• Dimensions 97mm L 43mm W 30mm H
• Overload, open & short circuit protection
• SELV output protection for safety and flexibility in luminaire
• Low current ripple, complying with IEEE 1789 recommendation
• Extremely compact dimensions for flexible usage
• Ideal solution for Class I and Class II luminaires
• For driving Class II (SELV) luminaires, optional strain relief for independent use outside of luminaire click here LC-SR-MINI
