Hytronik HEC6028 16-28W 700mA SensorDIM Integrated HF Sensor and LED Driver

Hytronik HEC6028 16-28W 700mA SensorDIM Integrated HF Sensor and LED Driver

The Hytronik HEC6028 is a 28W, 700mA Intergarated SensorDIM LED Driver combining a constant current driver with a 5.8GHz microwave HF Motion Sensor. It features adjustable DIP switch settings, a 23-40V output voltage range, and is ideal for 220-240V, 16-28W, IP20-rated indoor, energy-saving luminaire applications.

• Model: HEC6028
• Type: 2-in-1 SensorDIM® (Integrated Motion Sensor + Driver)
• Output Power: 16-28W
• Output Current: 700mA (adjustable via DIP switch)
• Output Voltage: 23-40V DC
• Input Voltage: 220-240V AC, 50/60Hz
• Sensor Type: High Frequency (HF) Microwave Motion Sensor
• Functions: Daylight sensor/occupancy sensor
• Mounting: Built-in/Independent
• IP Rating: IP20
• Energy Efficiency: Automatically dims to a pre-defined level (or off) when no motion is detected.

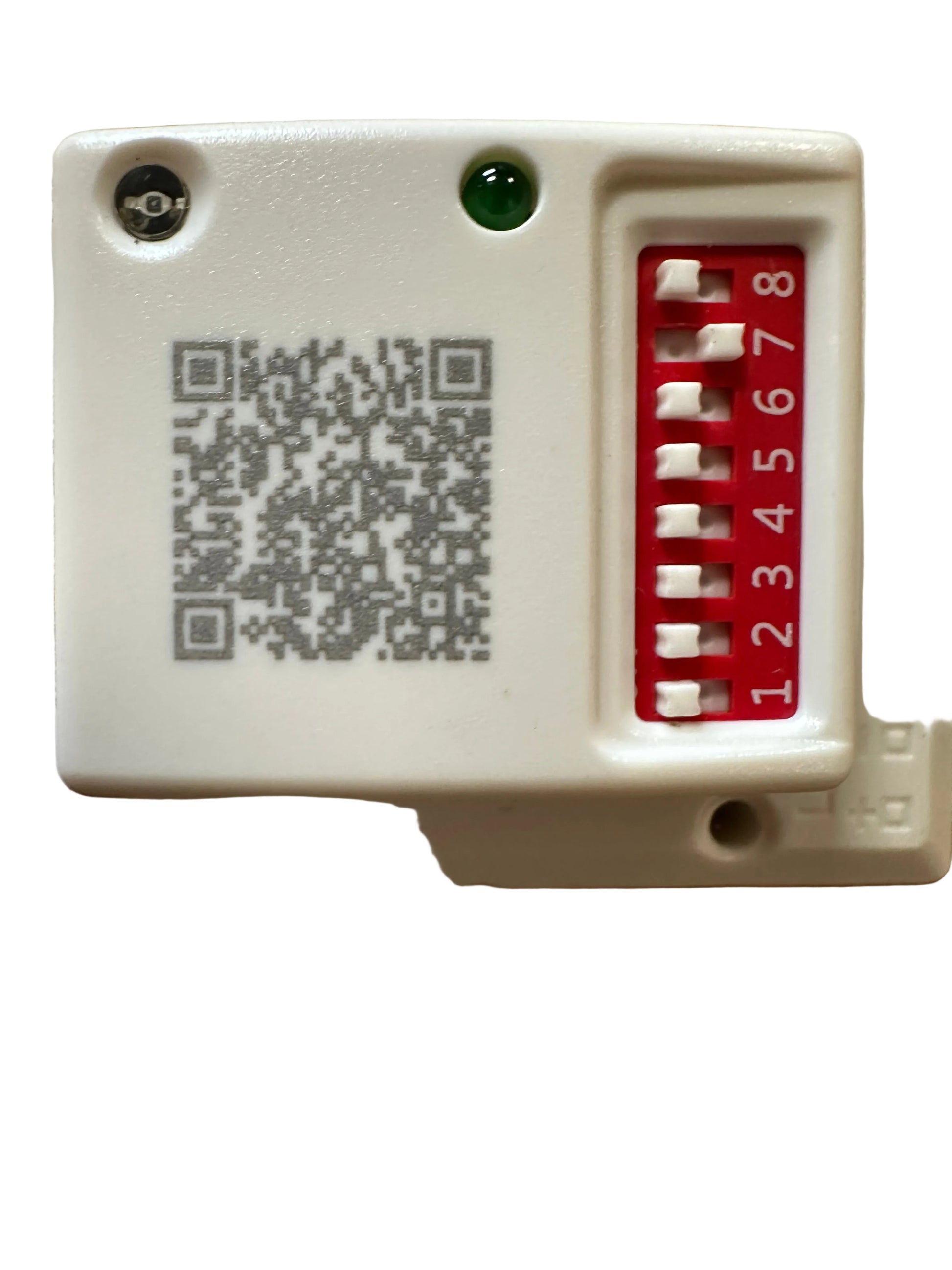

• Easy Configuration: DIP switches allow for easy adjustment of detection area, hold time, and daylight sensor settings.
• Versatility: Suitable for new luminaire designs or retrofitting existing fixtures.
