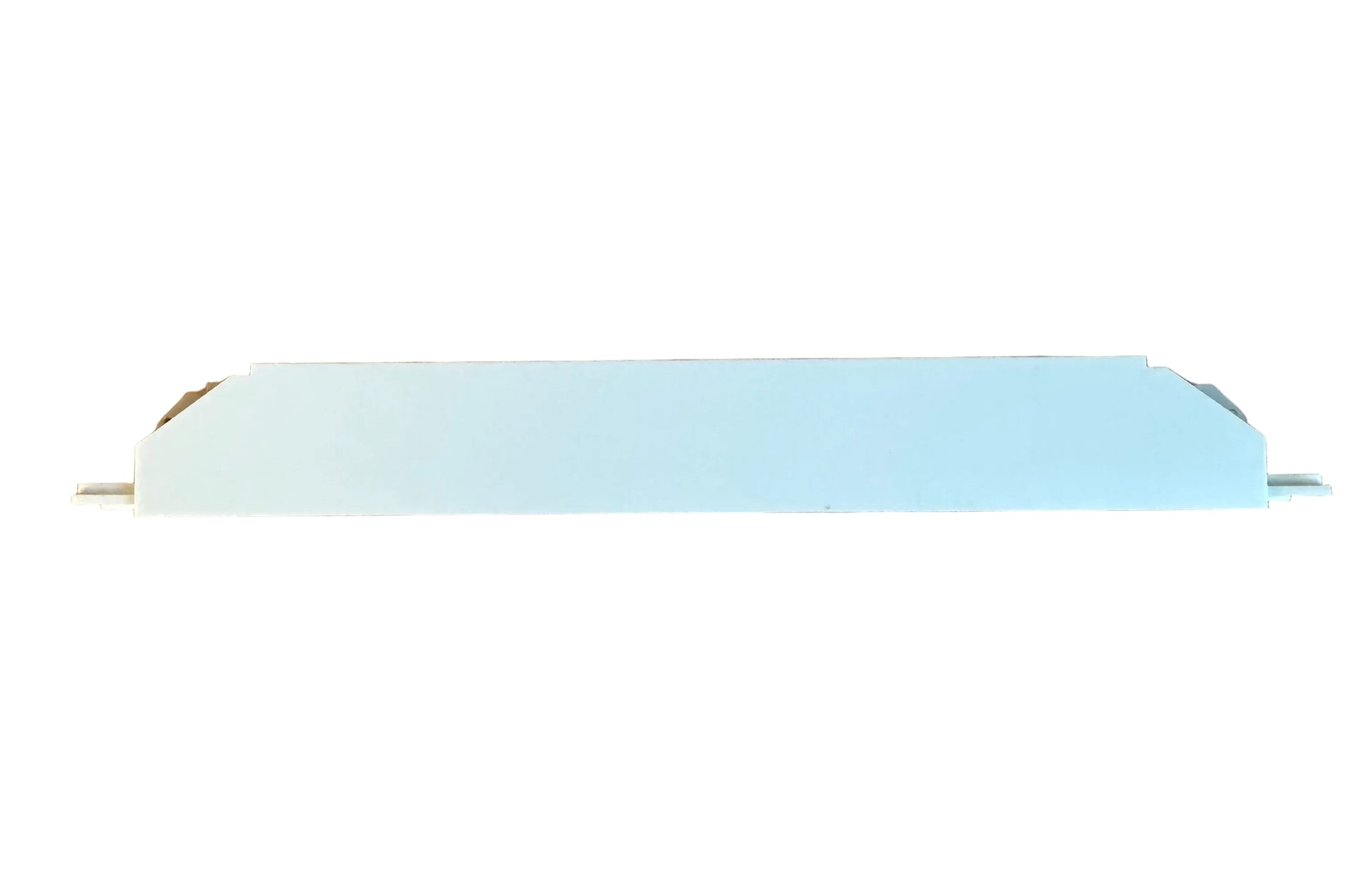

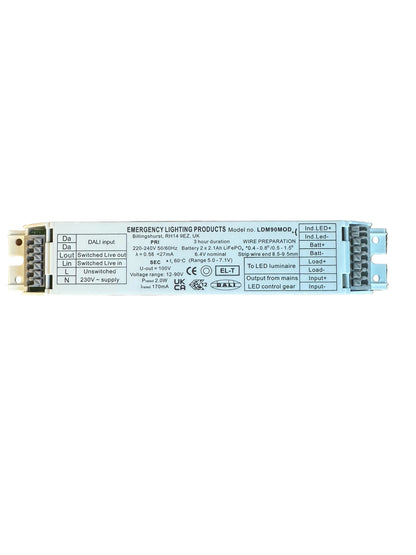

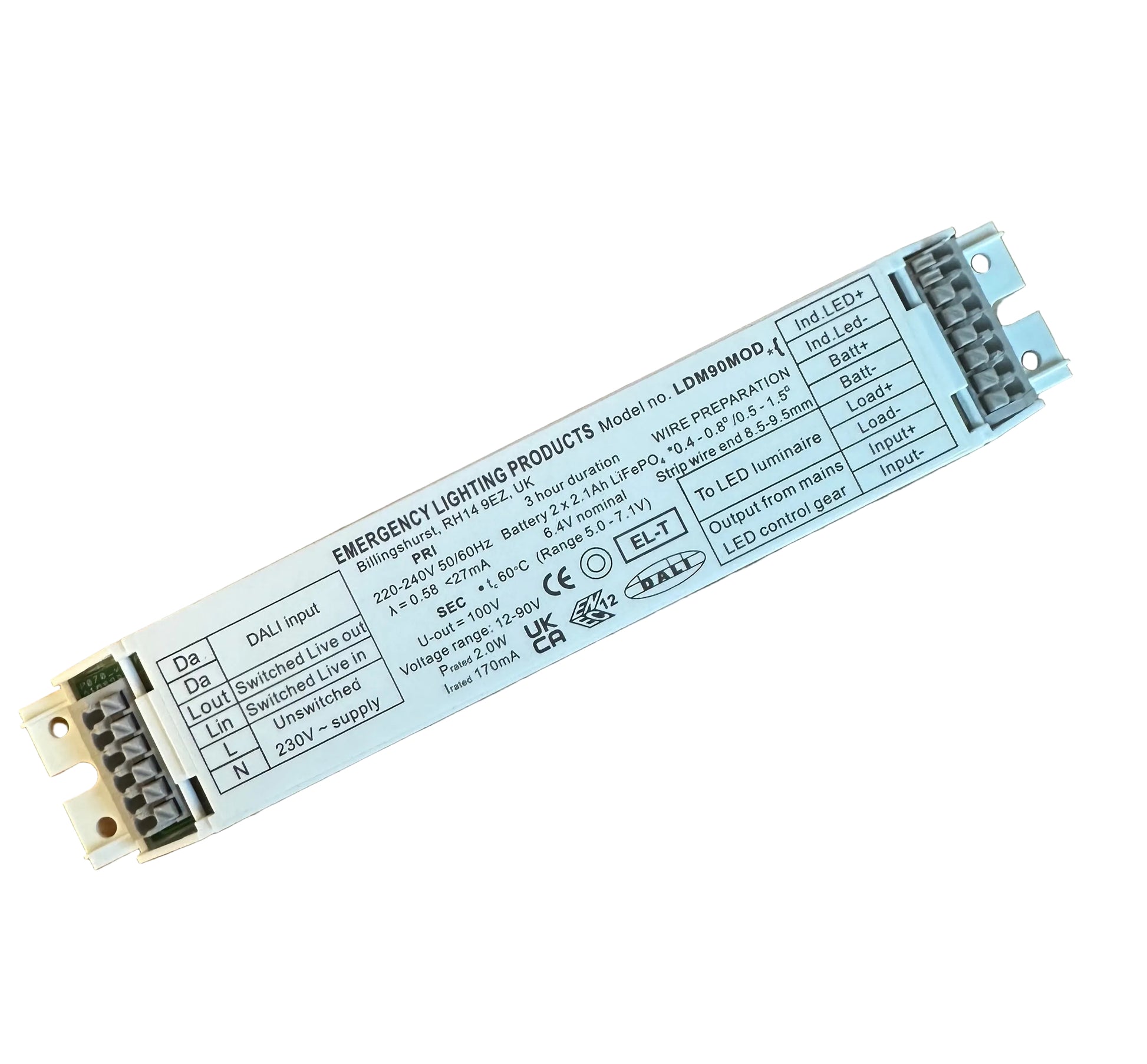

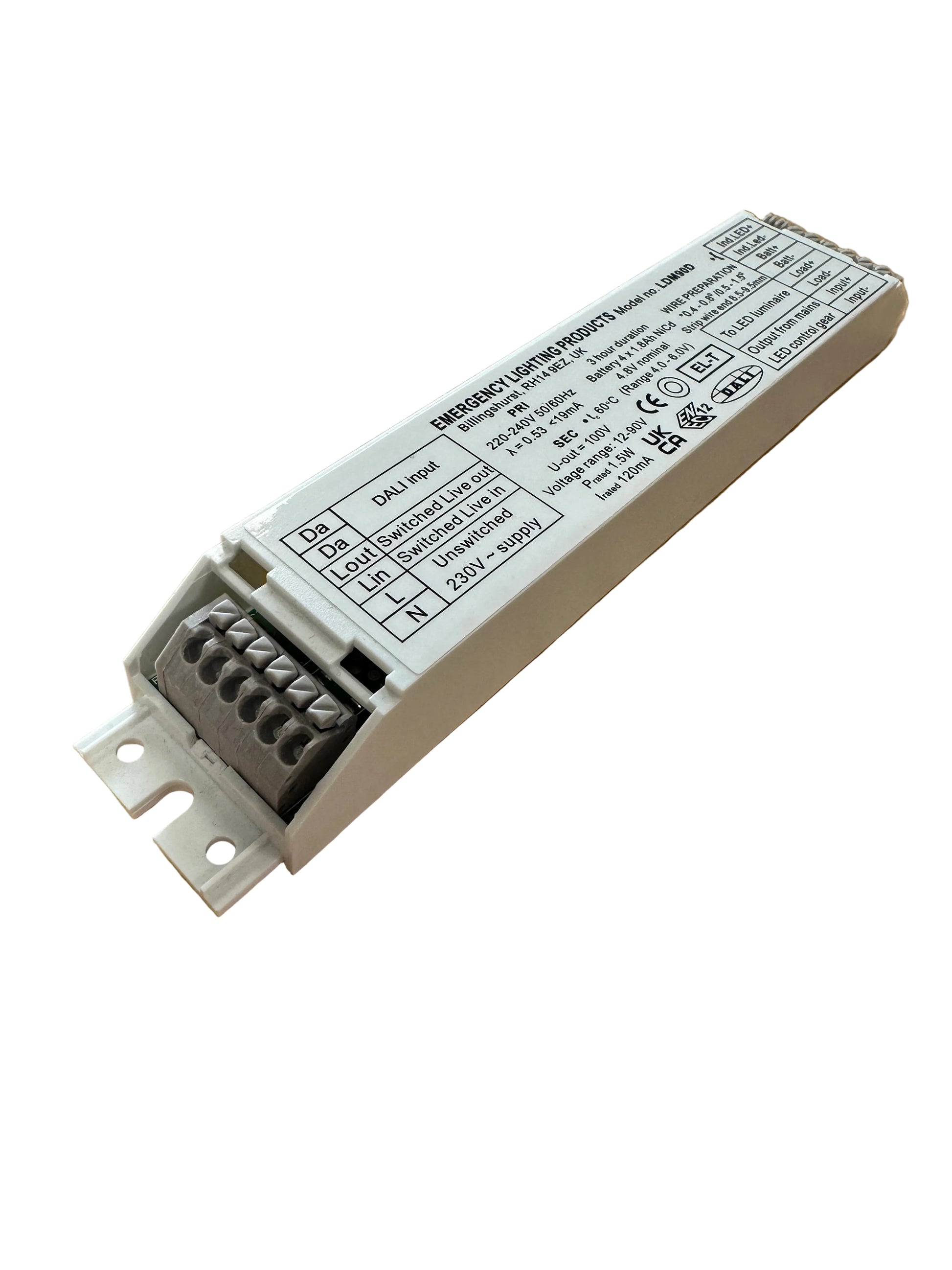

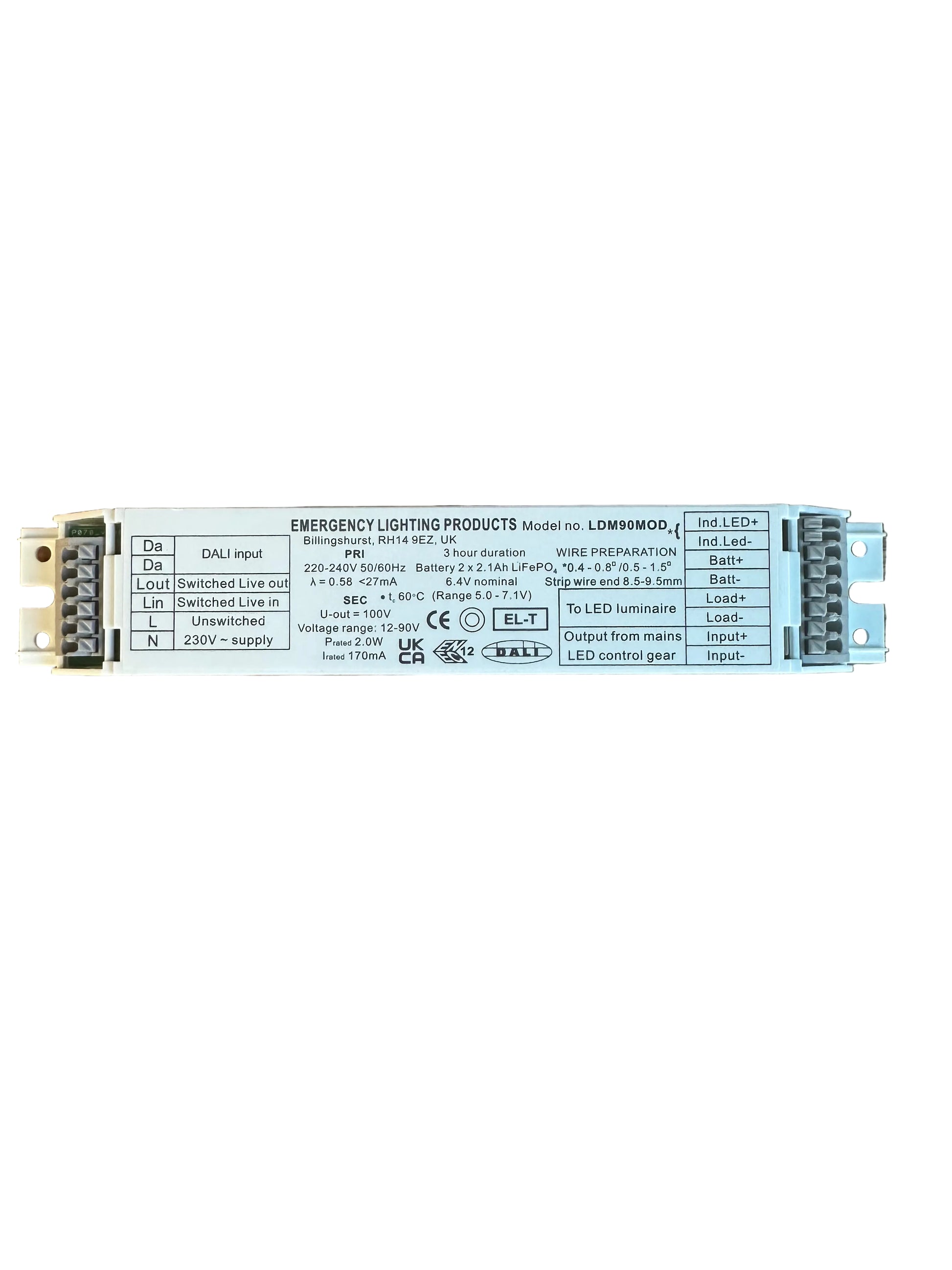

LDM90MOD ELP DALI Inverter 12-90V 2.6W

LDM90MOD ELP DALI Inverter 12-90V 2.6W

The ELP ENEC marked LDM emergency LED control gear allows emergency lighting operation of high-power LED modules when used in conjunction with the standard mains voltage LED control gear.

The emergency control gear incorporates a module/charger and a high temperature Nickel Cadmium or Lithium Iron Phosphate (LiFePO4) battery. In the event of a mains failure an integral 2-pole relay disconnects the LED lighting load from the mains control gear and then connects it to the emergency control gear which operates the LED module at an optimum light output for the rated duration.

ELP LDM90D

• LED's with Forward Voltage <90.0V

• DALI
• Operates with 2 x LiFePO4 2.1Ah 22650 cells (sold separate)
• Output Current 200mA to 30mA
• Module Output Voltage 12V to 90V
