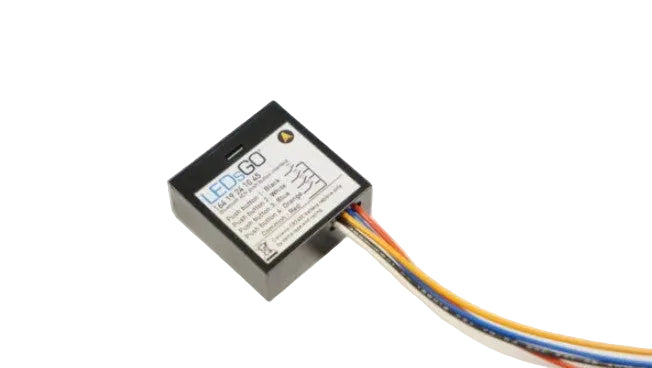

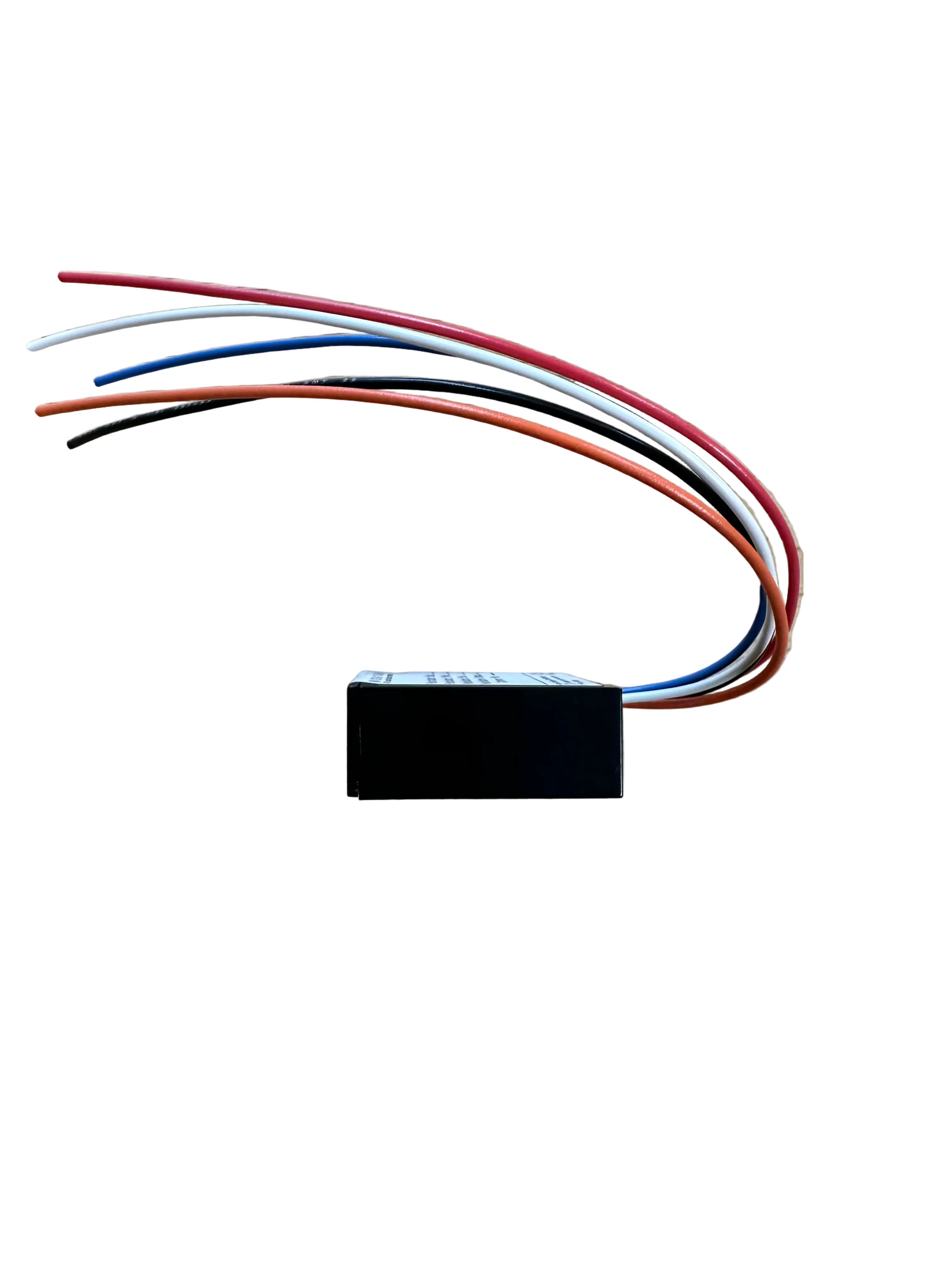

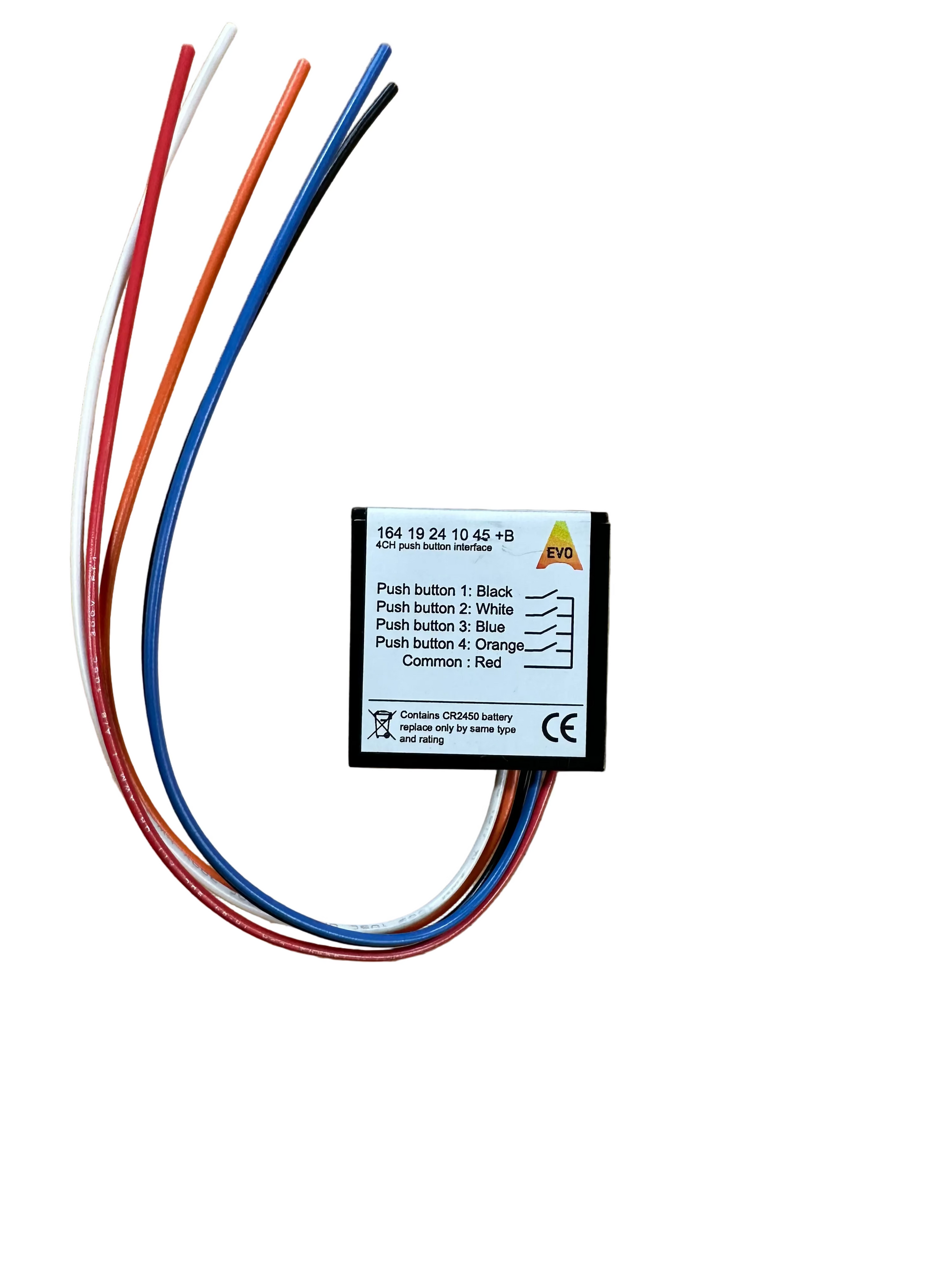

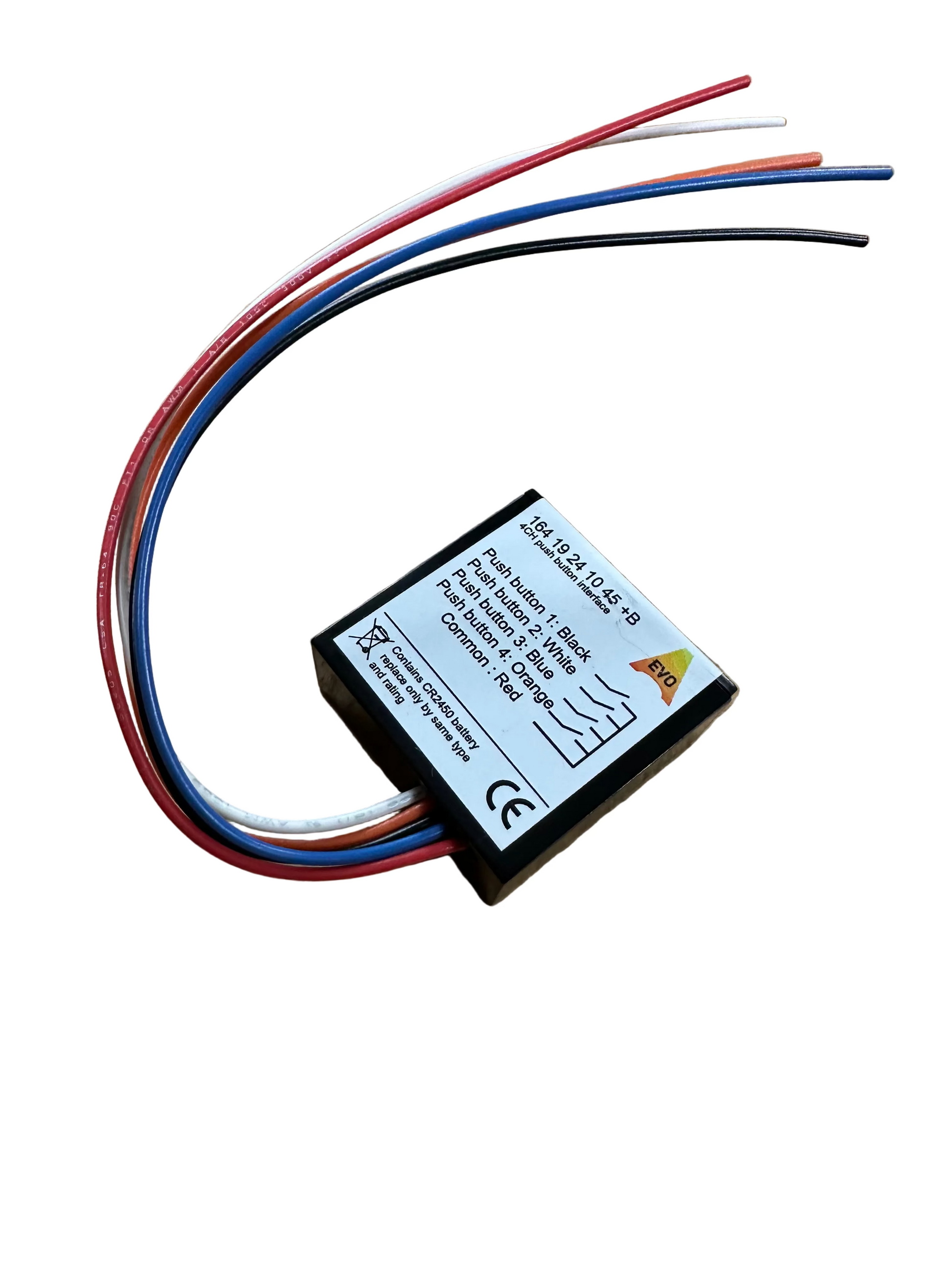

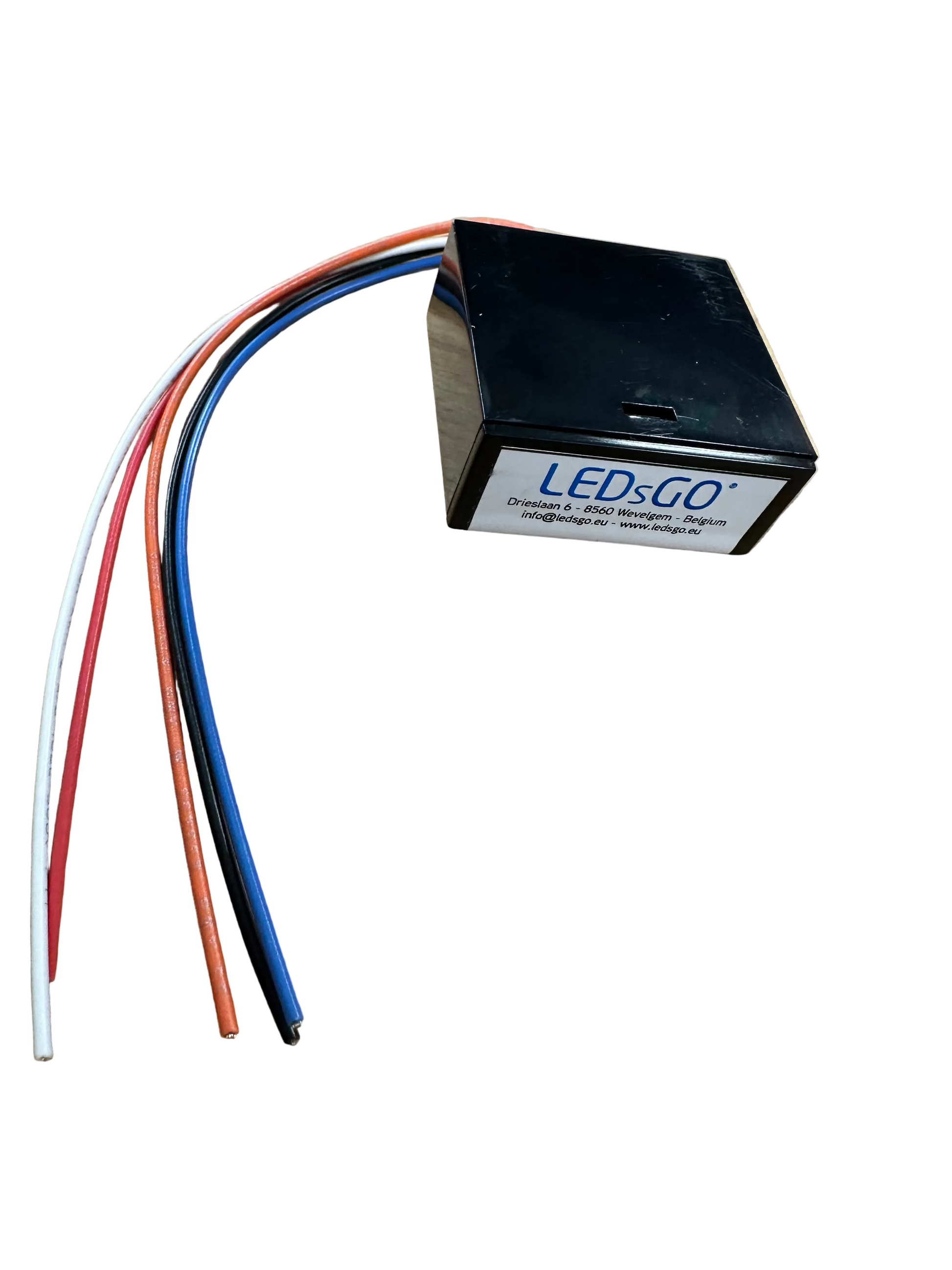

LEDsGo 164-19-24-10-45 Bluetooth 4CH push button interface

LEDsGo 164-19-24-10-45 Bluetooth 4CH push button interface

This interface is designed to connect any ‘normal open’ push button to a casambi network.
Powered by a battery the interface doesn’t need more cabling then the wires between the
interface and the push buttons. 1 to 4 push buttons can be used and they can be congured
in the app to control a lamp, a group of lamps, a scene/animation or just control all lamps
in one press.
The box is small enough to fit any wall box and the wires are a size that will fit any screw
terminal. The interface is compatible with all products that are compatible with the casambi
bluetooth network.
Each time a button is pressed the module will be activated for a few seconds and then
goes automatically in a standby mode. This in order to preserve the battery capacity.
Battery status can be checked in the app onthe ‘switches’ screen.
To ensure a long battery life this interface will not be active in the bluetooth mesh the
whole time. You can’t use this as a mesh ‘repeater'
