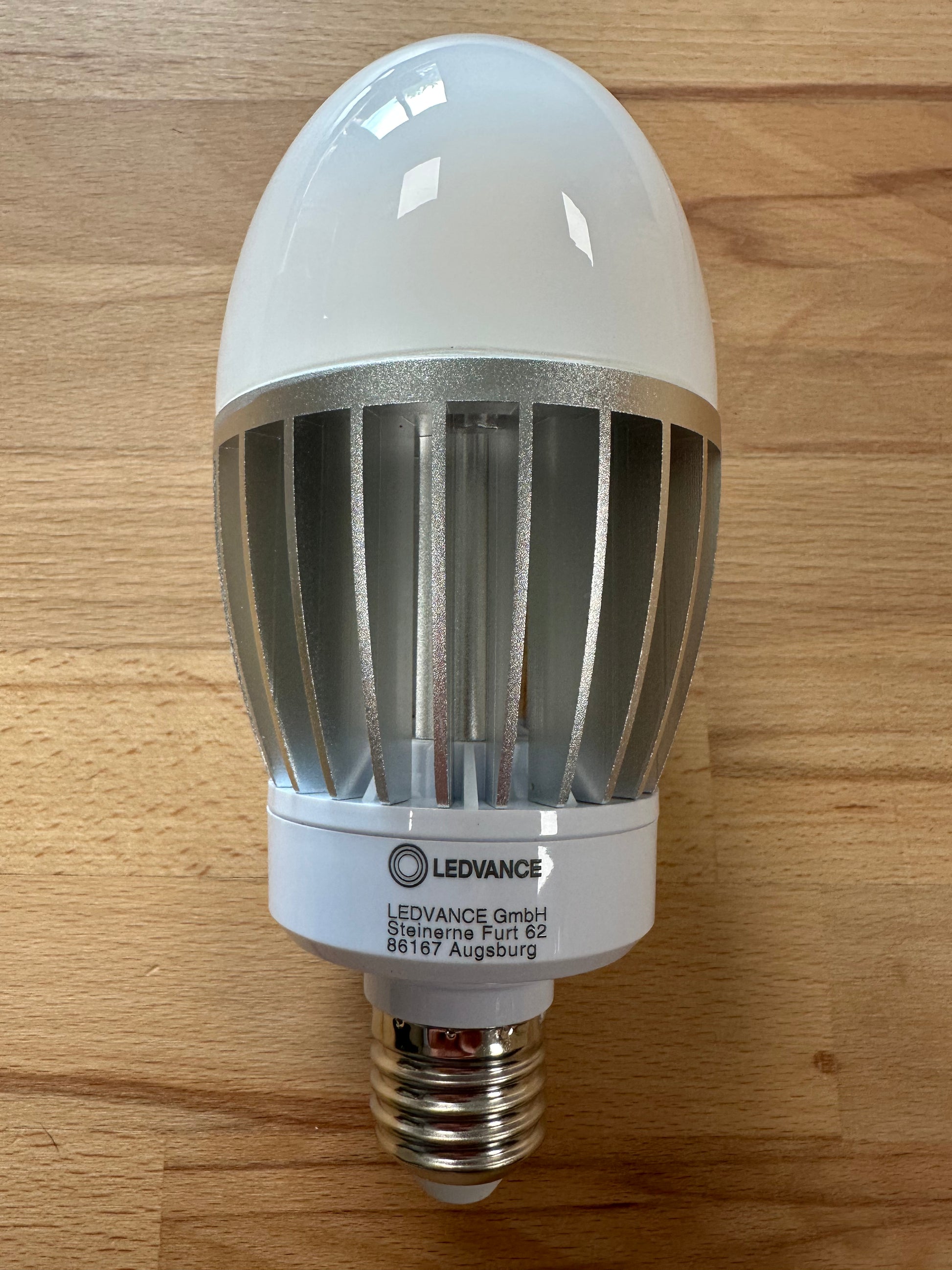

Ledvance HQL LED ALU Performance 29W = 80/70W HQL/HQI Replacement Lamps

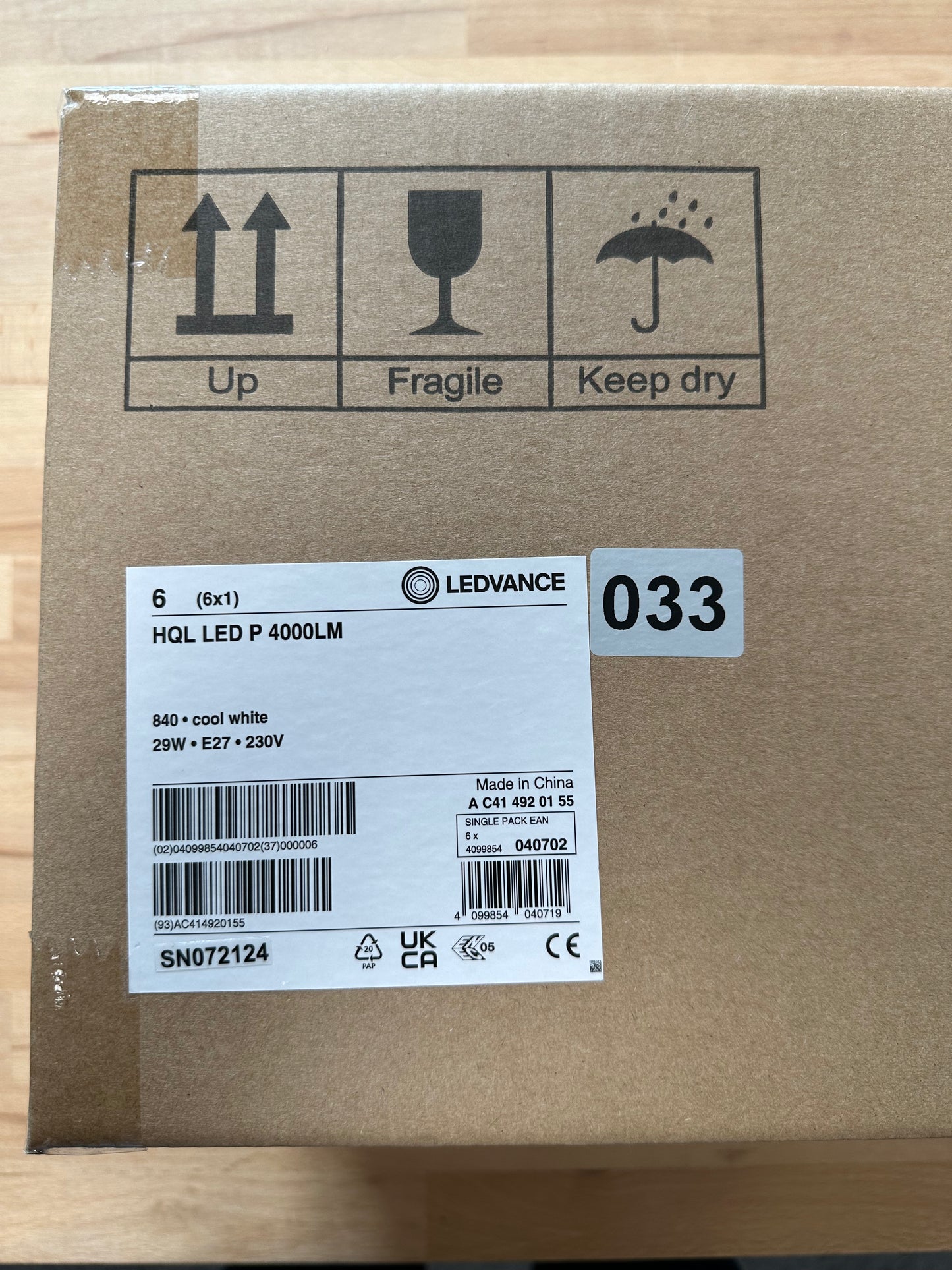

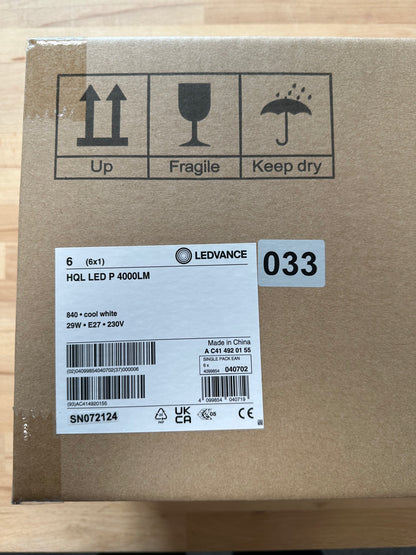

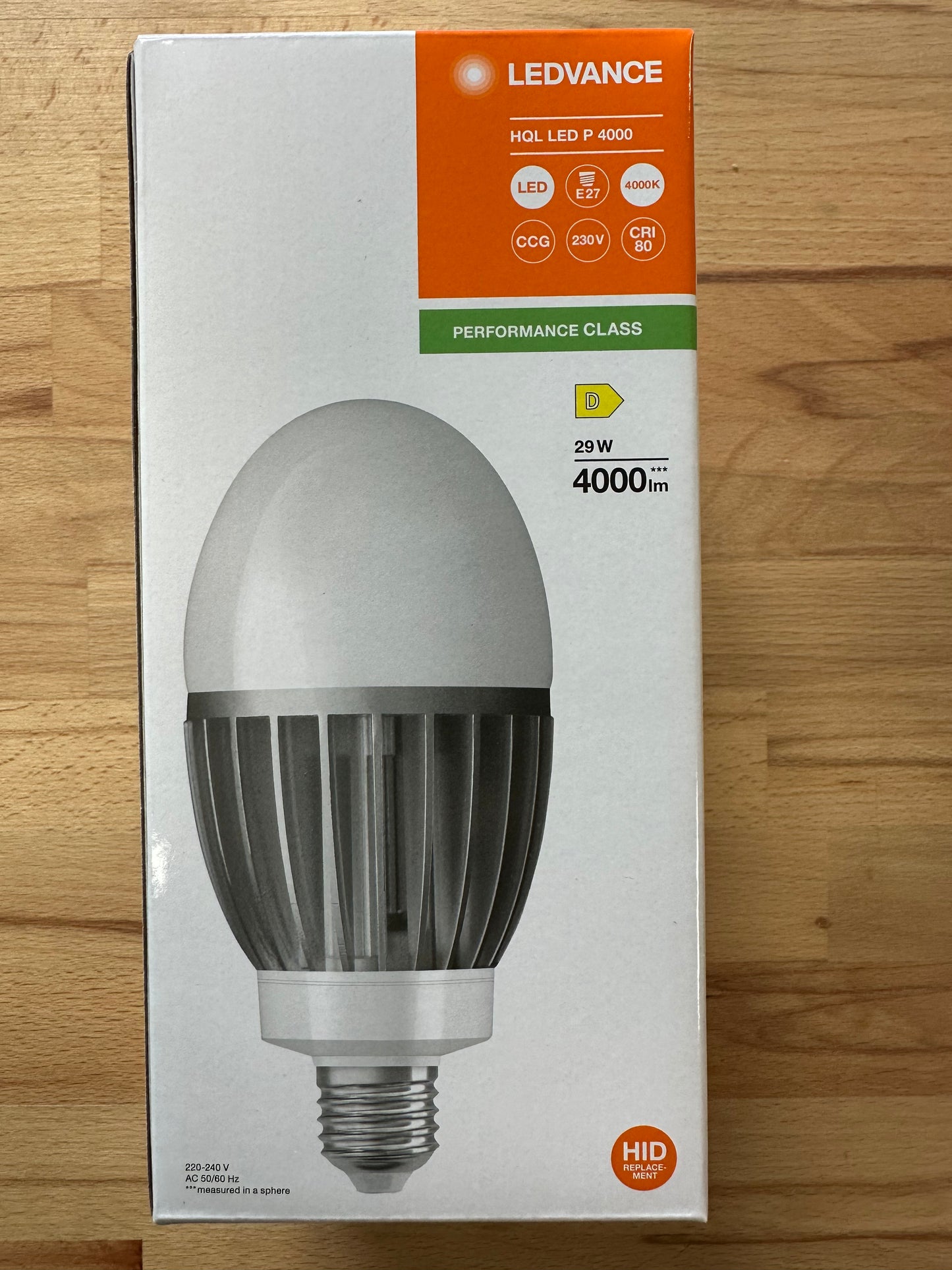

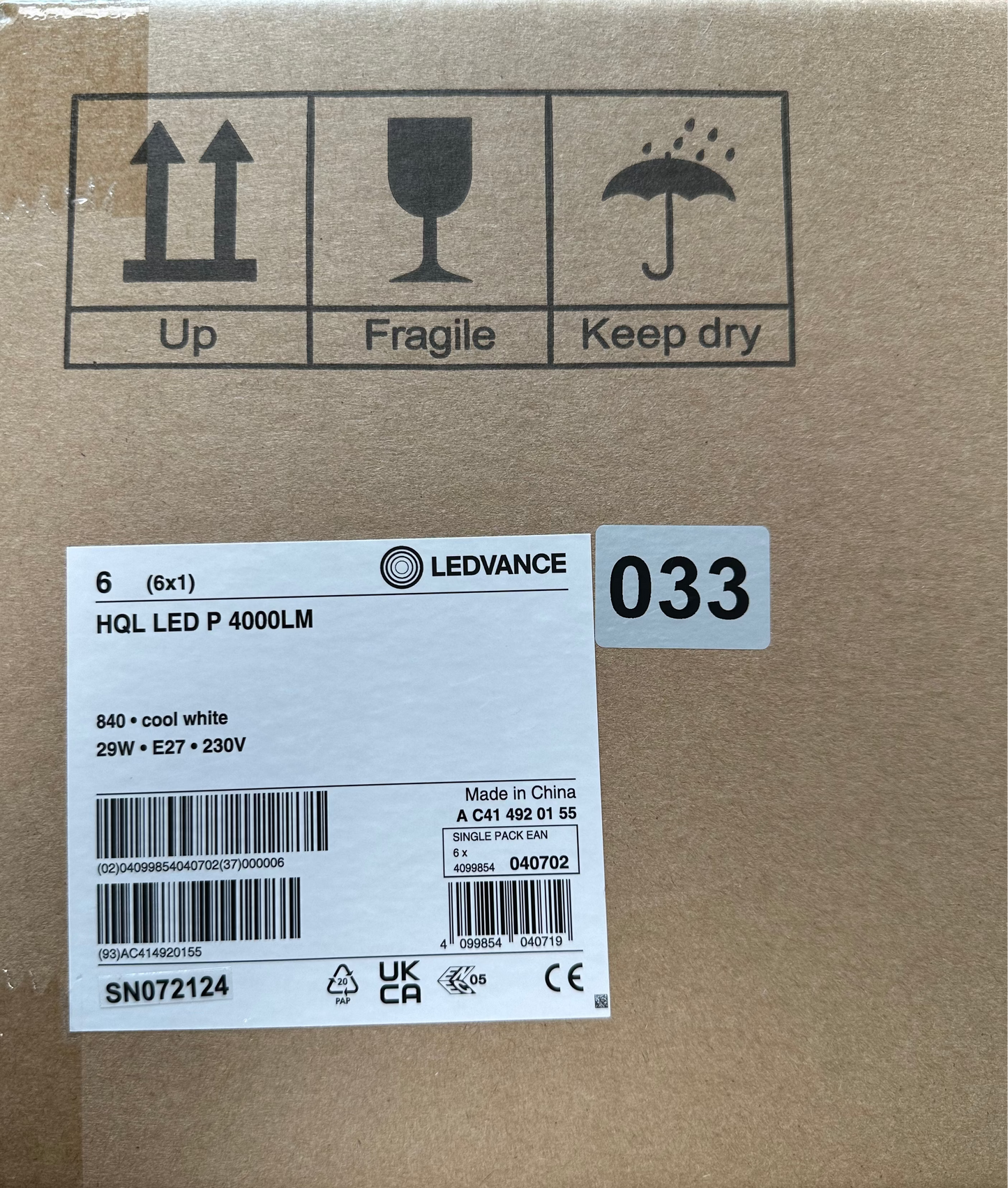

4099854040702 - HQL LED ALU Performance 4000lm 29W 840 E27
4099854040689 - HQL LED ALU Performance 3600lm 29W 827 E27
Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
Replacement for other HID: Suitable for operation with line voltage without control gear
Power factor: 0.9
Type of protection: IP65
High surge protection: up to 6 kV (L-N)
The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp.
Not suitable for operation with ignitors.
Operation on the capacitor can lead to a reduction of the power factor of the system.
Dimensions 138mm Length, 56mm Diameter
These SON-E HQI-E Replacement lamps will operate off the SON/MH Ballast with the ignitor removed from the circuit. They can operate off the HQL/MBFU Ballast the capacitor can be left in the circuit but it is advised to remove.
These lamps are also designed to operate direct from the mains, bypassing all the SON/HQL control gear.
