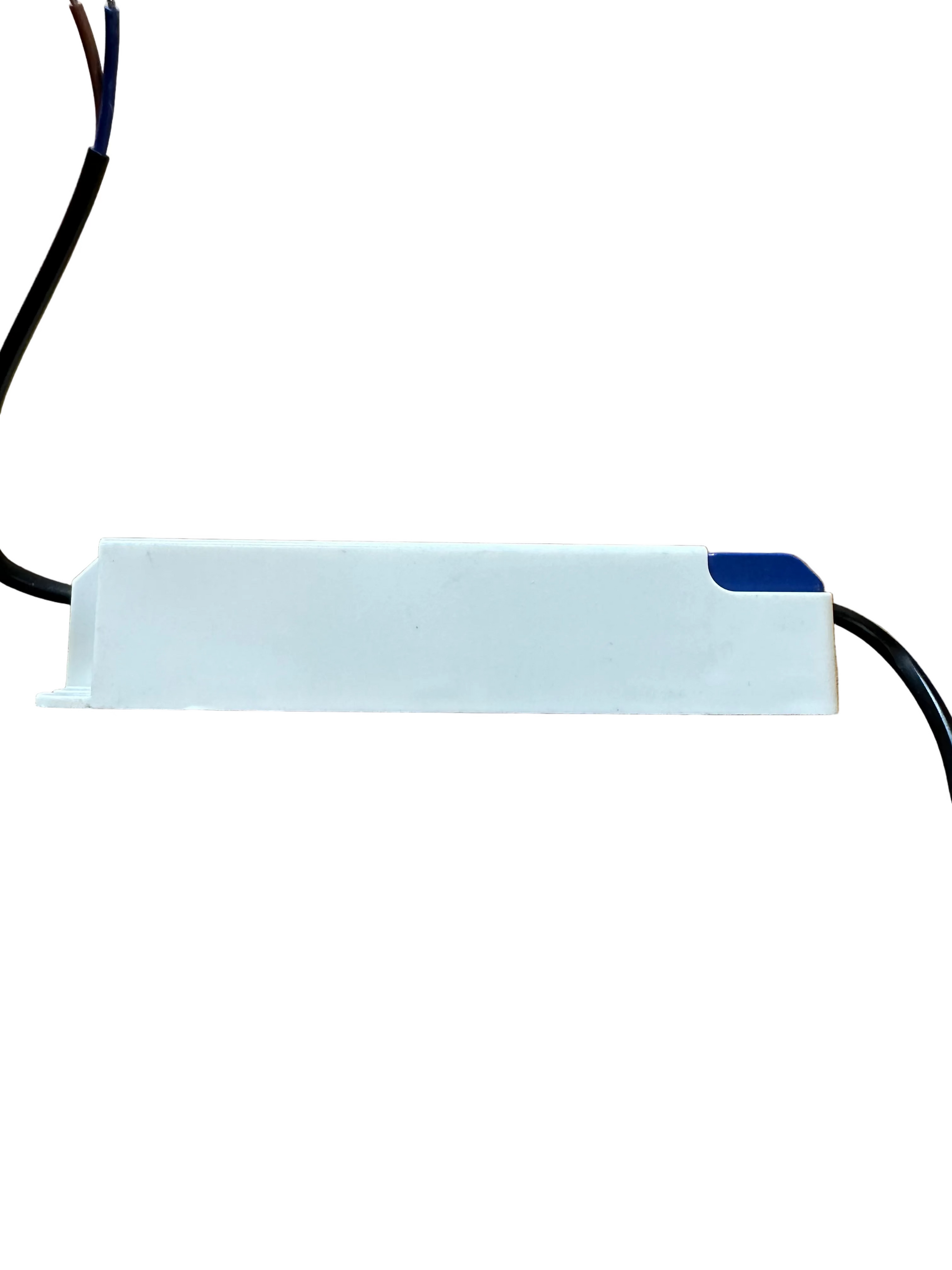

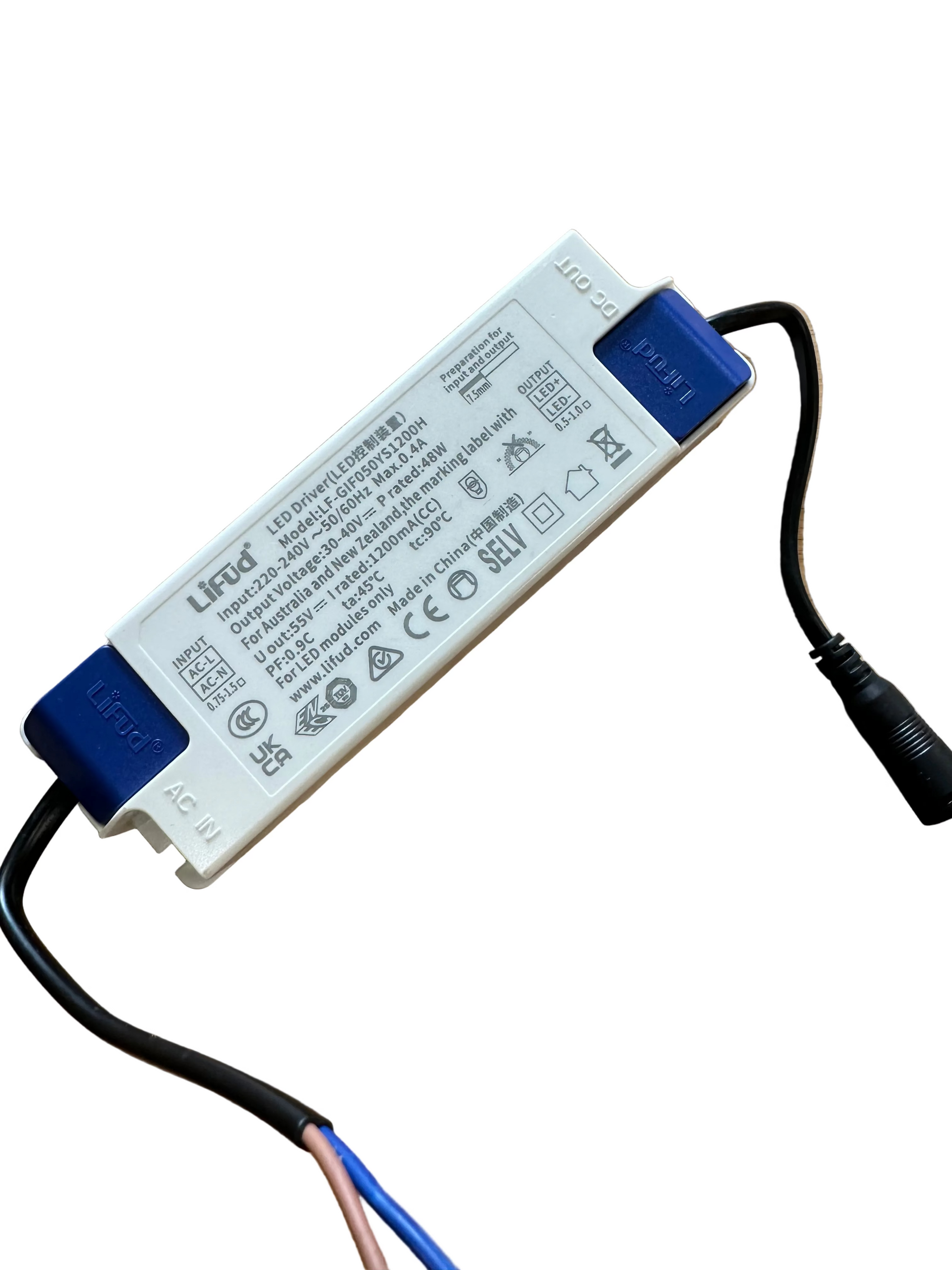

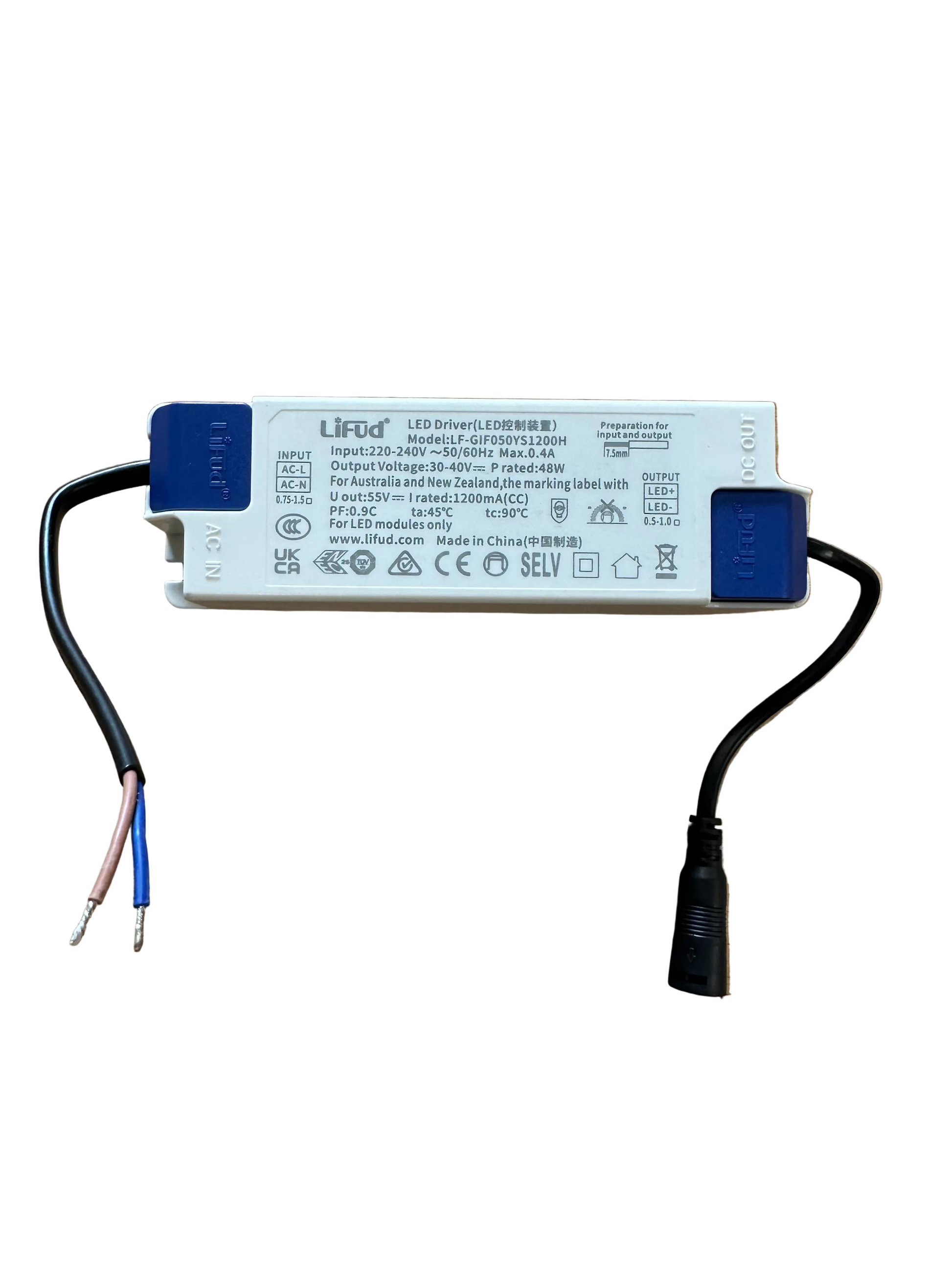

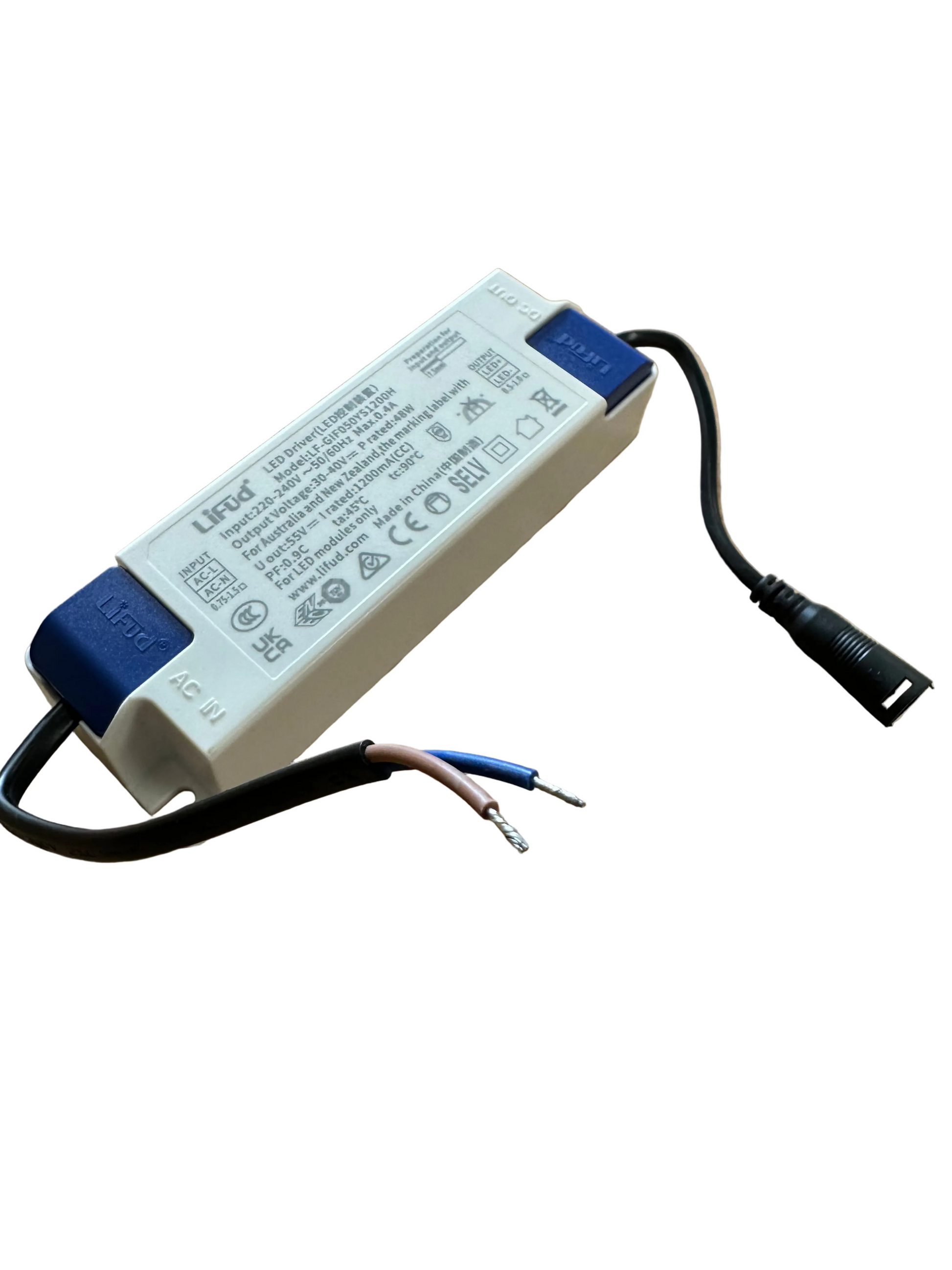

Lifud LF-GIF050YS1200H 48W 1200mA Flicker-Free LED Driver 30-40V
Lifud LF-GIF050YS1200H 48W 1200mA Flicker-Free LED Driver 30-40V
Lifud LF-GIF050YS1200H 48W 1200mA Flicker-Free LED Driver 30-40V
Driver of the prestigious company LIFUD specially designed for LED panels, LED downlights, LED panels and LED ceiling lights because it incorporates the Jack connector. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the voltage and output current of the driver.
This driver has a multi-voltage output which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. Its power factor is very high, making it a very efficient driver.
| Power: | 48 W |
| Power Factor: | 0.90 |
| Voltage: | 220-240V AC |
| Frequency: | 50-60 Hz |
| Driver Output: | 30-40V DC // 1200mA |
| Protection Class: | II |
| Use: | Indoor |
| Flicker Free: | YES |
| Material: | Fireproof PC |
| Size: | 29x43x140 mm |
| Height: | 29 mm |
| Width: | 43 mm |
| Length: | 140 mm |
| Total Weight: | 0.120 kg |
| Air Temp. For Operation: | -20ºC ~ +45ºC |
| Warranty: | 3 Years |
Product features
Product features
Energy Saving, Compact Design
