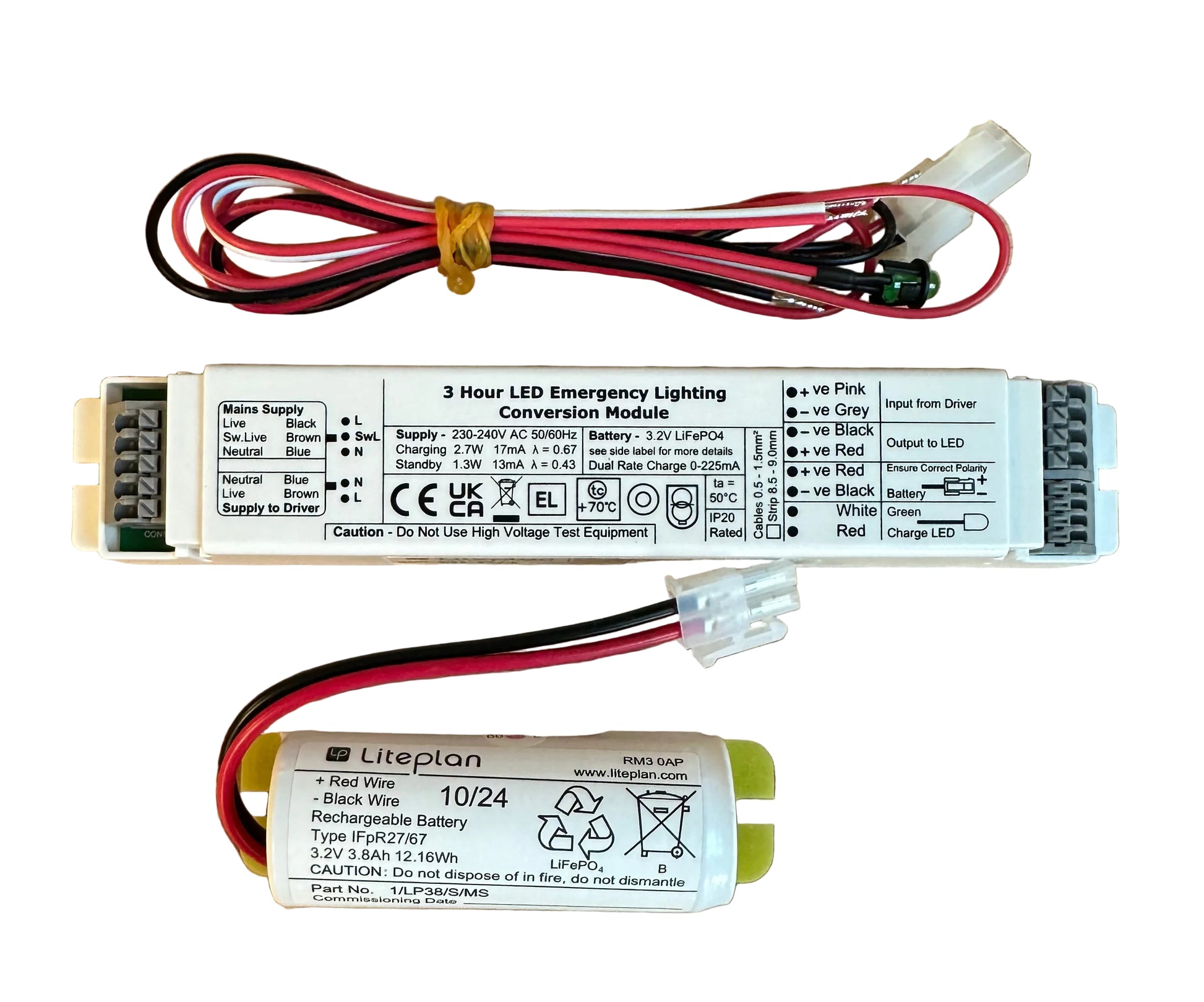

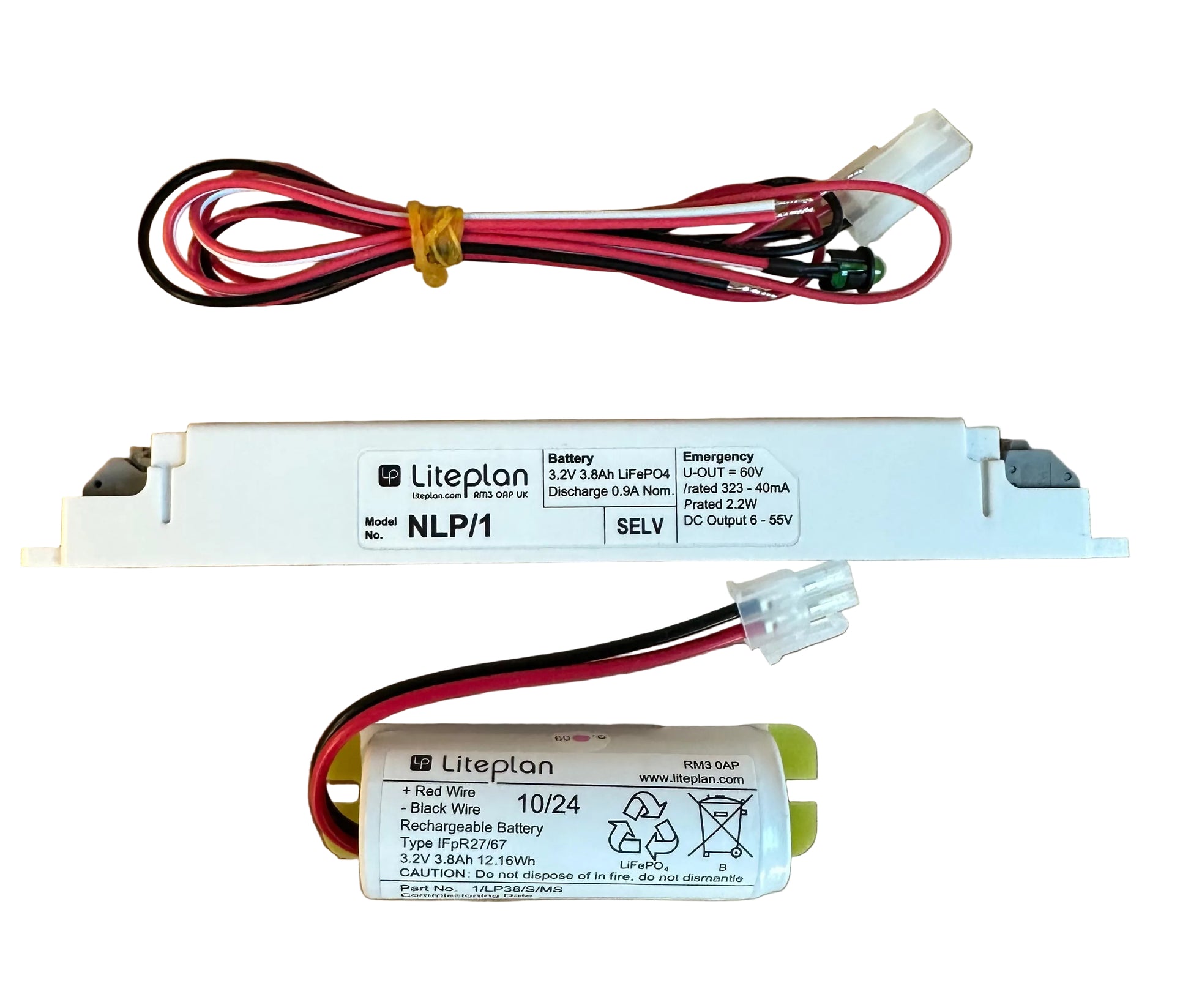

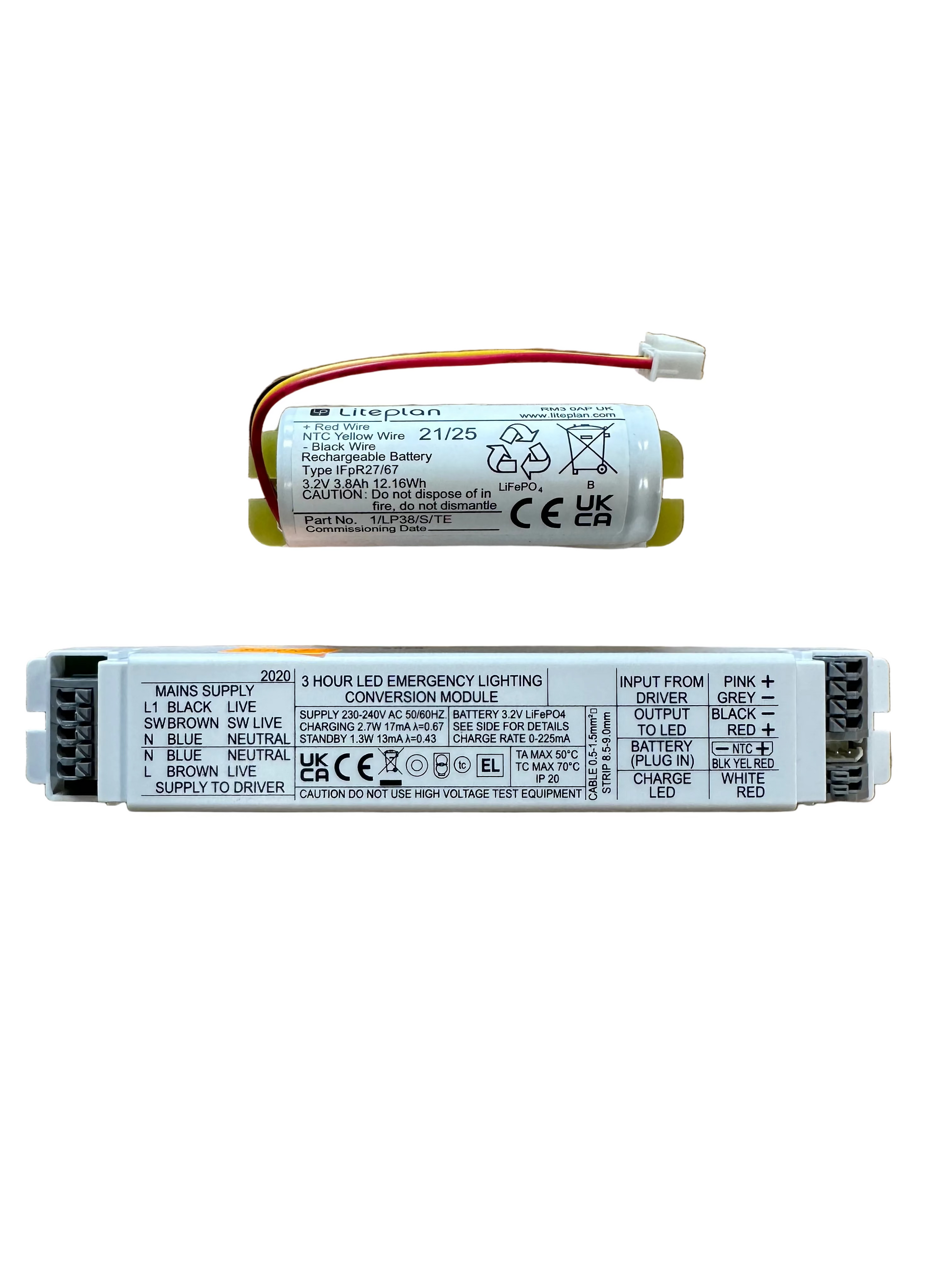

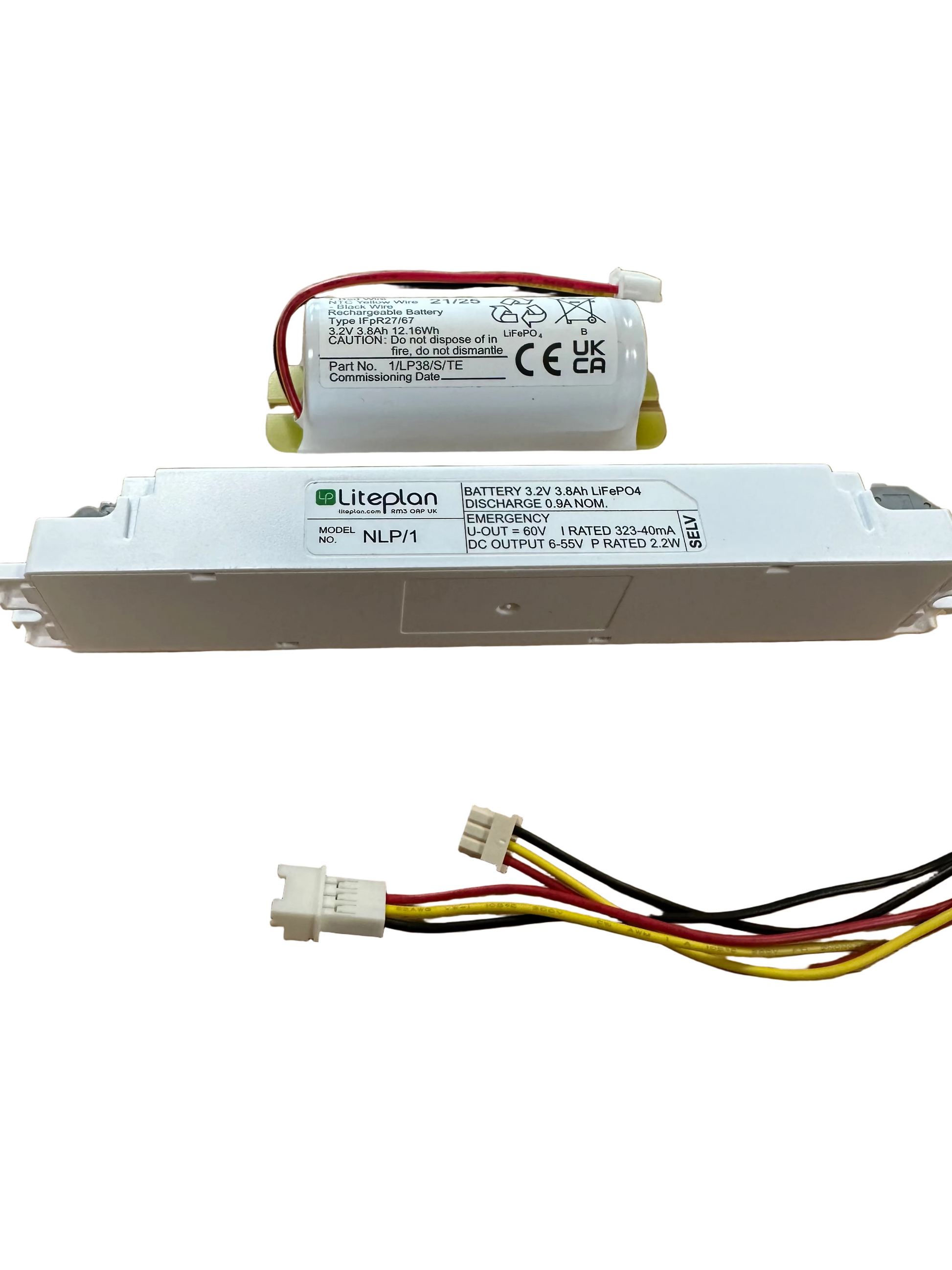

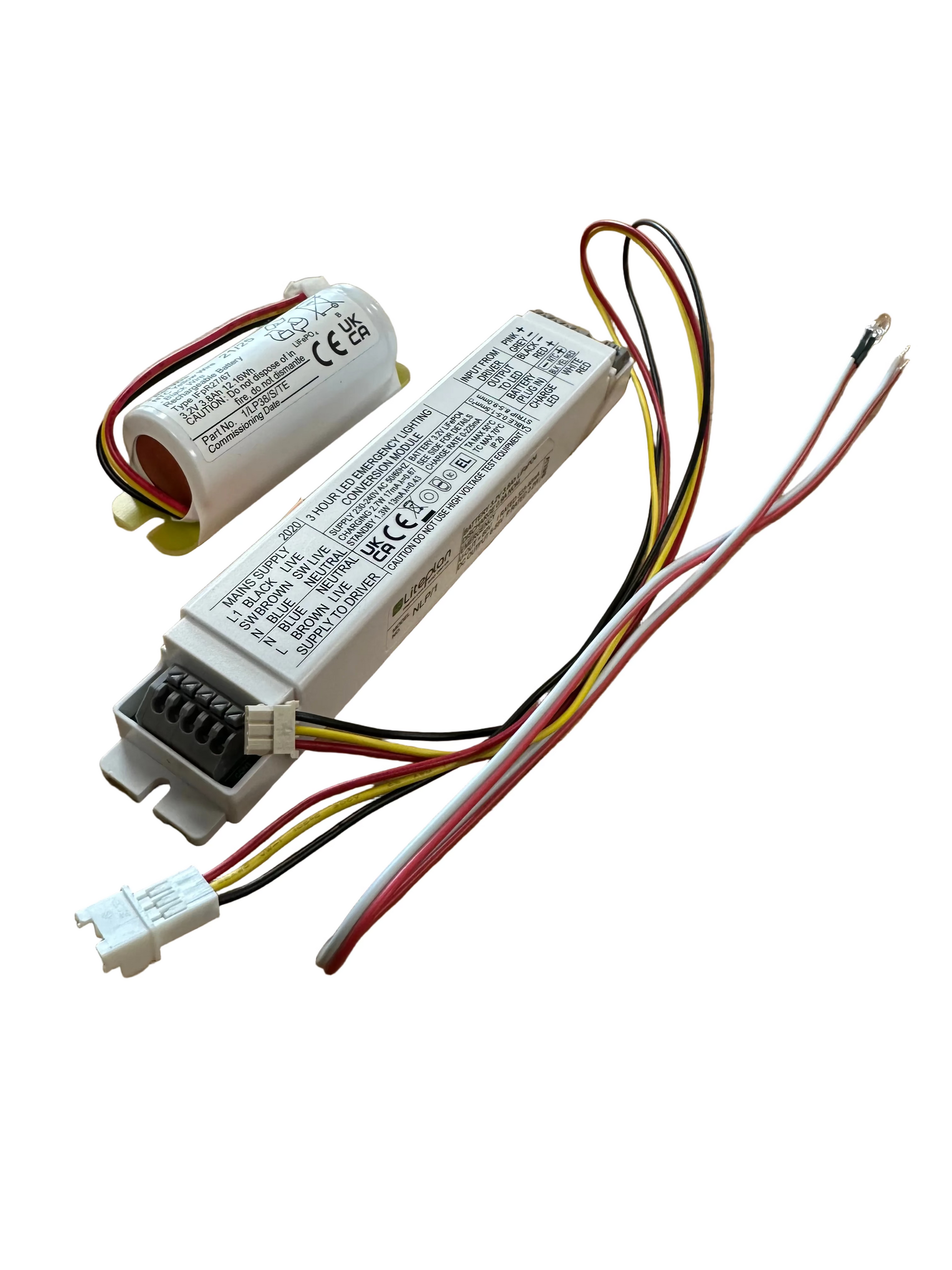

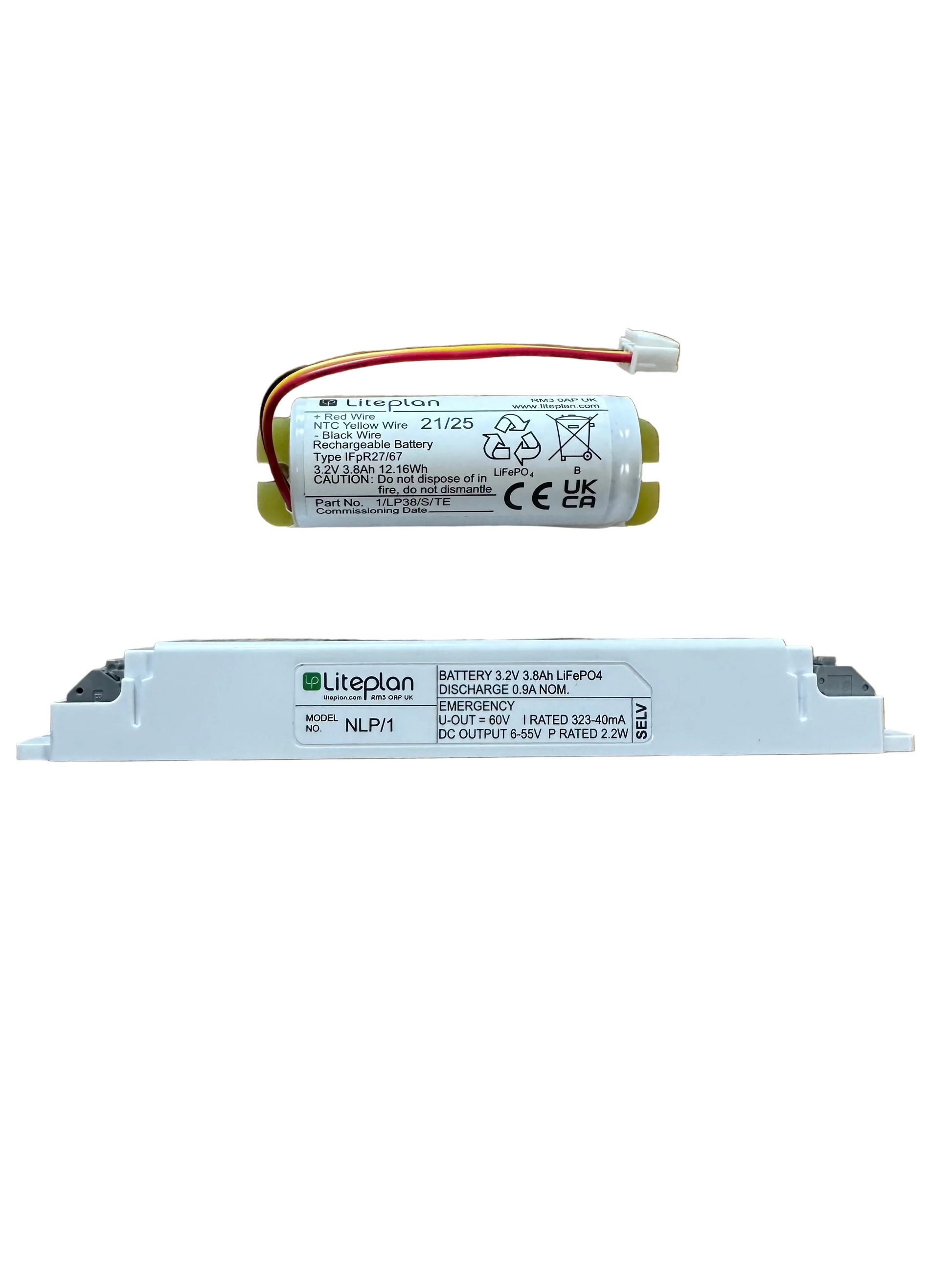

Liteplan NLP/1-K LED Emergency Kit

Liteplan NLP/1-K LED Emergency Kit

Replaces NED/3

For LED loads operating in the Voltage range of 6 - 55 Volts, for integral use.

A 3 hour emergency lighting conversion kit which operates with Long Life LiFePO4 batteries. The unit is designed to suit an extremely wide range of LED types and circuits. The NLP/1 automatically adjusts the output LED current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The batteries used with this unit not only provide double the life of traditional emergency lighting batteries, but consume far less power during their operational life.

• Slim Module Suitable for Linear Applications
• Deep Discharge Protection
• Low Power Consumption
• Long Life LiFePO4 Batteries
• Average Emergency Power - 2.1W
• Mains Supply 230-240V AC 50/60 Hz
• Max Ta and Tc Ta - 50 °C - Tc - 70 °C
• Power Rating 3.2W 35mA λ = 0.40
• Max Battery Tc 55 °C
• Duration 3 Hours Battery
• Discharge Current 900mA nominal
• Recharge Period 24-Hours
• Discharge Voltage Limit 2.4 Volts
• Battery Size & Type 3.2V 3.8Ah LiFePO4 Cell
• Ingress Protection IP20
• Charge Current Dual Rate 0-250mA
• Terminal - Push Wire 0.5mm² - 1.5 mm²
• Module Weight 0.085Kg

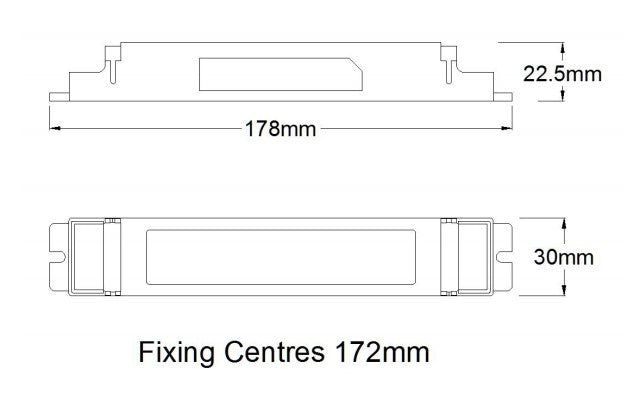

• Module Dimensions (LxWxH) 178 x 30 x 22.5 (f/c 172mm)
• Battery Weight 0.11Kg
• Battery Dimensions (LxØ) 90mm x 28mm
