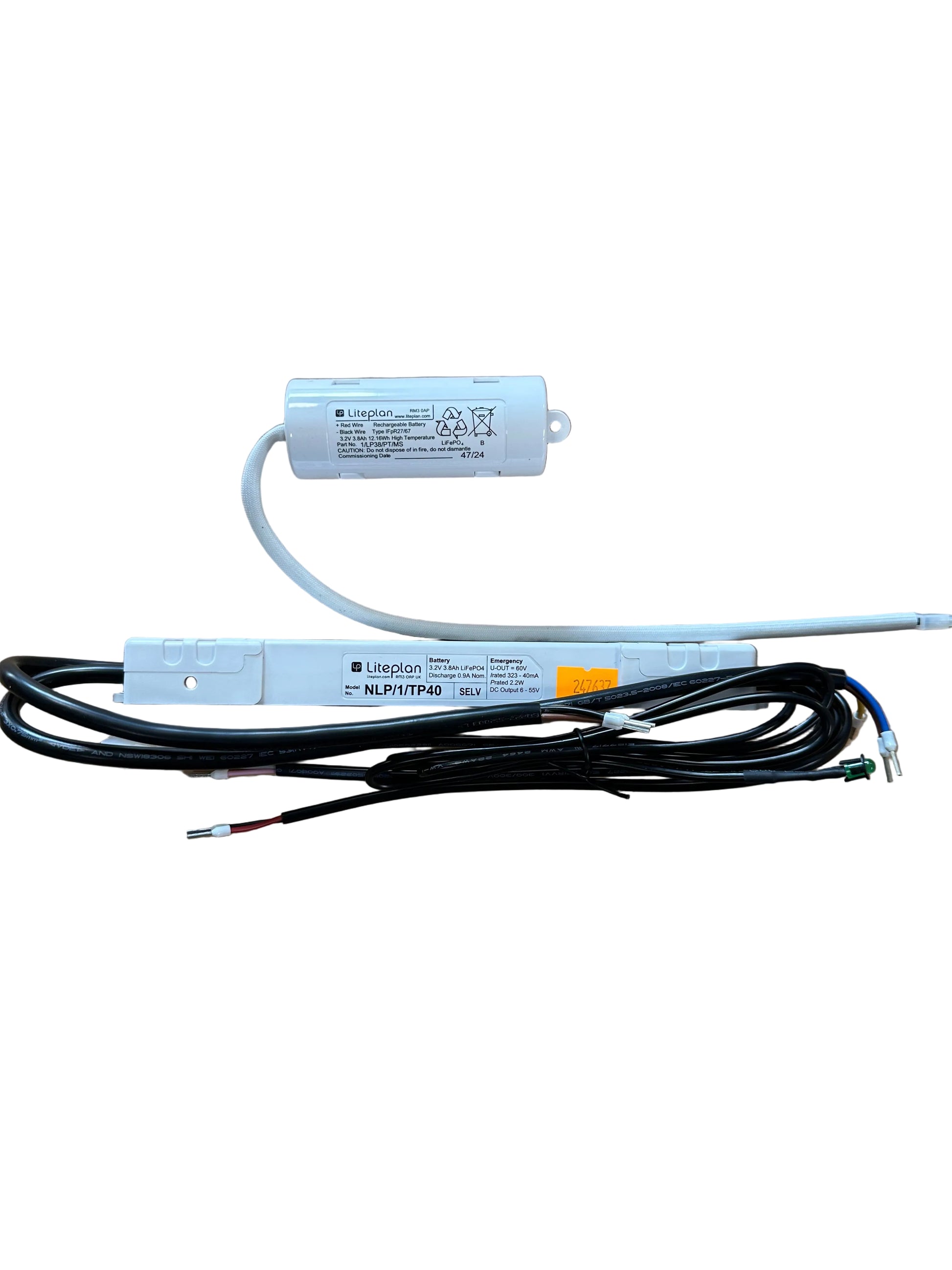

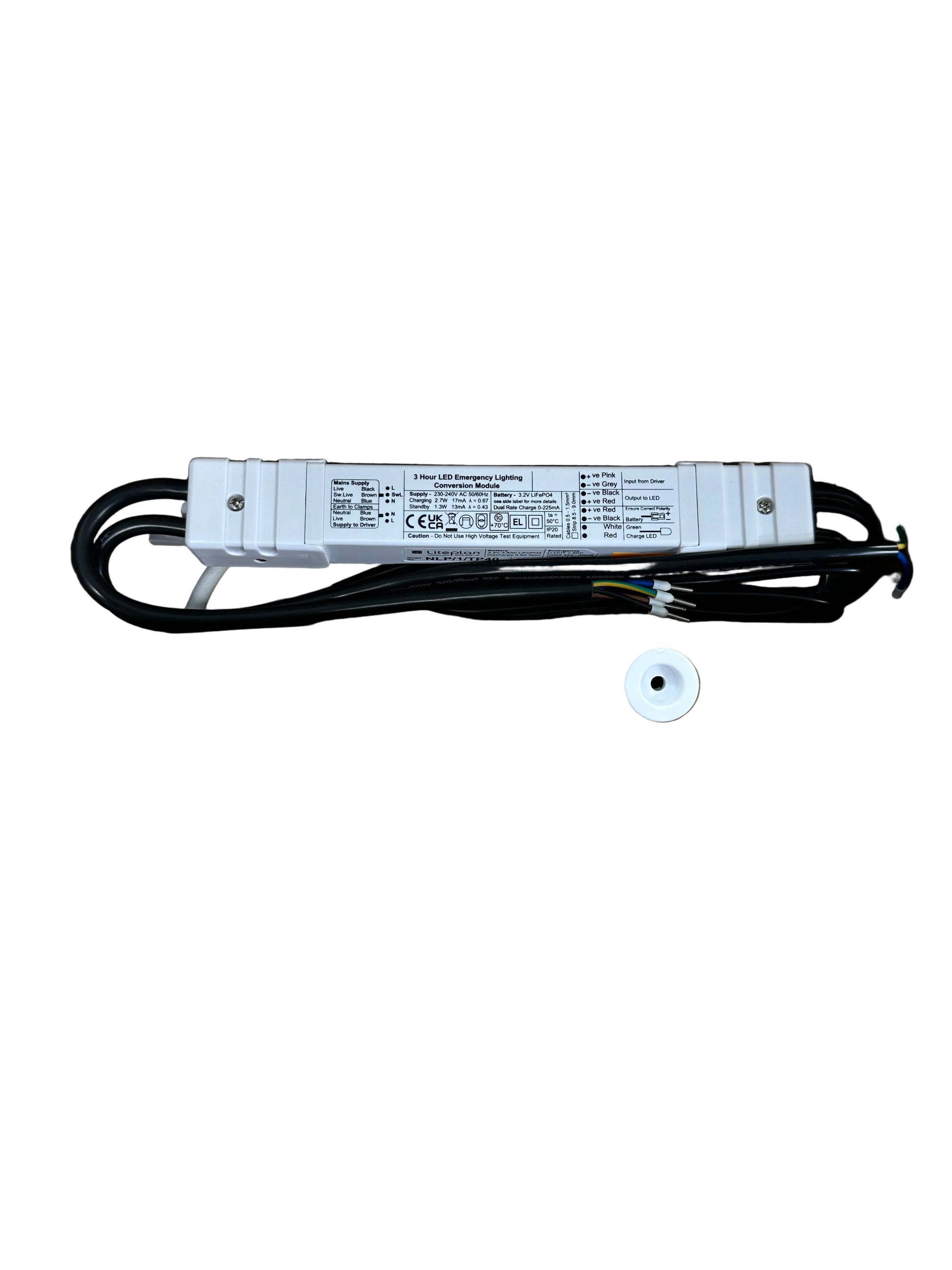

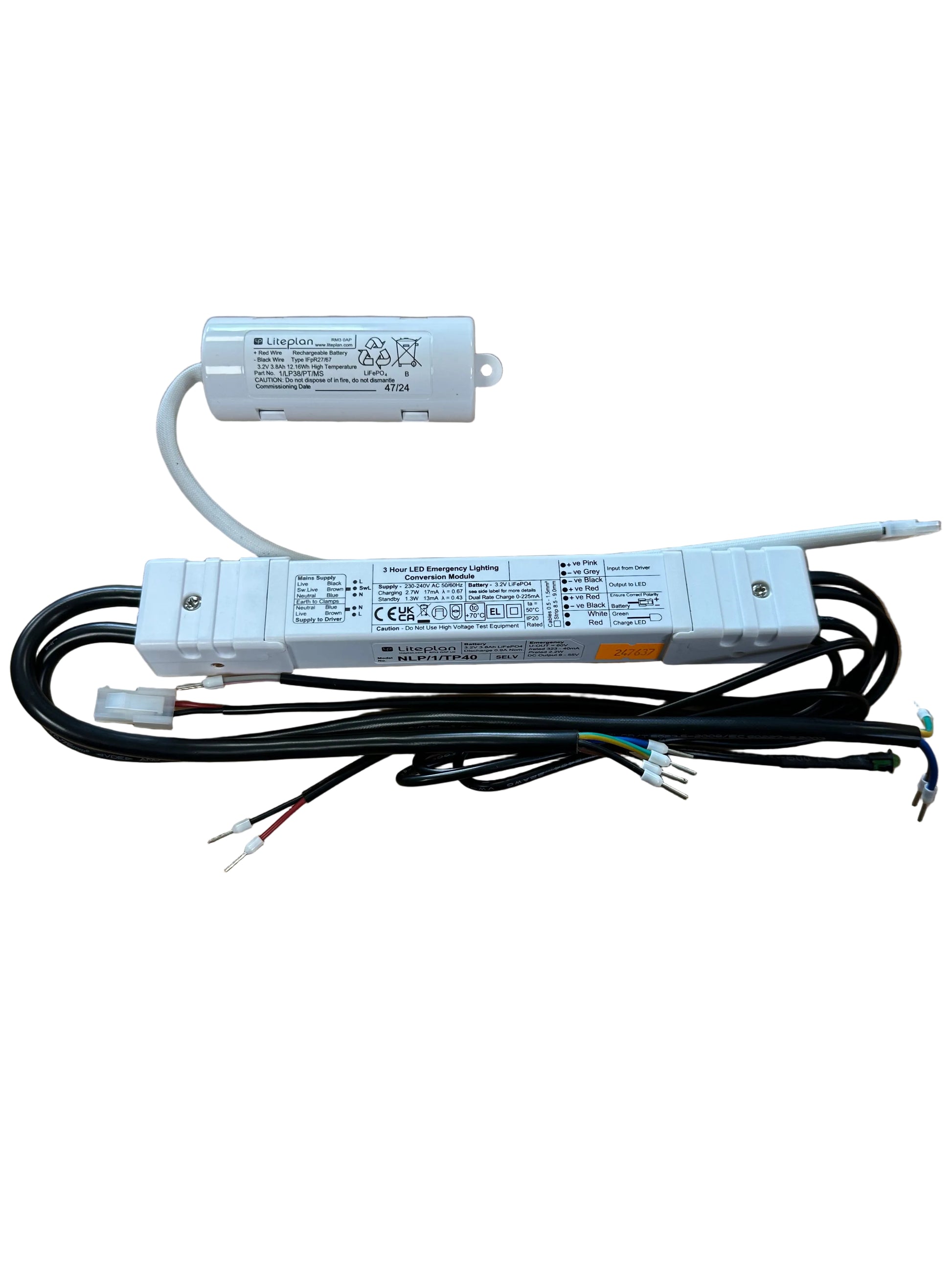

Liteplan NLP1/TP40 LED Remote Emergency Kit

Liteplan NLP/1/TP40 LED Remote Emergency Kit

Replaces code NPC/3/TP57

Liteplan NLP/1/TP40-R

The NLP range, is a high quality 3 hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries This version is for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour.

• Mains Supply: 230-240V 50/60Hz
• Power Rating 2.7W 17mA λ = 0.40
• For LED loads operating in the Voltage range of 6 - 55 Volts.
• Duration 3 Hours
• Recharge Period 24-Hour
• Battery Size & Type 3.2V 3.8Ah LiFePO4 Cell
• Module Weight 0.21Kg
• Battery Weight 0.13Kg
• Module Dimensions (LxWxH) 231 x 33.6 x 22.5 (f/c 224mm)
• Battery Dimensions (LxØ) 94 x 34.5
