Lunatone 0-10V DALI 30mA - 86468352-HS

Lunatone 0-10V DALI 30mA - 86468352-HS

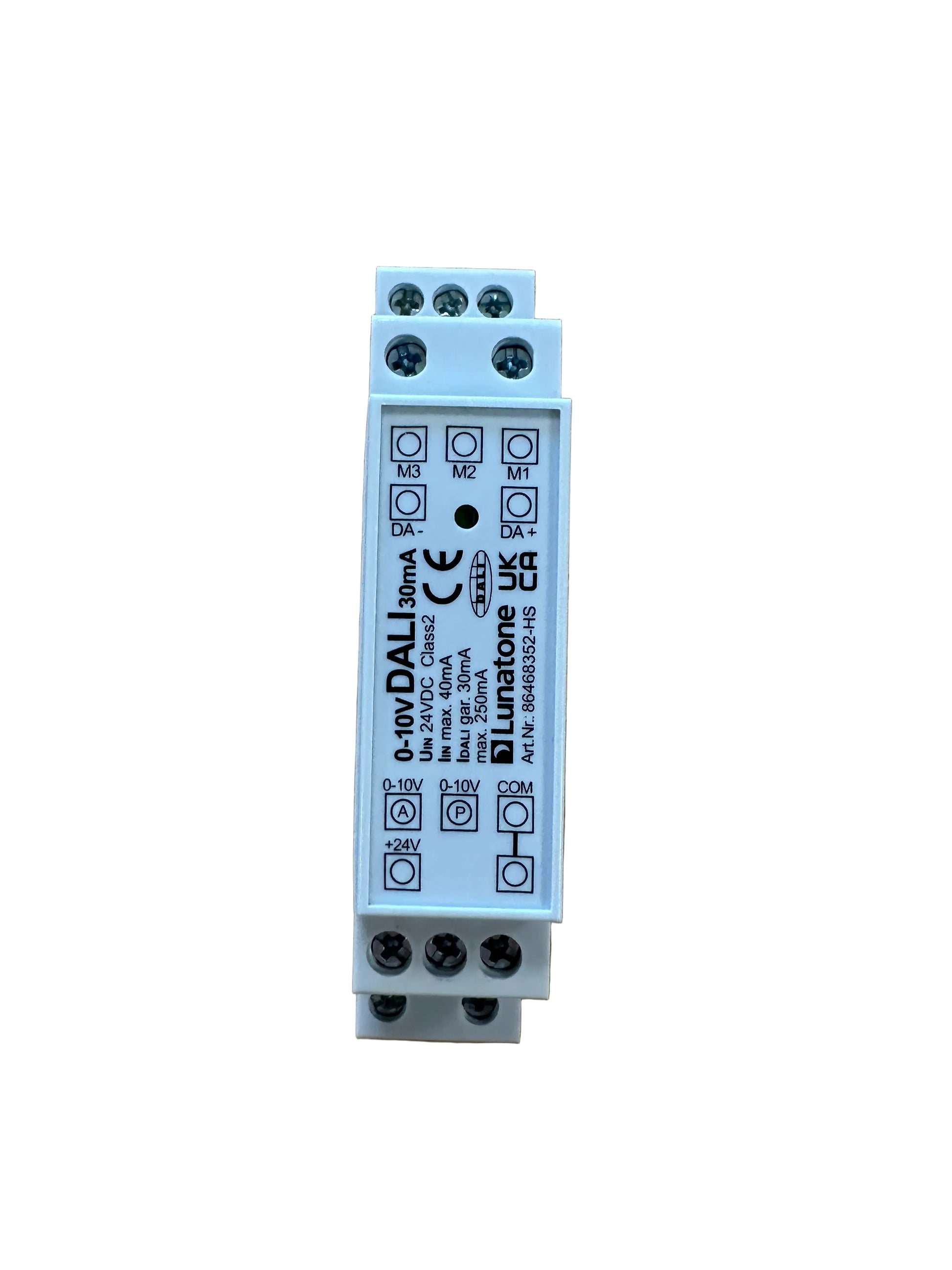

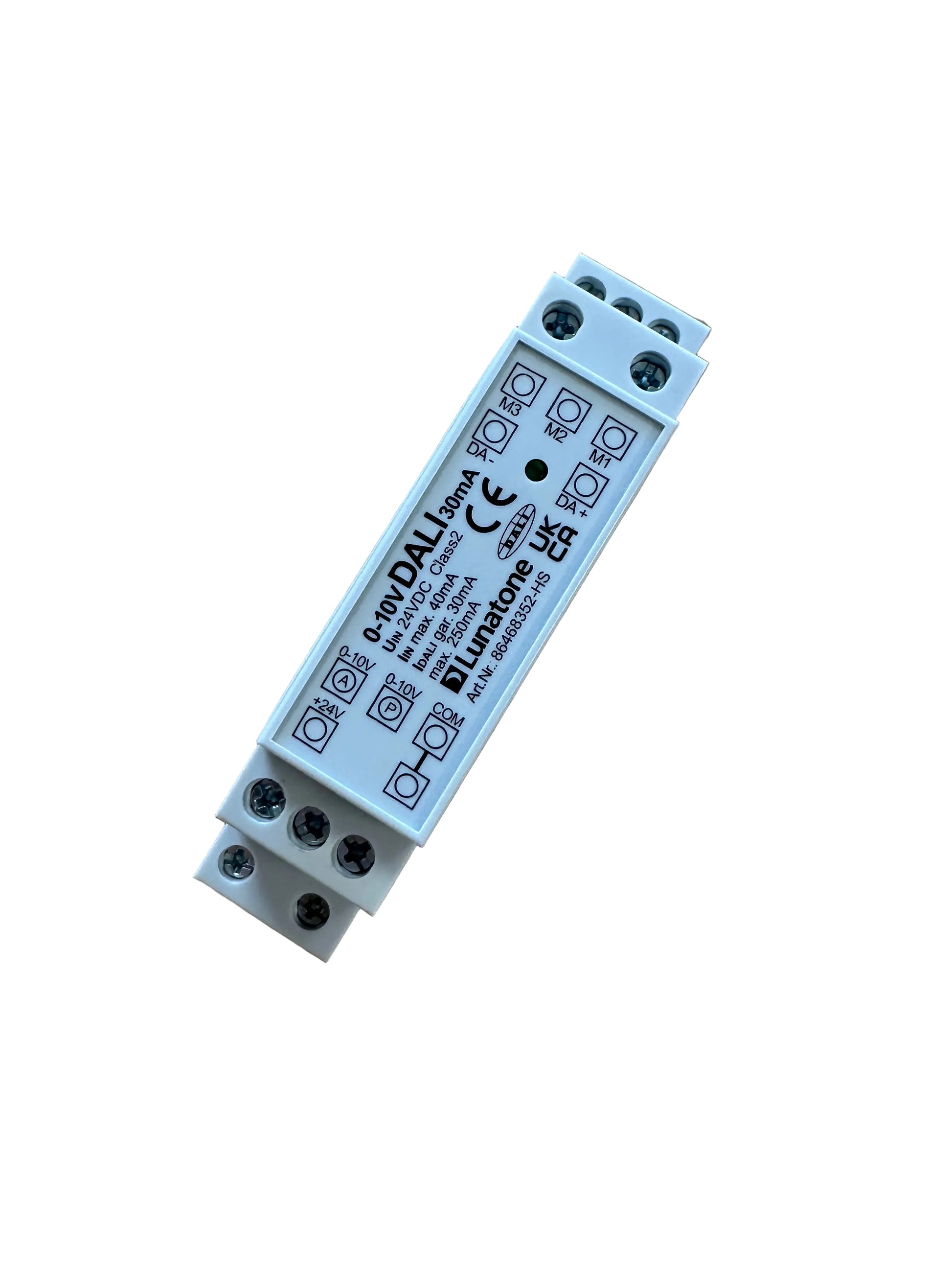

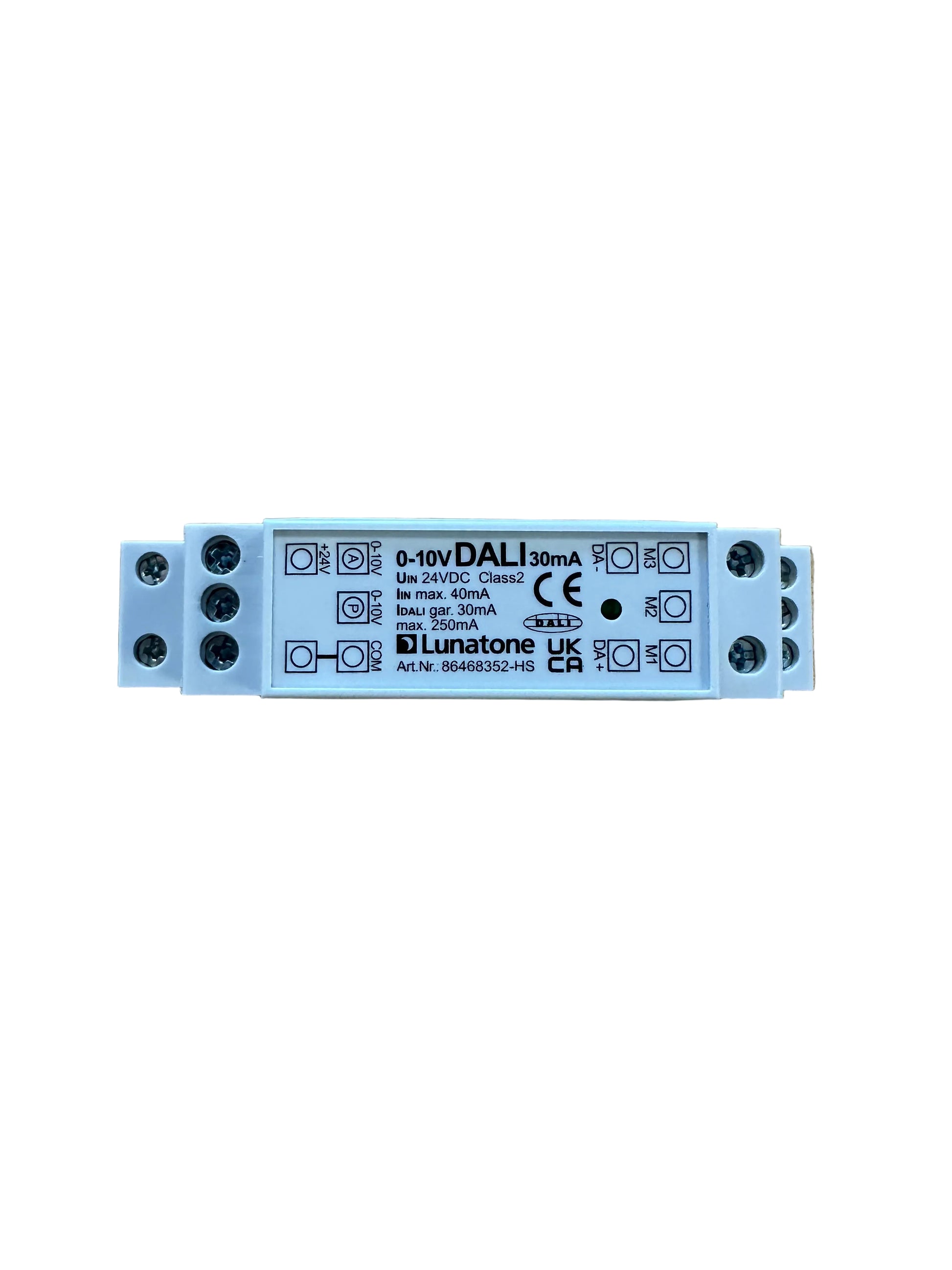

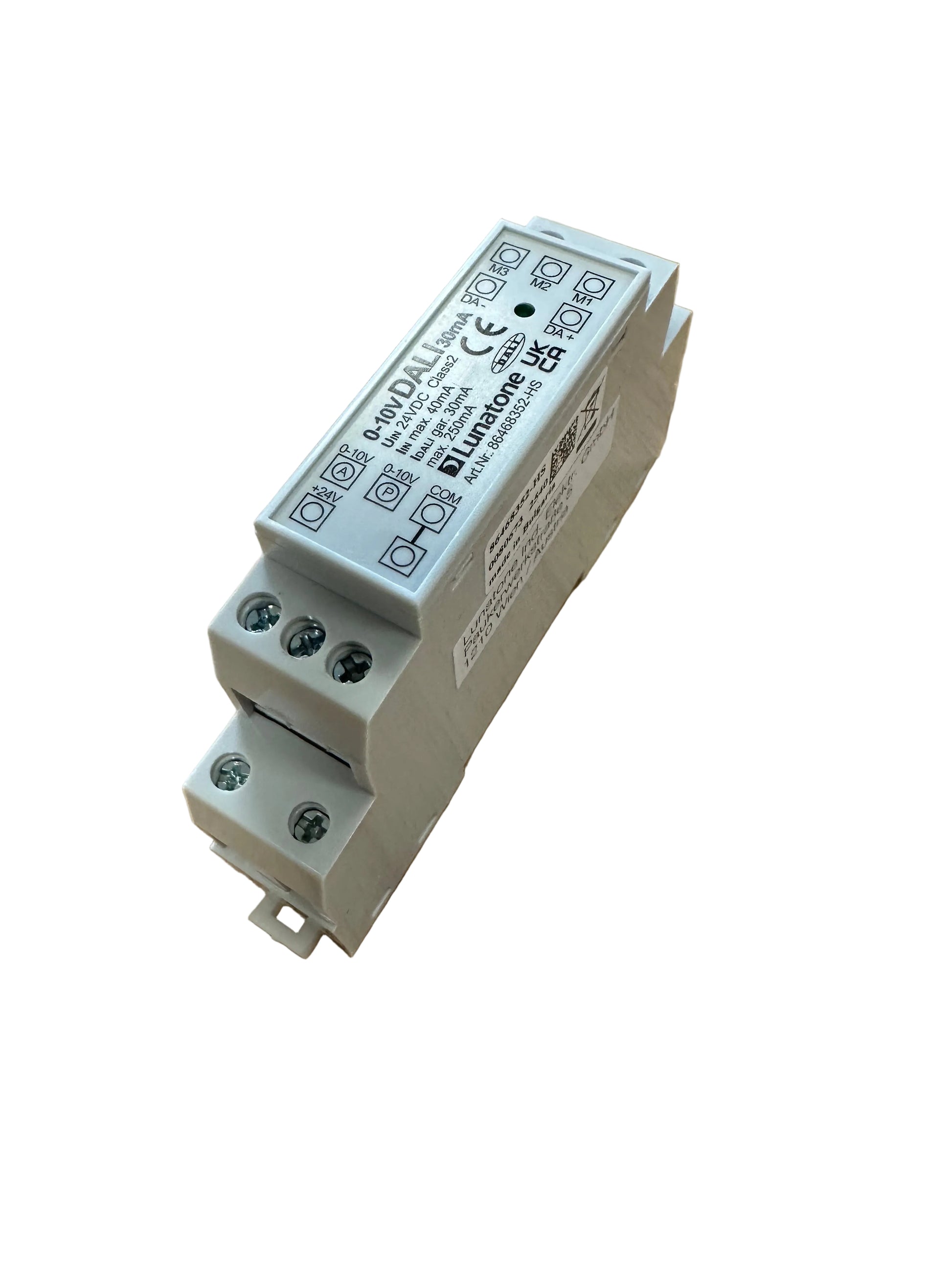

The compact module converts analogue 0-10V control signals into DALI dim levels (direct arc power – DAP). The device has an active and a passive input for 0-10V. The converted values are sent broadcast to the entire DALI system. With the integrated bus supply a small DALI system with up to 10 standard DALI devices (30mA) can be realised. The interface module is supplied by a 12-24V power supply. The device functionality can be changed with the help of jumpers: dimming range 1-100% or 10-100% and off (OFF) or minimum (MIN) at input voltages <1V. An additional configuration with the DALI Cockpit software is not possible.
