Lunatone DALI-2 1Ch LED Dimmer CV (Constant Voltage)

SKU:89453826

£53.60 GBP + VAT

£53.60 GBP

Sale Sold out

Shipping calculated at checkout.

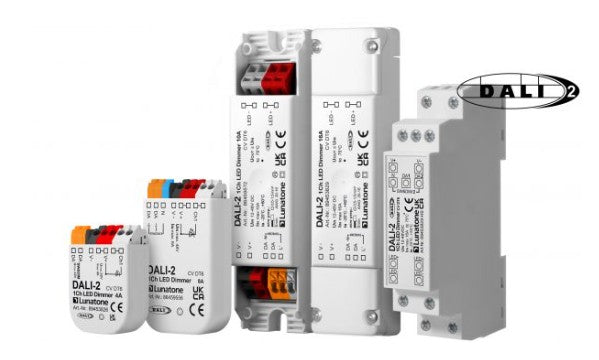

Lunatone DALI-2 1Ch LED Dimmer CV (Constant Voltage)

DALI LED-driver for constant voltage LED modules (CV) with 1 channel. Output signal can be controlled via DALI or Sw&Dim/ SwitchDim2. Available in three different housing versions, with input voltage of 12V to 28V DC or 12V to 48V DC, version dependent input currents up to 16A and 1 PWM output (16Bit).

Technical data

Ambient temperature	-20°C to +60°C
Protection class	IP20
Connection wire cross section (89453826, 86459556)	max. 1.5mm²
Connection wire cross section (86459572, 89453829)	DALI/Sw&Dim: 1.5 mm and supply: 2.5mm²
Connection wire cross section (89453829-HS)	2.5mm²
Mounting (89453826, 86459556)	Back box
Mounting (86459572, 89453829)	Remote ceiling

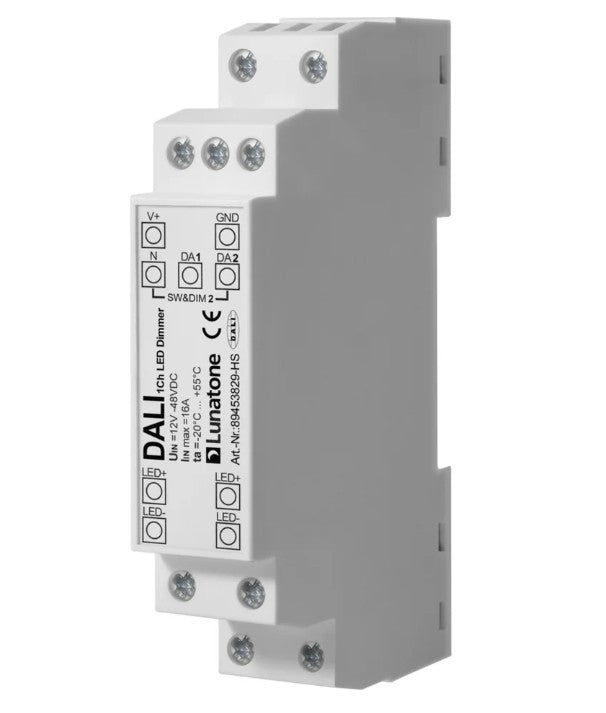

Mounting (89453829-HS)	DIN rail
Expected lifespan	> 100000h

Electrical data

Supply	12 - 48V DC
Control input (89453826)	DALI
Control input (86459556)	DALI/SwitchDim2 (230V AC)
Control input (86459572, 89453829)	DALI Sw&Dim (230V AC)
Control input (89453829-HS)	DALI/SwitchDim2 (230V AC)
Current consumption	2mA (DALI)
Number of DALI addresses	1

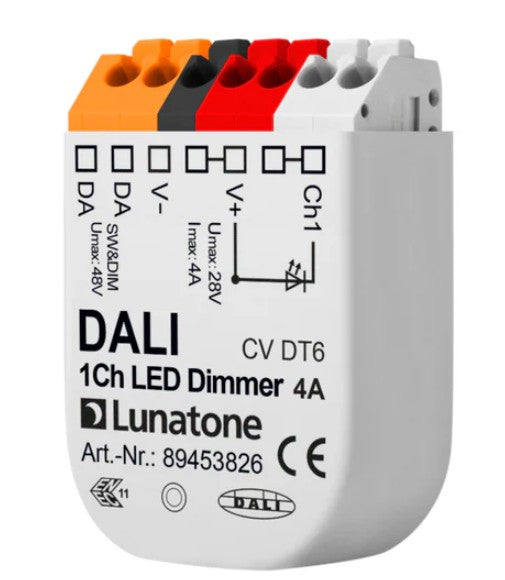

Max. input current Iinmax (89453826)	4A

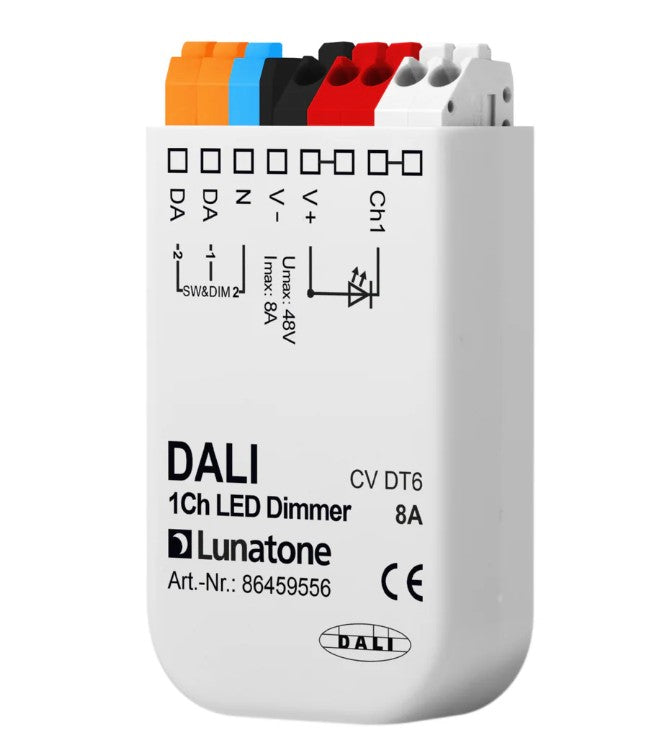

Max. input current Iinmax (86459556)	8A

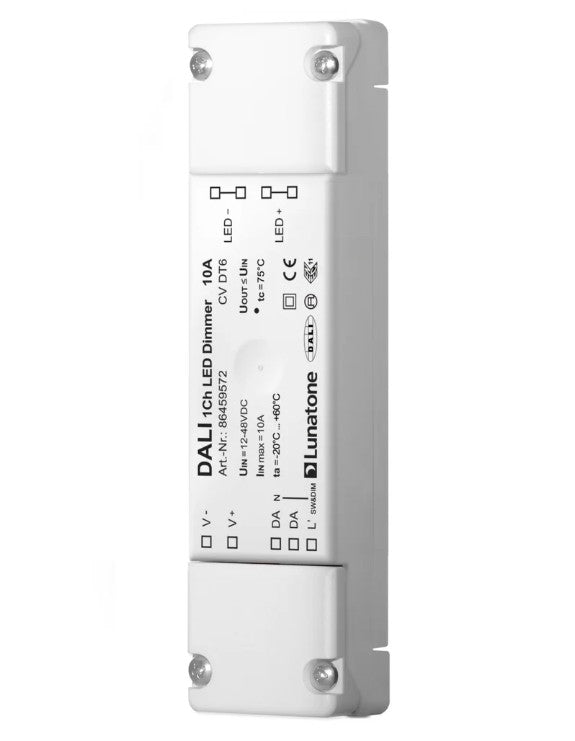

Max. input current Iinmax (86459572)	10A

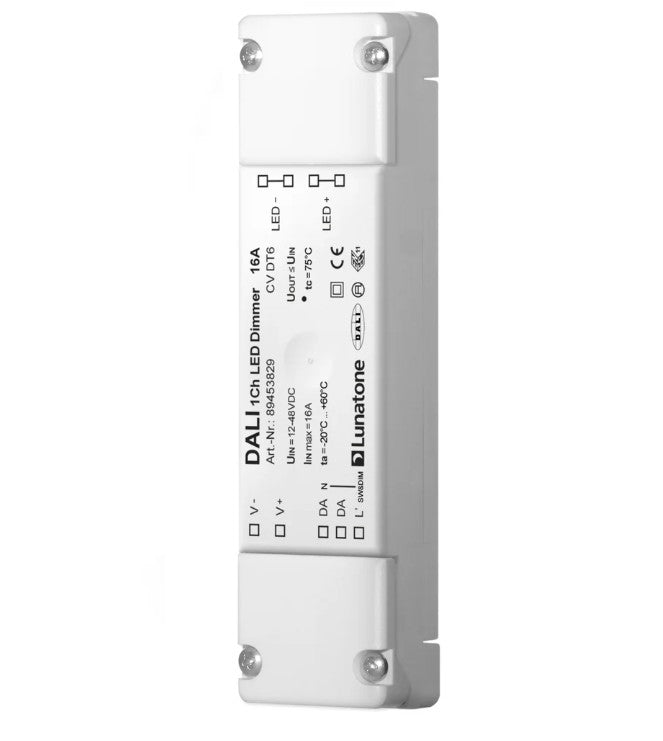

Max. input current Iinmax (89453829)	16A
Max. input current Iinmax (89453829-HS)	16A

Function

Device type	DALI LED driver
Power-on behaviour	Configurable via DALI: 0-100% or last value
Device type	DT6
Configurable via DALI Cockpit	Yes

Dimensions

Length, width, height (89453826)	40mmx28mmx14mm
Length, width, height (86459556)	59mmx33mmx15mm
Length, width, height (86459572, 89453829)	120mmx30mmx22mm
Length, width, height (89453829-HS)	98mmx17.5mmx56mm
Colour	Grey
