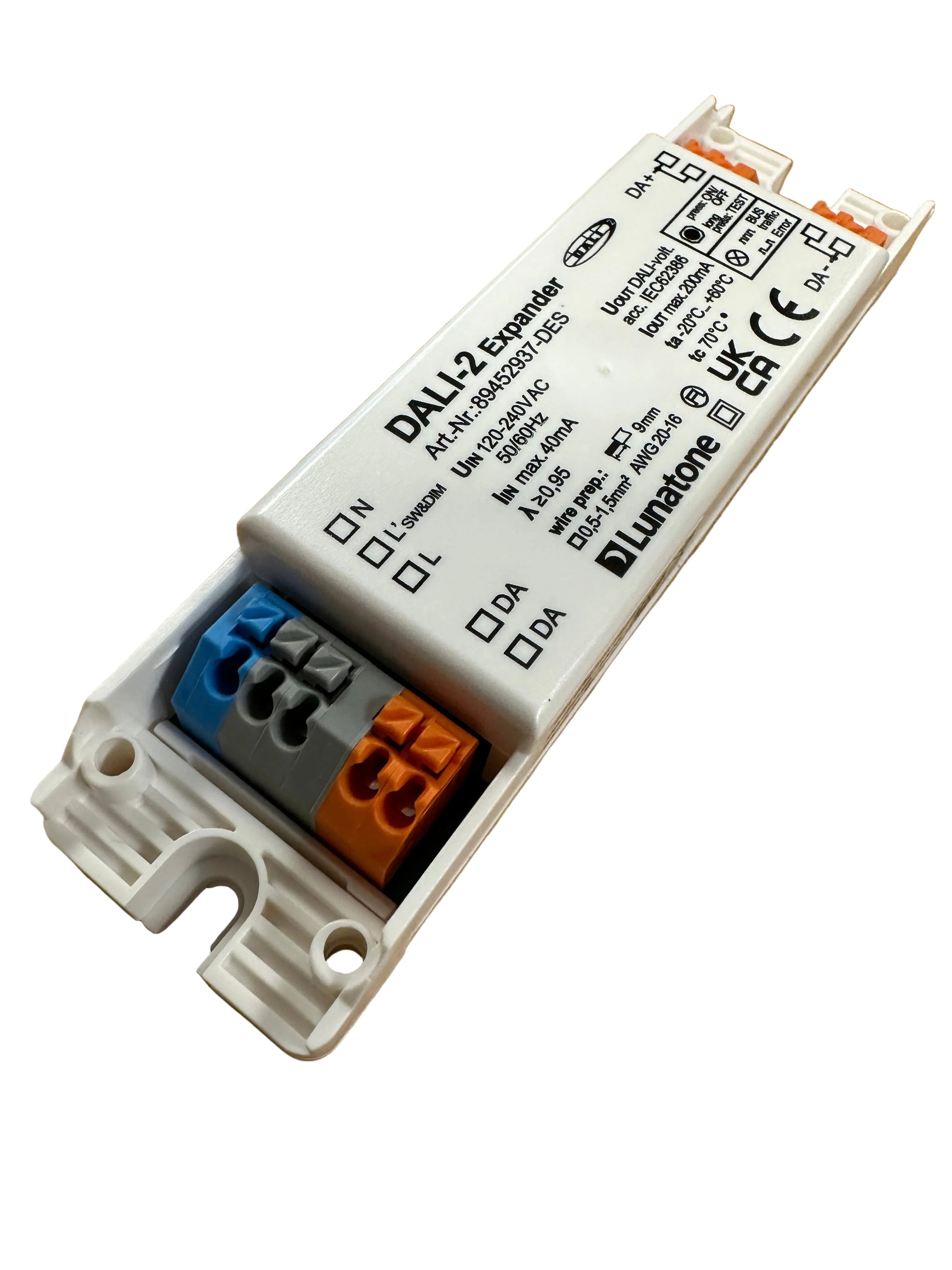

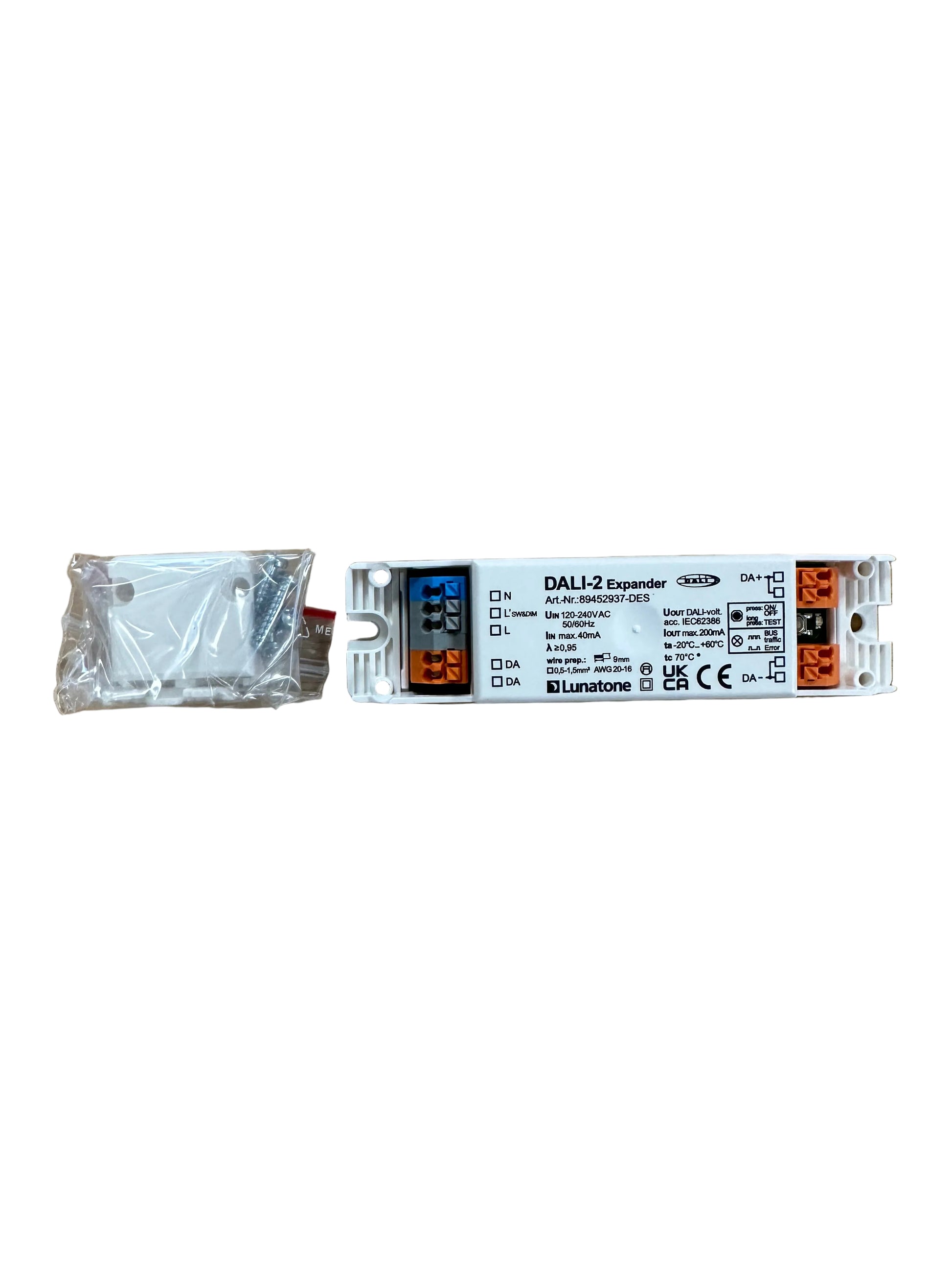

The compact device is used to expand the DALI line. The DALI-2 Expander is connected to the DALI line (DALI IN terminals) and behaves like a DALI ballast with a DALI address.
The devices connected to the output of the DALI-2 Expander (DALI OUT terminals) form a subordinate DALI line. The DALI operating devices in the sub-line are controlled broadcast via the address of the DALI-2 Expander. With Art. Nr. 89452937-DES, the devices in the DALI sub-line can alternatively be controlled via Switch&Dim. The DALI-2 Expander has an integrated DALI bus power supply 250mA to supply the sub-line. In addition to expanding the number of operating devices, the Expander can also be used to increase the cable length by 300m. The DALI-2 DES Expander is for integration in luminaires as well as installation boxes.
- ambient temperature: -20°C to +60°C
- protection class: IP20
-
mounting: remote ceiling, integration in class II devices
Electrical Data input: L,N
-
input type: supply, mains- voltage
-
input voltage range: 100Vac ... 240Vac
-
max. input supply current: 40mA (@120Vac), 20mA (@240Vac)
-
input supply frequency: 50Hz / 60Hz
-
max. current consumption DALI: 2 mA
-
max. power consumption: 5,3W
-
start-up time: 250ms

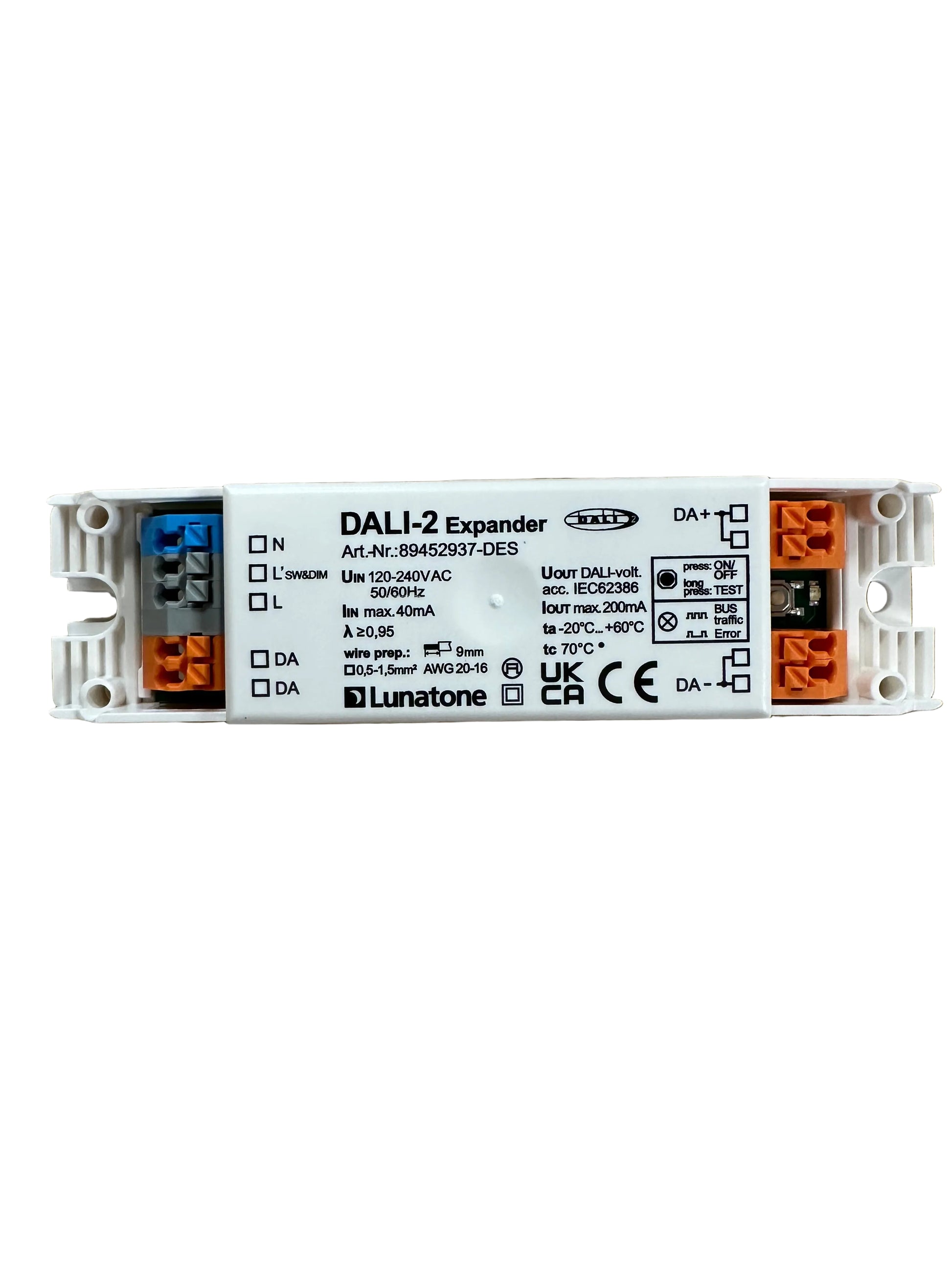

input: DA, DA
-
input type: DALI control input
-
input voltage range: 9,5V ... 22,5V
-
max. current consumption DALI: 2mA
-
input type: SwitchDim - control input
-
more Info about SwitchDim: open datasheet
output: DA+, DA-
-
output type: DALI bus power supply
-
output voltage range: 12Vdc ... 20,5Vdc
-
Maximum output current: 250mA
Function
-
device type: system extension with integrated DALI bus power supply
Dimensions
-

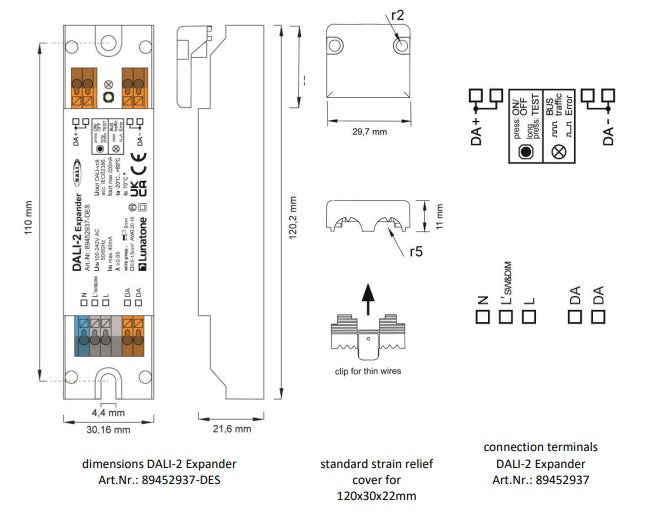

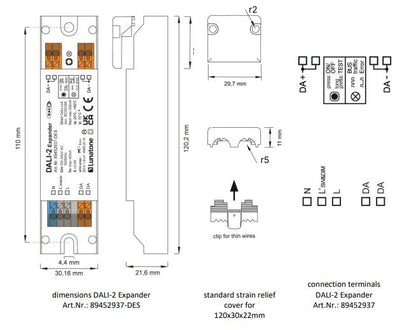

DALI-2 Expander S 89452937-DES: 120mm x 30mm x 22mm
