The compact device is used to expand the DALI line. The DALI-2 Expander is connected to the DALI line (DALI IN terminals) and behaves like a DALI ballast with a DALI address.
The devices connected to the output of the DALI-2 Expander (DALI OUT terminals) form a subordinate DALI line. The DALI operating devices in the sub-line are controlled broadcast via the address of the DALI-2 Expander. The DALI-2 Expander has an integrated DALI bus power supply 200mA, to supply the sub-line. In addition to expanding the number of operating devices, the Expander can also be used to increase the cable length by 300m.

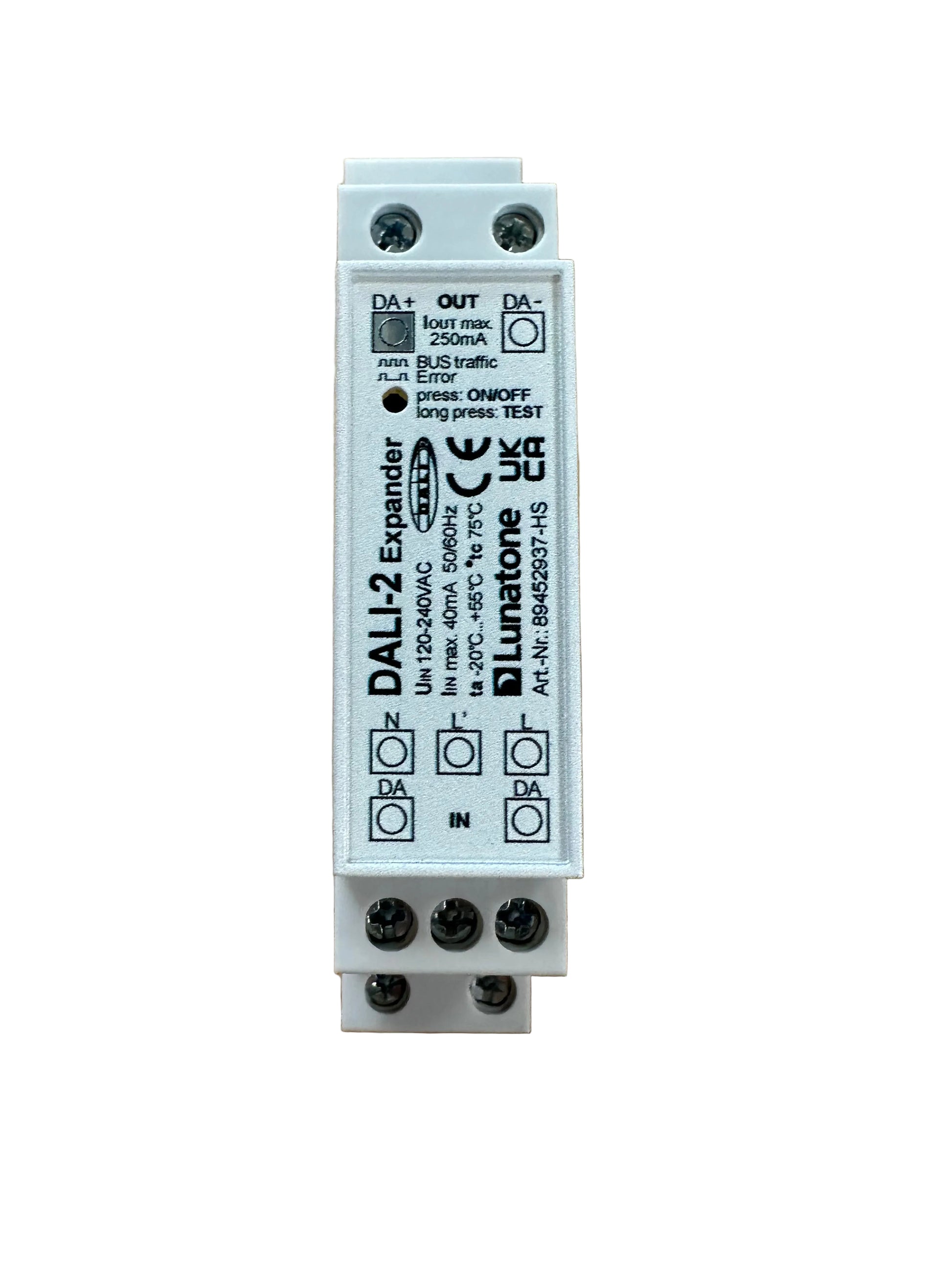

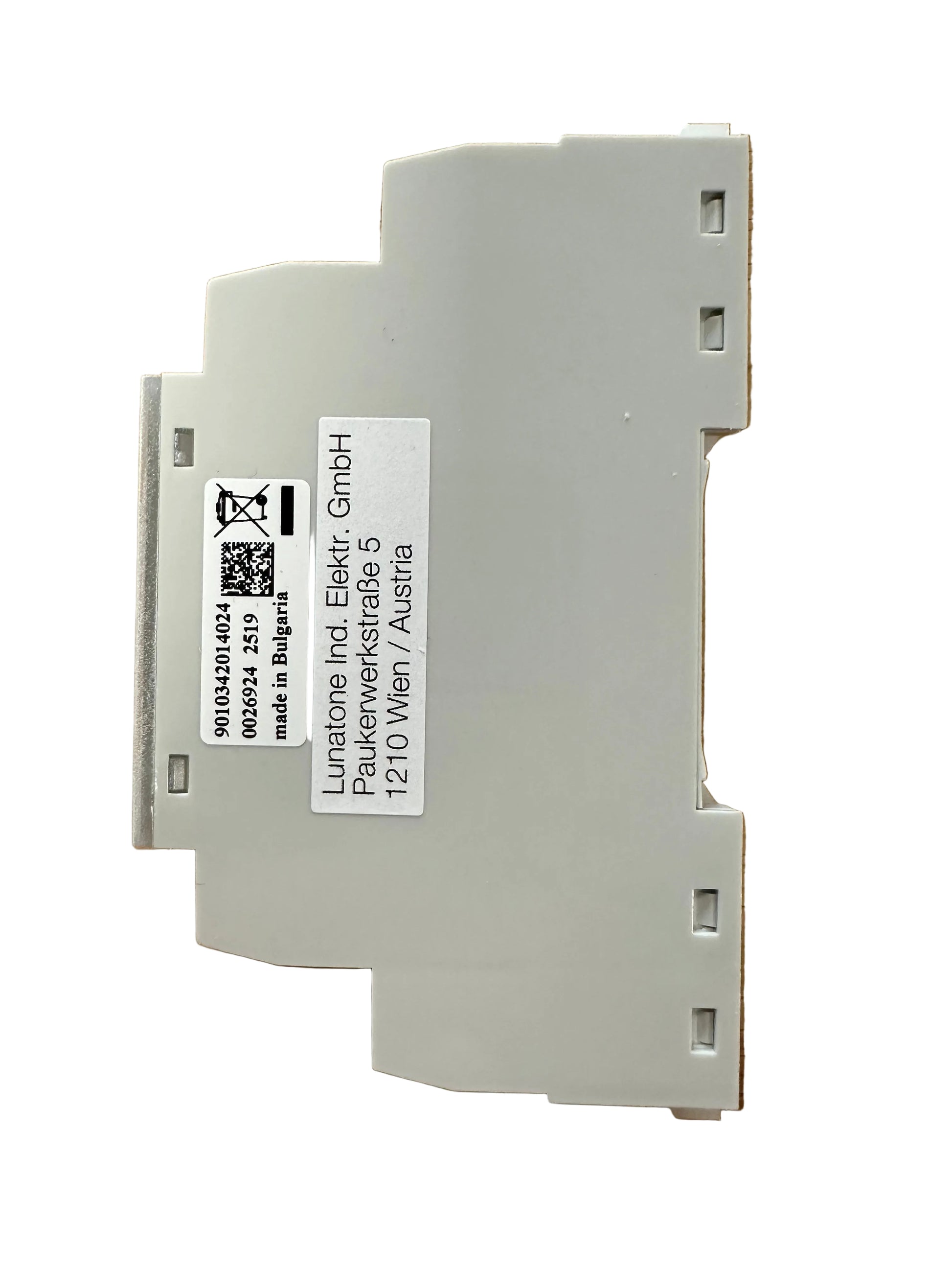

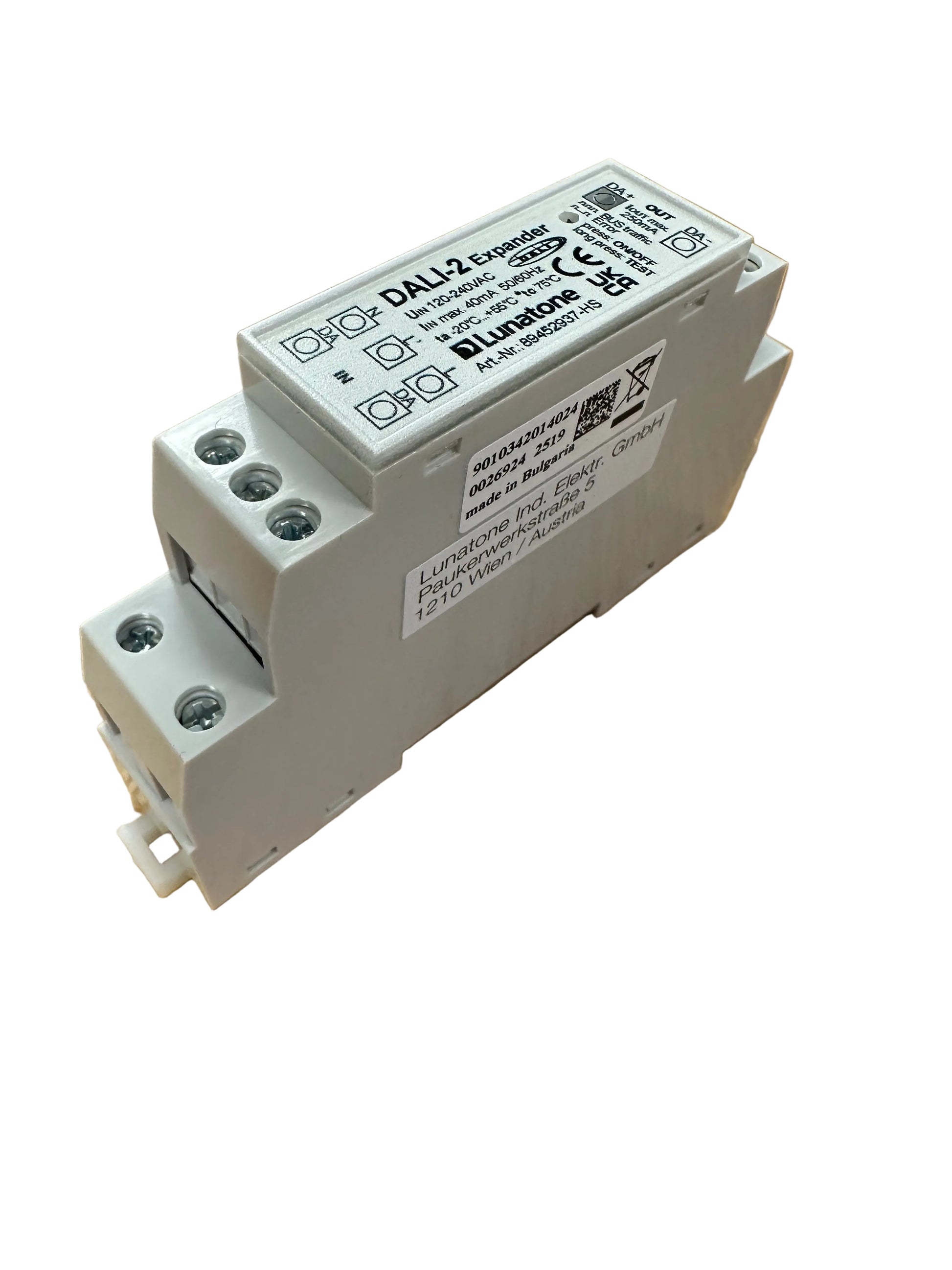

The DALI-2 -HS Expander is for DIN Rail mounting.
- ambient temperature: -20°C to +60°C
- protection class: IP20
- mounting: DIN rail, integration in class II devices
Electrical Data input: L,N
- input type: supply, mains- voltage
- input voltage range: 100Vac ... 240Vac
- max. input supply current: 40mA (@120Vac), 20mA (@240Vac)
- input supply frequency: 50Hz / 60Hz
- max. current consumption DALI: 2 mA
- max. power consumption: 5,3W
- start-up time: 250ms
input: DA, DA
-
input type: DALI control input
-
input voltage range: 9,5V ... 22,5V
-
max. current consumption DALI: 2mA
output: DA+, DA-
- output type: DALI bus power supply
- output voltage range: 12Vdc ... 20,5Vdc
- Maximum output current: 250mA
Function
- device type: system extension with integrated DALI bus power supply

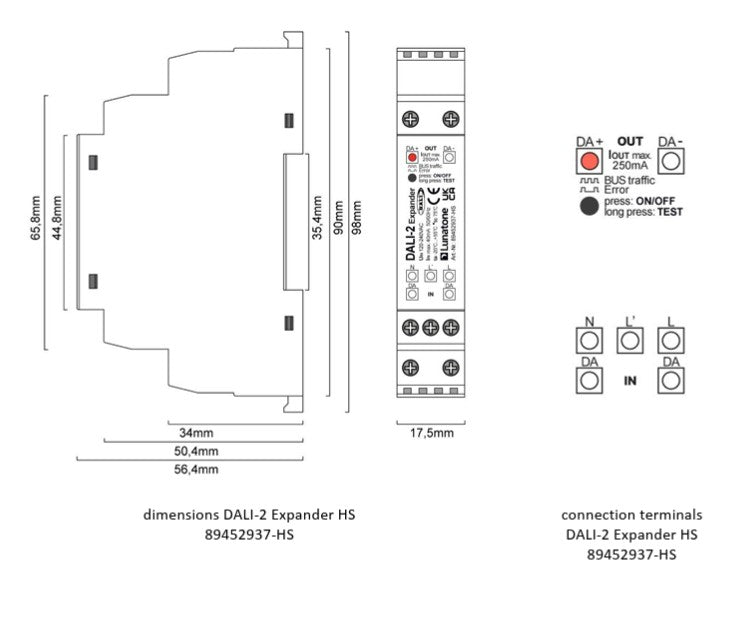

Dimensions
- DALI-2 Expander S 89452937-HS: 98mm x 17.6mm x 56mm
Product features
Product features
Energy Saving, Compact Design
