Lunatone DALI-2 Jalousie

Lunatone DALI-2 Jalousie

The DALI-2 blind control module is designed to control 230V blind motors with separate inputs for up and down and is suitable for load currents of up to 4A. Precise positioning is achieved via DALI (0–100%), where 100% corresponds to the fully open position and 0.1% to the fully closed position. The module is powered directly via the DALI line, no additional power supply is required. The interface has its own DALI address, can be assigned to groups, and supports 16 programmable scenes (e.g. tilt angles and positions). Movement can be stopped at any time using the OFF or MASK command.

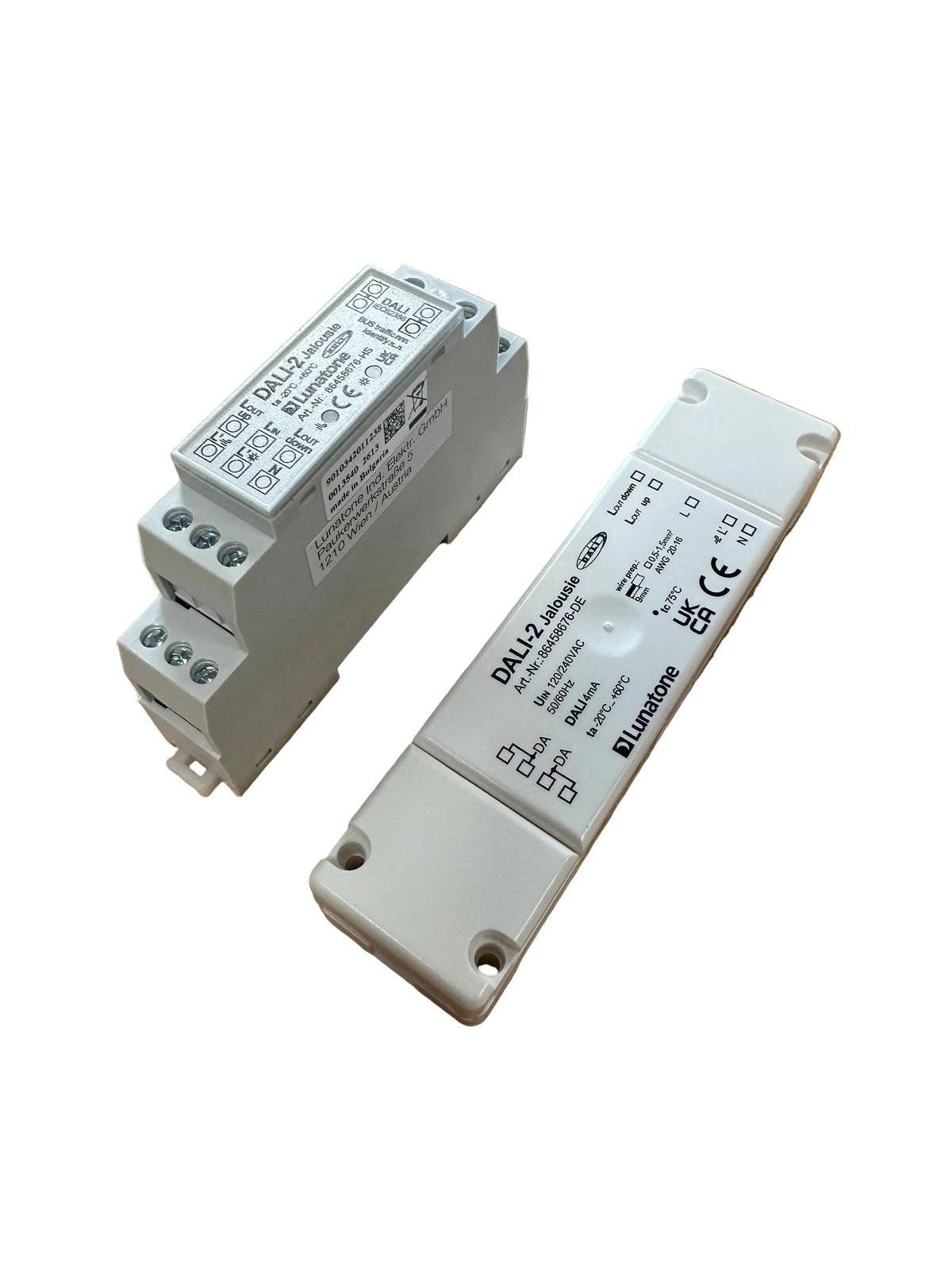

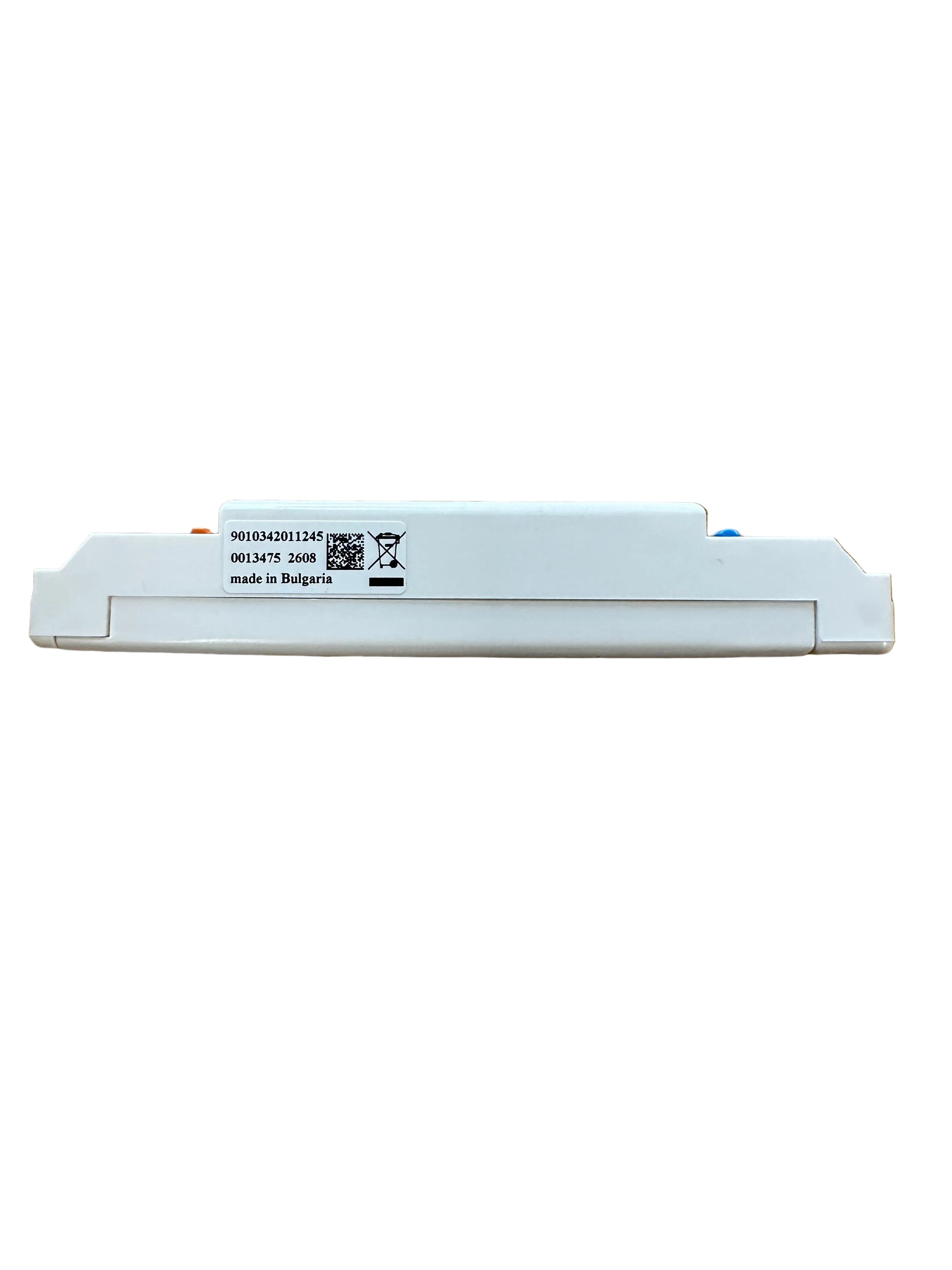

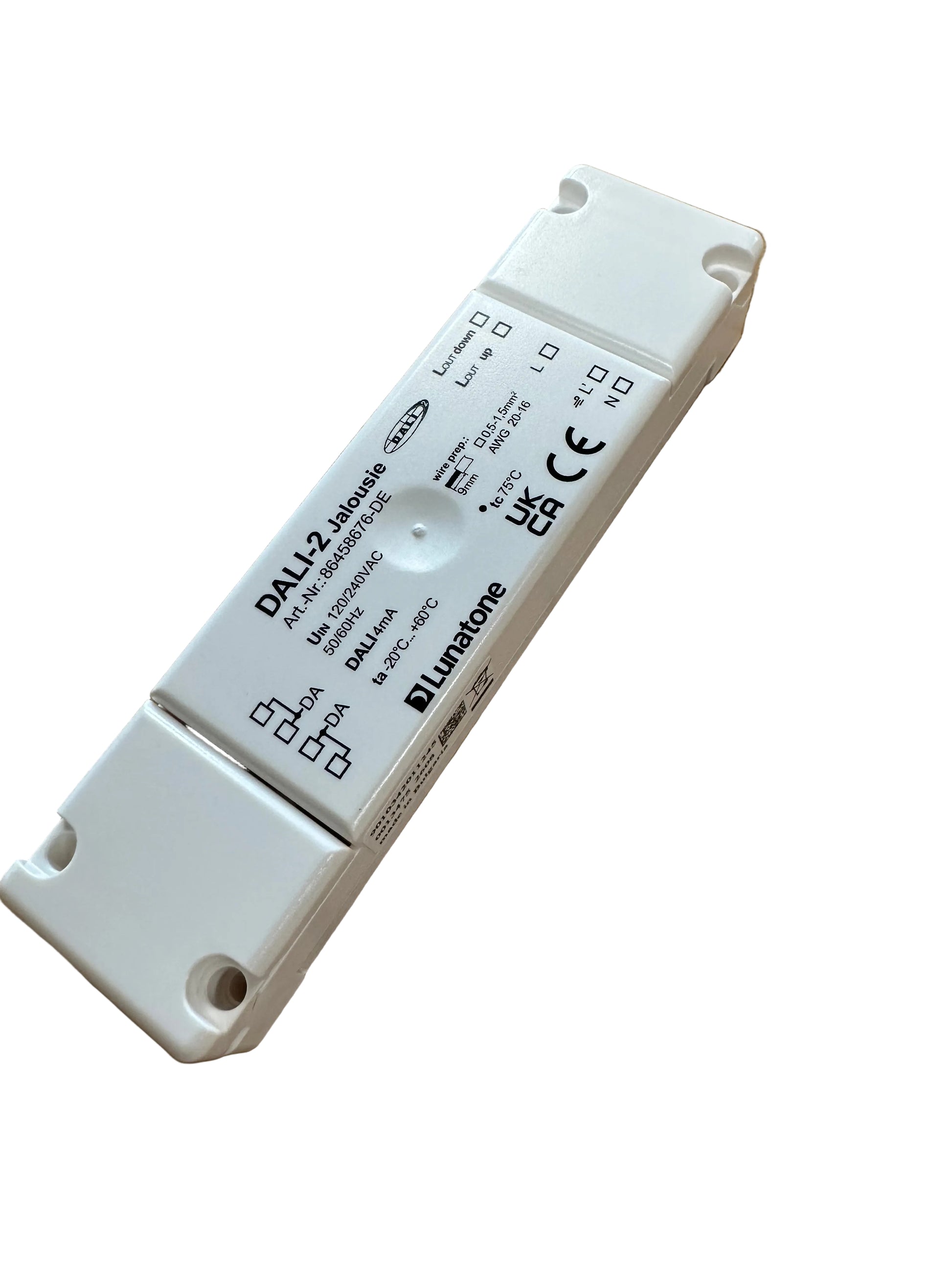

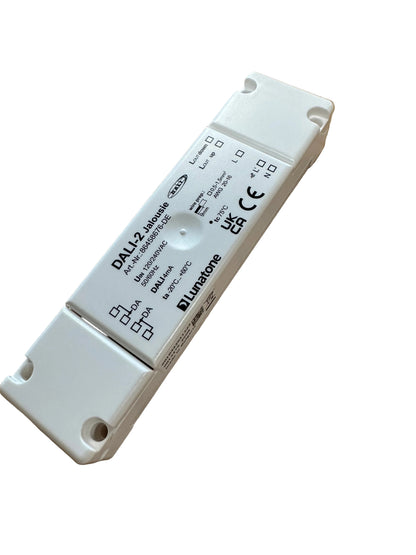

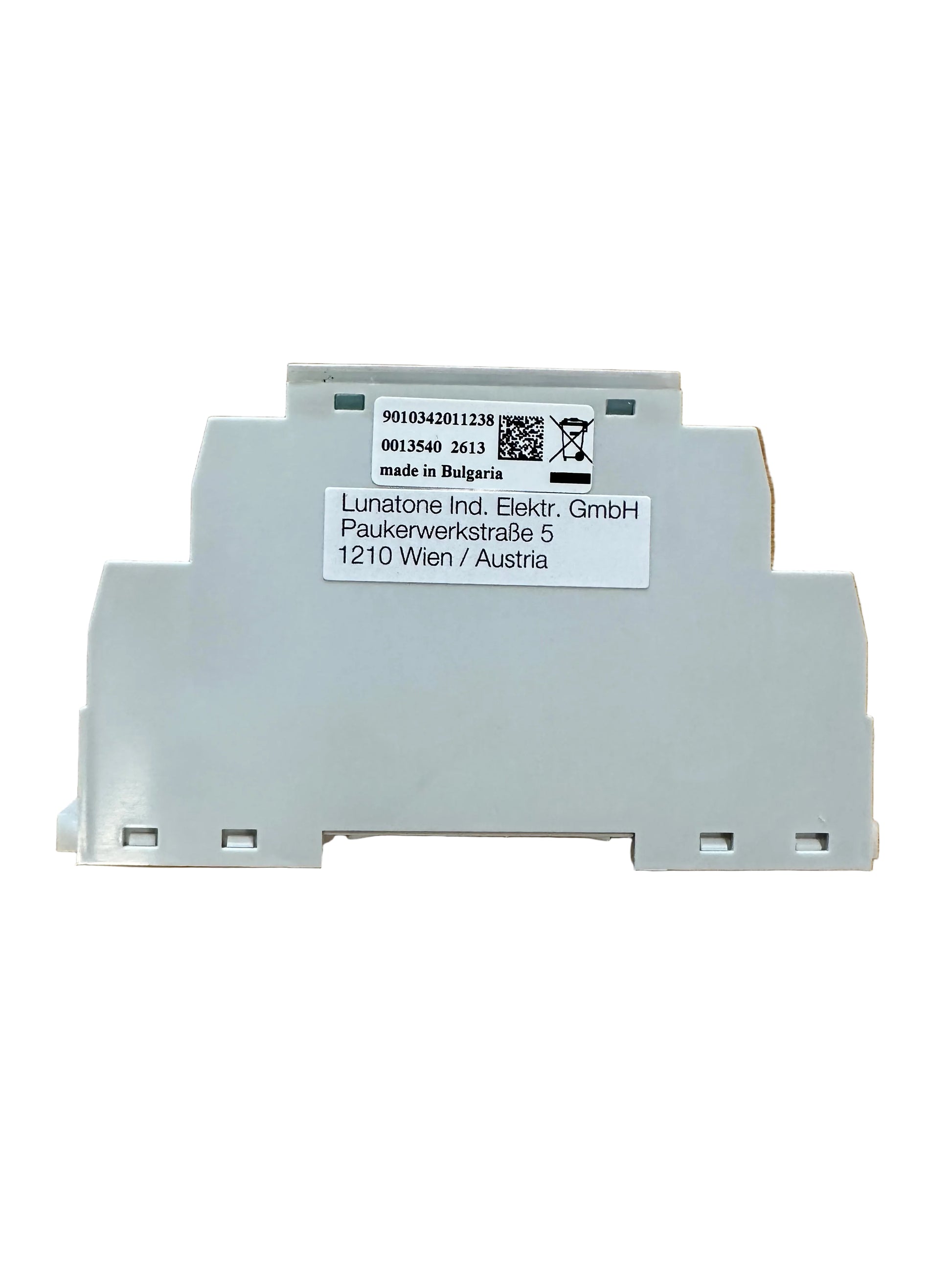

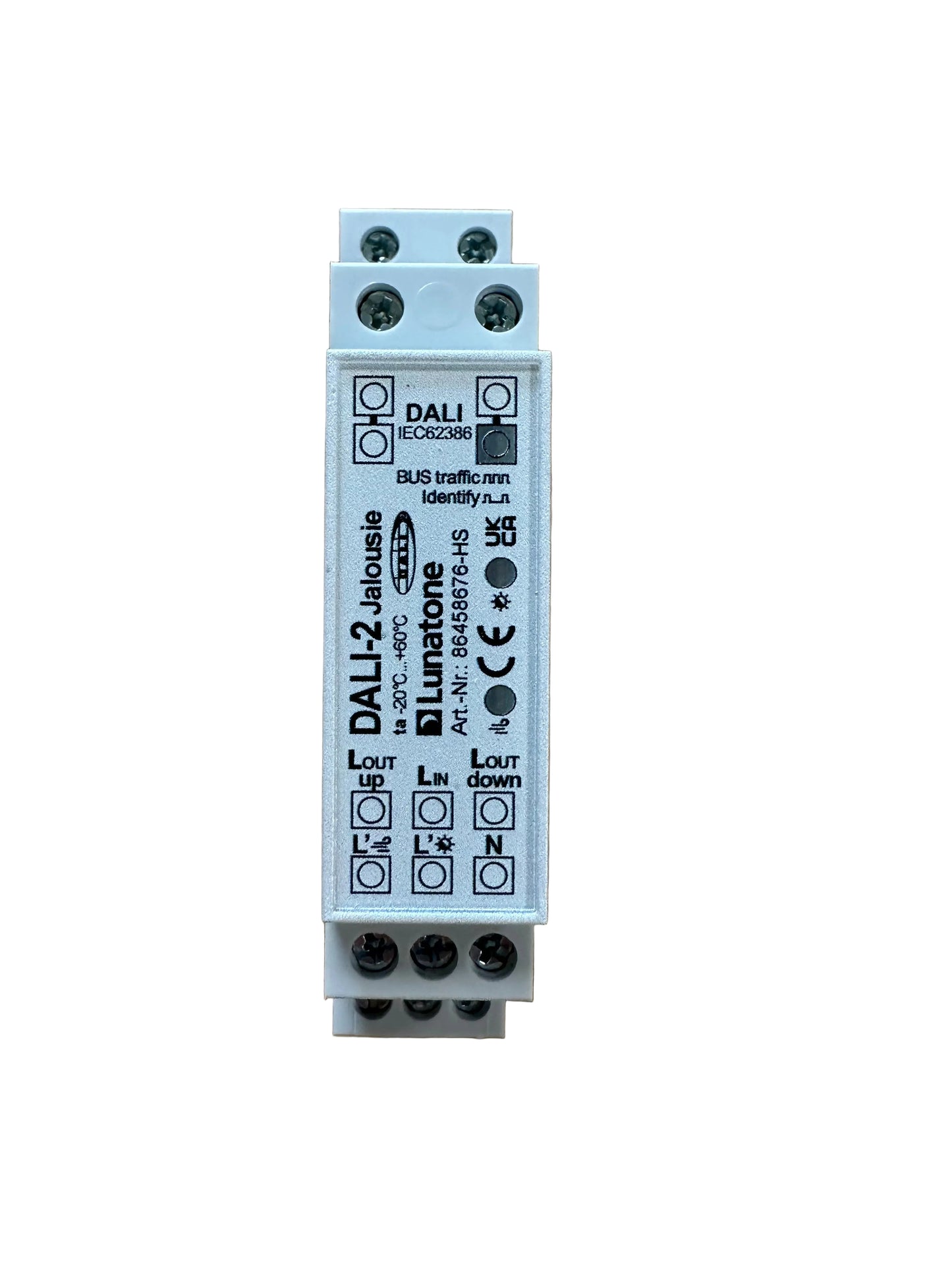

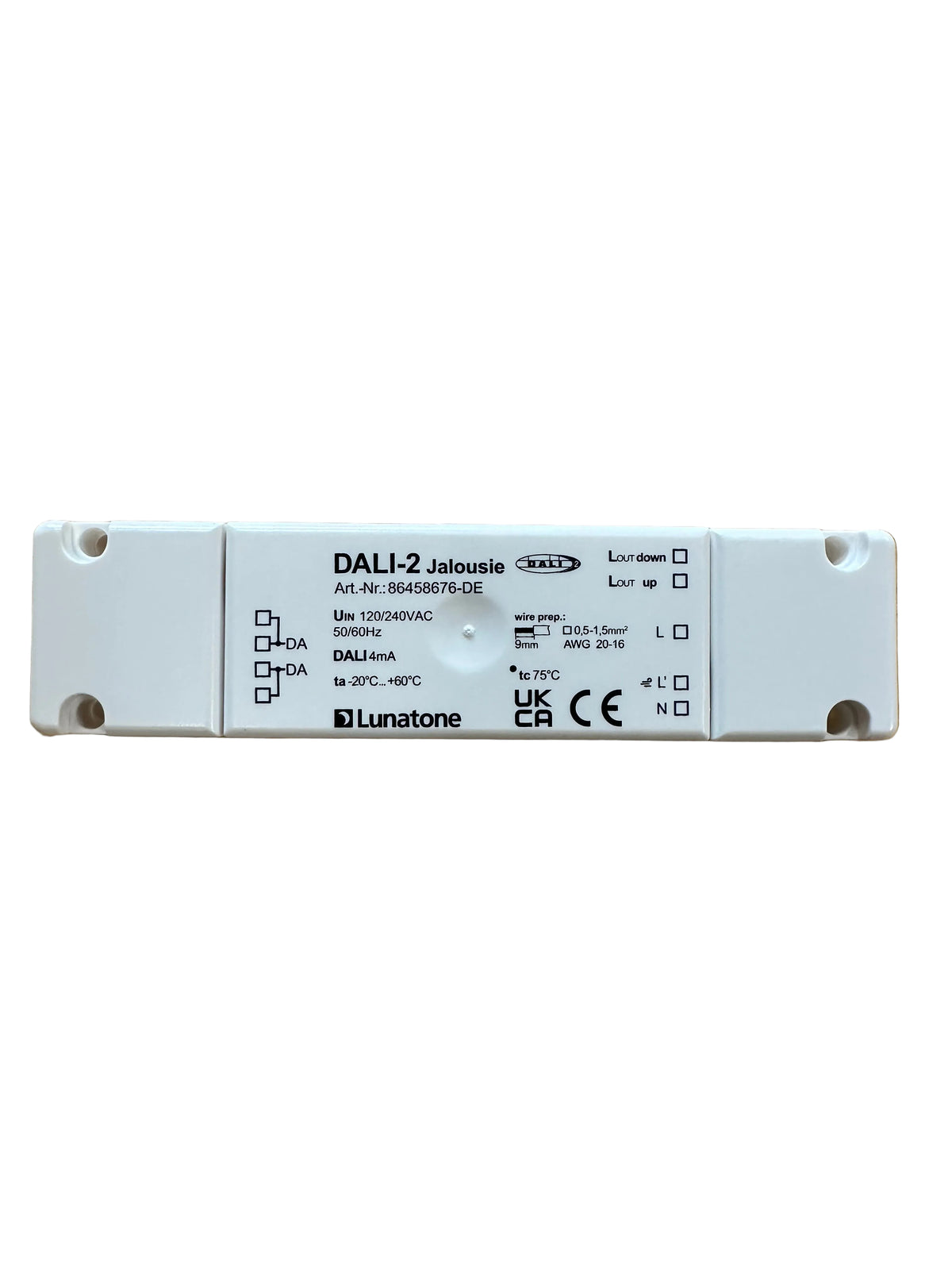

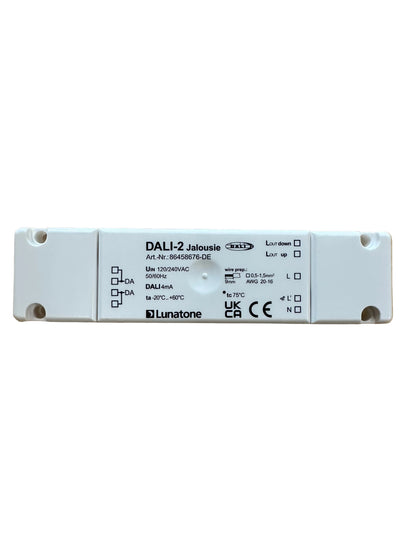

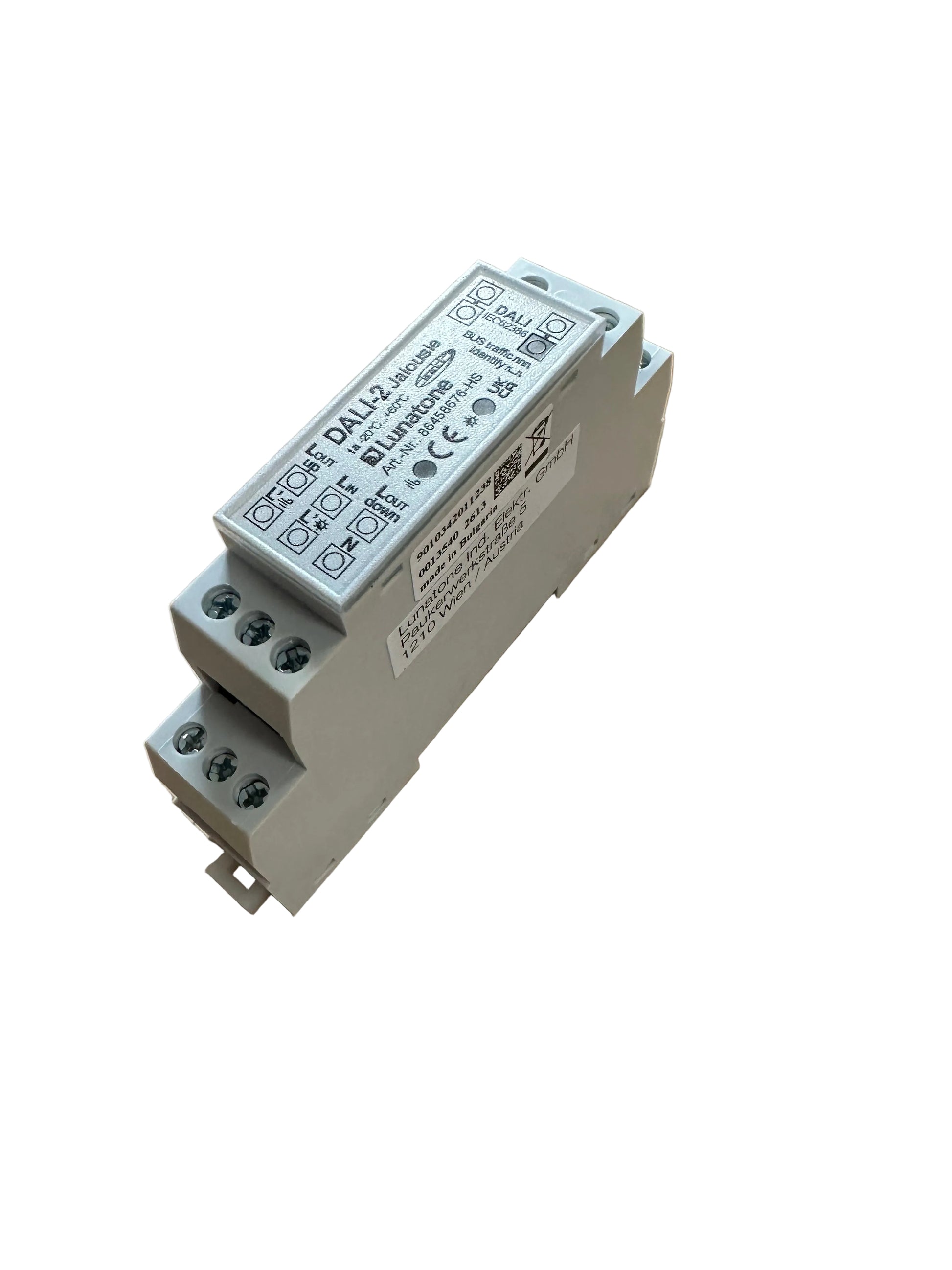

Different versions suitable for DIN-rail mounting or remote ceiling installation (housing with strain relief) are available.
