Pushbutton coupler with 4 inputs to connect standard potential-free switches or pushbuttons and additionally an optional status LED. Each input can be individually configured with target address, button behaviour and DALI commands. Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences as well as user defined command lists are supported.
Factory setting: the application controller is activated. With the DALI Cockpit PC Software the device can be set to instance mode. Alternatively, 100kΩ potentiometers can also be connected; the input signal is converted directly into a DALI dimming level (Configuration via DALI Cockpit).
The very compact device is designed to fit behind a switch in a flush-type installation box.

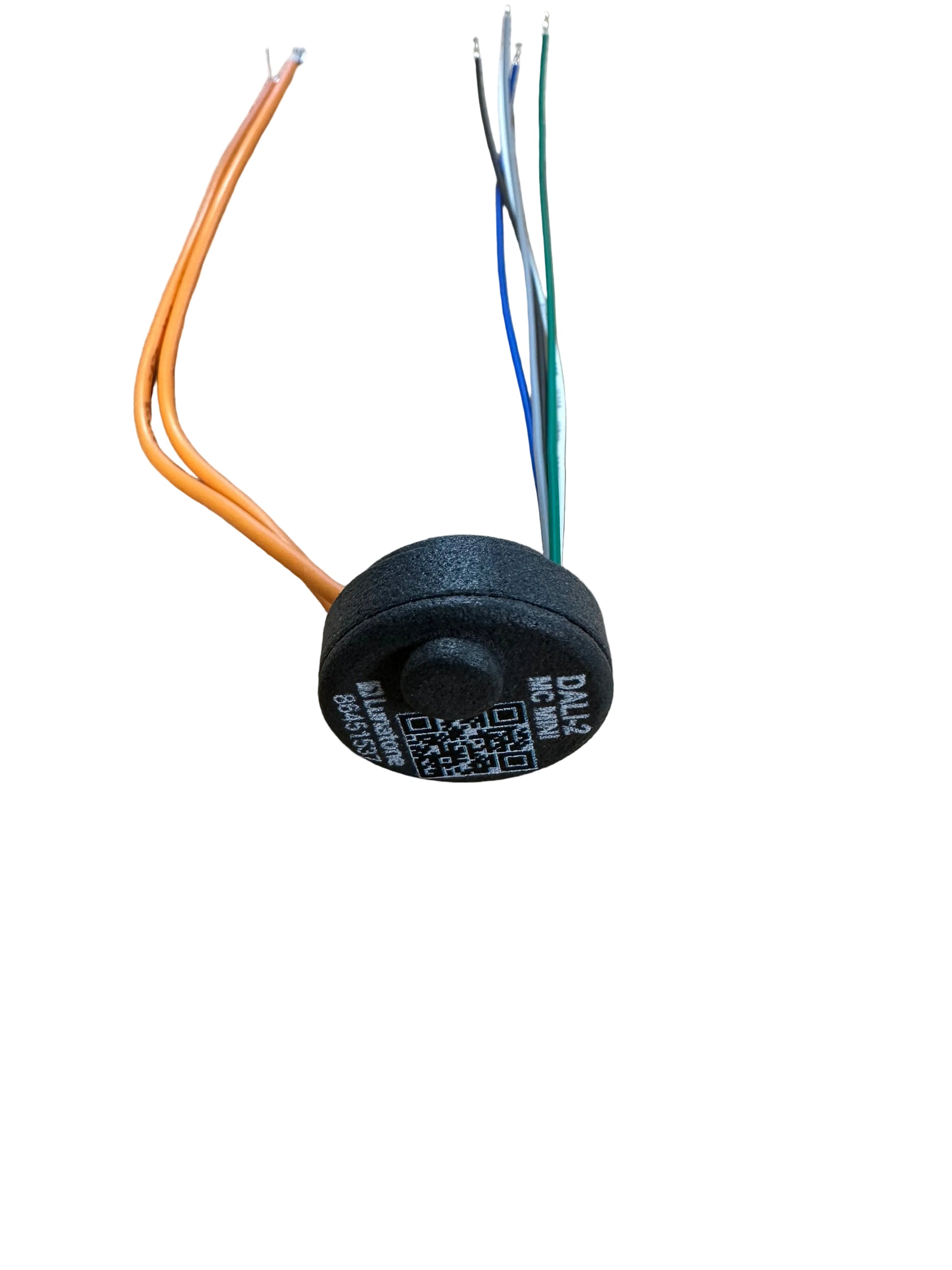

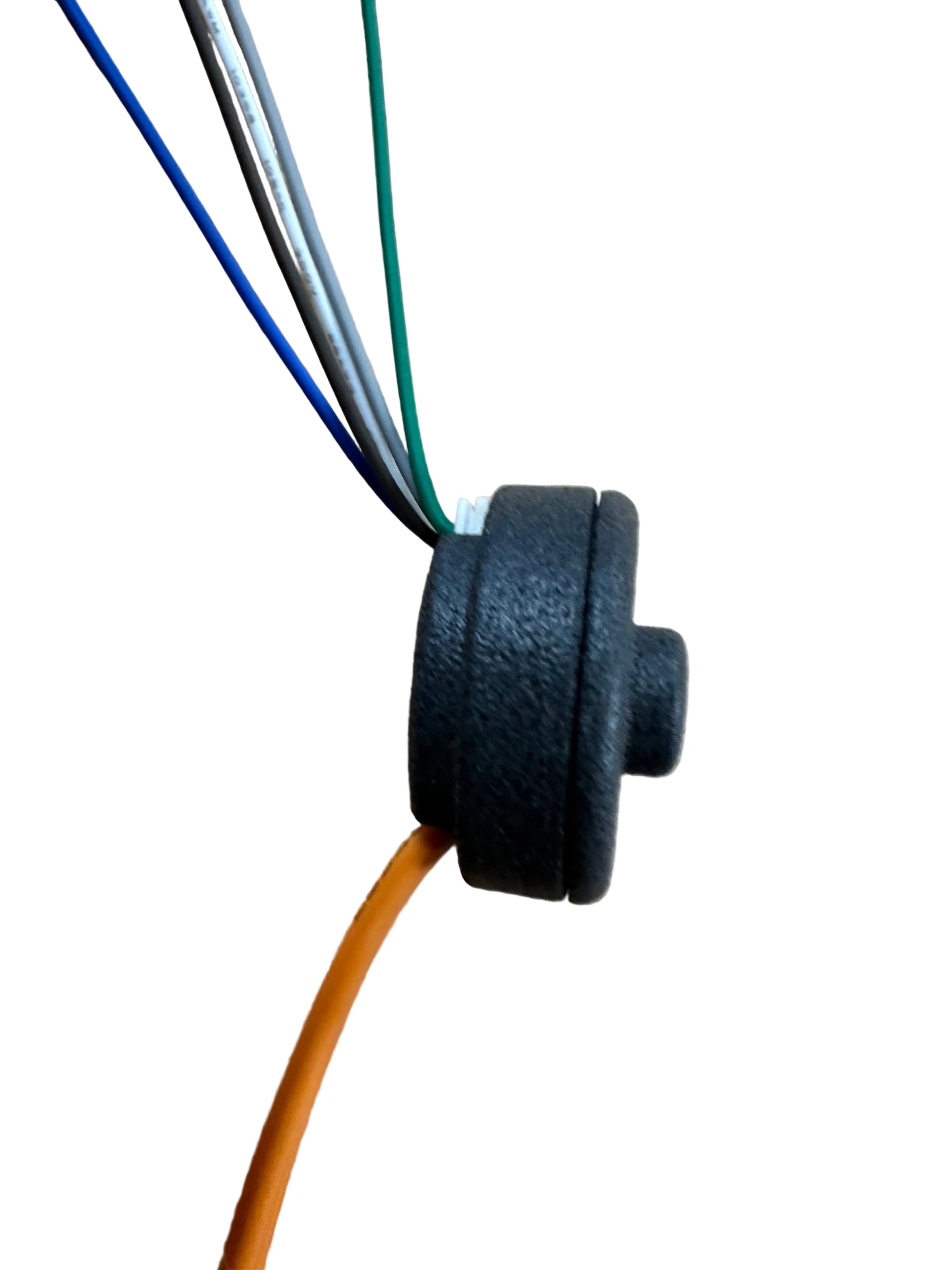

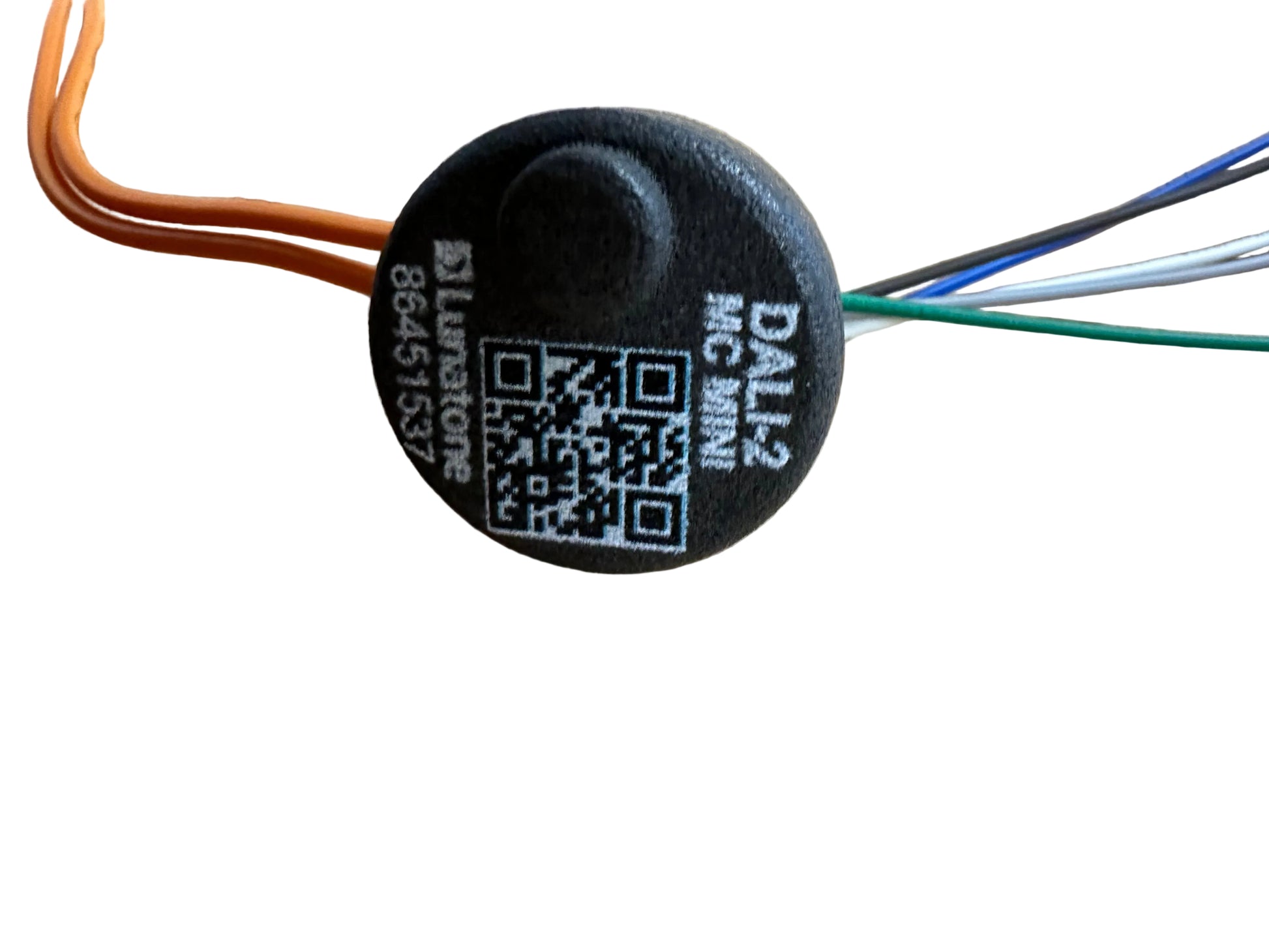

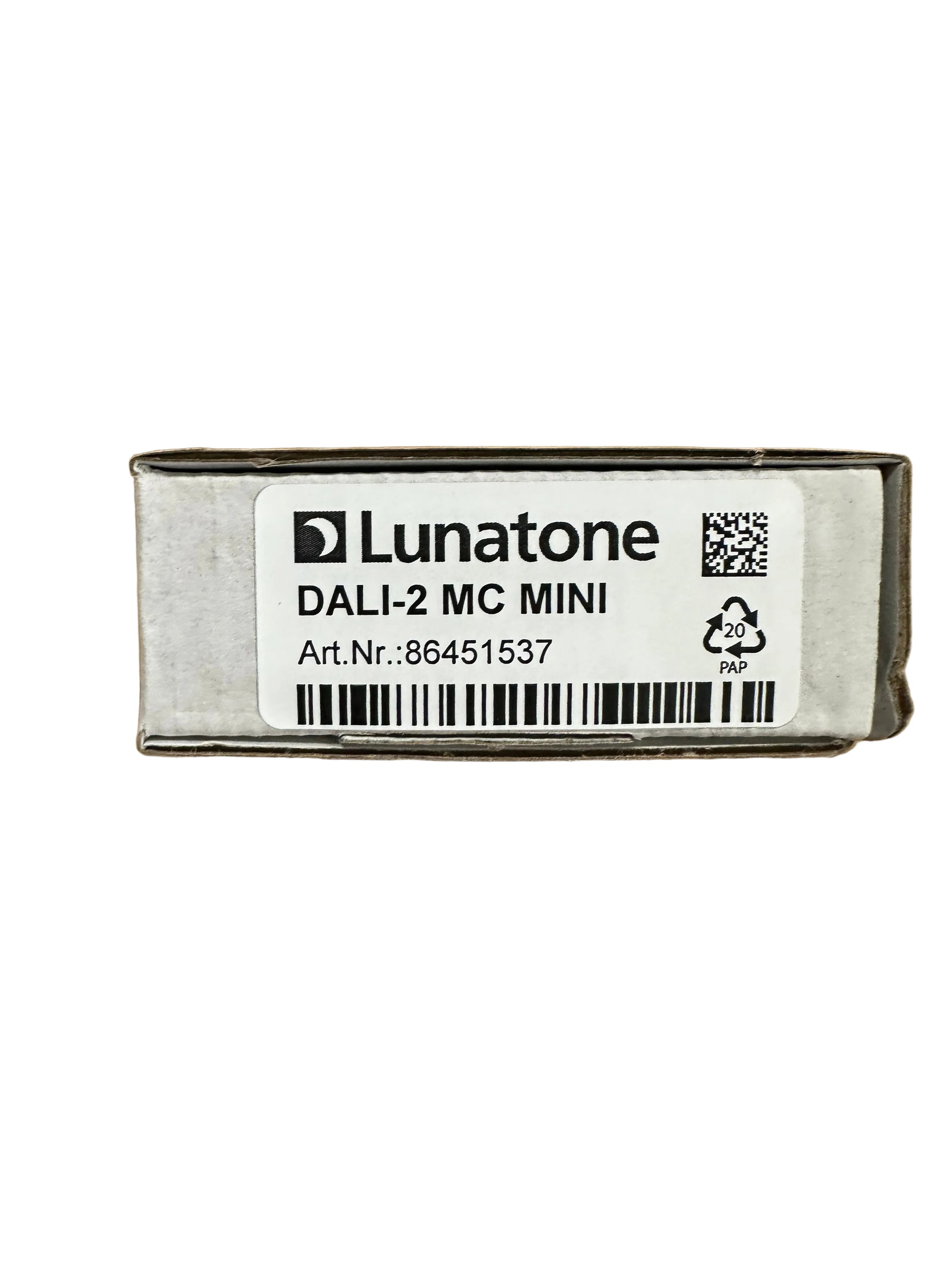

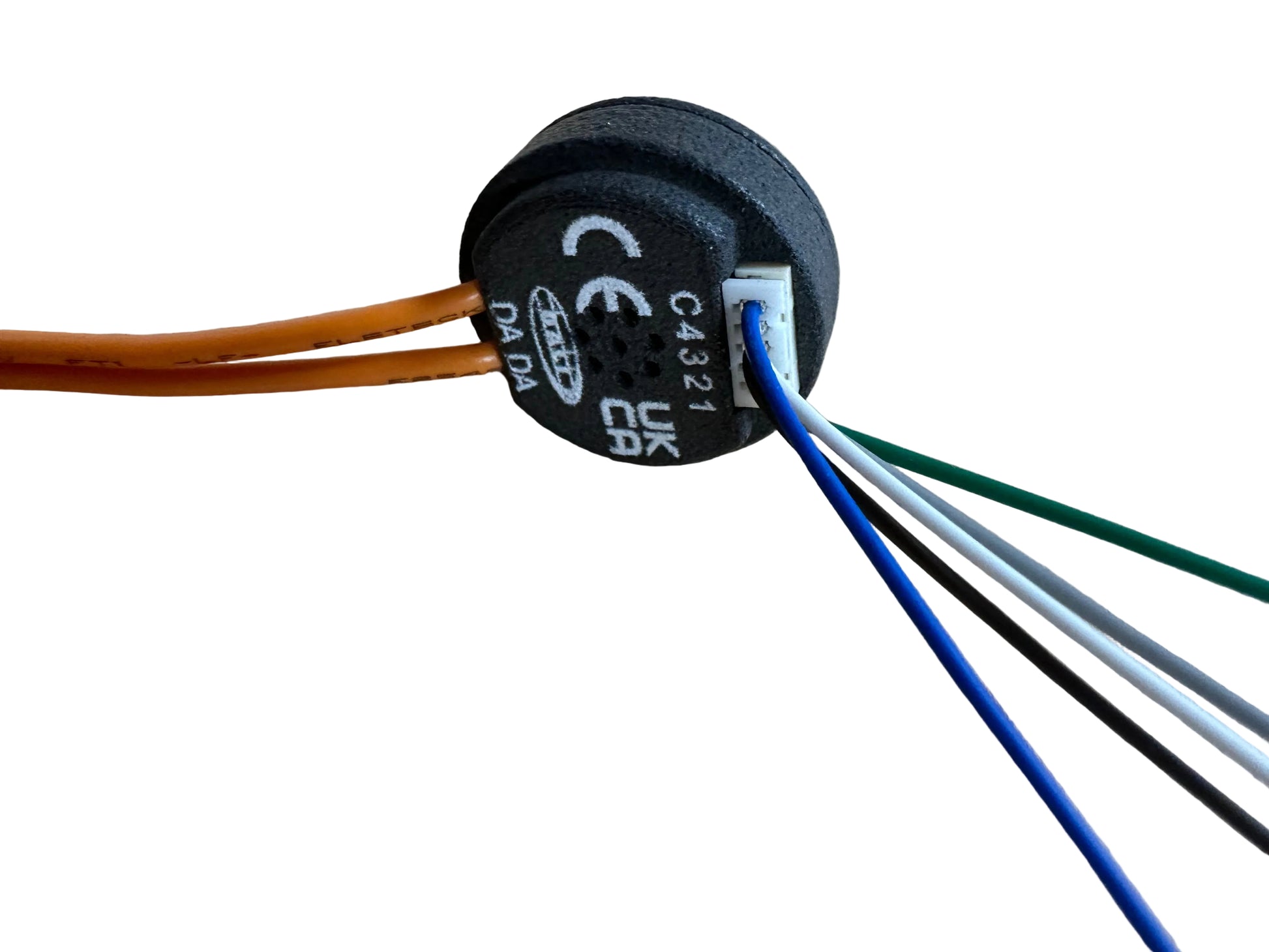

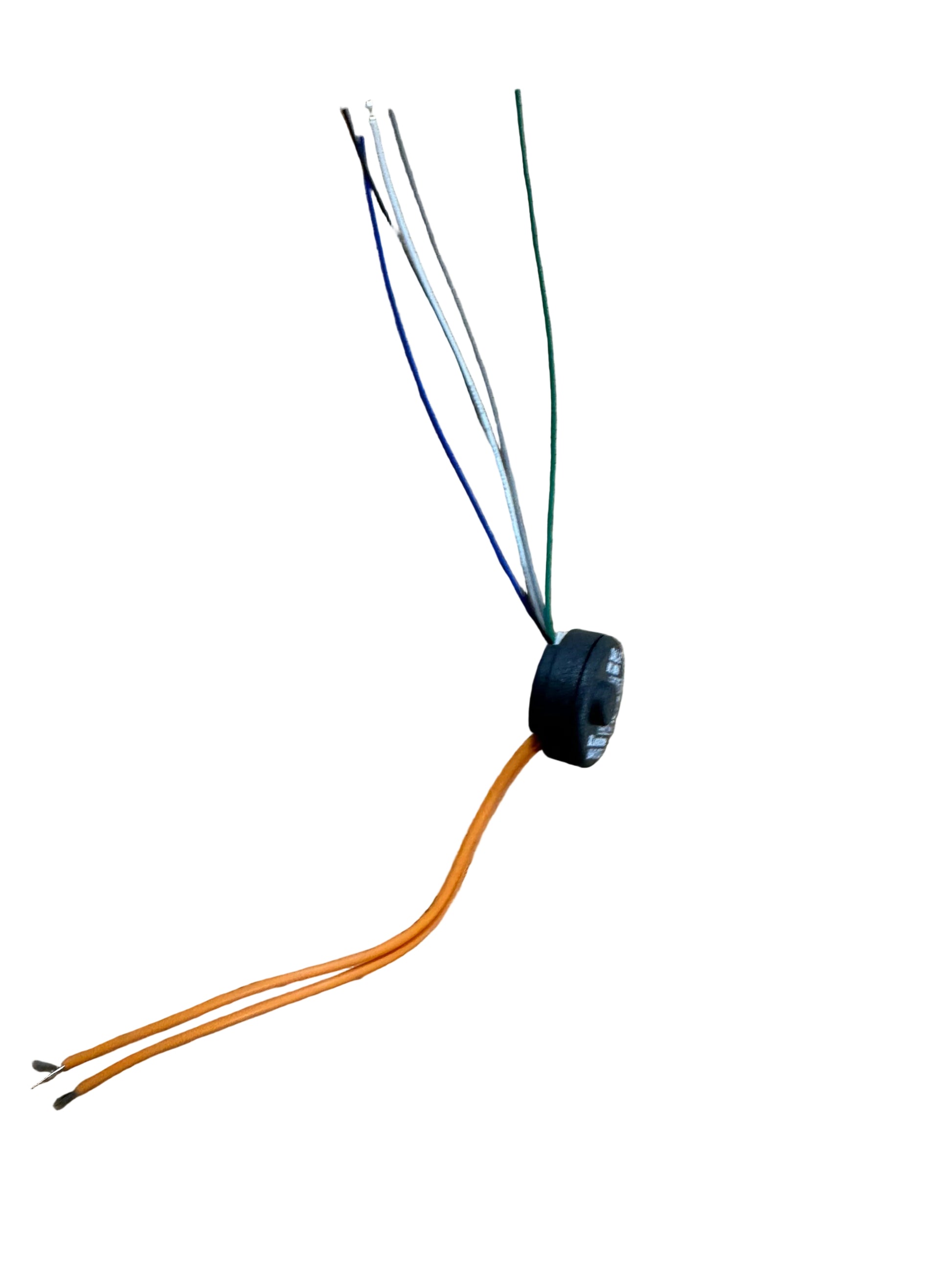

Lunatone DALI-2 MC Mini - 86451537
