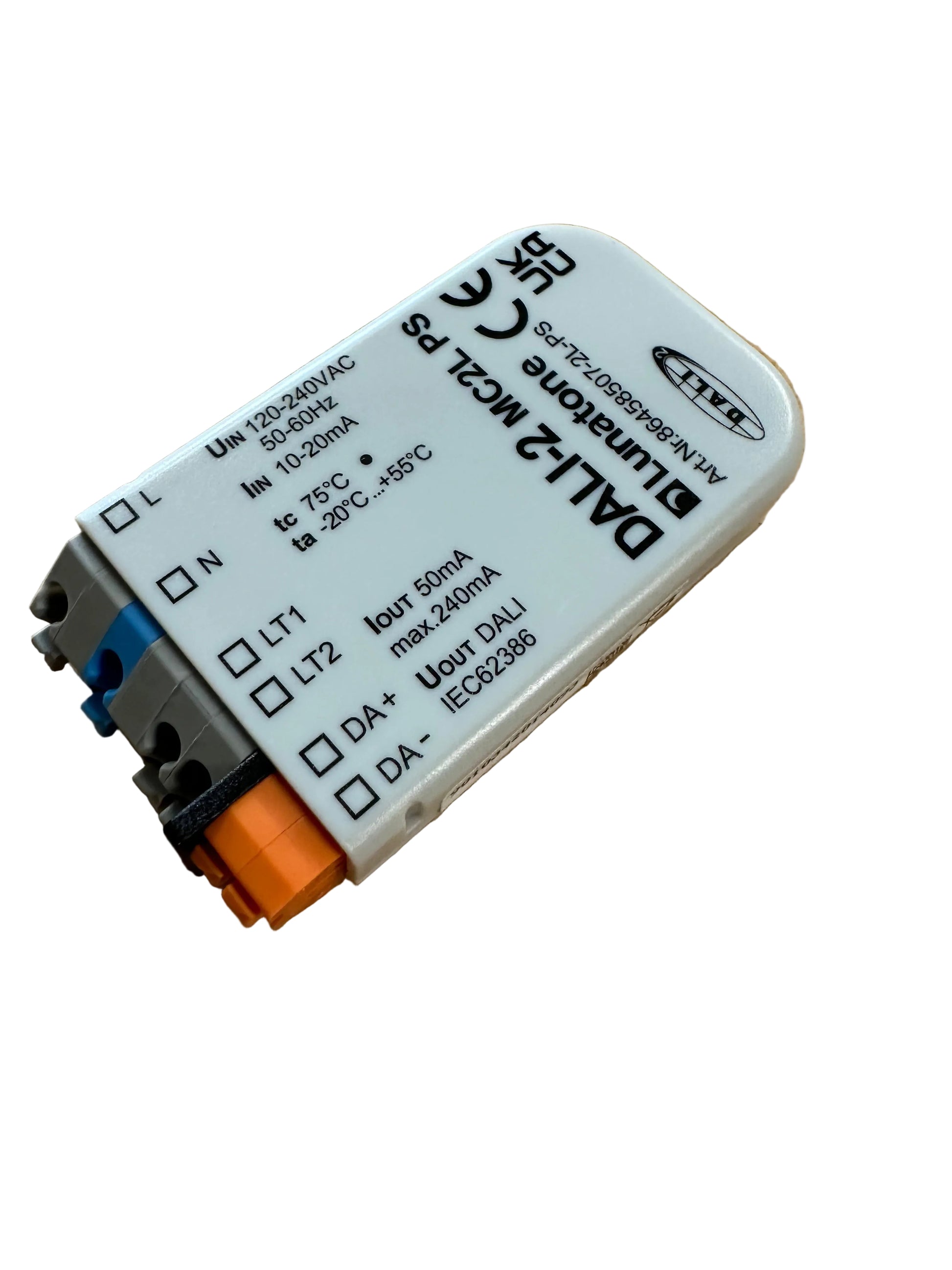

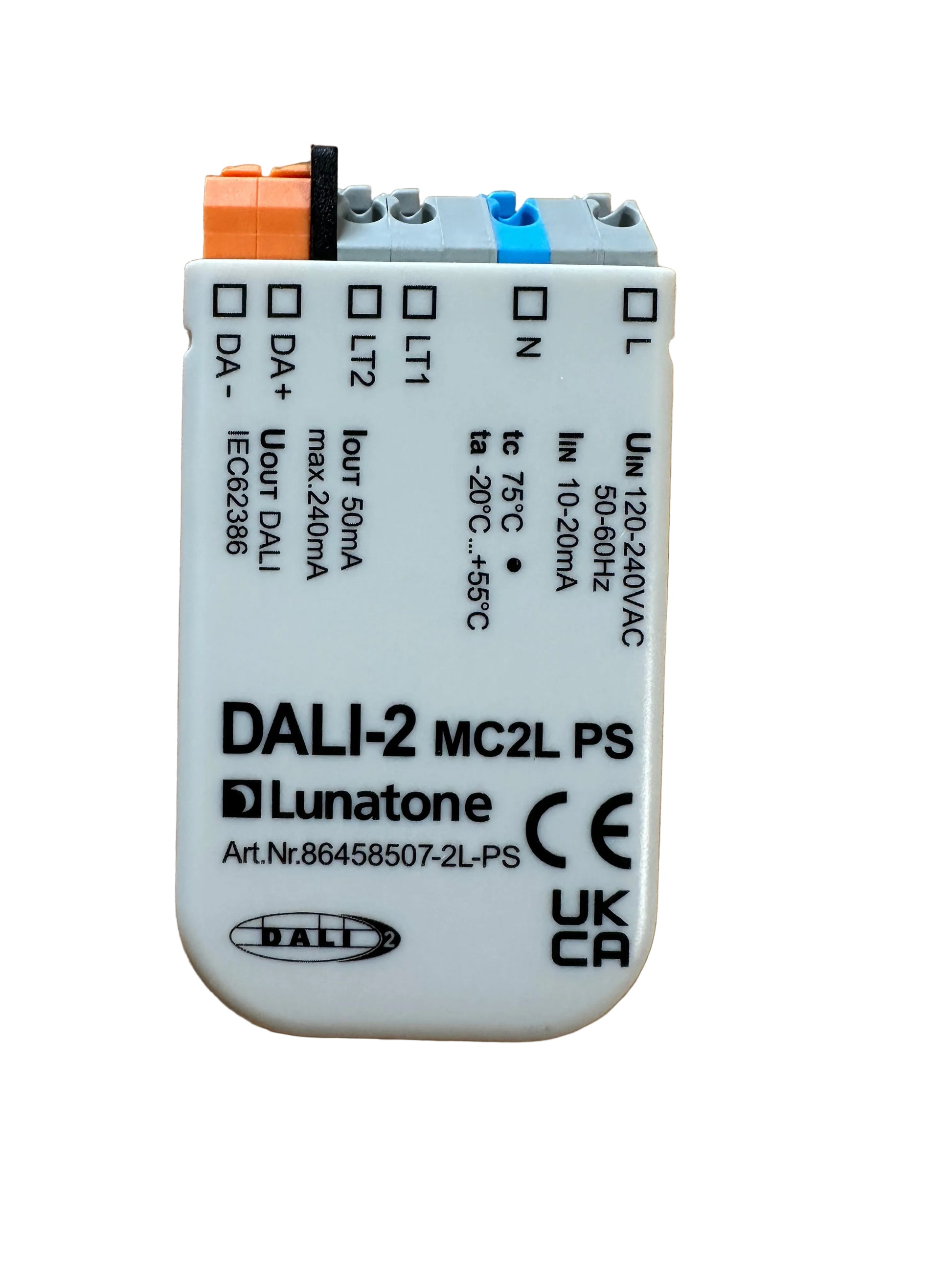

Lunatone DALI-2 MC2L PS - 8645807-2L-PS

Interface with 2, from the DALI bus galvanically isolated, inputs for mains voltage. Each input can be individually configured with target address, button behaviour and DALI commands. Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences as well as user defined command lists are supported.

Factory setting: the application controller is activated (can be set to instance mode with the DALI Cockpit PC Software)
The application controller also supports DALI DT8 TC and RGB (W) control. The device is designed to fit behind a switch in a flush-type installation box. The device has an integrated bus supply (50mA).
