Lunatone DALI-2 PD 300W

£119.80 GBP + VAT

£119.80 GBP

Sale Sold out

Shipping calculated at checkout.

Lunatone DALI-2 PD 300W

Lunatone 86458618-300 - 86458619-300 - 86458619-300U - 86458619-300U-HS

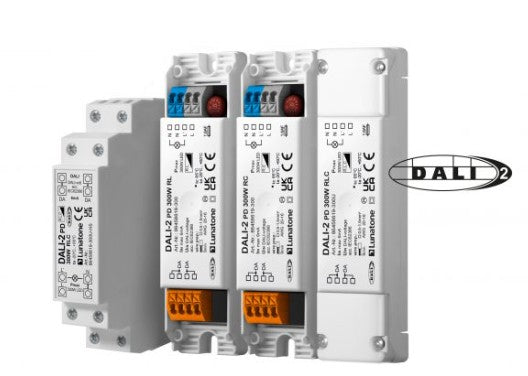

Phase dimmer with DALI input to control dimmable 230V luminaires in a DALI system. Available for leading edge, trailing edge or as universal device with automatic load detection. Available as compact 25W version or as 300W version. From Firmware 3.5 onwards an additional operating mode is supported: DALI controlled switching.

Technical Data

ambient temperature: -20°C to +60°C
protection class: IP20
connection wire cross section: max. 2.5mm²
mounting: remote ceiling / DIN rail

Electrical Data

supply: from DALI bus
current consumption: 6mA
input: DALI
number of DALI addresses: 1
mains voltage: 230V AC
trailing/leading edge phase angle: 0-180°
load range: 10-300W
max. output current: 1.45A eff AC

Function

device type: phase dimmer
configurable via DALI Cockpit: yes

Dimensions

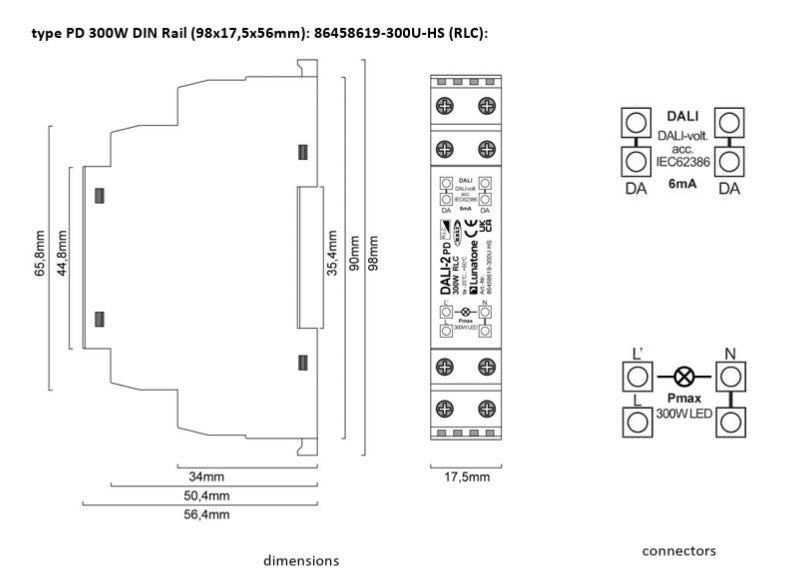

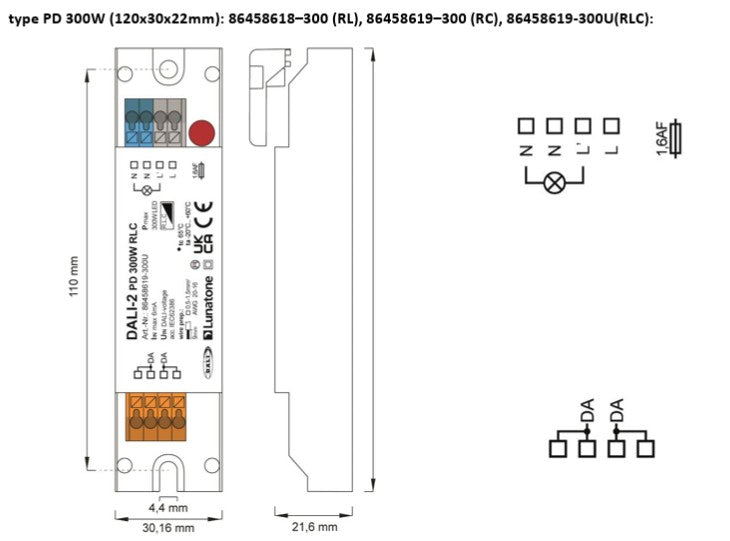

length: 120mm (rc) / 98mm (dr), width: 30mm (rc) / 17.5mm (dr), height 22mm (rc) / 56mm (dr)
colour: grey

Lunatone 86458618-300 - 86458619-300 - 86458619-300U - 86458619-300U-HS

Product features

Energy Saving, Compact Design

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
86458618-300 Leading Edge Dimmer86458618-300	86458618-300 Leading Edge Dimmer86458618-300 £119.80/ea	£0.00	Quantity	£119.80/ea	£0.00

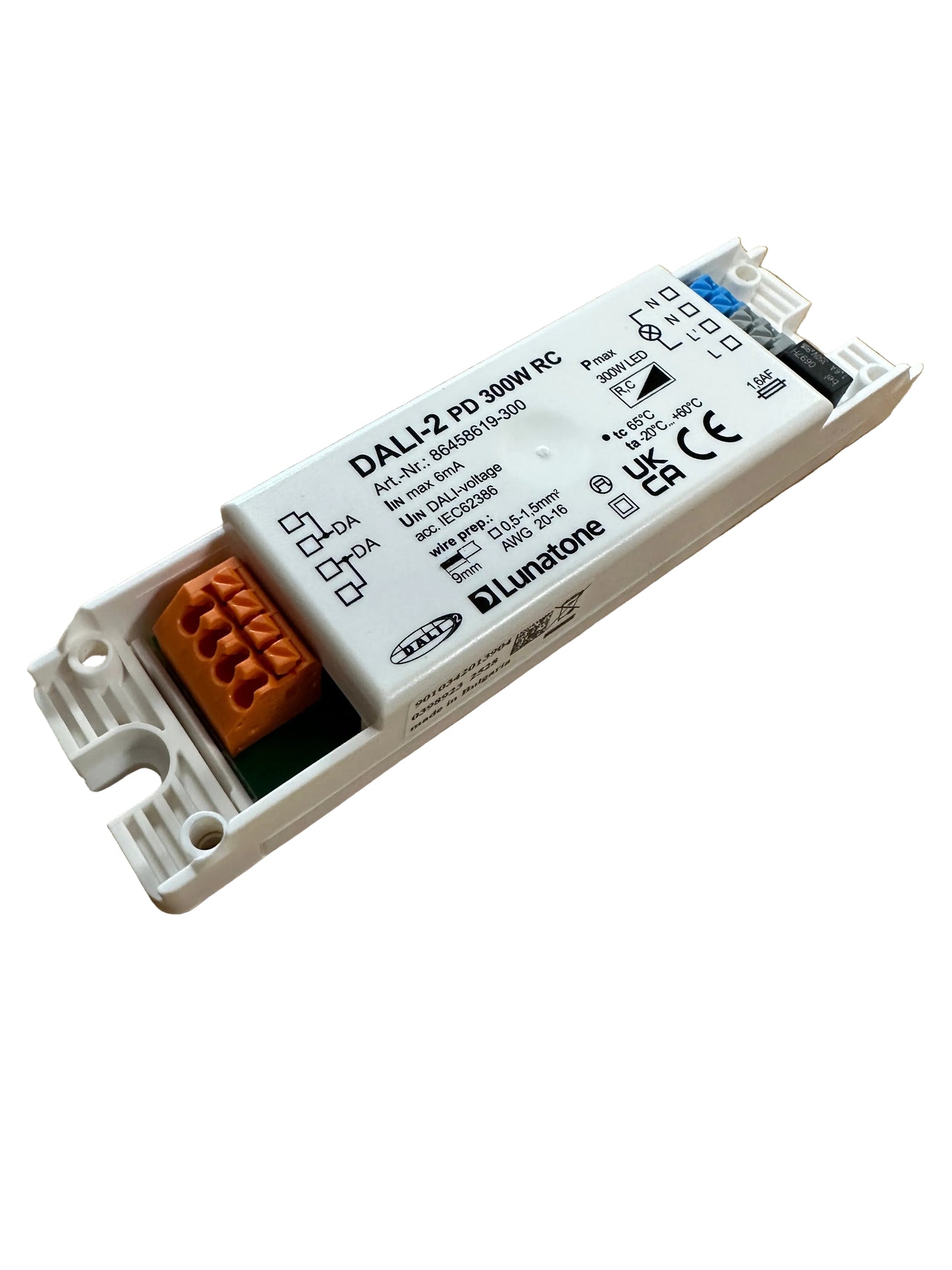

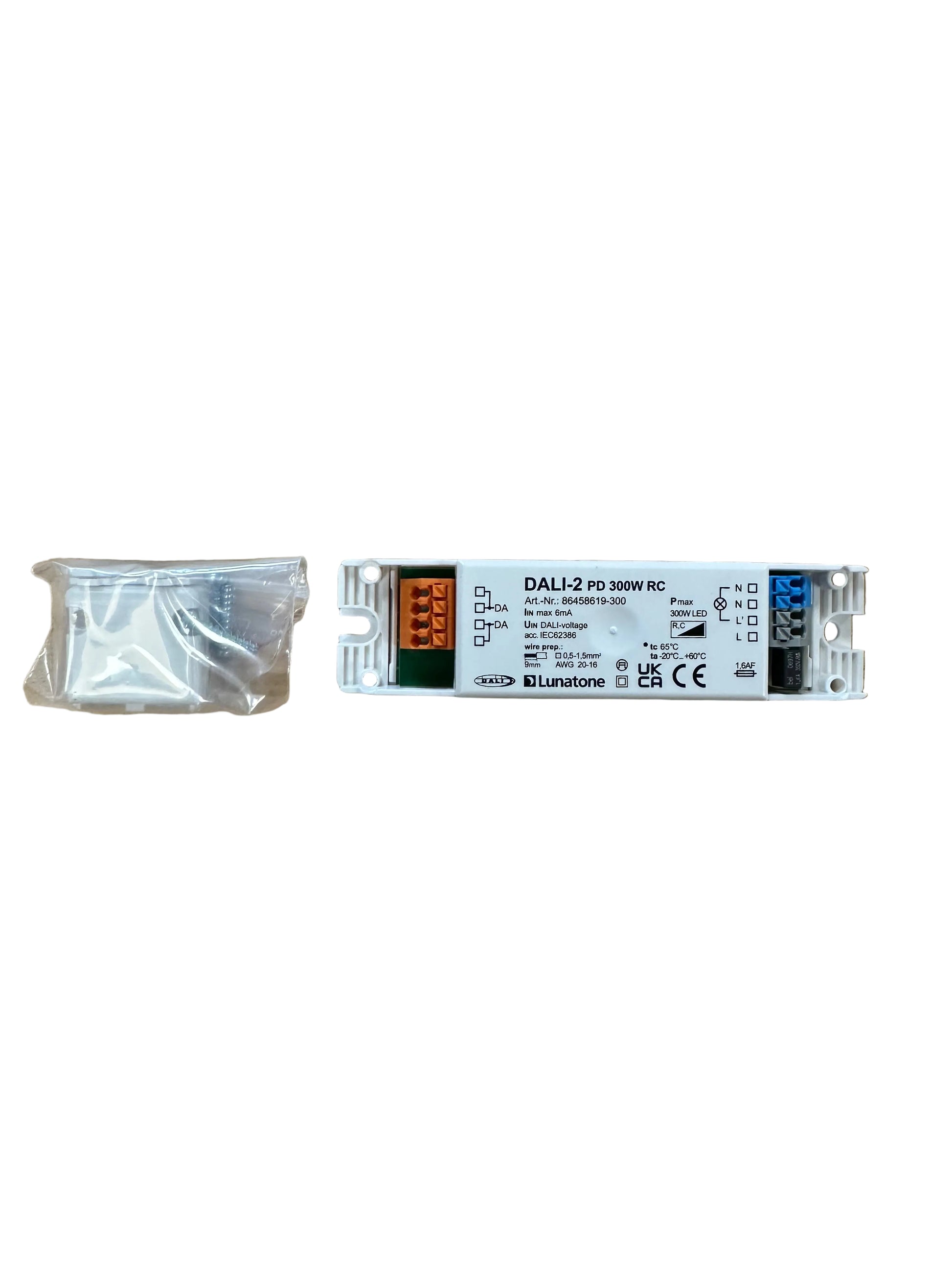

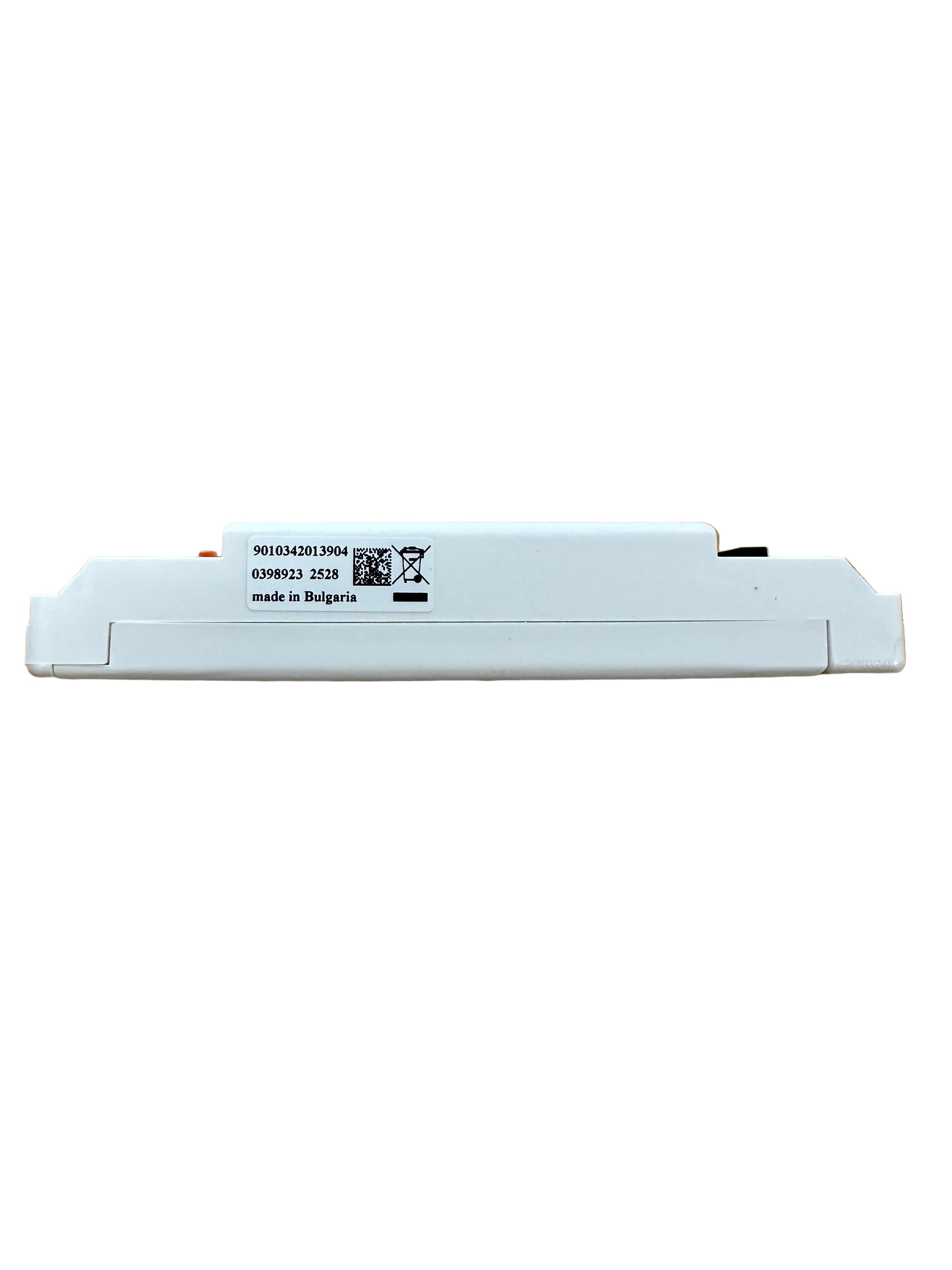

86458619-300 Trailing Edge DimmerUR15-S4 86458619-300	86458619-300 Trailing Edge DimmerUR15-S4 86458619-300 £119.80/ea	£0.00	Quantity	£119.80/ea	£0.00

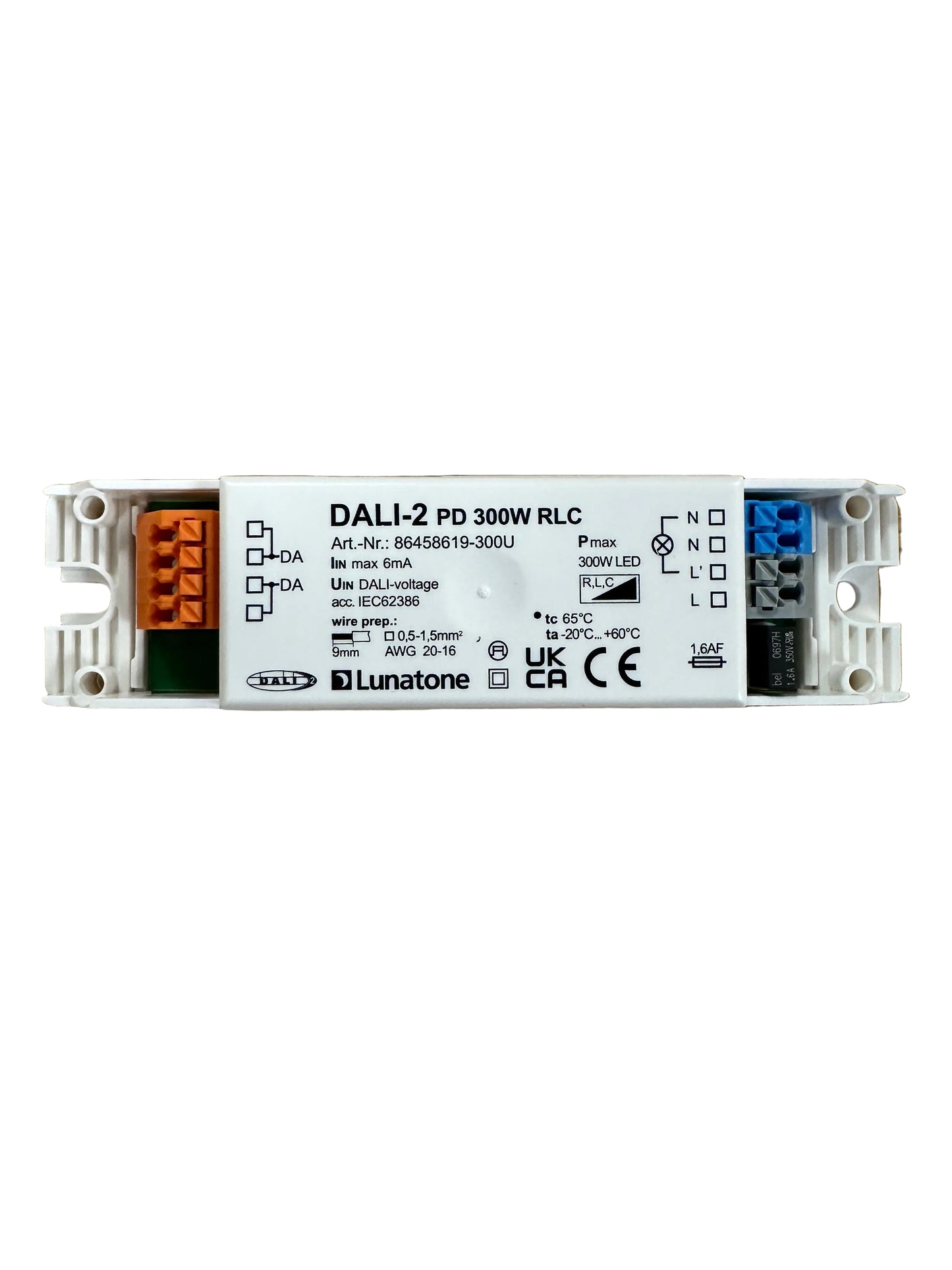

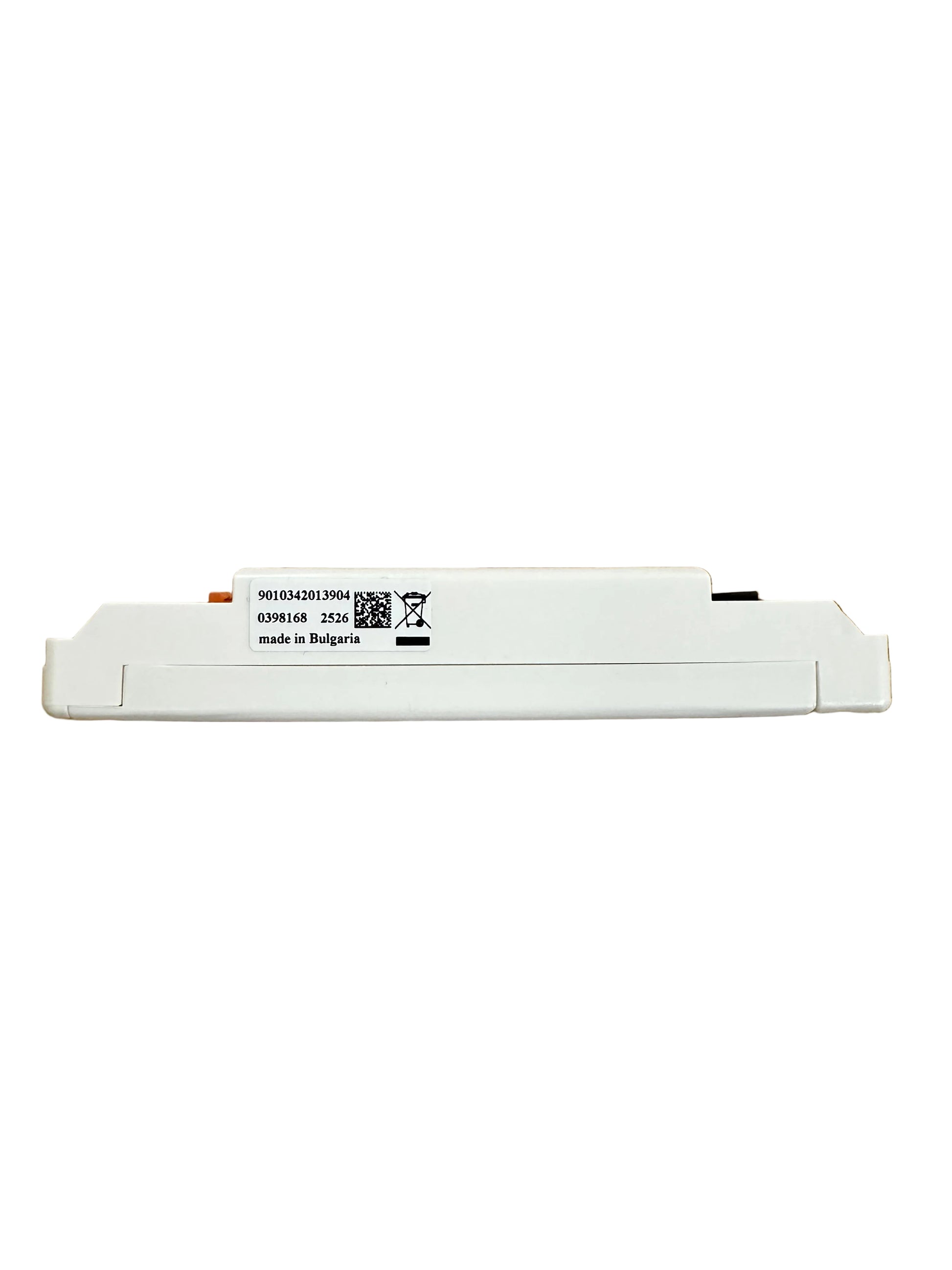

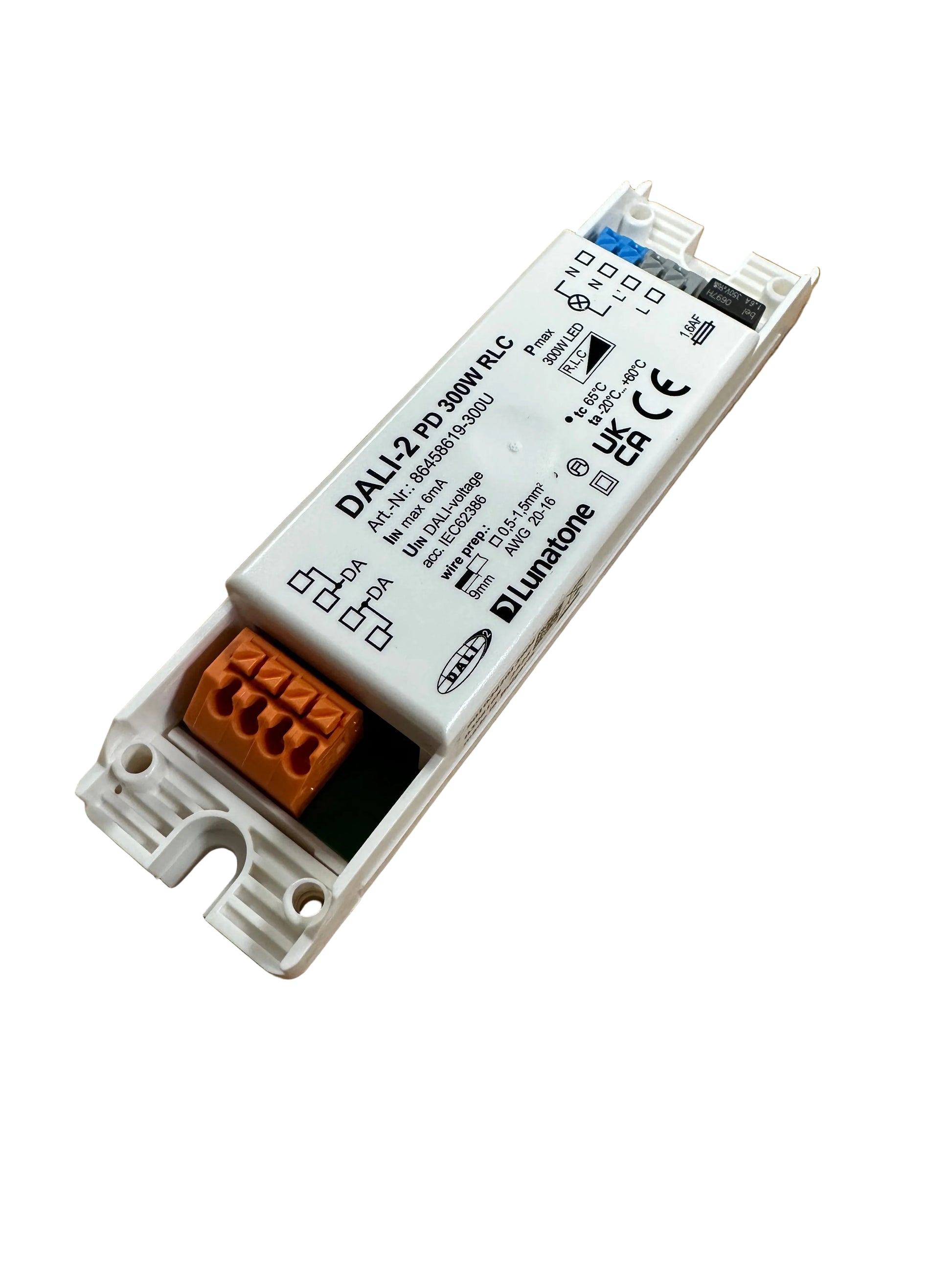

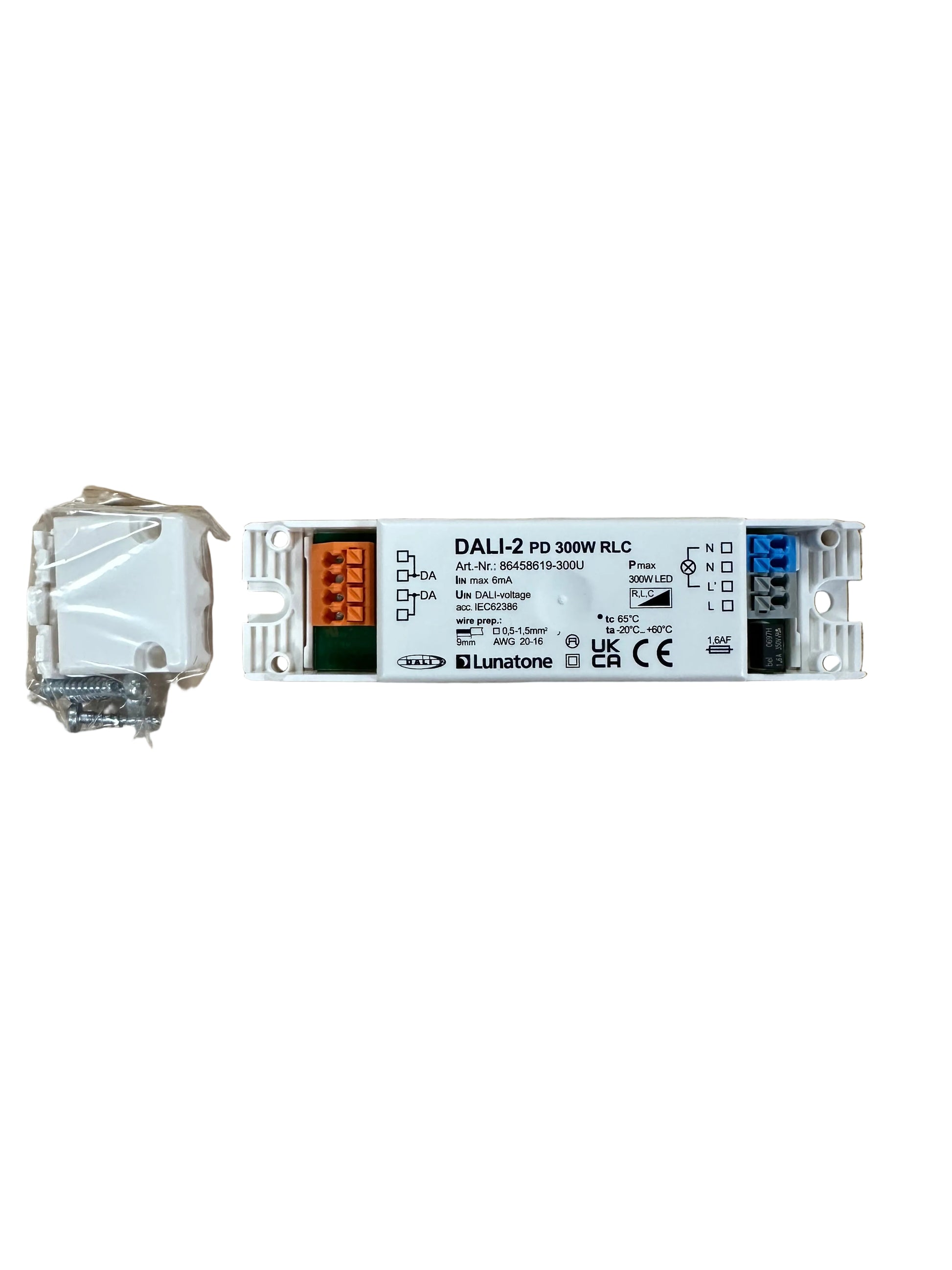

86458619-300U Universal DimmerUR14-S3 86458619-300U	86458619-300U Universal DimmerUR14-S3 86458619-300U £122.50/ea	£0.00	Quantity	£122.50/ea	£0.00

86458619-300U-HS Leading/Trailing Edge Dimmer DIN Rail86458619-300U-HS	86458619-300U-HS Leading/Trailing Edge Dimmer DIN Rail86458619-300U-HS £122.50/ea	£0.00	Quantity	£122.50/ea	£0.00
