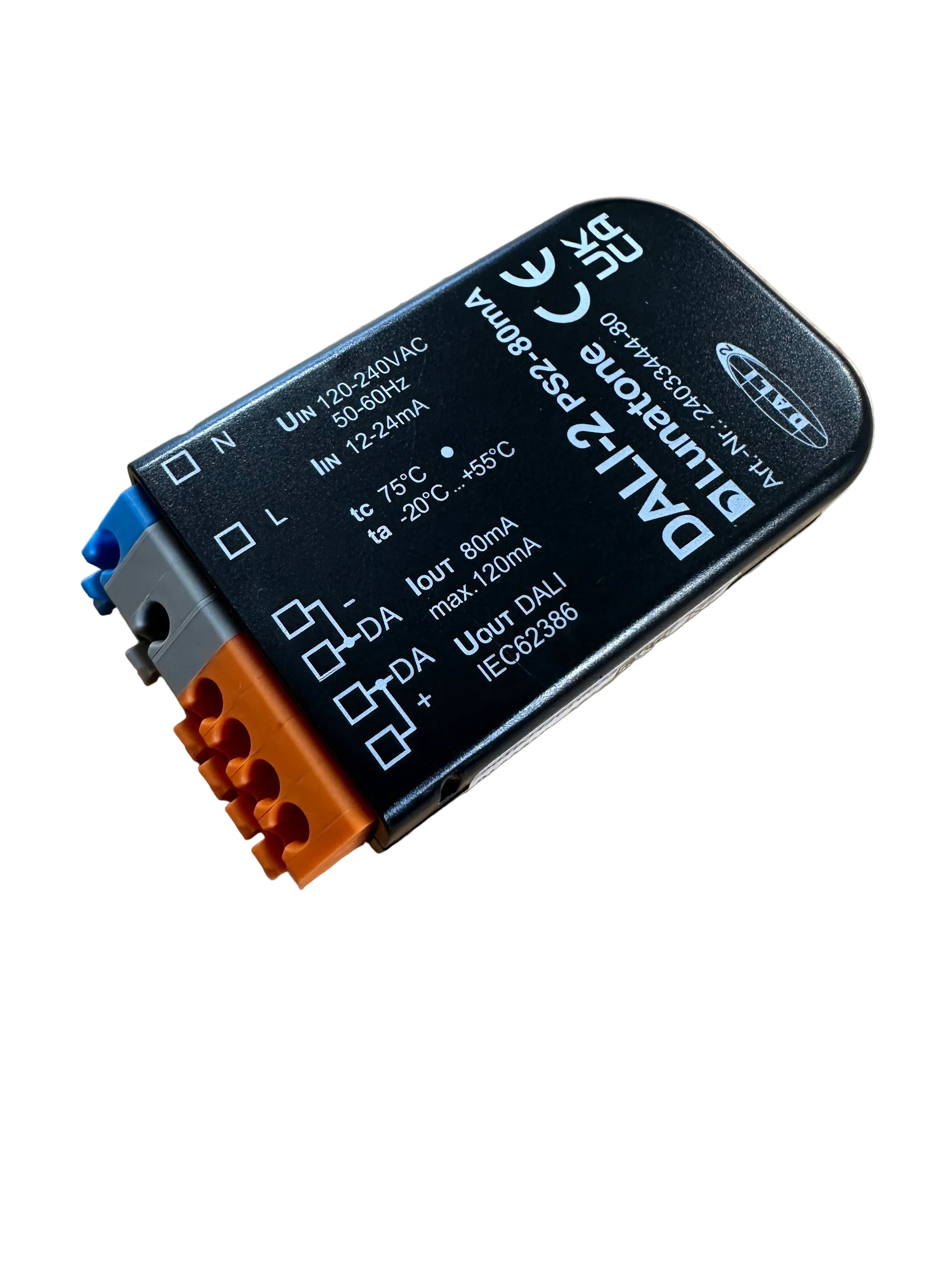

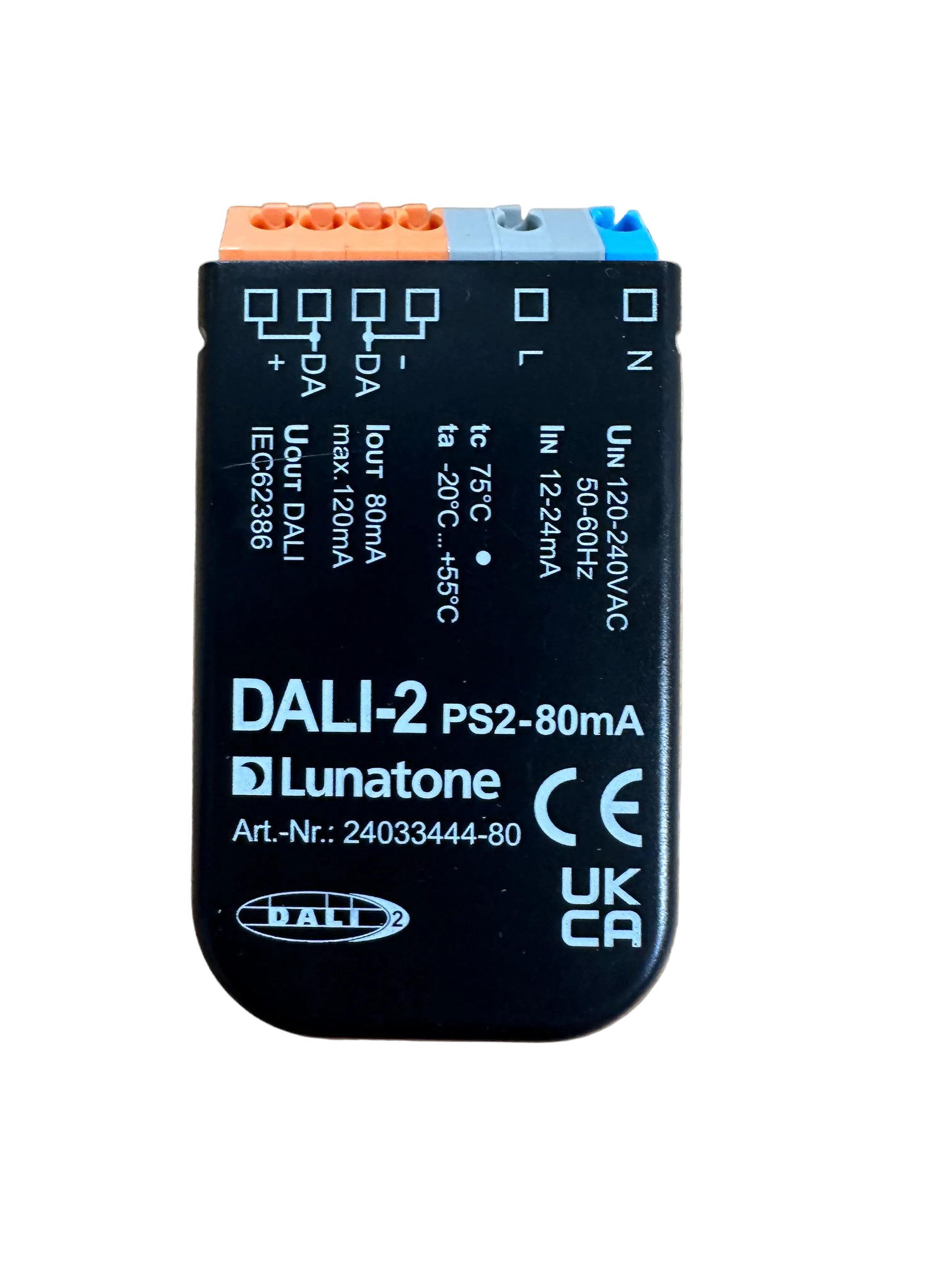

Lunatone DALI-2 PS1-80mA - 24033444-80
DALI PS2 30mA / DALI PS2 80mA serves as power supply for the DALI bus system. Voltage and current limitation according to standard as well as timing ensure a reliable bus communication. With the output current of up to 30mA or 80mA a small to medium-sized DALI installation can be supplied. Up to 15 or 40 addressable DALI devices and control modules (DALI Sensors, MC, Touch panel…)can be connected, up to an overall load of 30mA or 80mA. The device is suitable for installation in flush-mounted installation boxes.
Technical Data
- ambient temperature: -20°C to +55°C
- protection class: IP20
- connection wire cross section: max.1.5 mm²
- mounting: back box
Function
- device type: bus supply
Electrical Data
- input voltage range: 120Vac ... 240Vac 50/60Hz
- guaranteed output current: 80mA
- Rated power: 2W
- output: DALI

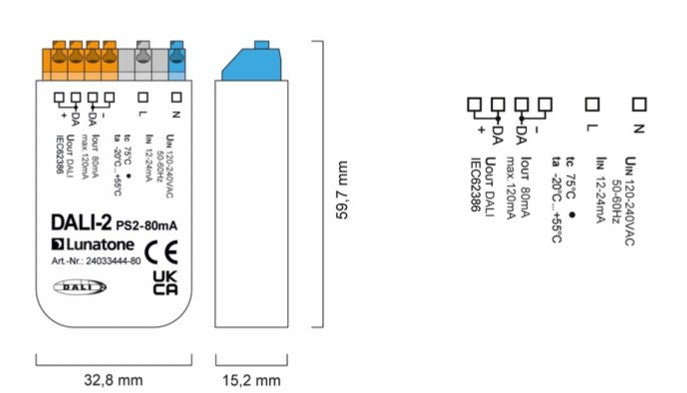

Dimensions
- length: 59mm
- width: 33mm
- height: 15mm
- colour: black
Product features
Product features
Energy Saving, Compact Design
