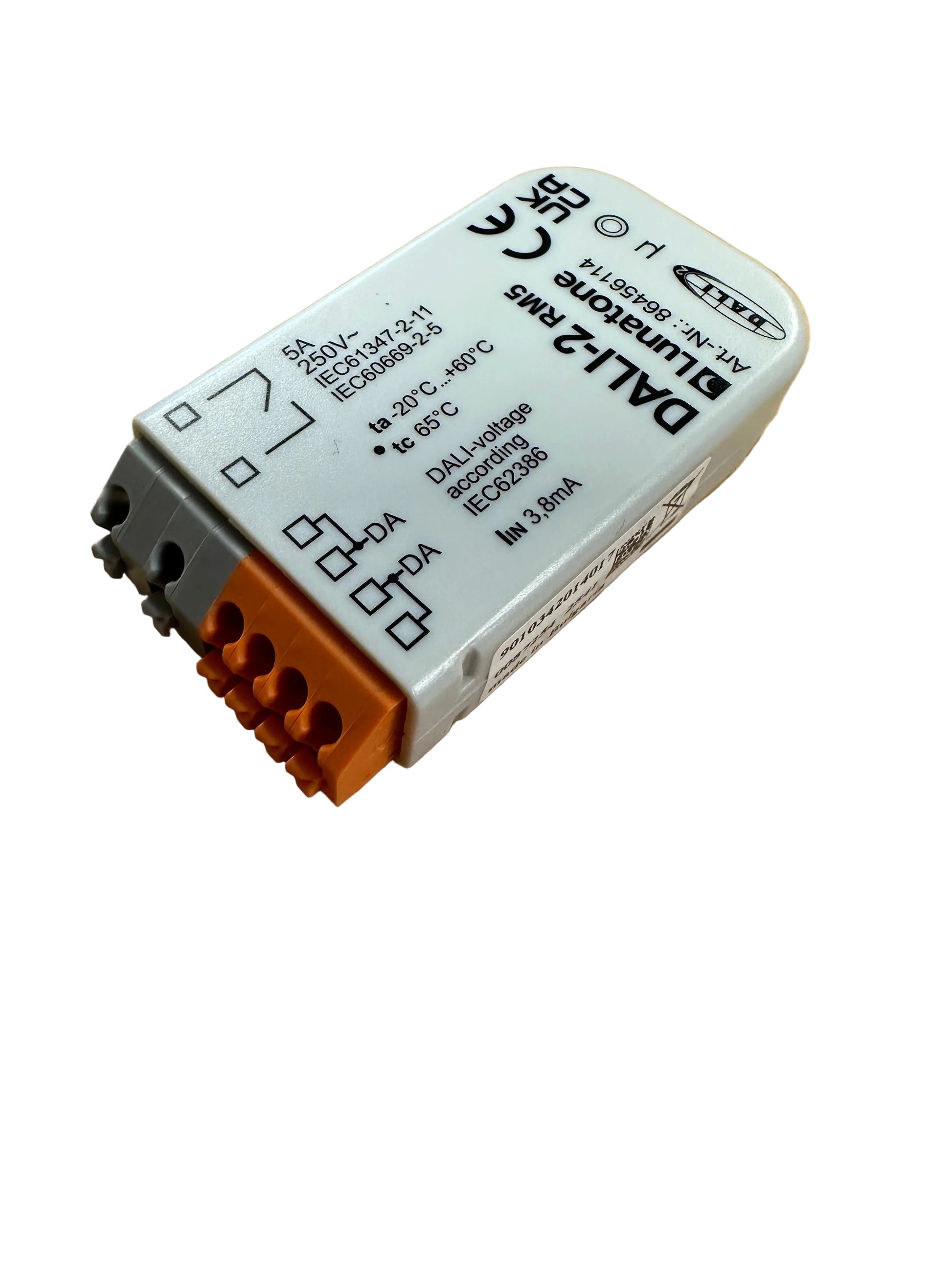

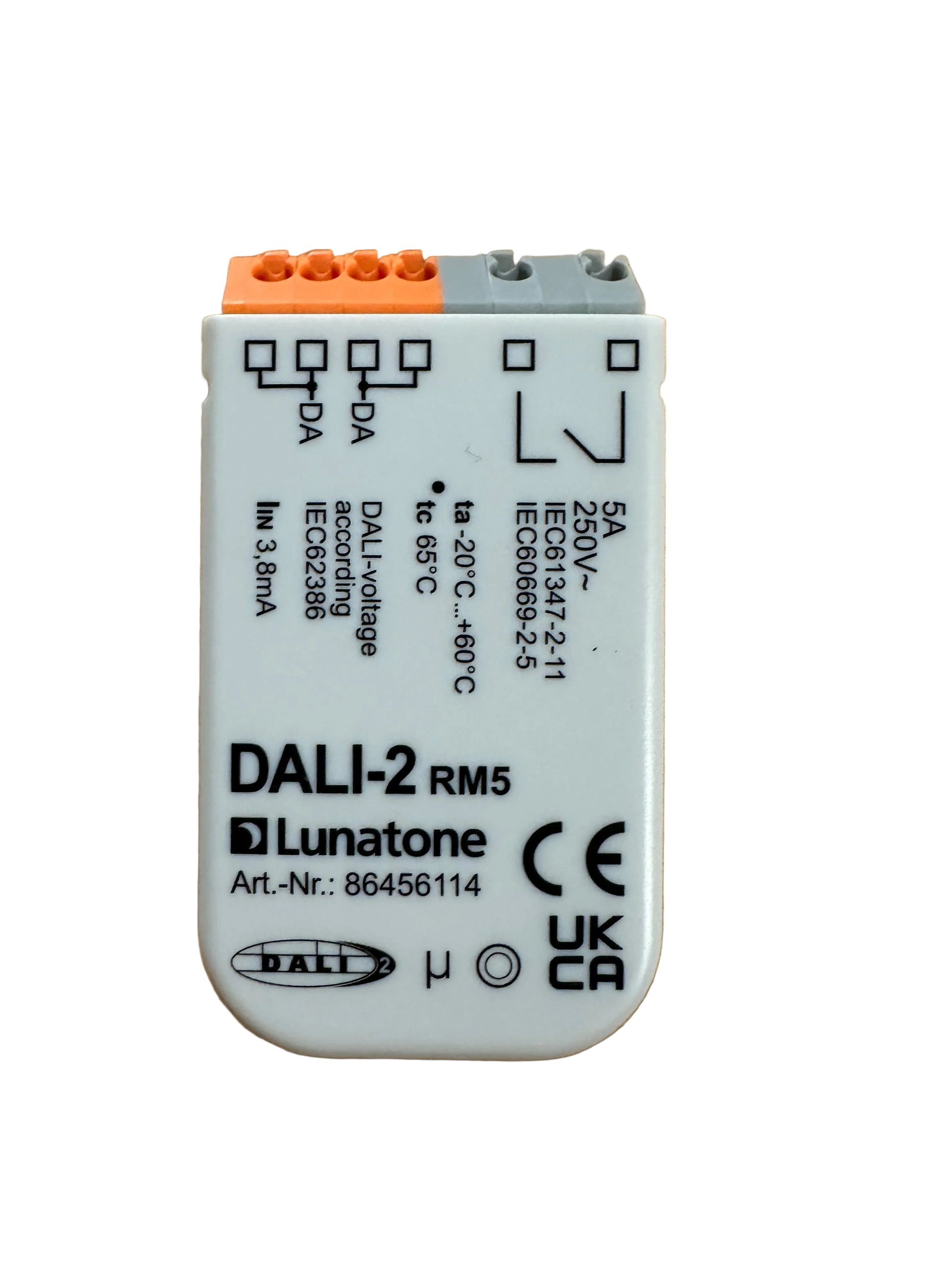

Lunatone DALI-2 RM5 - 86456114
The DALI-2 RM5 provides a relay contact that can be controlled via the DALI bus. In this way, loads without a DALI input can be easily integrated into a DALI circuit. Permanent loads up to 2kW can be switched via DALI commands. The purposeful switching in voltage zero crossings, enables an increase of the device lifetime. Power-up mode and system-failure settings can be configured using the DALI Cockpit PC Software. Zero cross switching 1 normally open.
The product range of RM8 and RM16 also includes versions with integrated in-rush current limitation, various housing designs and variations with make contact or changeover contact
Technical Data
- ambient temperature: -20°C to +60°C
- protection class: IP20
- connecting wire cross section: 1.5mm²
- mounting: back box
Function
- device type: DALI switching actuator
- configurable via DALI Cockpit: yes
Electrical Data
- supply:from DALI bus
- typ. current consumption DALI: 3.8mA
- Input: DALI
- relay output switch on/off voltage:277V AC
- max. nominal load and circuit breaker: 1000VA and 6A max
- max. breaking current: 12A
- max. inrush current: 60A
- max. continuous current: 5A
- switching method: zero cross switching
- maximum switching frequency: 1Hz
- type of relay contact: 1 normally open
- switching operations at nominal load, resistive: >10^5

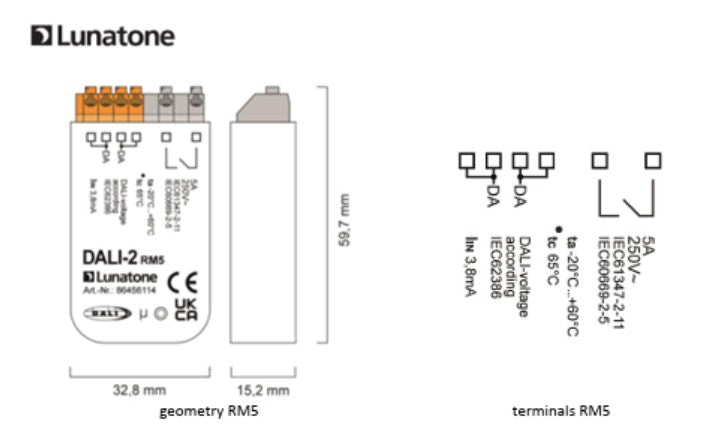

Dimensions
- length: 59mm
- width: 33mm
- height: 15mm
- colour: grey
Product features
Product features
Energy Saving, Compact Design
