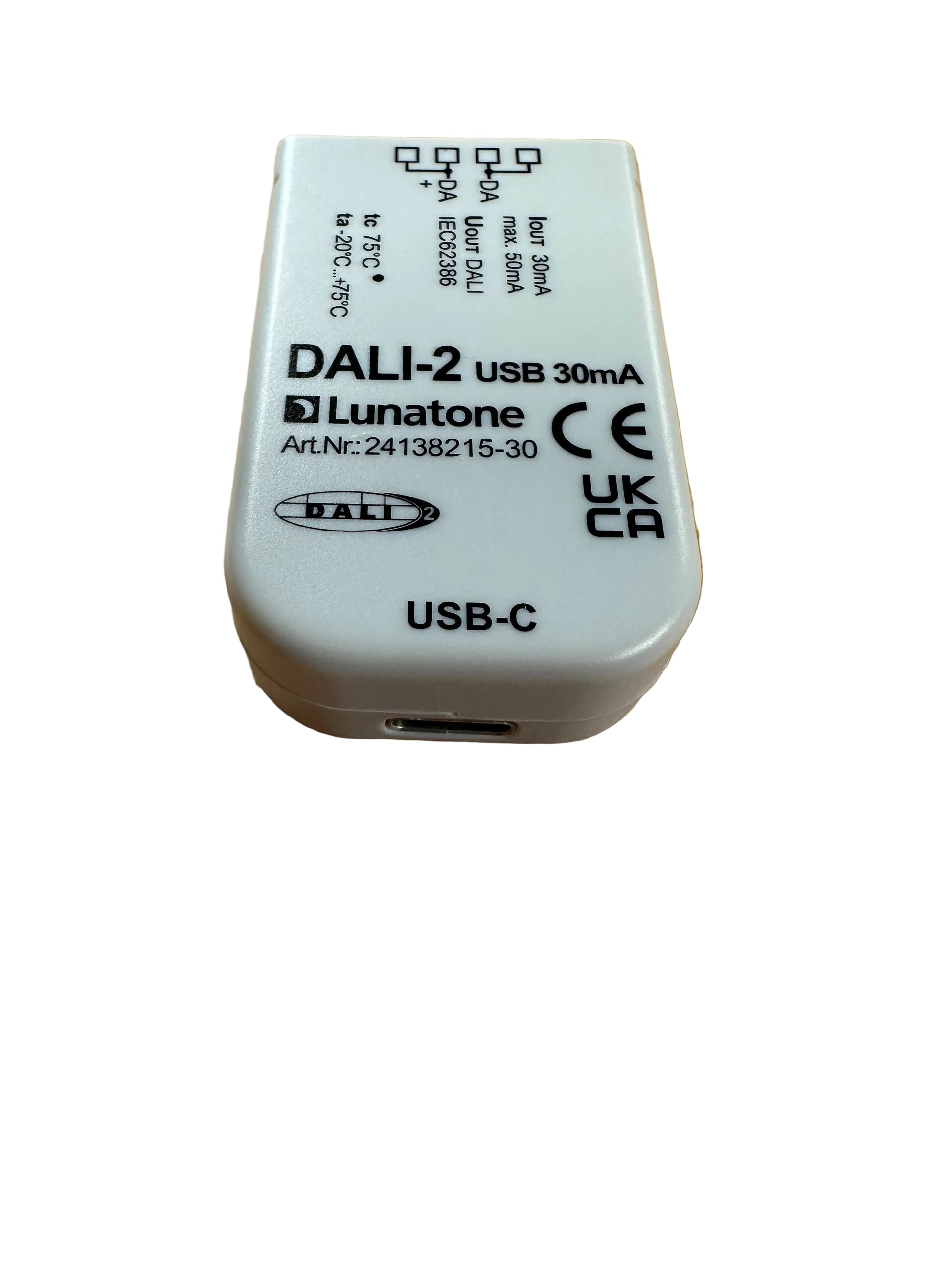

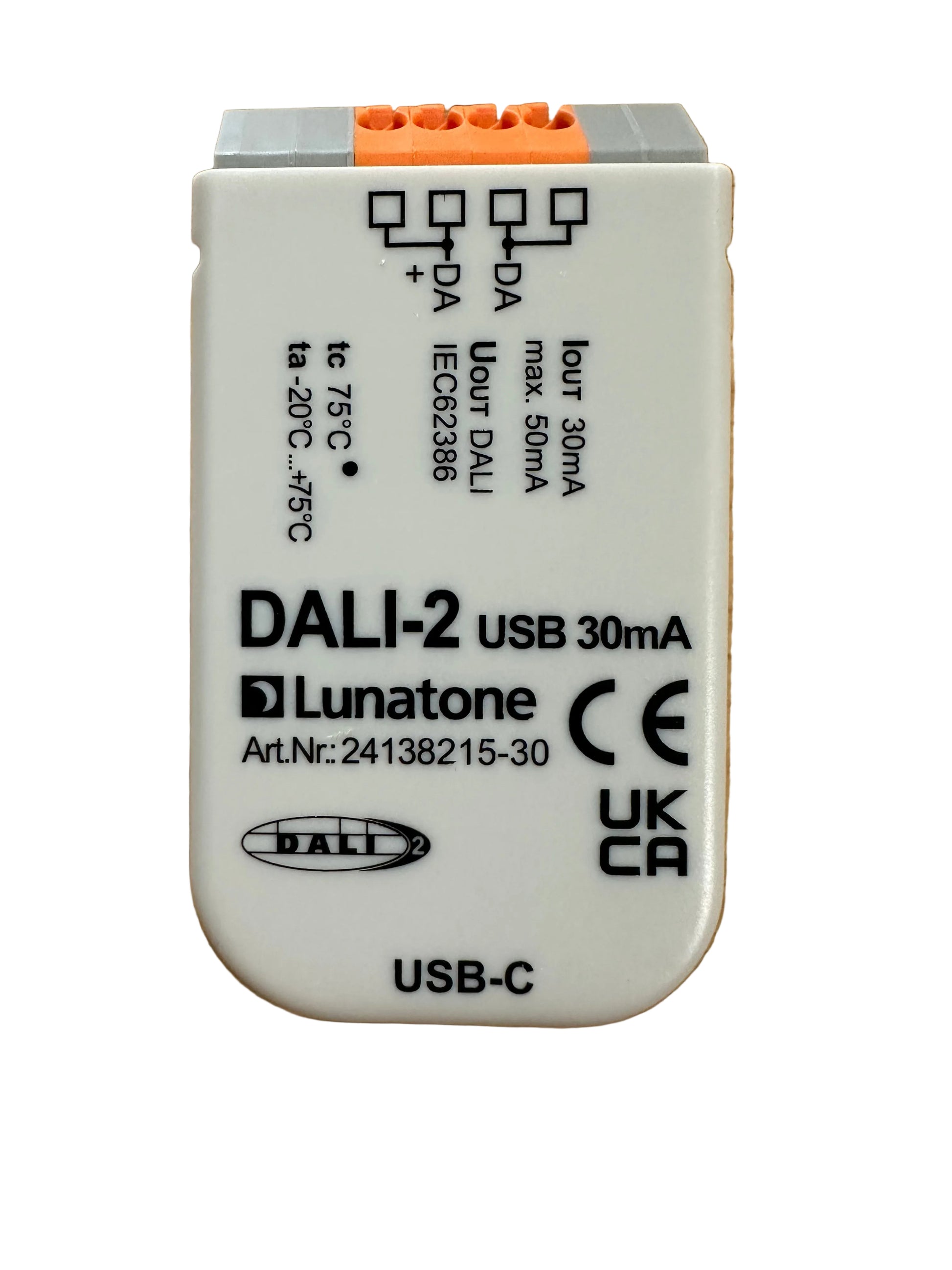

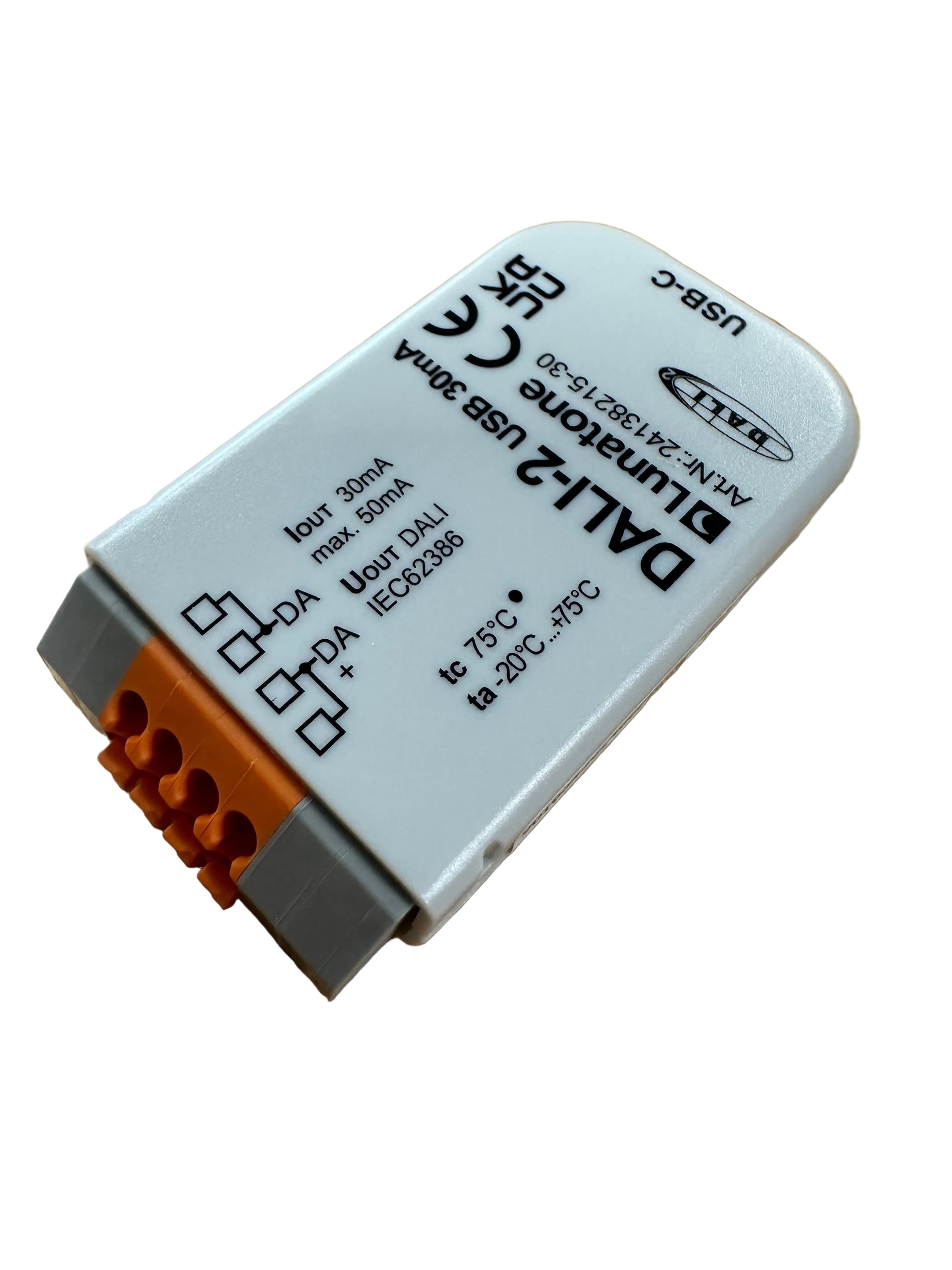

Lunatone DALI-2 USB 30mA - 24138215-30
Lunatone DALI-2 USB 30mA - 24138215-30
Regular price
£275.50 GBP + VAT
Regular price
Sale price
£275.50 GBP
Shipping calculated at checkout.
Lunatone DALI-2 USB 30mA - 24138215-30
The DALI-2 USB is used as interface between the DALI Cockpit PC Software and the devices on the DALI bus. It enables the addressing and configuration of DALI installations. Standard DALI protocol, DALI-2 protocol and various extended DALI protocols are supported. Compact device with integrated 30mA bus power supply.
Technical Data
- ambient temperature: -20°C bis +75°C
- protection degree housing / terminals: IP40 / IP20
- mounting: Installation box, integration in class II devices
Electrical Data
- USB Connection: USB C
- typ. current consumption USB: 40mA
- DALI Connection: DA+, DA-
- DALI supply current (guaranteed /max): 30mA / 50mA
Function
- device type: interface
- versions: compact housing with integrated bus power supply (30mA)

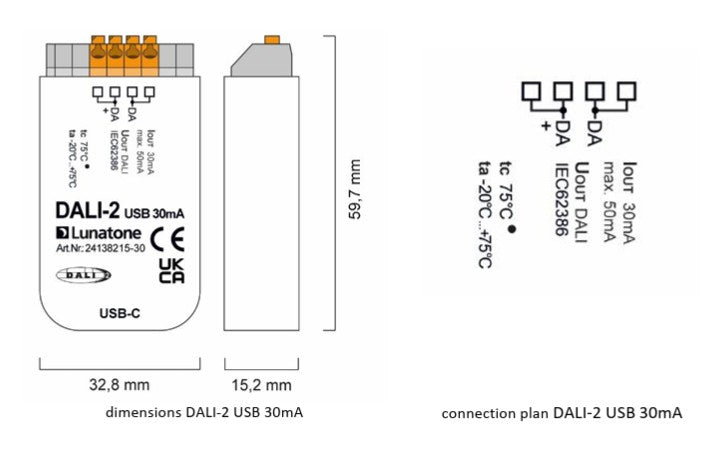

Dimensions
- compact housing: 59mmx33mmx15mm
- colour: grey
- connection type: spring terminal connector

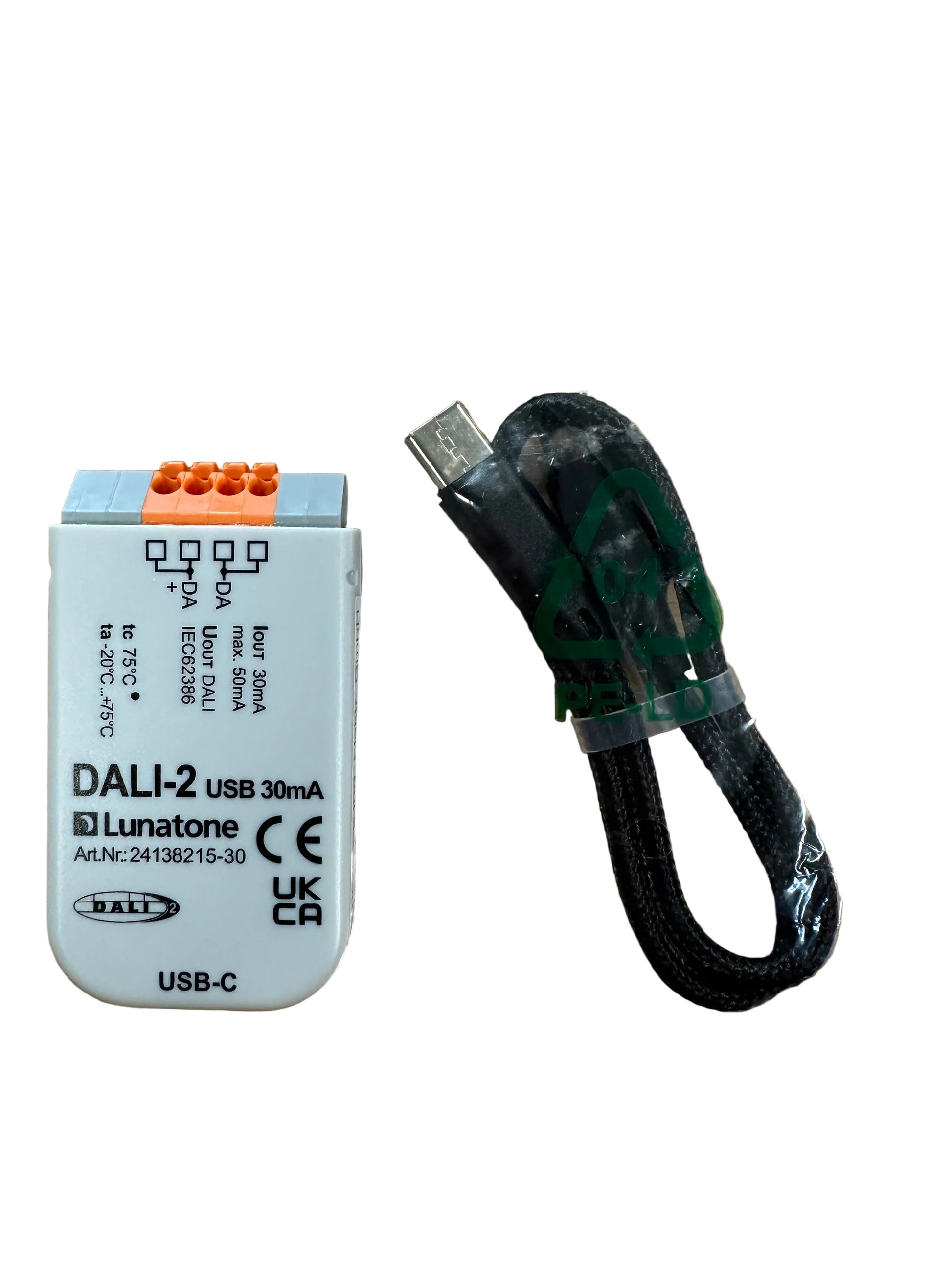

- USB connector & included USB cable: USB C – USB C
Lunatone DALI-2 USB 30mA - 24138215-30
Product features
Product features
Energy Saving, Compact Design
