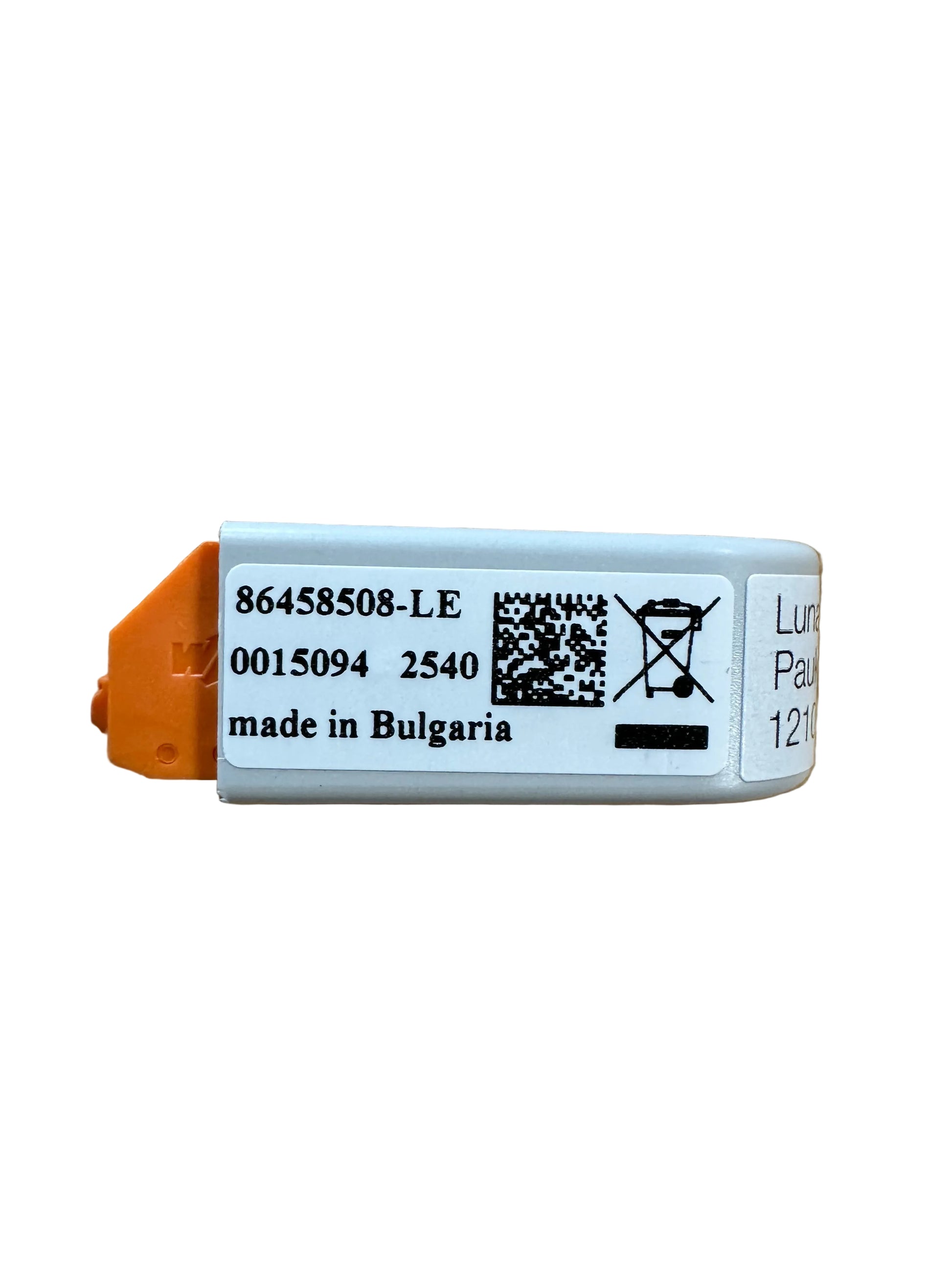

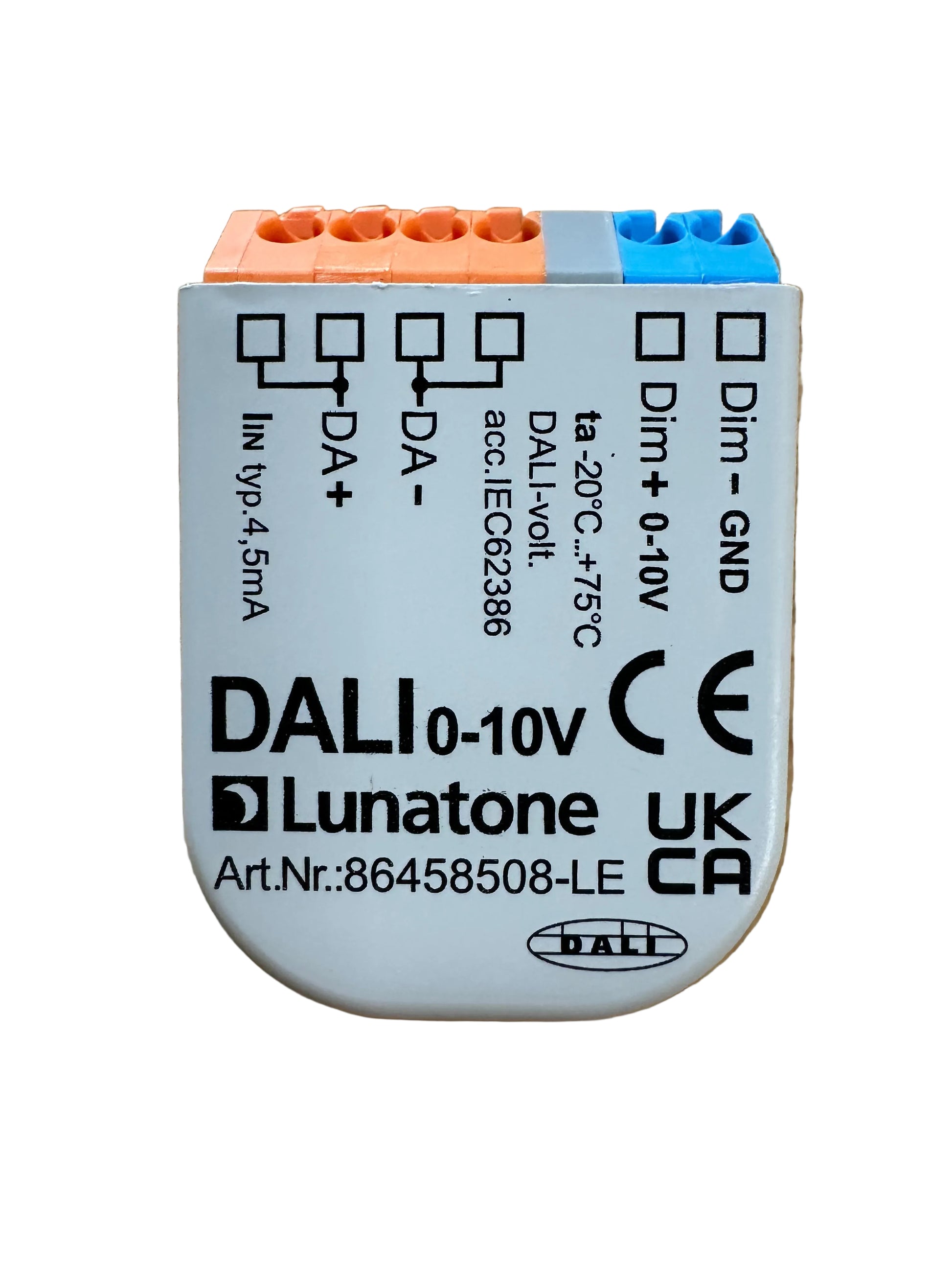

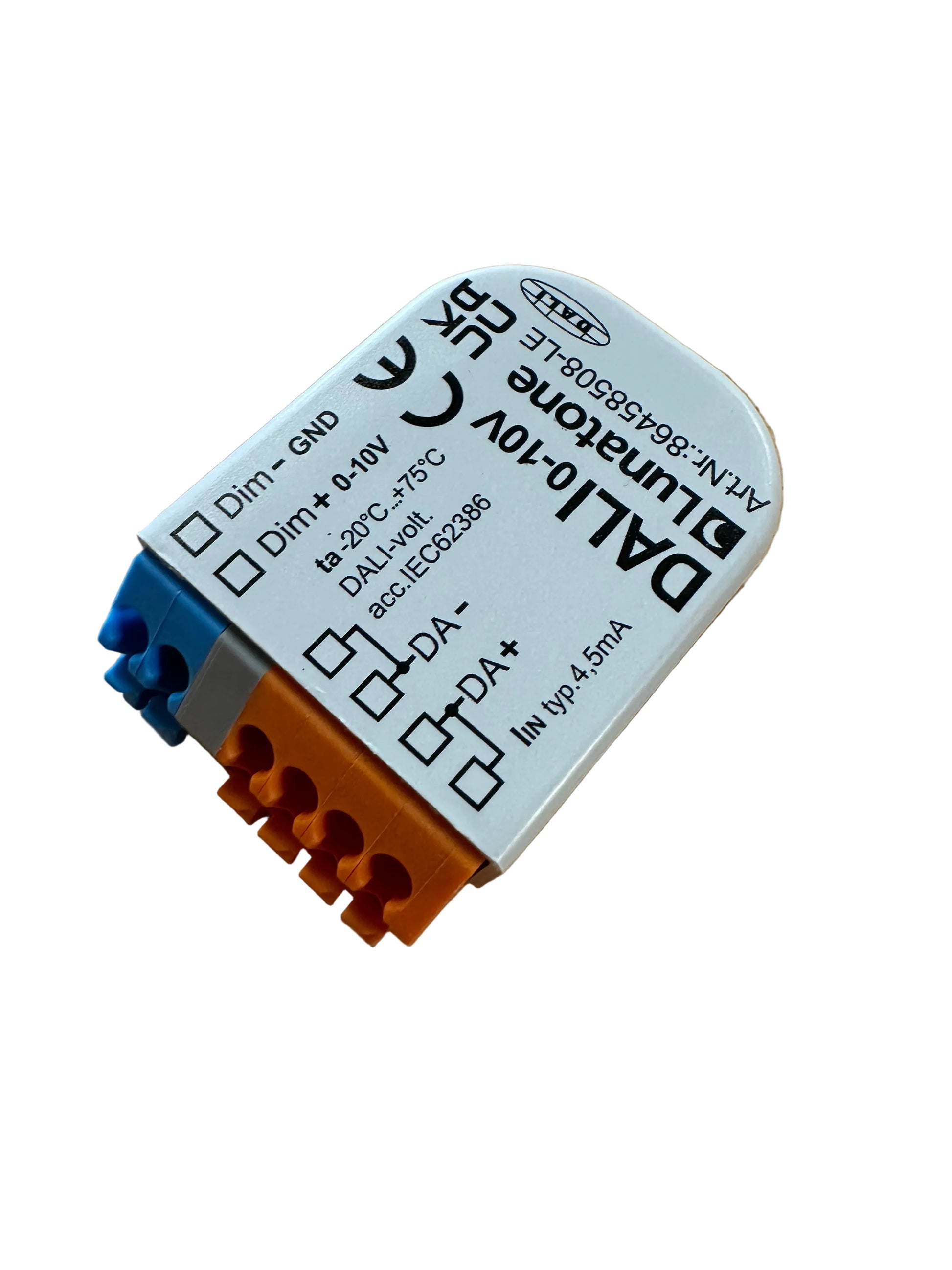

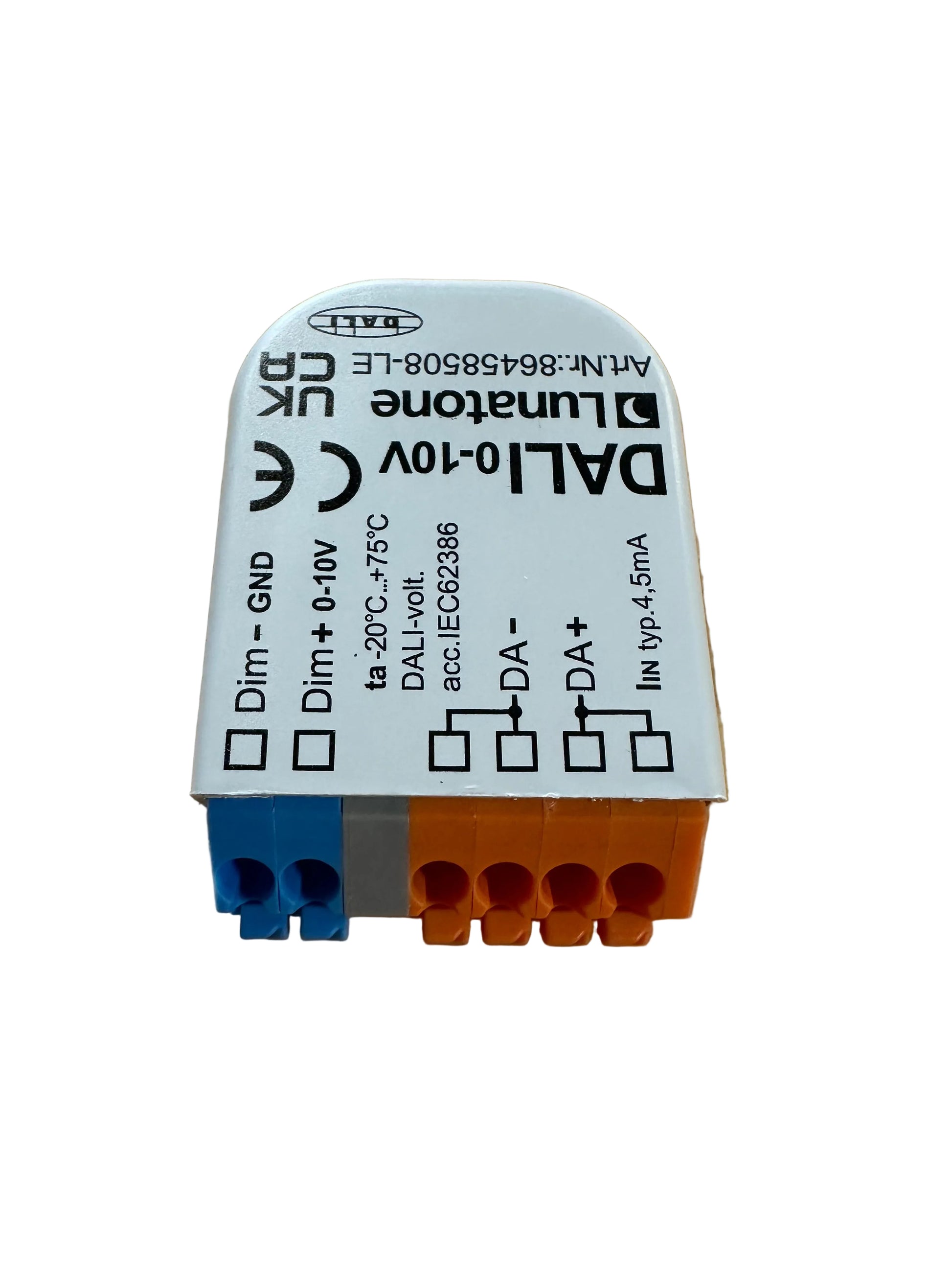

Lunatone DALI to 0-10V Interface - 86458508-LE

Lunatone DALI to 0-10V Interface - 86458508-LE

This interface converts DALI signals to an analogue 0-10V signal, thus enables the integration of operating devices with an electrically isolated 1-10V control input into a DALI system. DALI Device Type 5 (IEC62386-206) compatible: linear or logarithmic dimming curve, 0-10V or 1-10V output range.

• module converting DALI dimming commands into analogue 0-10V signal (DALI DT5)

• the module is especially designed to operate with drivers with electrically isolated 0-10V control input active or passive (e.g. OSRAM 981677 Optotronic OT 80/220-240/24 DIM P and OSRAM 981714 Optotronic OT240/220-240/24 DIM P)

• transformation of DALI 8-Bit arc power level into analogue output signal from 0V to 10V

• selection of linear or logarithmic dimming curve (DT5)

• output range selectable between 0-10V or 1-10V (DT5)

• manufacturer specific mode for customized output range (modules with firmware 2.0 and higher)

• maximum output current of 1mA (current sink)

• The DALI must not be connected to the mains. It is supplied directly by the DALI signal line.

• The DALI 0-10V has its own address and can be assigned to DALI groups and scenes

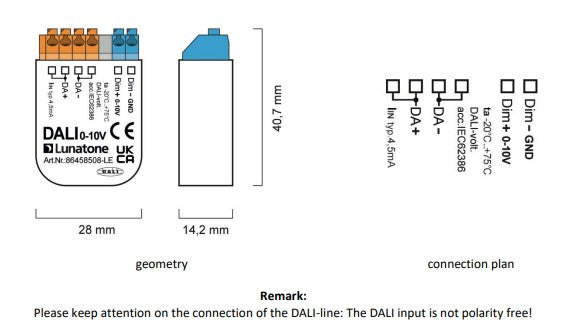

• DALI signal line is connected through
