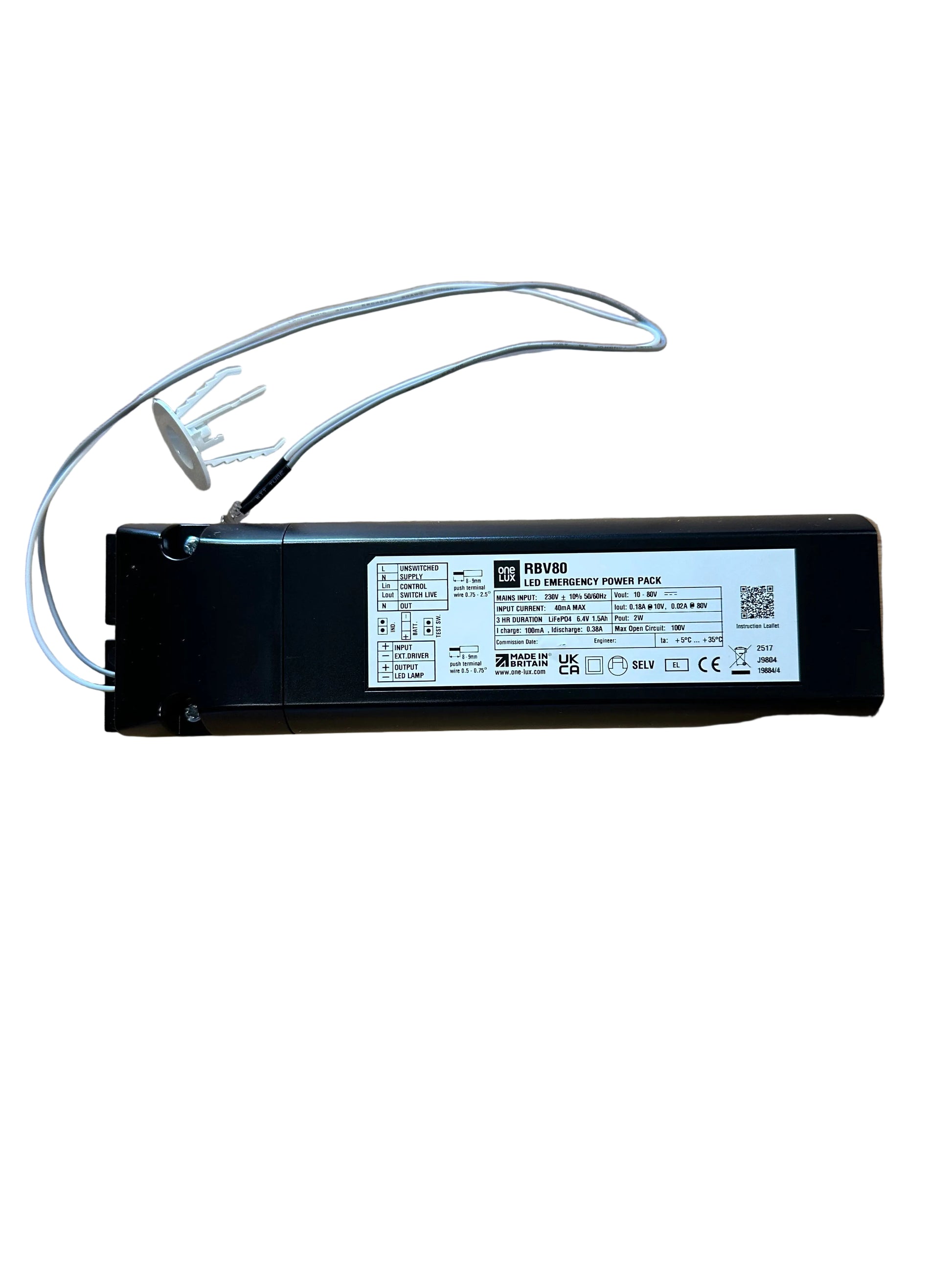

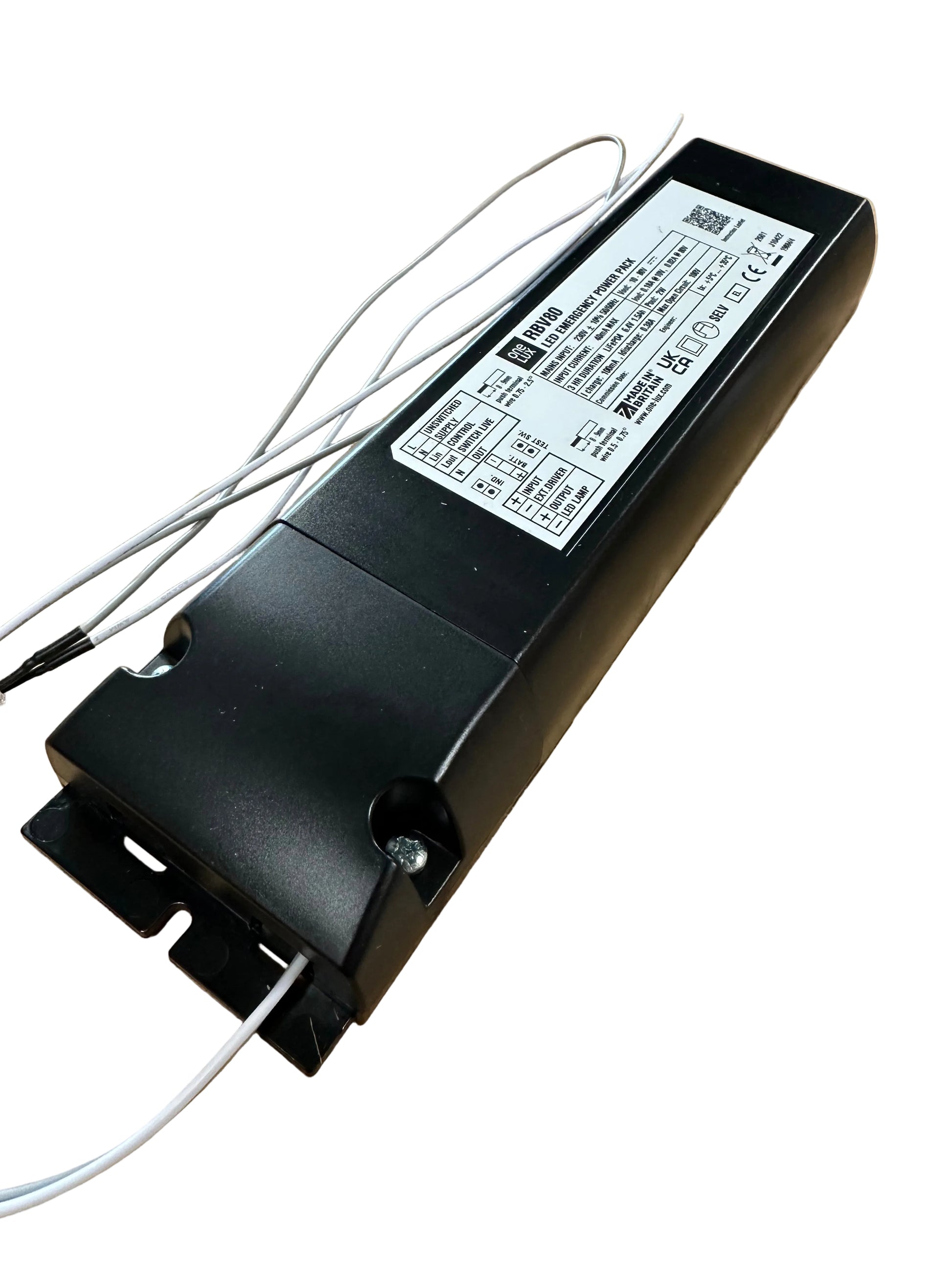

One-Lux LED Versatile Remote RBV80 10-80V 1.6Ah LiFePO4 2W

One-Lux LED Versatile Remote RBV80 10-80V 1.6Ah LiFePO4 2W

Replaces RBV80/2/M3

Product description
LED Versatile RemoteM is an effective solution for emergency conversion of luminaires using LED arrays. The compact, robust housing is supplied containing our LED emergency driver, re-chargeable LiFePO4 battery and connection terminals. A removable end cover provides easy access for wiring and its compact, low-profile design allows installation through a ceiling cut-out of just 75mm diameter. This product offers an emergency solution for a wide range of applications and can be used with a separate mains driver for Maintained applications. It is also available pre-wired with cable assemblies for simple ‘plugand-play’ convenience. British designed and manufactured emergency driver technology will run LED lamps or arrays from 10V – 80V, so making it easy to convert your existing LED luminaire without the need for separate ‘emergency’ LEDs or connectors.

Features

• Ideal for use with LED panels or down-lights
• Emergency output power options (Typical): 2W
• Green charge indicator LED with 500mm leads and bezel (OB1)
• Suitable for use with solid or stranded cables 0.2-1.5mm²
• Molded in black UL94_V0 rated Polycarbonate
• Options for 3 pole full isolation of lamp & mains driver power during emergency available.
• Driver complies with: EN61347-1, EN61347-2-7, EN55015, EN61000-3-2, EN61547
• Conforms to EN60598-1 & EN60598-2-22
• Input Supply Voltage 230V +/- 10%

• Supply Frequency 50/60 Hz

• LED Voltage Range 10 - 80V DC

• Battery Type 1.6Ah LiFePO4

• Ambient Temperature Range 5 - 35°C

• IP Rating IP20

• Earth Leakage Current N/A

• Weight 0.3kg(2W)

• Dimensions (mm) 245(l) x 67(w) x 32(h)

• Minimum Ceiling Cut-out Size 75mm Diameter

One-Lux RBV80
