One-Lux OL55/3W/M3/LFP/SS/DST 12-55V 3W DALI/Self-Test LED EM Kit c/w 3.2V 4.4Ah LiFePO4 Battery

One-Lux OL55/3W/M3/LFP/SS/DST 12-55V 3W DALI/Self-Test LED EM Kit c/w 3.2V 4.4Ah LiFePO4 Battery

Omni-LED-LFPTM is a range of Maintained emergency lighting conversion modules for use with One-LUX LiFePO4 batteries. They are housed in a compact low-profile enclosure and suitable for use in either internal or remote self-contained applications. Their constant-power emergency driver technology with a SELV isolated output will run almost any LED lamp or array in the range of 12V – 55VDC, so making it easy to produce an emergency version of your existing LED luminaire without the need for separate ‘emergency’ LEDs or connectors. This version offers 3W of emergency power and for 1 or 3 hour autonomy.

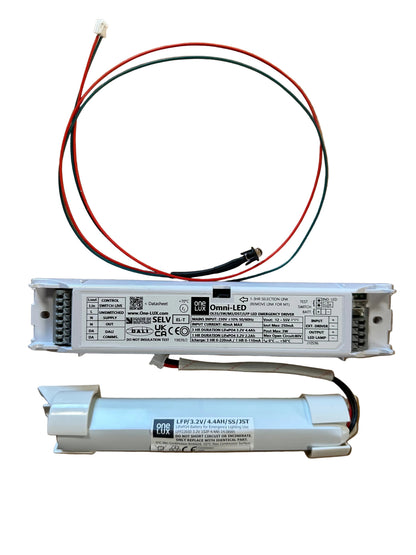

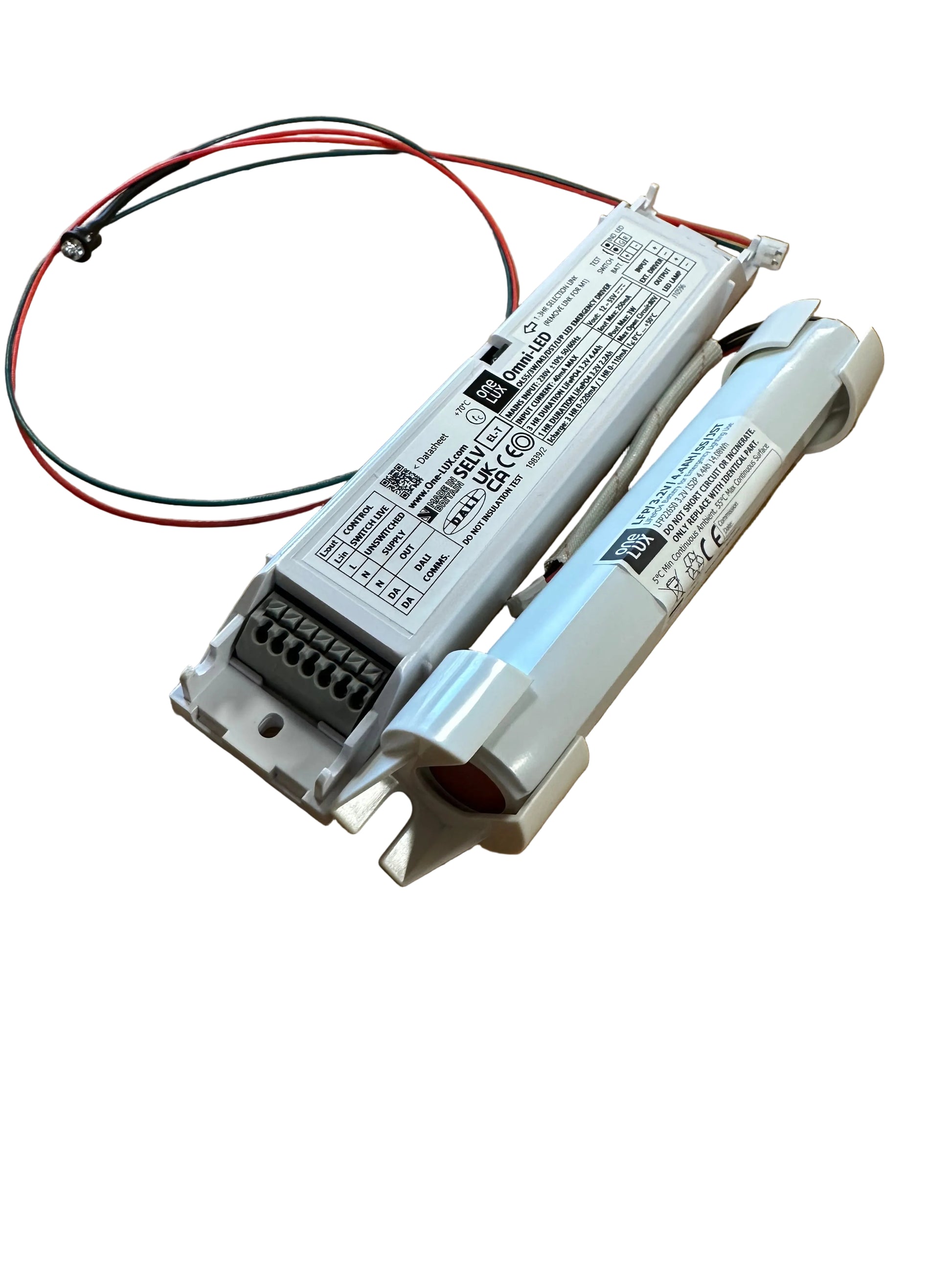

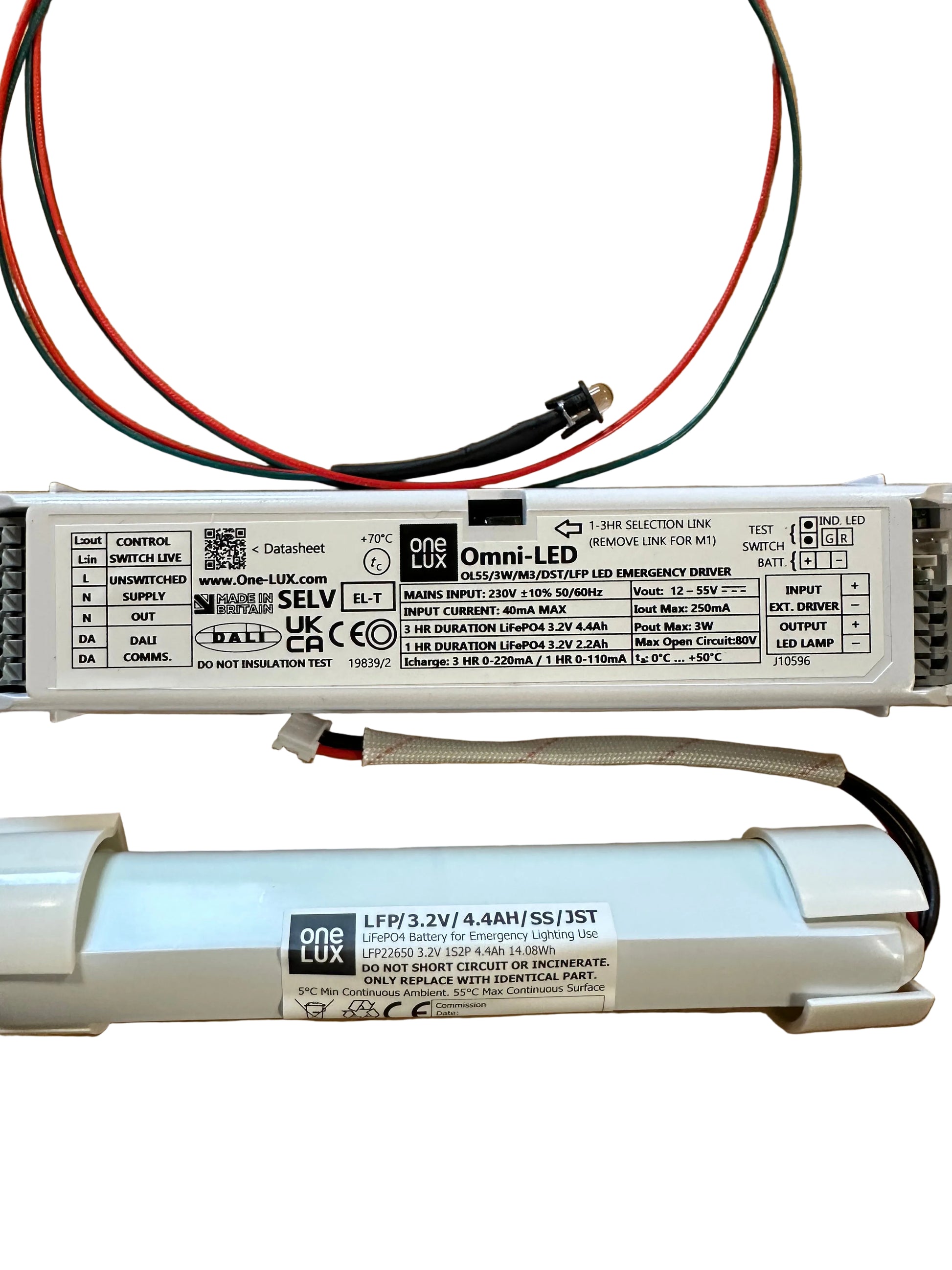

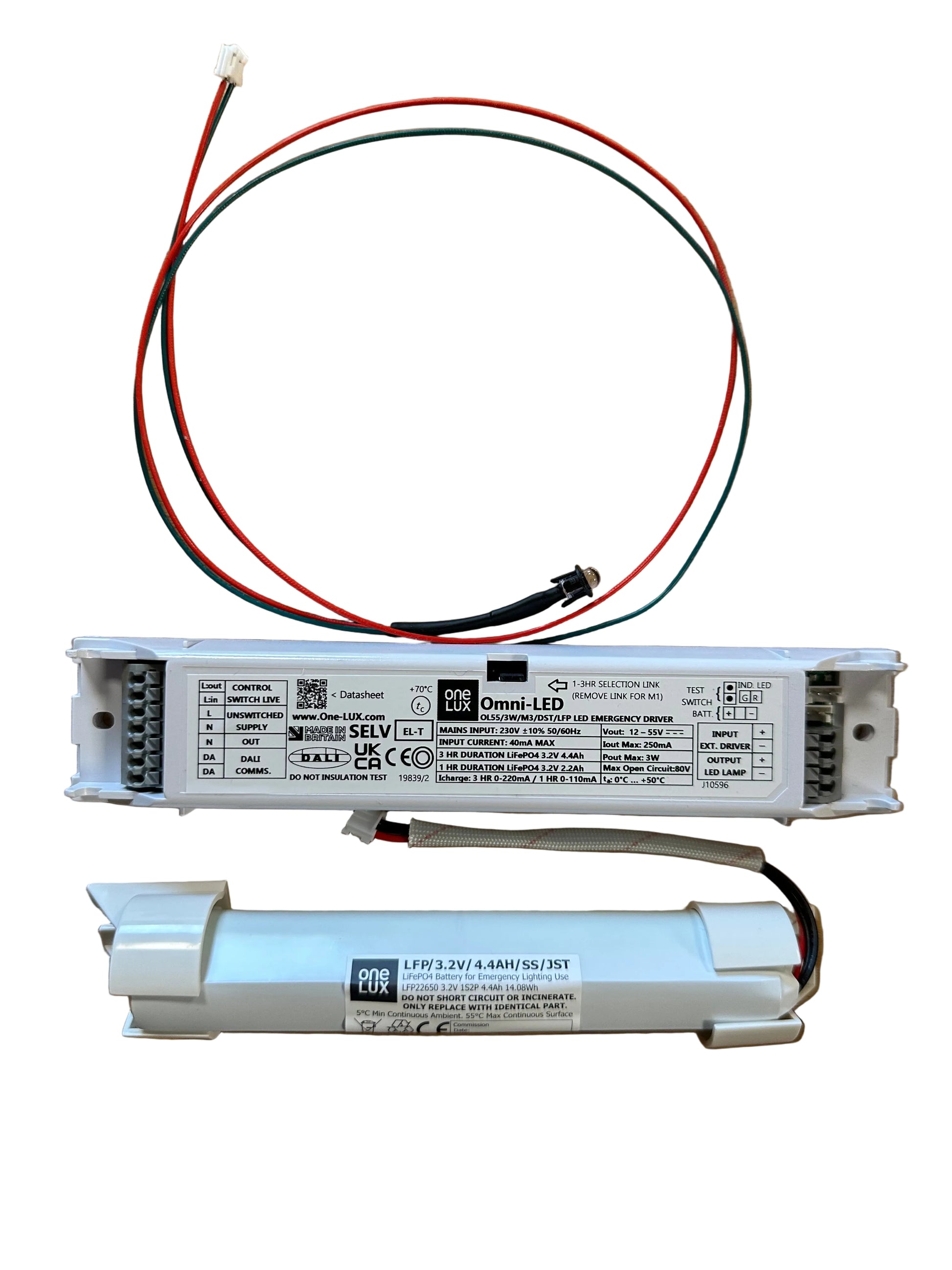

• Supplied as a kit with a LiFePO4 battery, end caps and a 500mm high-bright indicator LED.

• With DALI-2 & Self-Test functionality

• Wide range of lamp voltage and power options available

• 3-pole switching provides full isolation of lamp connections and mains driver’s power supply during emergency operation

• Universal module with user-selectable 1 or 3 hour autonomy

• Constant-current charger with short-circuit protection and polarised battery socket

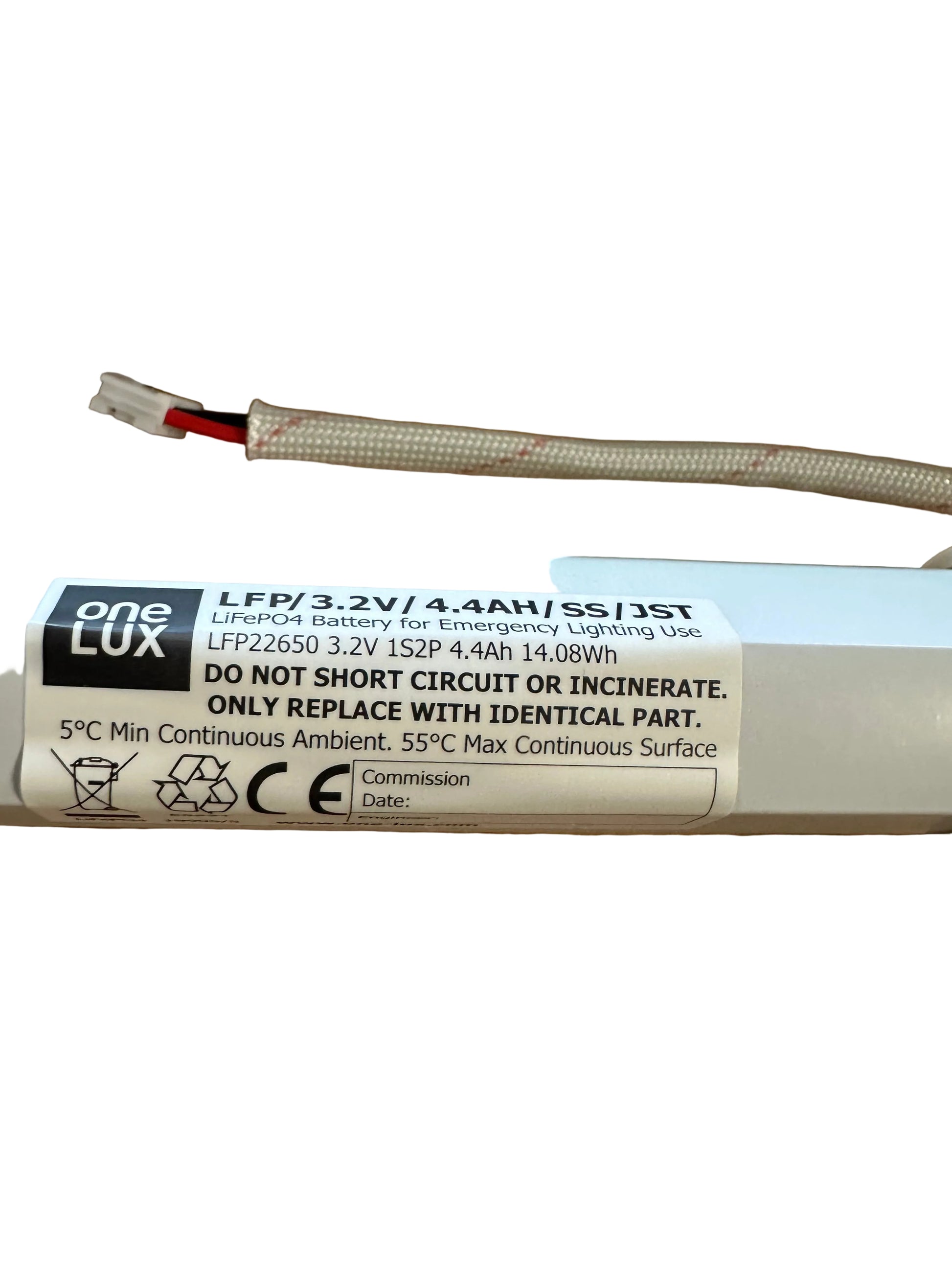

• Batteries include voltage, current and thermal protection with UN38.3 approval.
• Input for optional manual low-voltage emergency test switch
• Additional side fixing points allows mounting in restricted spaces

• Designed and manufactured in Great Britain

• Complies with: EN61347-1, EN61347-2-7, EN61347-2-13, EN55015, EN61000-3-2, EN61547, & EN 62034, EN 62386 for D2ST versions. UN38.3 (Batteries)

• Suitable for luminaires conforming to EN60598-2-22

• Suitable for installations to EN50172
