One-Lux RBF55/4W/M3/LFP Omni-LED FLEXI 9-55V 6.4V 3.6Ah LiFePO4 4W

One-Lux RBF55/4W/M3/LFP Omni-LED FLEXI 9-55V 6.4V 3.6Ah LiFePO4 4W

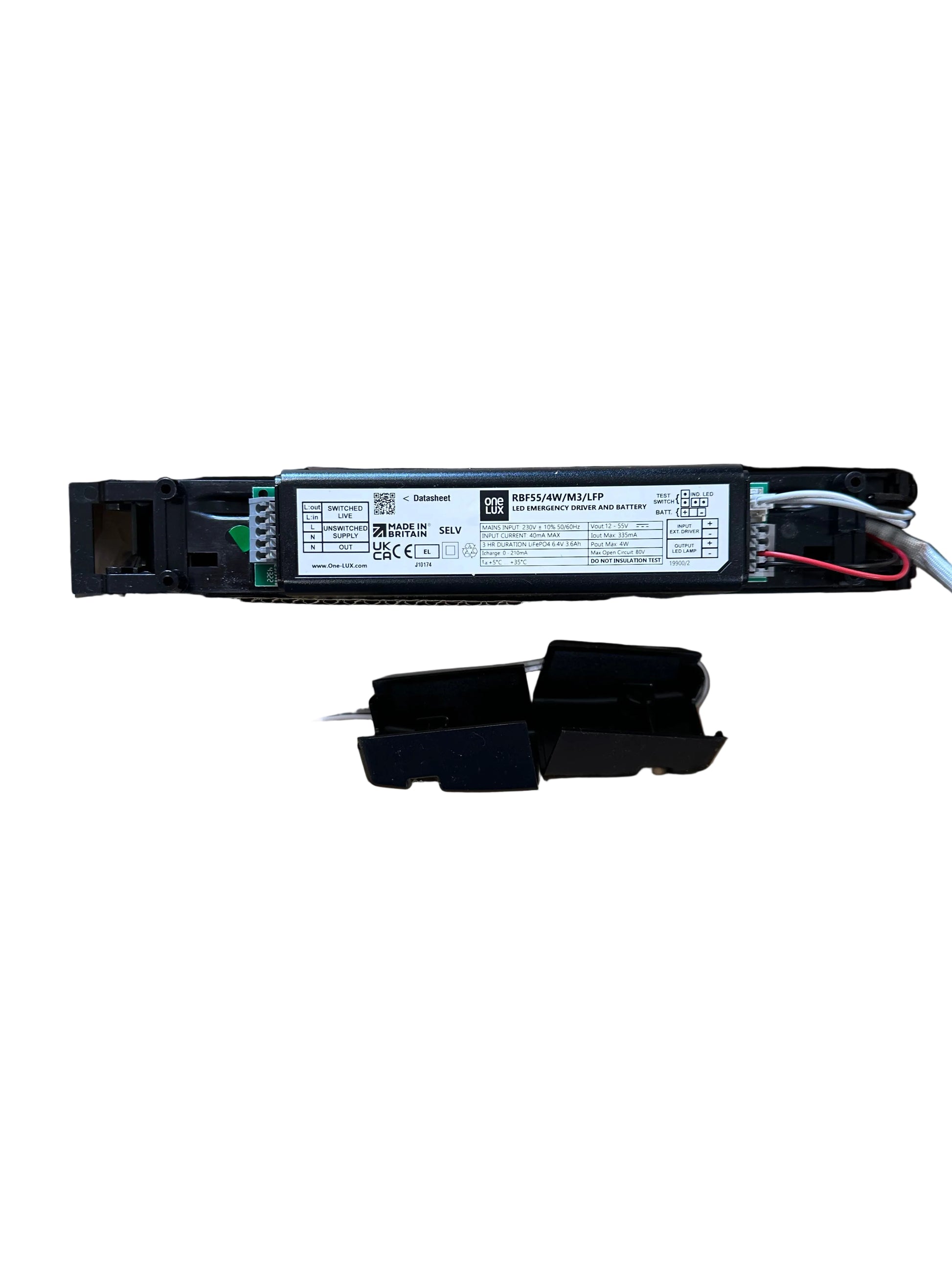

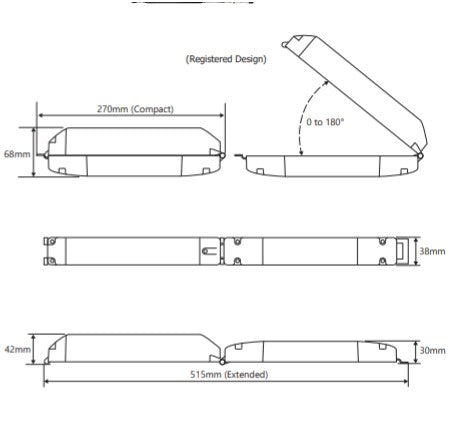

Omni-LED FLEXITM is an effective solution for emergency conversion of luminaires using LED arrays. The compact, robust housing is supplied containing our Omni-LEDTM emergency driver, re-chargeable battery and connection terminals. Removable end covers provide easy access for wiring and its articulated design allows installation through a ceiling cut-out of just 55mm diameter. This product offers an emergency solution for a wide range of applications and can be used with a separate mains driver for Maintained applications. It is also available pre-wired with cable assemblies for simple ‘plug-and-play’ convenience. Omni-LEDTM constant-power driver technology will run LED lamps or arrays from 9V – 55V, so making it easy to produce an emergency version of your existing LED luminaire* without the need for separate ‘emergency’ LEDs or connectors.

Features

• Ideal for use with LED panels or downlights
• 3 pole isolation of lamp & mains driver power during emergency*
• 3 hour operation using Nickel Metal Hydride
• Mating panel plug & socket connections available on request
• Also available with DALI Self-Test functionality
• Emergency output power 4W
• Green charge indicator LED with 750mm leads and bezel (OB1)
• Suitable for use with solid or stranded cables 0.2-1.5mm²
• Molded in black UL94_V0 rated Poly carbonate
• Driver complies with: EN61347-1, EN61347-2-7, EN55015, EN61000-3-2, EN61547
• Conforms to EN60598-1 & EN60598-2-22
